Simplicity 3539 Guía de configuración

Attachment

Illustrated

Parts List

Rev. 12/2002

500 N. Spring Street / PO Box 997

Port Washington, WI 53074-0997 USA

www.simplicitymfg.com

MANUFACTURING, INC.

. No. Descri

tion

Attachment

1694267 Quad Bagger Dump Cart

Quad Bagger Dump Cart

NOTE: Unless noted otherwise,

use the standard hardware torque

specification chart.

Hitch -

Prestige / 1800 / 2800 / GT Series &

Conquest / 1700 / 2700 /YT Series

Tractor Rear

Frame Wrapper

Hitch -

Broadmoor / 1600 / 2600 Series

DECAL

Rear Tractor Frame

986146

The above parts group applies to the following Mfg. Nos.:

2003 1

1694267 - Quad Ba

TP 400-3539-00-AT-SMA

PART NO. DESCRIPTIONREF NO. QTY.

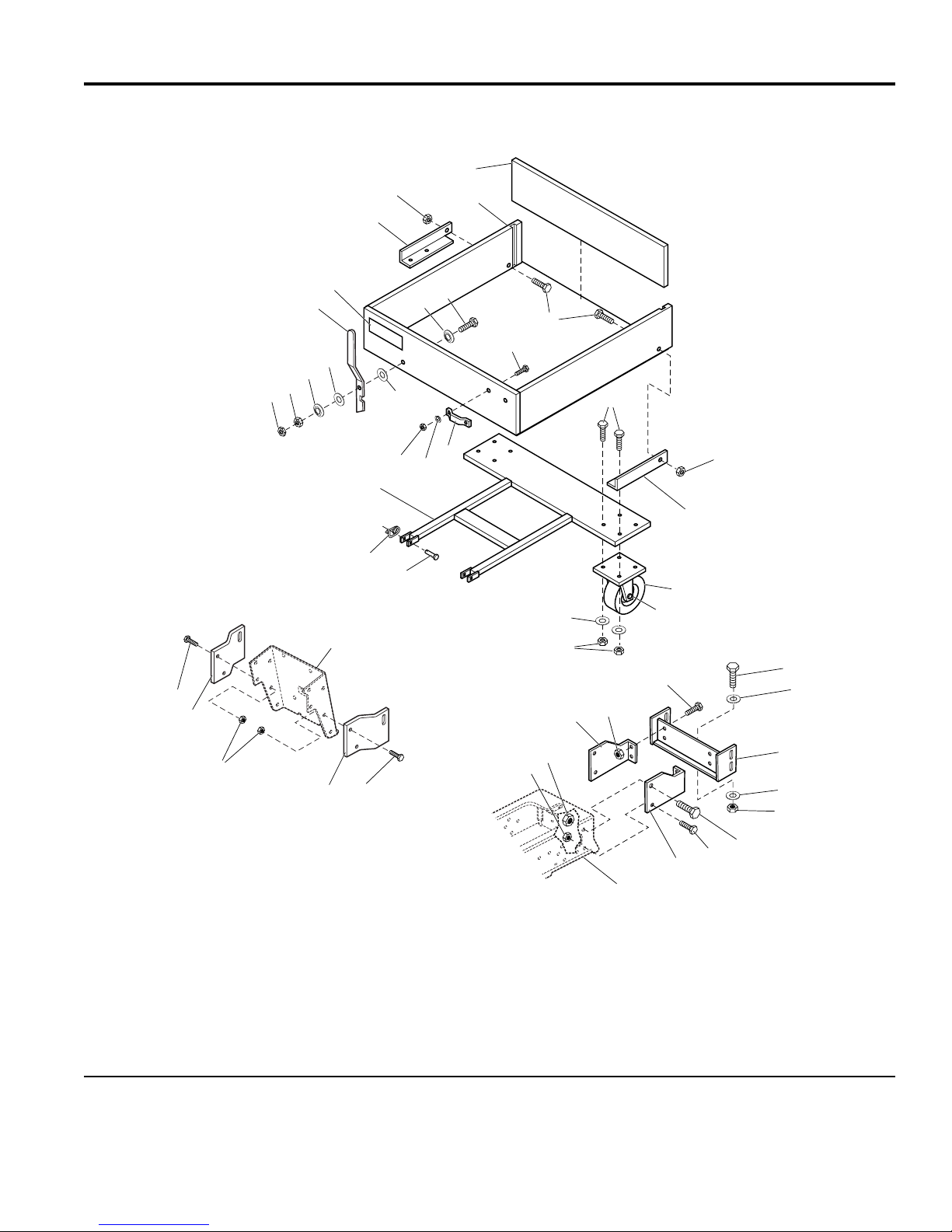

Quad Bagger Dump Cart

Footnotes

1 1708239 1 TAILGATE

2 1703338 1 BOX, Cart

3 1930644 2 LOCKNUT, Two-Way, 1/2-13

4 1703335 1 BRACKET, Hinge, RH

5 1700765 1 HANDLE, Latch

6 1920161 1 NUT, Jam, 5/16-18

7 1917372 1 NUT, 5/16-18

8 177649 2 WASHER, Compression, 5/16

9 1919326 2 WASHER, 5/16

10 1921977 1 CAPSCREW, 5/16-18 x 1-1/4

11 1923114 4 CAPSCREW, Hex Head, 1/2-13 x 1

12 1921958 2 CAPSCREW, Hex Head, 1/4-20 x 1/2

13 1700768 1 HANDLE, Lift

14 1916964 2 LOCKWASHER, 1/4

15 1916622 2 NUT, 1/4-20

16 1703336 1 FRAME

17 176012 2 SAFETY CLIP

18 102004 2 PIN, Round Head, 1/2 x 1-1/2

19 1930651 14 LOCKNUT, Center Lock, 3/8-16

20 1924940 8 WASHER, 3/8

21 1676892 2 WHEEL ASSEMBLY, (Includes Item # 31)

22 1703334 1 BRACKET, Hinge, LH

23 1921210 14 CAPSCREW, 3/8-16 x 1

24 1723888 1 BRACKET, Hitch, LH

25 1723887 1 BRACKET, Hitch, RH

26 1918431 2 WASHER, 1/2

27 1723884 1 ADAPTER, Hitch, LH

28 1723885 1 ADAPTER, Hitch, RH

29 1922134 3 LOCKNUT, Center Lock, 1/2-13

30 1723883 1 HITCH

31 * 1 DECAL, No Riders, Max. Weight 300 Lbs.

32 1921176 1 CAPSCREW, Hex Head, 1/2-13 x 1-1/4

33 1712288 2 BEARING, Wheel

* Not a Service Part.

The above parts group applies to the following Mfg. Nos.:

2003 2

1694267 - Quad Ba

TP 400-3539-00-AT-SMA

Torque Specification Chart

FOR STANDARD MACHINE HARDWARE (Tolerance ± 20%)

Hardware

Grade

SAE Grade 2 SAE Grade 5 SAE Grade 8

Size Of

in/lbs in/lbs

in/lbs

Hardware ft/lbs Nm. ft/lbs Nm. ft/lbs Nm.

8-32

2.1

3.4

4.6

8-36

2.3

3.5

4.9

10-24

3.1

4.9

6.8

10-32

3.5

5.5

7.7

1/4-20

7.6 810.9 12 16.3

1/4-28

8.6 10 13.6 14 19.0

5/16-18 11 15.0 17 23.1 25 34.0

5/16-24 12 16.3 19 25.8 27 34.0

3/8-16 20 27.2 30 40.8 45 61.2

3/8-24 23 31.3 35 47.6 50 68.0

7/16-14 30 40.8 50 68.0 70 95.2

7/16-20 35 47.6 55 74.8 80 108.8

1/2-13 50 68.0 75 102.0 110 149.6

1/2-20 55 74.8 90 122.4 120 163.2

9/16-12 65 88.4 110 149.6 150 204.0

9/16-18 75 102.0 120 163.2 170 231.2

5/8-11 90 122.4 150 204.0 220 299.2

5/8-18 100 136 180 244.8 240 326.4

3/4-10 160 217.6 260 353.6 386 525.0

3/4-16 180 244.8 300 408.0 420 571.2

7/8-9 140 190.4 400 544.0 600 816.0

7/8-14 155 210.8 440 598.4 660 897.6

1-8 220 299.2 580 788.8 900 1,244.0

1-12 240 326.4 640 870.4 1,000 1,360.0

Hex Head Capscrew

Hex Nut

Lockwasher

Washer

Carriage Bolt

NOTES

1. These torque values are to be used for all hardware

excluding:locknuts, self-tapping screws, thread forming

screws, sheet metal screws and socket head setscrews.

2. Recommended seating torque values for locknuts:

a. for prevailing torque locknuts - use 65% of grade 5

torques.

b. for flange whizlock nuts and screws - use 135% of

grade 5 torques.

3. Unless otherwise noted on assembly drawings, all torque

values must meet this specification.

Hardware Identification & Torque Specifications

Common HardwareTypes

Screw, 1/2 x 2

Body

Diameter

Body

Length

Inside

Diameter

Nut, 1/2”

Marks

3/8”Bolt or Nut

Wrench—9/16”

3/8

5/16”Bolt or Nut

Wrench—1/2”

5/16

1/4”Bolt or Nut

Wrench—7/16”

1/4

1/2”Bolt or Nut

Wrench—3/4”

1/2

DIA.

7/16

DIA.

7/16”Bolt or Nut

Wrench (Bolt)—5/8”

Wrench (Nut)—11/16”

Wrench & Fastener Size Guide

Standard Hardware Sizing

When a washer or nut is identified as 1/2”, this is the

Nominal size

, meaning the

inside diameter

is 1/2 inch; if a

second number is present it represent the

threads per inch

When bolt or capscrew is identified as 1/2 - 16 x 2”, this

means the

Nominal size

, or

body diameter

is 1/2 inch; the

second number represents the

threads per inch

(16 in this

example, and the final number is the

body length

of the

bolt or screw (in this example 2 inches long).

The guides and ruler furnished below are designed to

help you select the appropriate hardware and tools.

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2

1/4 3/4

1/2
