Si82xx-EVB UG

Si82XX EVALUATION BOARD USER’S GUIDE

1. Introduction

The Si823x isolated driver family combines two independent isolated drivers into a single package. The Si8230/1/

3/4 are high-side/low-side drivers, and the Si8232/5/6 are dual drivers. Versions with peak output currents of 0.5 A

(Si8230/1/2) and 4.0 A (Si8233/4/5/6) are available. The Si8220/21 is a high-performance functional upgrade for

opto-coupled drivers, such as the HCPL-3120 and the HPCL-0302 providing 2.5 A of peak output current. These

ISOdrivers utilize Silicon Laboratories' proprietary silicon isolation technology, which provides a choice of 2.5, 3.75,

or 5.0 kVrms withstand voltages. All drivers operate with a maximum output supply voltage of 24 V. High

integration, low propagation delay, small installed size, flexibility, and cost-effectiveness make the family ideal for a

wide range of isolated MOSFET/IGBT gate drive applications.

The Si82xx evaluation board allows designers to evaluate Silicon Lab's family of ISOdrivers. The boards come

populated with 5 kVrms versions of the Si8220, Si8233, Si8234, and Si8235. The board includes land pads for

common surface mount and through-hole packaged FET/IGBT power transistors. The board also includes patch

area for additional prototyping that can be used to accommodate any load configuration a designer might need to

evaluate. For more ISOdriver information, visit Silicon Labs web site at www.silabs.com/isolation. The product data

sheet and numerous application notes can be referenced to help facilitate designs.

Si82xx-EVB UG

2 Rev. 0.1

2. Kit Contents

The Si82xx Evaluation Kit contains the following items:

Si82xx-based evaluation board (Si82xx-EVB) shown in Figure 1.

Si8220, Opto-input, 2.5 A, 5 kV ISOdriver

Si8233, 2-input, 4 A, 5 kV, High-Side/Low-Side ISOdriver

Si8234, PWM-input, 4 A, 5 kV High-Side/Low-Side ISOdriver

Si8235, 2-input, 4 A, 5 kV Dual ISOdriver

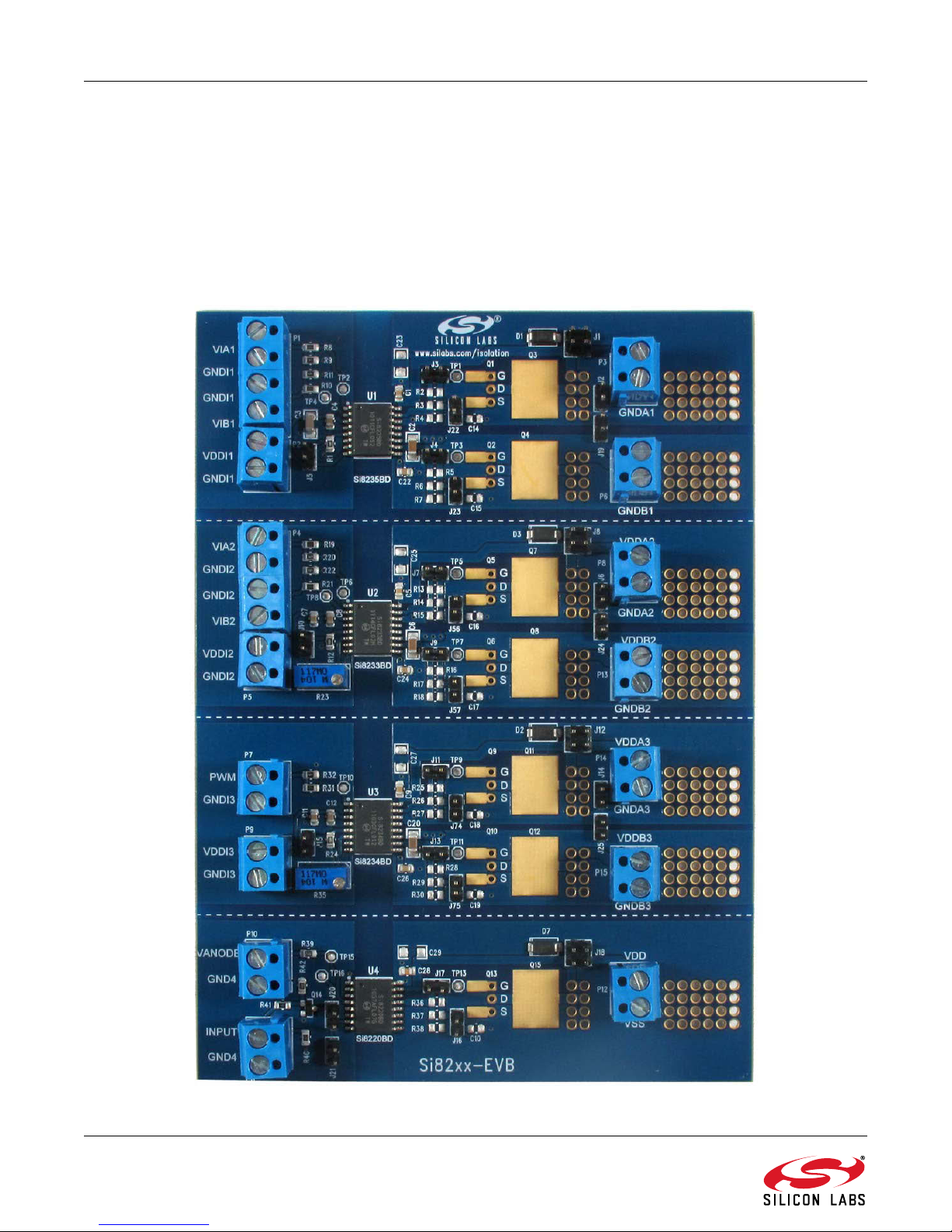

Figure 1. Si82xx Evaluation Board Overview

Si82xx-EVB UG

Rev. 0.1 3

3. Si82xx ISOdriver Board Overview

The Si82xx evaluation board is populated with the following ISOdrivers:

Si8220 in wide-body SOIC-16 package, opto-input, 2.5 A, 5 kV ISOdriver

Si8233 in wide-body SOIC-16 package, 2-input, 4 A, 5 kV High-Side/Low-Side ISOdriver

Si8234 in wide-body SOIC-16 package, PWM-input, 4 A, 5 kV High-Side/Low-Side ISOdriver

Si8235 in wide-body SOIC-16 package, 2-input, 4 A, 5 kV Dual ISOdriver

High-side and low-side land pads for surface mount packaged FET/IGBT power transistors (not populated)

High-side and low-side land pads for through-hole packaged FET/IGBT power transistors (not populated)

Patch area

The Si82xx board is four separate evaluation boards in one, with each section featuring a different ISOdriver

(Si8220, Si8233, Si8234, or Si8235). Each section is isolated from the other sections and requires its own power

supplies to power the given section's ISOdriver. Each section's ISOdriver is designed to be powered separately

with input supplies for VDDI (5.5 V, 500 mA) and output supplies for VDDA, VDDB, or VDD up to 24 V. The user is

expected to connect their desired drive-trane topology and load to the outputs of the appropriate ISOdriver and the

patch area. Figure 2 shows a silkscreen overview of the board.

Please note the voltage rating for the prepopulated components in the Si82xx BOM section of this document before

applying power to the ISOdriver and customer specific driver-trane. Applying a voltage to a component that is

higher than its rating can cause permanent device damage. If the install components do not meet the user's

requirements, these components need to be replaced before proceeding. Moreover, if a user wants to evaluate an

ISOdriver in a wide-body package other than the ones populated, this can be accomplished by removing the

footprint-compatible device installed on the evaluation board and replacing it with the desired footprint-compatible

ISOdriver.

Si82xx-EVB UG

4 Rev. 0.1

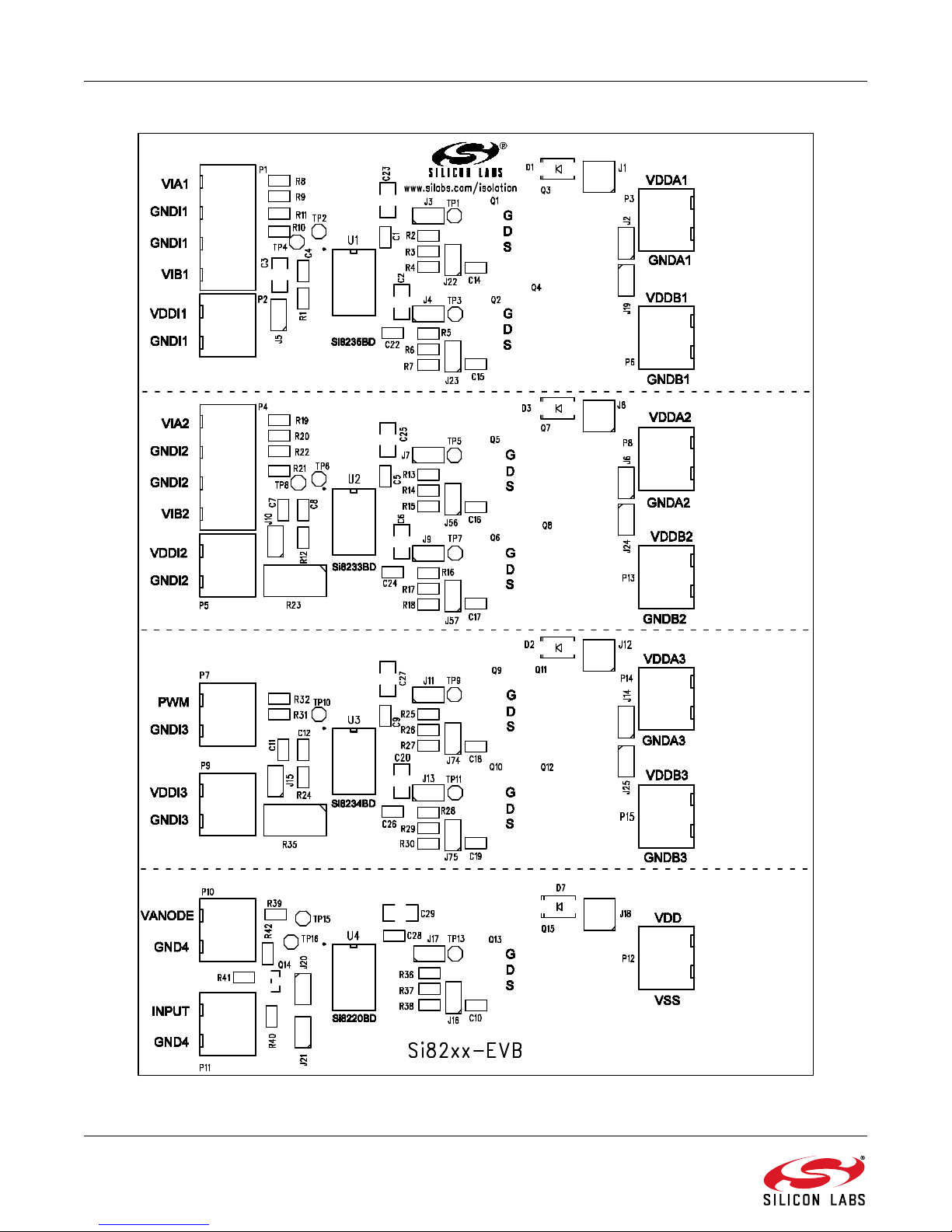

Figure 2. Si82xx Evaluation Board Silkscreen

Si82xx-EVB UG

Rev. 0.1 5

3.1. Si82xx ISOdriver Board Test

Figure 3 illustrates the Si8234 with VDDI powered from 5 V and VDDA and VDDB powered from 15 V. A 10 kHz

signal is applied to the Si8234's PWM input. As shown, the Si8234 transmits a 10 kHz signal to VOA and VOB

(Channel 3 illustrates VOA output, and Channel 2 illustrates VOB output). Note that VOA and VOB are 180° out of

phase, as would be expected of a PWM driver. In this setup, no drive-trane was connected to the outputs (VOA and

VOB) of the Si8234. Nevertheless, the potentiometer, R35, can be adjusted to dynamically change the dead-time

of the Si8234 if desired. Duplicating this setup is an excellent test to become familiar with the evaluation board. To

repeat this test, perform the following steps:

1. Install a shunting jumper to J12 (Position 1, 2).

2. Install a shunting jumper to J14.

3. Install a shunting jumper to J11.

4. Install a shunting jumper to J13.

5. Connect a 5 Vp-p square wave to P7.

6. Connect a 5 V (100 mA) supply to P9.

7. Connect a 15 V (100 mA) supply to P14.

8. Connect a 15 V (100 mA) supply to P15.

9. Connect a scope probe to TP9 to view VOA.

10.Connect a scope probe to TP11 to view VOB.

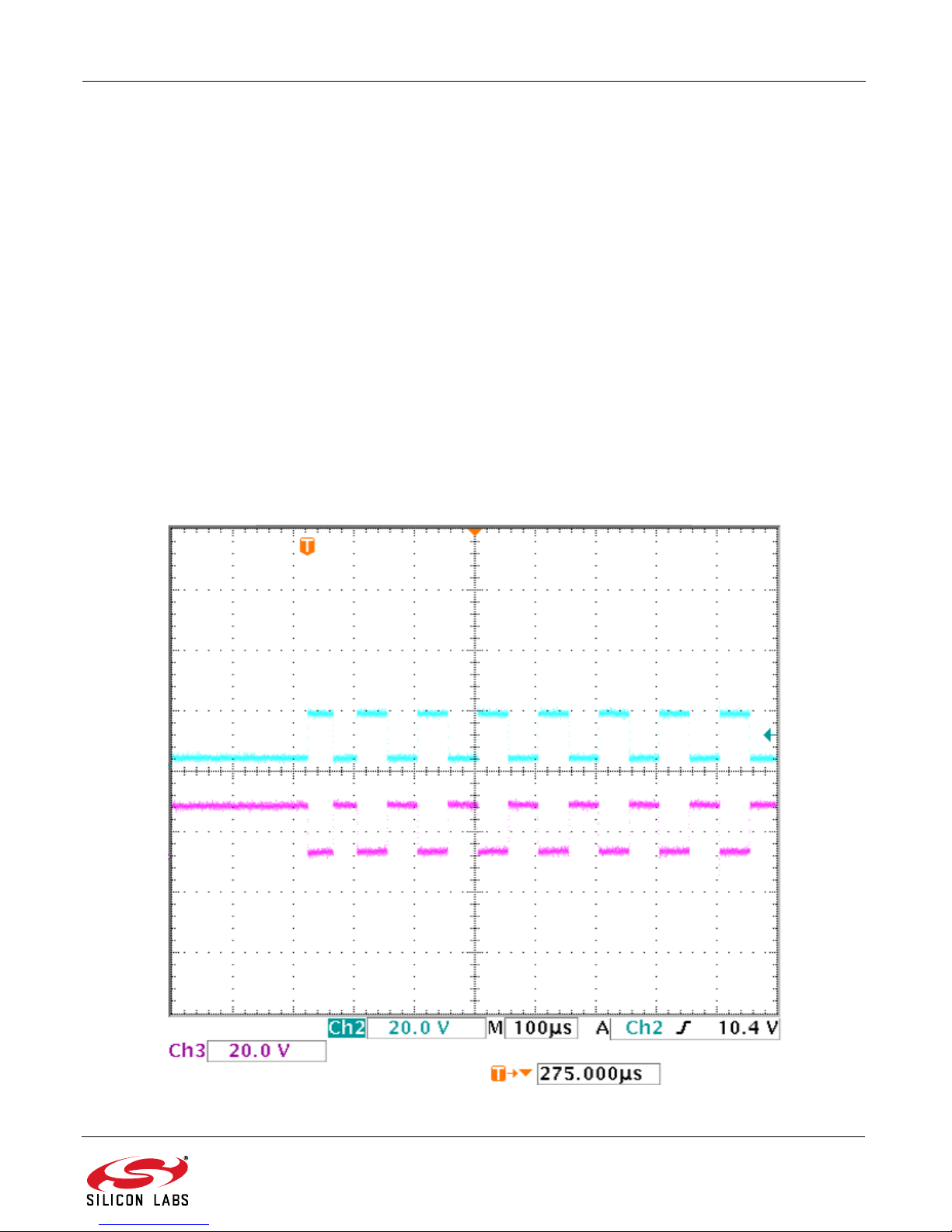

Figure 3. Si8234 PWM Outputs

Si82xx-EVB UG

6 Rev. 0.1

4. Si82xx Evaluation Board Schematics

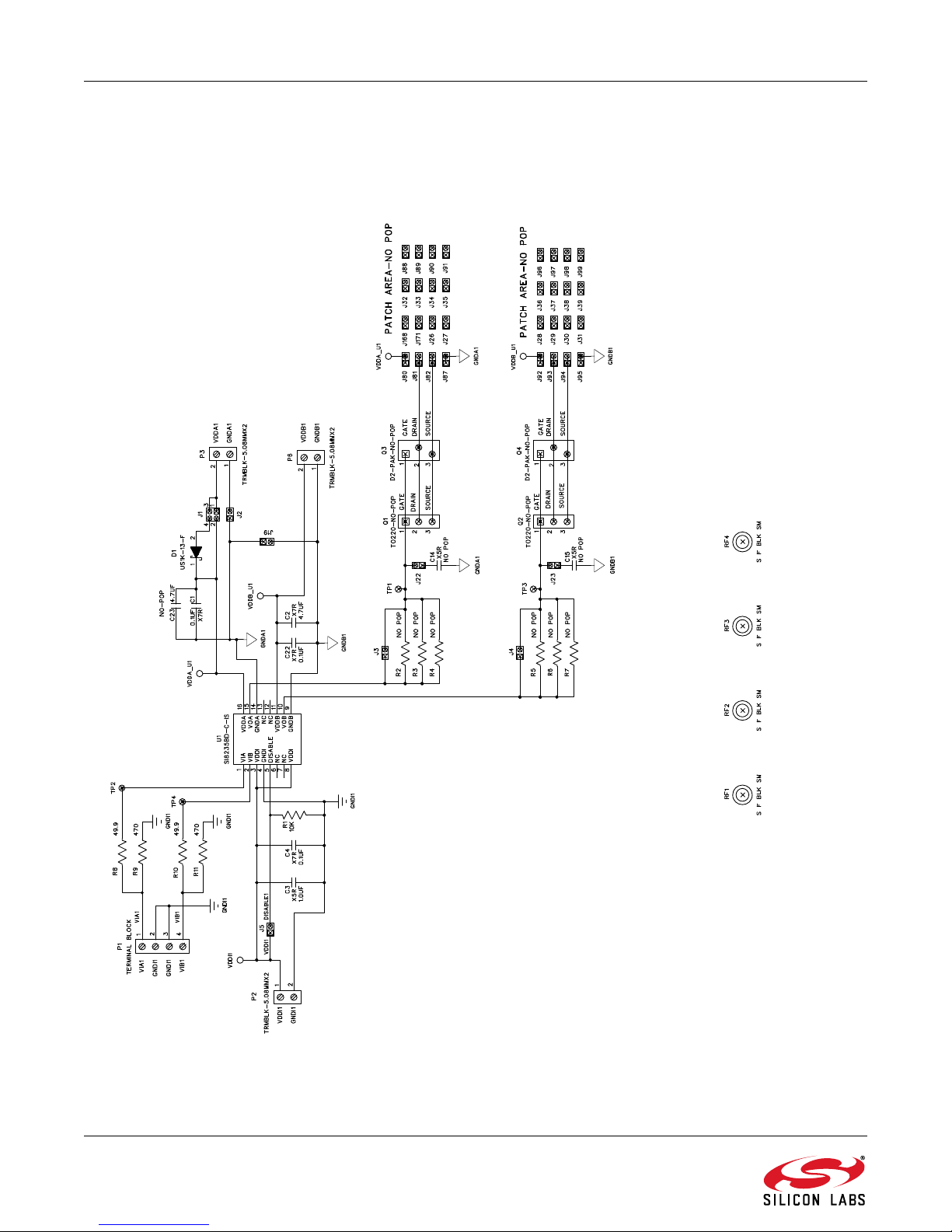

Figure 4. Si82xx Evaluation Board Schematic (1 of 4)

Si82xx-EVB UG

Rev. 0.1 7

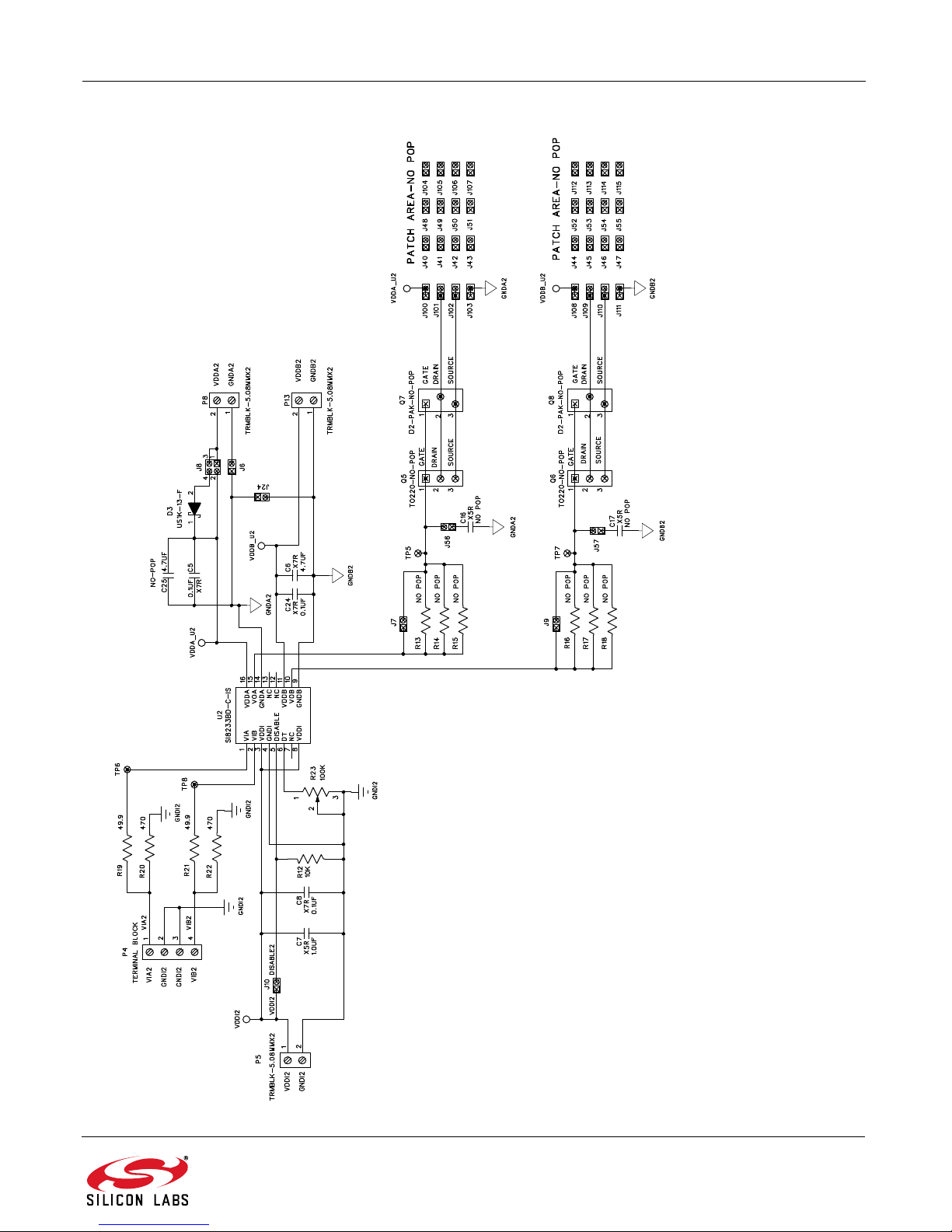

Figure 5. Si82xx Evaluation Board Schematic (2 of 4)

Si82xx-EVB UG

8 Rev. 0.1

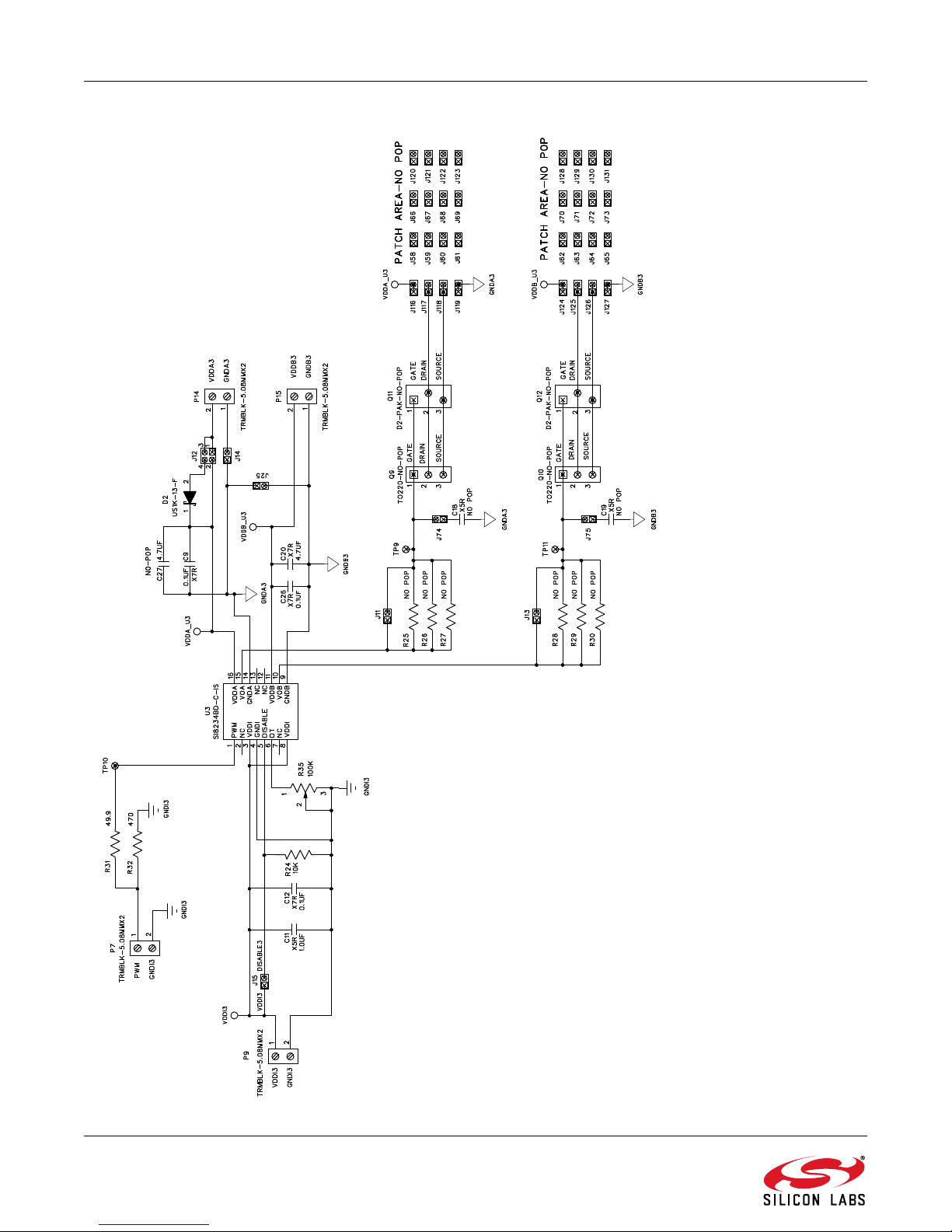

Figure 6. Si82xx Evaluation Board Schematic (3 of 4)

Si82xx-EVB UG

Rev. 0.1 9

Figure 7. Si82xx Evaluation Board Schematic (4 of 4)

Si82xx-EVB UG

10 Rev. 0.1

5. Si82xx Evaluation Board Layout

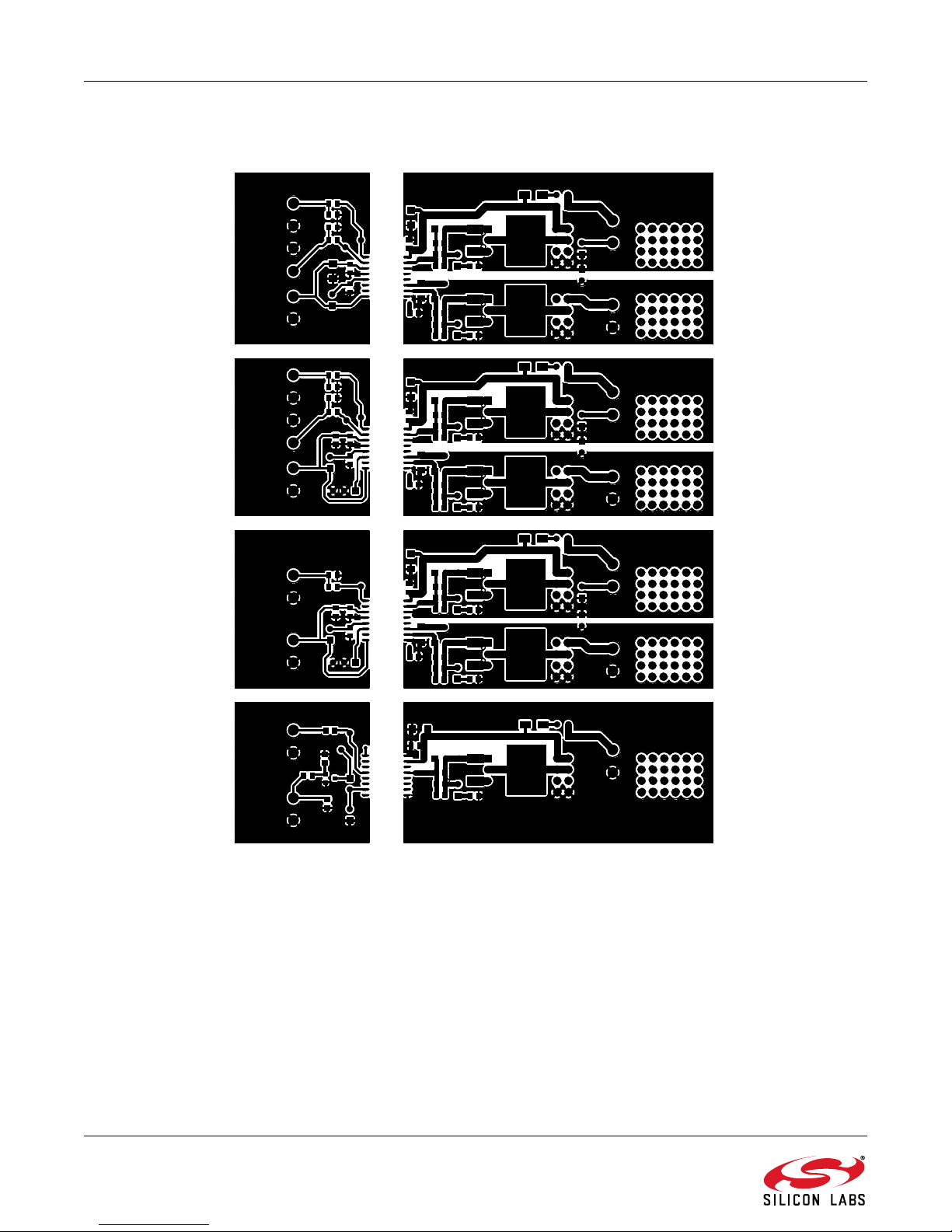

Figure 8. Si82xx Top Layer
