Silicon Laboratories EFR32xG21 Wireless Gecko Manual de usuario

Secure Debug Lab Worksheet

This lab goes through the provisioning, secure debug lock and

unlock of EFR32xG21 devices.

1. Plug in your EFR32xG21 Wireless Starter Kit.

2. Device provisioning.

3. Secure debug Lock and unlock.

KEY POINTS

• Follow a few simple steps to provision

your EFR32xG21 device.

• Use Simplicity Studio to perform secure

debug lock and unlock.

silabs.com | Building a more connected world. Rev. 0.1

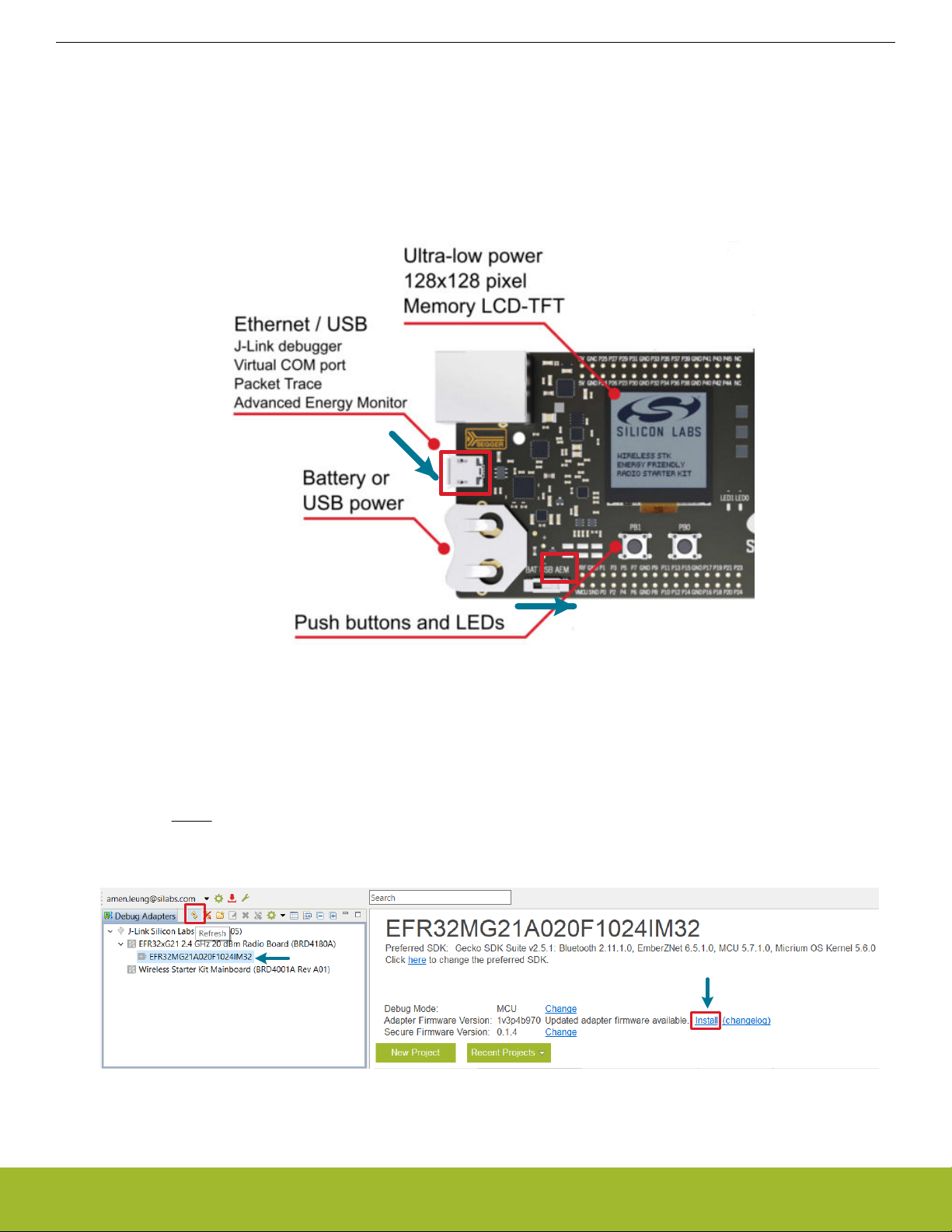

1. Getting Started

Simplicity Studio v4 with EFR32xG21 support must already be installed.

1. Setup your kit

a. Provide power to the EFR32xG21 WSTK board by connecting the USB J-Link debugger connector to the PC using the pro-

vided USB cable.

b. Move the Power Source Select switch to the AEM position.

2. Detect your device

a. Click [Refresh] button if the WSTK information does not display. The board may take some time to appear due to driver instal-

lations for the debug adapter.

b. Click the EFR32xG21 2.4 GHz 20 dBm Radio Board (BRD4180A). This will verify that the installation was successful, identify

the device on the kit hardware, and automatically configure the software tools for use with your device. It may use a different

EFR32xG21 radio board (e.g. BRD4181A) on your lab.

c. Click the Install link (if appear) to update the Adapter Firmware (version 1v3p4b970 or above) and Secure Firmware (ver-

sion 0.1.4 or above). You can install the updated adapter (S1015B_wireless_stk_firmware_package_1v4p0b1016.emz) and

secure firmware (s2c1_se_fw_upgrade_app_0v1p4.hex) from the USB flash drive if you cannot install them from the internet.

Secure Debug Lab Worksheet

Getting Started

silabs.com | Building a more connected world. Rev. 0.1 | 2

2. Provisioning

The provisioning is used to program the Command Key to Secure Element OTP for Secure Debug Unlock.

1. Right-click on the selected debug adapter [J-Link Silicon Labs (serial number)] to display the context menu.

2. Click the [Device configuration...] to open the device configuration window.

3. Click the [Security Settings] tab to get the selected device configuration (e.g. an unlocked device).

4. The Crypto Profile: None will display if no Crypto Profile has been selected. Click the None link to select Local Development

Crypto Profile and click [OK]. Skip this step if Crypto Profile: Local Development had already been selcted.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 3

5. Click the [Start Provisioning Wizard...] button on the right side to display the [Secure Initialization] dialog box.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 4

6. Click [Next >] to use the default configurable settings for secure initialization.

7. Click the [Get Local Development Key] button under [Command Key:] to get the Command Key from Local Development Cryp-

to Profile.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 5

8. Click [Next >] to display the [Secure Locks] dialog box.

9. Uncheck all the boxes to disable the security features.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 6

10. Click [Next >] to display the [Summary] window.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 7

11. Click the [Provision] button if the information on the [Summary] window is correct.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 8

12. Click [Yes] to proceed the provisioning process.

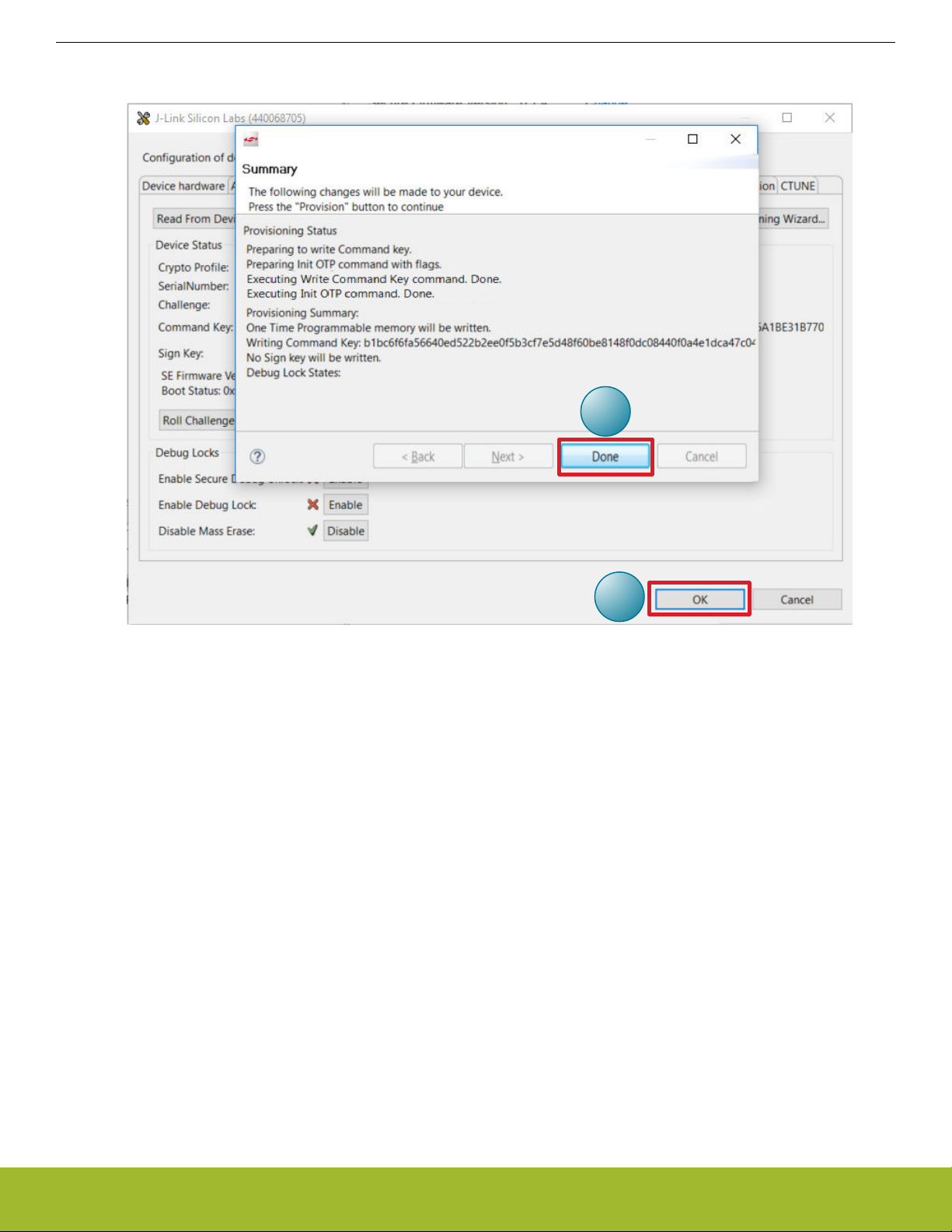

13. Click the [Done] button to finish the provisioning process.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 9

14. Click the [OK] button to exit the provisioning process.

Note: Stop and wait here until directed by the lab instructor.

Secure Debug Lab Worksheet

Provisioning

silabs.com | Building a more connected world. Rev. 0.1 | 10
