Signet 8450-2 Pressure Transmitter

CAUTION!

• Remove power to unit before wiring input

and output connections.

• Follow instructions carefully to avoid

personal injury.

Contents

1. Installation

2. Speciﬁcations

3. Electrical Connections

4. Menu Functions

Output -

Output +

System Pwr

Loop -

System Pwr

Loop +

Sensr Gnd

(SHIELD)

Sensr IN

(RED)

Sensr V+

(BLACK)

8052

92 mm

(3.6 in.)

97 mm

(3.8 in.)

56 mm

(2.2 in.)

41 mm

(1.6 in.

)

Optional

Rear

Cover

SIDE VIEW

Field Mount

96 mm

(3.8 in.)

96 mm

(3.8 in.) 96 mm

(3.8 in.)

quick-clips

gasket panel

terminals mounting

bracket

latch

Panel Mount

SIDE VIEW

FRONT VIEW

Field Mount &

Panel Mount

Installation Detail

107 mm (4.2 in.)

42 mm

(1.7 in.) 65 mm

(2.5 in.)

1. Installation

ProcessPro transmitters are available in two styles: panel mount and ﬁeld mount. The panel mount is supplied with the necessary

hardware to install the transmitter. This manual includes complete panel mounting instructions.

Field mounting requires one of two separate mounting kits. The 3-8052 integral kit joins the sensor and instrument together into a single

package. The 3-8050 Universal kit enables the transmitter to be installed virtually anywhere.

Detailed instructions for integral mounting or other ﬁeld installation options are included with the 3-8052 Integral kit or the 3-8050

Universal kit.

1.1 Panel Installation

1. The panel mount transmitter is designed for installation using a 1/4 DIN Punch. For manual panel cutout, an adhesive template is

provided as an installation guide. Recommended clearance on all sides between instruments is 1 inch.

2. Place gasket on instrument, and install in panel.

3. Slide mounting bracket over back of instrument until quick-clips snap into latches on side of instrument.

4. To remove, secure instrument temporarily with tape from front or grip from rear of instrument. DO NOT RELEASE.

Press quick-clips outward and remove.

3-8450.090-2 Rev. J 11/11 English

*3-8450.090-2*

English

Signet Pressure

Transmitter

Pressure Cal:

0.0 psi >

Relay 1 Relay 2

ENTER

China RoHS (Go to www.gfsignet.com for details)

2. Speciﬁcations

General

Compatibility: Signet 2450 Pressure Sensor

Accuracy: ±1% of full scale

Repeatability: ±0.5% of full scale

Enclosure:

• Case: PBT

• Panel case gasket: Neoprene

• Window: Polyurethane coated polycarbonate

• Keypad: Sealed 4-key silicone rubber

• Weight: Approx. 325 g (12 oz.)

Display:

• Alphanumeric 2 x 16 LCD

• Update rate: 1 second

• Contrast: User selected, 5 levels

Electrical

Sensor Input:

• Range: 0-250 psig, 0-17 bar, 0-1700 kPa

Current output:

• 4 to 20 mA, isolated, fully adjustable and reversible

• Power: 12 to 24 VDC ±10%, regulated, 21 mA max current

• Max loop impedance: 50 Ωmax. @ 12 V

325 Ωmax. @ 18 V

600 Ωmax. @ 24 V

• Update rate: 100 ms

• Accuracy: ±0.03 mA

Relay outputs (2 sets mechanical SPDT contacts):

• Maximum voltage rating: 5 A @ 30 VDC, or 5 A @ 250 VAC

resistive load

• Hi or Lo programmable with adjustable hysteresis

• Pulse programmable (maximum 400 pulses/minute)

• Hysteresis: User adjustable

Environmental

• Operating temperature: -10 to 70 °C (14 to 158 °F)

• Storage temperature: -15 to 80 °C (5 to 176 °F)

• Relative humidity: 0 to 95%, non-condensing

• Maximum altitude: 2000 m (6562 ft)

• Insulation category: II

• Rating: NEMA 4X/IP65 front

Standards and Approvals

• CE, UL listed

• Immunity: EN50082-2

• Emissions: EN55011 Class B

• Manufactured under ISO 9001 for Quality and

ISO 14001 for Environmental Management

2Signet 8450-2 Pressure Transmitter

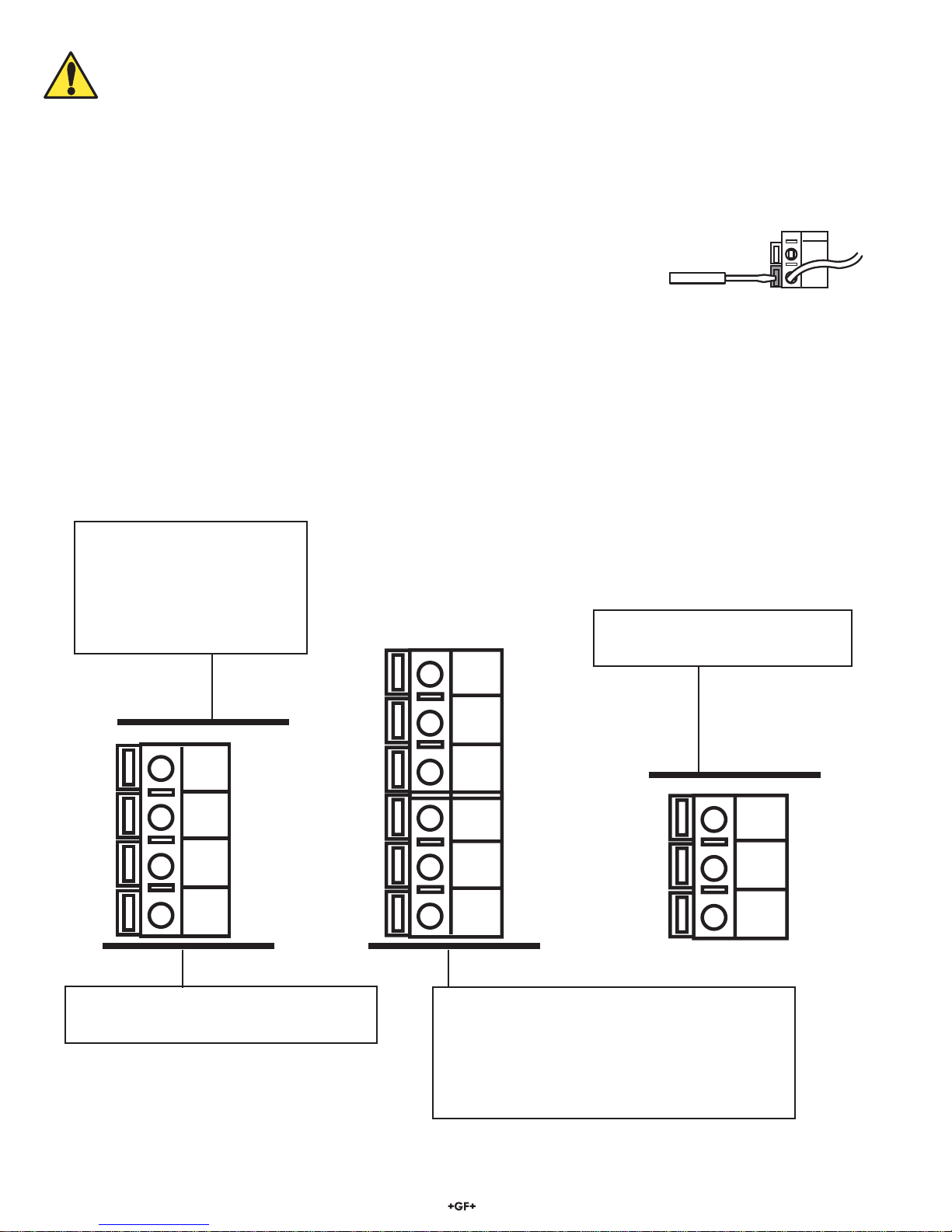

3. Electrical Connections

Caution: Failure to fully open terminal jaws before removing wire may permanently damage instrument.

Wiring Procedure

1. Remove 0.5 - 0.625 in. (13-16 mm) of insulation from wire end.

2. Press the orange terminal lever downward with a small screwdriver to open terminal jaws.

3. Insert exposed (non-insulated) wire end in terminal hole until it bottoms out.

The terminals will accomodate conductors from 14 to 22 AWG.

4. Release orange terminal lever to secure wire in place. Gently pull on each wire to ensure a good connection.

Wiring Removal Procedure

1. Press the orange terminal lever downward with a small screwdriver to open terminal jaws.

2. When fully open, remove wire from terminal.

Wiring Tips:

• Do not route sensor cable in conduit containing AC power wiring. Electrical noise may interfere with sensor signal.

• Routing sensor cable in grounded metal conduit will help prevent electrical noise and mechanical damage.

• Seal cable entry points to prevent moisture damage.

• Only one wire should be inserted into a terminal. Splice double wires outside the terminal.

• The cable length from the sensor to the transmitter must not exceed 400 ft. (122 m)

• For best performance, ground the sensor SHIELD wire to a local earth ground at a point near the sensor.

(Experiment with connecting the sensor shield wire to different local ground points to identify best signal quality.)

System Pwr

Loop -

System Pwr

Loop +

AUX

Power -

AUX

Power +

Sensr Gnd

(WHITE)

Sensr IN

(RED)

Sensr V+

(BLACK)

Relay 2

(NO)

Relay 2

(COM)

Relay 2

(NC)

Relay 1

(NO)

Relay 1

(COM)

Relay 1

(NC)

Terminals 5-10: Relay Outputs

Two sets mechanical SPDT contacts, programmable

(see CALIBRATE menu) as:

• High or Low setpoint with adjustable hysteresis

• Proportional pulse output

• May be disabled (Off) if not used.

Terminals 3 and 4: Loop Power

12-24 VDC ±10% system power

and current loop output.

• Maximum loop impedance:

50Ωmax. at 12 V

325Ωmax. at 18 V

600Ωmax. at 24V Terminals 11-13: Digital sensor input

See next page for more information.

Terminals 1 and 2: AUXILIARY power

Provides power for relay operation.

Signet 8450-2 Pressure Transmitter

3.2 System Power/Loop Connections

TerminalsWhite (Gnd)

Red (IN)

Black (V+) Signet 2450

Pressure Sensors

Signet Pressure

Transmitter

Pressure Cal:

0.0 psi >

ENTER

Transmitter

400 ft. (122 m)

3.1 Sensor Input Connections

Channel 1

4 to 20 mA in

Channel 2

4 to 20 mA in

System Pwr Loop -

System Pwr Loop +

AUX Power -

AUX Power +

System Pwr Loop -

System Pwr Loop +

AUX Power -

AUX Power +

Loop Input

4 to 20 mA

System Pwr Loop -

System Pwr Loop +

AUX Power -

AUX Power +

Loop Input

4 to 20 mA

System Pwr Loop -

System Pwr Loop +

AUX Power -

AUX Power +

System Pwr Loop -

System Pwr Loop +

AUX Power -

AUX Power +

Example: Two transmitters connected to PLC/Recorder with separate power supply

PLC or Recorder

Transmitter 1

Terminals Transmitter 2

Terminals

Power

Supply

12 to 24 VDC

Connection to a PLC with built-in power supply

Internal

PLC

Connection

Power

Supply

12 to 24 VDC

PLC Terminals

Transmitter

Terminals

Connection to a PLC/Recorder, separate supply

PLC or Recorder

Transmitter

Terminals

Power

Supply

12 to 24 VDC

Stand-alone application, no current loop used

Transmitter

Terminals

Power

Supply

12 to 24 VDC

Note: AUX (auxiliary) Power is required to power the Relays.

4Signet 8450-2 Pressure Transmitter

Signet Pressure

Transmitter

Pressure Cal:

0.0 psi >

Relay 1 Relay 2

ENTER

Hysteresis

Time

Low Setpoint

Process

Output energized

Output de-energized

Hysteresis

Time

High Setpoint

Process

VIEW menu

• During normal operation, the ProcessPro displays the VIEW menu.

• When using the CALIBRATE or OPTIONS menus, the ProcessPro will return to the VIEW menu if no

activity occurs for 10 minutes.

• To select the item you want displayed, press the UP or DOWN arrow keys. The items will scroll in a

continuous loop.

• Changing the display selection does not interrupt system operations.

• No keycode is necessary to change display selection.

• Output settings cannot be edited from the VIEW menu.

3.3 Relay Output

The relay output can be used as a switch that responds when the

process value moves above or below a setpoint.

• Low:

Output energizes when process variable is less than the setpoint.

The output will be de-energized when the process variable moves

above the setpoint plus the hysteresis value.

• High:

Output energizes when process variable is greater than the

setpoint. The output will be de-energized when the process

variable moves below the setpoint plus the hysteresis value.

• Off

The relays may be disabled if not being used.

View Menu

Display Description

Pressure:

60 PSI

Monitor the pressure input from the sensor.

This is the permanent display.

The displays below are temporary. After 10 minutes the display returns to the permanent display.

Loop Output:

12.00 mA Monitor the 4 to 20 mA Loop output.

Last CAL:

02-10-09

Monitor date for scheduled maintenance or date of last calibration.

(See description in Calibrate Menu.)

Signet 8450-2 Pressure Transmitter

Relay1 Setpnt:

0.00 psi

Relay1 Setpnt:

0.00 psi

ENTER

Relay1 Setpnt:

.00 psi

Relay1 Setpnt:

09.00 psi

Relay1 Setpnt:

Saving

Relay1 Setpnt:

09.00 psi >

Notes on Steps 5 and 6:

• All output functions remain active during editing.

• Only the ﬂashing element can be edited.

• RIGHT ARROW key advances the ﬂashing element in a continuous loop.

• Edited value is effective immediately after pressing ENTER key.

• If no key is pressed for 10 minutes unit will restore the last saved value and return to step 3.

• Step 6 (pressing ENTER key) always returns you to Step 3.

• Repeat steps 3-6 until all editing is completed.

Notes on Step 2:

If no key is pressed for 5 minutes while display is showing "Enter

Key Code", the display will return to the VIEW menu.

Notes on Steps 3 and 4:

• Refer to pages 6 and 7 for complete listing of menu items and their use.

• From the Step 3 display, pressing the UP and DOWN keys simultaneously will

return the display to the VIEW menu.

• If no key is pressed for 10 minutes, display will also return to the VIEW menu.

ProcessPro Editing Procedure:

Step 1. Press and hold ENTER key:

• 2 seconds to select the CALIBRATE menu

• 5 seconds to select the OPTIONS menu.

Step 2. The Key Code is UP-UP-UP-DOWN keys in sequence.

• After entering the Key Code, the display will show the ﬁrst item in the selected menu.

Step 3. Scroll menu with UP or DOWN arrow keys.

Step 4. Press RIGHT ARROW key to select menu item to be edited.

• The ﬁrst display element will begin ﬂashing.

Step 5. Press UP or DOWN keys to edit the ﬂashing element.

• RIGHT ARROW key advances the ﬂashing element.

Step 6. Press ENTER key to save the new setting and return to Step 3.

2s 5s

ENTER

OPTIONS

CALIBRATE

VIEW

Press &

hold for

access:

Step 5

Step 6

Notes on Step 1:

• The View Menu is normally displayed.

• The CALIBRATE and OPTIONS menus require a KEY CODE.

Step 4

First item in CALI-

BRATE menu

Step 3

Step 3: Finished Editing?

Press the UP and DOWN keys simultaneously after

saving the last setting to return to normal operation.

Press the UP and DOWN keys simultaneously

while any element is ﬂashing. This will recall the

last saved value of the item being edited and

return you to Step 3.

Step 5: Made an Error?

CALIBRATE: ----

Enter Key Code

CALIBRATE: *---

Enter Key Code

CALIBRATE: **--

Enter Key Code

CALIBRATE: ***-

Enter Key Code

psi >

Pressure Units:

10.00 psi >

Relay1 Setpnt:

psi >

Pressure Units:

6Signet 8450-2 Pressure Transmitter

Calibrate Menu

Display

(Factory settings shown) Description

Pressure Units:

psi > Select Pressure units for both input channels: psi, bar or kPa.

Set:

Pressure

Provides a maximum 5 psi offset to match 8450 to external reference.

Enter “-999” to restore the original Factory calibration value.

Changes to this setting will become effective when the display exits the Calibrate menu.

Loop 1 Range: psi

0.0 →100.0 >

Check the 2450 Sensor instructions for the range capability of your sensor.

Be sure to modify this setting if you change the Pressure Units.

Relay 1 Mode:

Low >

Select the desired mode of operation for the relay #1 output. Options available are High or

Low. The signal may be disabled (Off) if not used.

Relay 1 Setpnt:

10.0 psi >

In Low or High Mode, the relay output #1 will be activated when the pressure reaches this

value. Be sure to modify this setting if you change the Pressure Units.

Relay 1 Hys:

5 >

The relay output will be de-energized at Setpoint ± Hysteresis, depending on High or Low

Setpoint selection.

Last CAL:

2-10-09

Use this “note pad” to record important dates, such as annual recertiﬁcation or scheduled

maintenance.

All relay settings repeat for Relay 2.

Signet 8450-2 Pressure Transmitter

Options Menu

Display

(Factory settings shown) Description

Contrast:

3 >

Adjust the LCD contrast for best viewing. A setting of 1 is lowest contrast, 5 is highest. Select

lower contrast if the display is in warmer ambient surroundings.

Decimal

*****. >

Set the decimal to the best resolution for your application. The display will automatically scale

up to this resolution. Select *****., ****.*, ***.**, **.*** or *.****

Averaging

Off >

OFF provides the quickest output response to changes in pressure. Longer averaging period

produces more stable display and output response.

Loop Adjust

4.00 mA >

Adjust the minimum and maximum current output. Use this setting to match the system output

to any external device. The display value represents the precise current output.

Adjustment limits:

• 3.80 mA < 4.00 mA > 5.00 mA

• 19.00 mA < 20.00 mA > 21.00 mA

Loop Adjust

20.00 mA >

Test Loop:

Press UP or DOWN keys to manually order any output current value from 3.6 mA to

21.00 mA to test current loop output.

Test Relay 1:

Press UP or DOWN keys to manually toggle the state of Relay 1.

Test Relay 2:

Press UP or DOWN keys to manually toggle the state of Relay 2.

Troubleshooting

Georg Fischer Signet LLC, 3401 Aerojet Avenue, El Monte, CA 91731-2882 U.S.A. • Tel. (626) 571-2770 • Fax (626) 573-2057

For Worldwide Sales and Service, visit our website: www.gfsignet.com • Or call (in the U.S.): (800) 854-4090

For the most up-to-date information, please refer to our website at www.gfsignet.com

Ordering Information

Mfr. Part No. Code Description

3-8450-1 159 000 041 Pressure transmitter, Field mount

3-8450-1P 159 000 042 Pressure transmitter, Panel mount

3-8450-2 159 000 043 Pressure transmitter, Field mount with relays

3-8450-2P 159 000 044 Pressure transmitter, Panel mount with relays

3-8450-3 159 000 045 Pressure transmitter, Field mount with dual input/output

3-8450-3P 159 000 046 Pressure transmitter, Panel mount with dual input/output

Accessories

Mfr. Part No. Code Description

3-8050 159 000 184 Universal mounting kit

3-8052 159 000 188 3/4 in. Integral mounting kit

3-8052-1 159 000 755 3/4 in. NPT mount junction box

3-8050.395 159 000 186 Splashproof rear cover

3-8050.396 159 000 617 RC Filter kit (for relay use)

3-0000.596 159 000 641 Heavy duty wall mount bracket

3-5000.598 198 840 225 Surface Mount Bracket

3-9000.392 159 000 368 Liquid tight connector kit for rear cover (includes 3 connectors)

3-9000.392-1 159 000 839 Liquid tight connector kit, NPT (1 piece)

3-9000.392-2 159 000 841 Liquid tight connector kit, PG13.5 (1 piece)

Display Condition Possible Causes Suggested Solutions

Check Sensor?

• Sensor not wired properly.

• Sensor connected to 8450 while

power is on.

• Defective sensor.

• Correct sensor wiring.

• Recycle power with all sensors connected.

• Replace defective sensor.

Too much error

CHECK SENSOR

The value entered in Set Pressure ﬁeld is

greater than 5 psi deviation from sensor

input. (The 8450 allows a maximum of

5 psi calibration offset.).

• Conﬁrm calibration values.

• Remove sensor from installation, check

8450 reading (should be zero). If necessary,

Set Pressure to zero, reinstall sensor, then

recalibrate.

Reset to Factory

Calibration Value in SET PRESSURE ﬁeld is -999. Entering "-999" in this ﬁeld will remove all user

calibration input and restore the factory values.

Relay is always activated • Hysteresis value too large

• Defective transmitter

• Change the hysteresis value

• Replace transmitter

SETUP READ ERROR

Press Any Key Memory fault occurred.

• Press any key to reload factory presets.

• Reprogram all setpoints.

• If this message appears again, replace the

8450.

Tabla de contenidos

Otros manuales de Transmisor de Signet

Signet

Signet 8450-3 Manual de usuario

Signet

Signet 8550-3 Manual de usuario

Signet

Signet 8550-1 Manual de usuario

Signet

Signet 8450-1 Manual de usuario

Signet

Signet 8750-1 Manual de usuario

Signet

Signet 9900 Manual de usuario

Signet

Signet 8350-1 Manual de usuario

Signet

Signet 8150 Manual de usuario

Signet

Signet 8550-1 Manual de usuario

Manuales populares de Transmisor de otras marcas

NIVELCO

NIVELCO EasyTREK SCA-300 Series Manual del propietario

Honeywell

Honeywell 5816WMBR Manual de usuario

Kamstrup

Kamstrup READy MTU Instrucciones de funcionamiento

Omega

Omega ZW Series Manual de usuario

ABB

ABB Field 264H Guía

Alinco

Alinco DJ-V17T Manual de usuario

Dejero

Dejero EnGo 3x Manual de usuario

Rosemount

Rosemount 4600 Manual de usuario

Speaka Professional

Speaka Professional 2342740 Manual de usuario

trubomat

trubomat GAB 1000 Manual de usuario

Teledyne Analytical Instruments

Teledyne Analytical Instruments LXT-380 Manual de usuario

Rondish

Rondish UT-11 Manual de usuario

MG 10JRE Manual de usuario

Burkert

Burkert 8177 Manual de usuario

Firetide

Firetide HotPort 3203 Manual

Tele Radio

Tele Radio T9-02 Manual de usuario

Rotronic

Rotronic HygroFlex HF3 Series Manual de usuario

Jamara

Jamara FCX6 Pro Tel Manual de usuario
