SIGMA TEK C-IPC Manual de usuario

C-IPC EXPANSION CARD

C-IPC Expansion card

With the expansion card the C-IPC can be expanded with up to 4 further interfaces. The

special design allows an easy installation and fixation of the expansion card.

The delivery of the expansion card also includes the corresponding cover and fixing

material!

16.04.2010 Page 1

C-IPC EXPANSION CARD

Specification

Periphery connection via SO-DIMM socket

Fixing 2 x M2x4 cheese head screw with serrated lock washer DIN 6798-A 2,2

Standardization UL (E247993)

COM3 COM4Article numbers

(Version)

LPT

RS23

RS4XX MDB RS23

RS4XX TTY

Ethernet

01-460-011 YES

01-460-021 YES YES YES

01-460-031 YES YES YES YES

01-460-041 YES

Page 2 16.04.2010

C-IPC EXPANSION CARD

Mechanical dimensions

16.04.2010 Page 3

C-IPC EXPANSION CARD

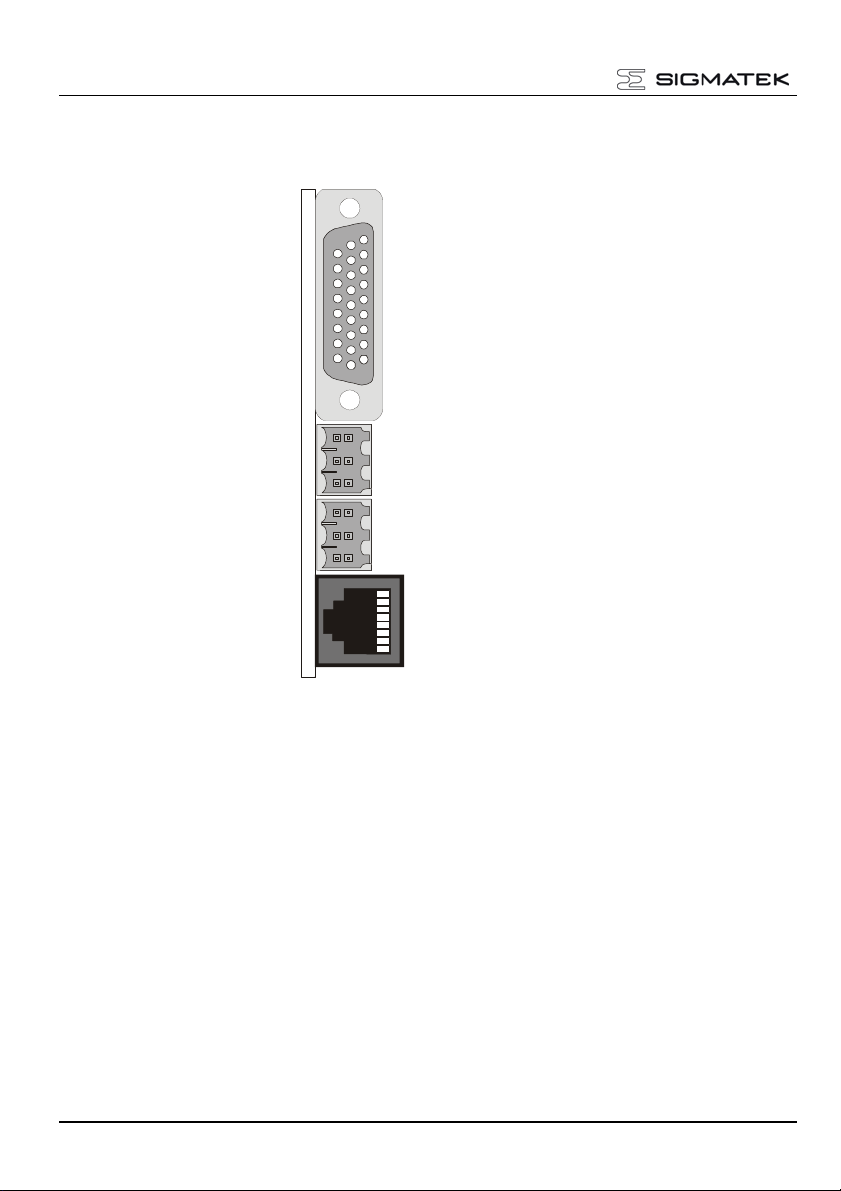

Connections

X4, Ethernet 2

X1, LPT1

X2, COM3

X3, COM4

Page 4 16.04.2010

C-IPC EXPANSION CARD

Pin assignment

Expansion card

X1: LPT1 (26-pole HD-DSUB plug, angled)

26-pole DSUB plug

X2: COM 3 (6-pole Weidmüller)

This table shows all opportunities, the final mounting is specified in ta-

ble „Specification“!

Terminal RS 232 RS 422 RS485 Multi-Drop bus

1 RxD TxA A n.c.

2 RTS TxB B Comm. Common (GND)

3 TxD RxA (A) DC Power Return (GND)

4 CTS RxB (B) Master Transmit

5 DTR n.u. n.u. + 34 VDC

6 GND GND GND Master Receive

Pin LPT FDD Pin LPT FDD

1 Data Strobe n.u. 14 Autofeed Density Select

2 Data 0 Index 15 Error Head Select

3 Data 1 Track 0 16 Init Direction

4 Data 2 Write Protect 17 Select Input Step

5 Data 3 RData 18 GND GND

6 Data 4 Disk Change 19 GND GND

7 Data 5 n.u. 20 GND GND

8 Data 6 Motor 0 21 GND GND

9 Data 7 Drive 0 22 GND GND

10 Acknowledge Drive 1 23 GND GND

11 Busy Motor 1 24 do not connect (GND)

12 Paper out WData 25 +5 V +5 V

13 Select WGate 26 +5 V +5 V

16.04.2010 Page 5

C-IPC EXPANSION CARD

X3: COM 4 (6-pole Weidmüller)

This table shows all opportunities, the final mounting is specified in

table „Specification“!

X4: Ethernet 2 (8 pole RJ45)

Multi-Drop bus (MDB) supply

Terminal RS232 RS 422 RS 485 TTY 20 mA

1 RxD TxA A Tx+

2 RTS TxB B Tx-

3 TxD RxA (A) Rx+

4 CTS RxB (B) Rx-

5 DTR n.u. n.u. 20 mA

6 GND GND GND GND

Pin Function

1 TD+

2 TD–

3 RD+

4 n.c.

5 n.c.

6 RD–

7 n.c.

8 n.c.

Pin Function

1 +24 V supply

2 GND

Page 6 16.04.2010

C-IPC EXPANSION CARD

Ethernet cable connection

Twisted pair cable connection (expansion card to a HUB)

Both ends of the network cable have this assignment (not cross-linked).

It's badly recommended to use this assignment, otherwise the impedance of the network

cable is incorrect and the maximum cable length of 100 m cannot be reached!

Twisted pair cable connection (expansion card to other Ethernet devices)

At direct connection without HUB the network cable has to be cross-linked. Therefore both

ends have a different assignment (Tx/Rx cross-linked).

It's badly recommended to use this assignment, otherwise the impedance of the network

cable is incorrect and the maximum cable length of 100 m cannot be reached!

Pin Function Cable (both sides)

1 Tx+ Orange

2 Tx- Orange/white

3 Rx+ Green

4 not assigned Blue

5 not assigned Blue/white

6 Rx- Green/white

7 not assigned Brown

8 not assigned Brown/white

Pin Function (side 1) Cable (side 1) Cable (side 2)

1 Tx+ Orange Green

2 Tx- Orange/white Green/white

3 Rx+ Green Orange

4 not assigned Blue Blue

5 not assigned Blue/white Blue/white

6 Rx- Green/white Orange/white

7 not assigned Brown Brown

8 not assigned Brown/white Brown/white

16.04.2010 Page 7

C-IPC EXPANSION CARD

Installation, respectively, removal of the expansion card

Especially at installation of the expansion card the following procedure must be noticed:

- First plug the card sloping into the SO-DIMM socket,

- afterwards press the card into the socket clamp

- and finally screw it with the cheese head screw and the serrated lock washer on the pe-

riphery!

The removal is executed contrary:

- First screw-off the card from the periphery,

- afterwards fold the card forward to free it from the socket clamp

- and finally unplug the card out of the SO-DIMM socket!

Page 8 16.04.2010

C-IPC EXPANSION CARD

Assembly of the cover plate

Put the cover plate vertically on the C-IPC, stick the pins into the cuts and screw on the

expansion card.

16.04.2010 Page 9

C-IPC EXPANSION CARD

Page 10 16.04.2010
