1Overview

This document describes how to configure the SightLine OEM video processing boards to receive video

from the Airborne Innovations AGS-720p Micro Global Shutter color and mono cameras.

SightLine OEM boards configured in this document: 1500-0EM, 3000-OEM, and 4000-OEM.

1.1 Additional Support Documentation

Additional Engineering Application Notes (EANs) can be found on the Documentation page of the

SightLine Applications website.

The Panel Plus User Guide provides a complete overview of settings and dialog windows located in the

Help menu of the Panel Plus application.

The Interface Command and Control (IDD) describes the native communications protocol used by the

SightLine Applications product line. The IDD is also available as a PDF download on the Documentation

page under Software Support Documentation.

1.2 SightLine Software Requirements

1500-OEM: Version 2.24.xx and higher and FPGA version 10.

3000-OEM: Version 2.24.xx and higher.

IMPORTANT: The Panel Plus software version should match the firmware version running on the

board. Firmware and Panel Plus software versions are available on the Software Download page.

1.2.1 FPGA - 1500-OEM

Version 10 of the FPGA driver firmware is required for the camera to operate correctly with the 1500-

OEM. Version information is located on the Connect tab under the Video Output section. FPGA version

10 does not support other digital cameras. See the EAN-FPGA Firmware Update 1500-OEM for

updating instructions. Use ./FPGA_V10.sh to flash the FPGA.

Figure 1: FPGA Version Number Location

2Interface Boards and Adapters

System interface boards provide options for network interfacing, serial ports, and GPIO. Camera

interface and adapter boards provide an interface from the camera to OEM. See the ICD-1500 Adapter

Boards and ICD-3000-4000 Adapter Boards for complete specifications and pinouts.

IMPORTANT: All boards should be connected and secured with the included cables and hardware

fasteners first before applying power.

Firmware Ver: 3.3.1.6 FPGA:10, temp: 98°F [37°C]

SVN Revision: 58309, Build Date: 01/11/2021, Build Time: 4:48:51

EAN-Airborne-Innovations-Camera

3Hardware Connections

3.1 1500-OEM AGS-720p Camera Bench Setup

Interface and adapter boards:

•SLA-1500-FPC: AGS-720p camera and 1500-OEM interface. The 1500-OEM supplies power to the

camera through the SLA-1500-FPC board.

•SLA-1500-AB: Provides serial and network interfaces.

Cable connections:

•SLA-CAB-1514: Connects to J3 (14-pin) on the 1500-OEM connector and to the 1500-AB J3 (14-pin)

connector. This provides analog video, network, and serial connections to the 1500-OEM.

•SLA-CAB-FPC04: Connects to the SLA-1500-FPC board and to the AGS-720p camera. Provides serial

communication and video to the camera. See FPC cable instructions and precautions.

•SLA-PWR-B05V (110-250VAC input / 5VDC output): Connects to J2 on the SLA-1500-AB board.

Power and network connectivity LEDs:

A green light indicates the 1500-AB board is powered on. A blue light on the 1500-AB and a green light

on the 1500-OEM board indicate that all the boards are powered on. A second flashing green light on

the 1500-OEM indicates network connectivity.

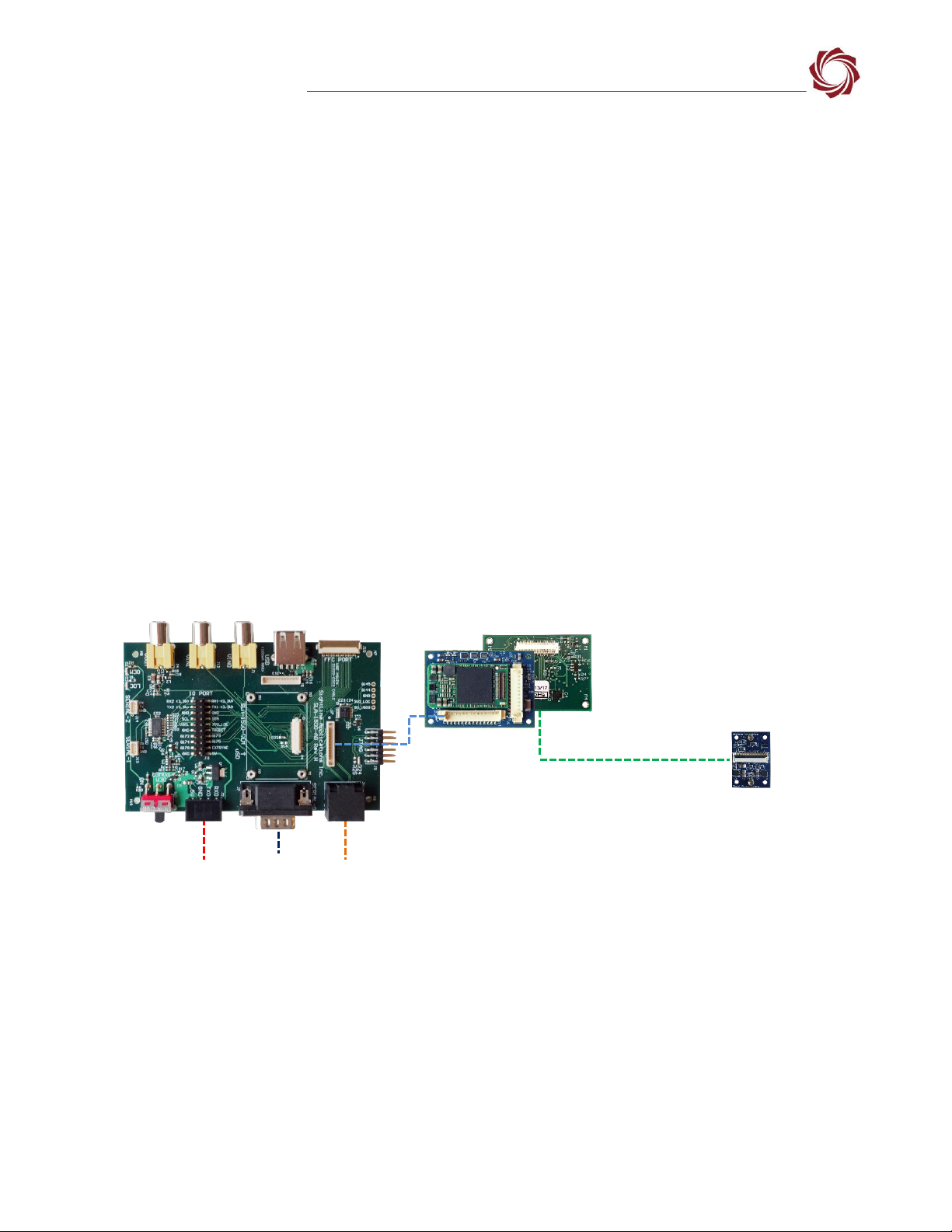

Figure 2: 1500-OEM AGS-720p Camera Bench Setup

RJ45 Ethernet

Network Switch or PC Direct

VOUT

VIN1

VIN0

AGS-720p

Camera

1500-OEM Board +

SLA-1500-FPC Board

SLA-CAB-FPC04

Serial 0

SLA-1500-AB (REV H)

SLA-PWR-B05V (J2)

SLA-CAB-1514 (J3)

PWR Switch

to OEM

All boards are immediately

powered on when power is

connected.

EAN-Airborne-Innovations-Camera

3.2 3000-OEM AGS-720p Camera Bench Setup

Interface and adapter boards:

•SLA-3000-FPC: AGS-720p camera and 3000-OEM interface. The 3000-OEM supplies power to the

camera through the SLA-3000-FPC board.

•SLA-3000-IO: Provides serial and network interfaces. Adapter boards can be connected to one of

two available video input connectors (VIN1 or VIN0). See the 3000-OEM exploded assembly

drawing for more connection layout information.

VIN0 has camera channels 0 and 1 assigned. VIN1 has camera channels 2 and 3 assigned. If the

configuration includes an analog board with a digital adapter board the analog board must be

installed on VIN0.

•SLA-3000-mIO (optional smaller IO board): Provides serial and network interfaces. This board

allows SLA-3000-FPC board to be connected directly to the OEM board.

Cable connections:

•SLA-CAB-FPC04: Connects to the SLA-3000-FPC board and to the AGS-720p camera. Provides serial

communication and digital video to the camera. See FPC cable instructions and precautions.

•SLA-CAB-0403: Connects to J4 on SLA-3000-mIO board. Provides an RJ45 Ethernet connection.

•SLA-PWR-C12V(110-250VAC input / 12VDC output): Connects to J5 on the SLA-3000-IO board

•SLA-CAB-1504 / SLA-PWR-B12V (110-250VAC input / 12VDC output): Connects to J9 on the SLA-

3000-mIO board.

Power and network connectivity LEDs:

A green light on the 3000-IO or 3000-mIO board indicates that all boards are powered on. An amber

light on the 3000-OEM board verifies network connection.

Figure 3: 3000-OEM AGS-720p Camera Bench Setup

SLA-3000-IO +

3000-OEM

Boards (stacked)

Network Switch or PC Direct

SLA-PWR-C12V

RJ45 Ethernet

Analog

Monitor

(optional)

Video Out

SLA-3000-FPC

on VIN1

SLA-CAB-FPC04

AGS-720p

Camera

SLA-PWR-B12V

Network Switch or PC Direct

RJ45 Ethernet

SLA-3000-OEM +

SLA-3000-mIO+

SLA-3000-FPC

on J4

SLA-3000-mIO

on J1

SLA-CAB-FPC04

Analog

Monitor

(optional)

Serial (0)

Serial (alternate)

SLA-CAB-0403 (J4)

SLA-CAB-1504 (J9)

AGS-720p

Camera

All boards are

immediately

powered on when

power is connected.

EAN-Airborne-Innovations-Camera

3000-OEM

SLA-3000-IO

Serial Port

Camera Index Panel Plus

0/1

VOUT

VIN0

CAM0/CAM1

VIN1

CAM2

Figure 4: 3000-OEM Serial Port and Connector Reference

3.3 4000-OEM AGS-720p Camera Bench Setup

Interface and adapter boards:

•SLA-3000-FPC: AGS-720p camera and 4000-OEM interface. The 4000-OEM supplies power to the

camera through the SLA-3000-FPC board. Serial and network interfaces are provided on the 4000-

OEM board.

•The SLA-3000-FPC board can be connected to J6 on the 4000-OEM. Additional camera adapter

boards can be connected using the SLA-4000-MIPI board on J9. See the ICD-3000-4000 Adapter

Boards for specific MIPI board power requirements.

Cable connections:

•SLA-CAB-FPC04: Connects to the 3000-FPC board and to the AGS-720p camera. Provides serial

communication and digital video to the camera. See FPC cable instructions and precautions.

•SLA-CAB-0403: Connects to J4 on the 4000-OEM board. Provides an RJ45 Ethernet connection.

•SLA-CAB-1504 / SLA-PWR-B12V-36W (110-250VAC input / 12VDC output): Connects to J50 on the

4000-OEM board.

Power and network connectivity LEDs:

A green light (D1) on the 4000-OEM board indicates that all boards are powered on. An amber light

(D5) verifies network connection.

Figure 5: 4000-OEM AGS-720p Camera Bench Setup

*SLA-CAB-MIPI-02 is an FFC cable and must be oriented and connected correctly. See FFC cable instructions and precautions before

connecting the SLA-4000-MIPI board.

J1-Serial Port 0/1

J2-Serial Port 4

J4/VIN1-Serial Port 3

J3/VIN0-Serial Port 2

Network Switch or

PC Direct

SLA-CAB-1504 (J50)

Serial (SLA-CAB-504)

SLA-CAB-0403 (J4)

4000-OEM +

SLA-3000-FPC

Optional

SLA-4000-MIPI Board

RJ45 Ethernet

SLA-PWR-B12V-36W

Optional Serial SLA-CAB-0305

USB to PC

SLA-CAB-0804

(J6)

SLA-CAB-FCP04

*SLA-CAB-MIPI-02 (J9)

AGS-720p

Camera

All boards are immediately

powered on when power is

connected.

EAN-Airborne-Innovations-Camera

4Configuration Settings

This section covers the basic camera configuration settings in Panel Plus for the SightLine OEM video

processing boards.

Before connecting with the Panel Plus software, the OEM board should be powered up and connected

through:

-a network switch or directly to the host PC (preferred) or,

-Direct serial connection (for troubleshooting or if a network connection cannot be established).

See the one of the corresponding OEM startup guides for connection and video streaming

instructions:

•EAN-Startup Guide 1500-OEM

•EAN-Startup Guide 3000-OEM

•EAN-Startup Guide 4000-OEM

IMPORTANT: This procedure assumes that the customer has read the OEM startup guide(s) and

has a basic understanding of the following fundamentals:

•Completed a functional connection between the SightLine video processing board and Panel

Plus application.

•Familiar with Panel Plus controls.

•Successfully streamed video in Panel Plus.

If you do not have a strong basic system setup and familiarity, we recommend reviewing the OEM

startup guide(s) and work with our support team to establish basic connection and streaming

fundamentals.

4.1 Acquisition Settings

From the main menu in Panel Plus go to Configure » Acquisition Settings.

If available, use the Auto Fill drop-down menu in the Acquisition Settings dialog to automatically

populate the relevant fields with the correct settings.

The settings can also be manually entered as shown in the camera configuration tables.

For information about Acquisition fields in Panel Plus see EAN-Digital Video Configuration.

IMPORTANT: Save parameters and reset the board when changing parameters. Cycle system

power when changing resolution.

If video does not display, try saving and activating the settings again. Check the encoding settings

on the Compress tab and review the network addresses for the destination video.

EAN-Airborne-Innovations-Camera

4.2 Airborne Camera Color Controls

The Airborne camera color controls can be modified in the Image Control section in the Capture tab of

Panel Plus.

Figure 6: Image Control

AGS720p color camera: Modify the Luma, Red, Green, and Blue color controls as needed.

AGS720p mono camera: Use the Red, Green, and Blue default settings. Modify the Luma setting as

needed.

Setting the Luma, Red, Green, or Blue values will trigger a reset to the default values: Luma = 98,

Red = 32, Green = 28, Blue = 36.

When using the 3000-OEM board make sure the correct command camera is selected when adjusting

the color controls. Brightness, Contrast, Saturation, and Hue are not adjustable.

Save the parameters to the board. Restart the system to keep the settings in place through subsequent

restarts.

5Troubleshooting

Cam 2 is not available on the 1500-OEM.

In Panel Plus, check that the Acquisition Settings are configured

correctly. Save parameters and reset the board when changing

settings.

Warning - Invalid FGPA version for the

selected digital camera type.

Version 10 of the FPGA driver firmware is required for the camera to

operate correctly with the 1500-OEM. FPGA version 10 does not

support other digital cameras. See the EAN-FPGA Firmware Update

1500-OEM for updating instructions.

Image is washed out or looks poor.

6Questions and Additional Support

For questions and additional support, please contact Support. Additional support documentation and

Engineering Application Notes (EANs) can be found on the Documentation page of the SightLine

Applications website.

EAN-Airborne-Innovations-Camera

Appendix A - Camera Setup Notes

The AGS720p camera setup is done through the InitAR0134CS camera Init code in the SightLine

firmware through Panel Plus. The settings in the camera do not need to be changed.

The following camera setup notes are useful for customers that build custom versions of the 1500-

OEM board. Camera control registers are configurable through the I2C bus.

More information on configuring camera control registers can be found in the IDD under Modules »

Serial Port » SLAI2CCommand_t.

1500-OEM - I2C bus 2:

•i2cdetect -a -r -y 2 (this should show device at bus ID 0x10)

•i2cset -f -y 2 0x10 0x30 0x00 (register address 0x3000)

•i2cget -f -y 2 0x10 (returns 0x24) (high byte)

•i2cget -f -y 2 0x10 (returns 0x06) (low byte)

The chip ID for Aptina AR0134 is 0x2406.

1500-OEM example enabling auto-exposure using I2C bus 2 and Panel Plus:

1. Establish an SSH session to the OEM with Tera Term (recommended) or similar application.

2. From the Tera Term window type:

i2cdetect -a -r -y 2 (this should show device at bus ID 0x10)

3. From the main menu in Panel Plus go to File » Send Command. In the message field enter:

51,AC,0A,94,00,02,10,04,31,00,01,01.

4. Check the Insert Checksum box and click Send.

5. From the Tera Term window type:

a. i2cset -f -y 2 0x10 0x31 0x00 (register address 0x3100 for auto-exposure)

b. i2cget -f -y 2 0x10 (this should show 0x00 for high byte)

c. i2cget -f -y 2 0x10 (this should show 0x01 for low byte indicating the auto-exposure is now

enabled)

The camera suspend-and-reset are controlled through two GPIO lines:

1500-OEM - GPIO174 and GPIO178:

1500-OEM J 4 (50 pin):

•GPIO174 = pin 13

•GPIO178 = pin 19

39-pin in FPC cable (Molex cable, FPC 39 Position 0.3mm pitch):

•GPIO174 = pin 36

•GPIO178 = pin 1

Otros manuales para 3000-OEM

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Hardware de computadora de SightLine

SightLine

SightLine ICD-1750-OEM Manual de usuario

SightLine

SightLine 1500-EVAL Kit Guía del usuario

SightLine

SightLine 1500-OEM Manual de usuario

SightLine

SightLine 3000-OEM Guía del usuario

SightLine

SightLine 1750-OEM Guía del usuario

SightLine

SightLine ICD-4000-OEM Manual de usuario

SightLine

SightLine EAN-4000-OEM Manual de usuario

SightLine

SightLine 3000-OEM Guía del usuario

SightLine

SightLine 1750-OEM Manual de usuario

SightLine

SightLine 1750-OEM Manual de usuario

SightLine

SightLine 1750-OEM Manual de usuario

SightLine

SightLine ICD-4000-OEM Manual de usuario

SightLine

SightLine 1750-OEM Manual de usuario

SightLine

SightLine ICD-1750-OEM Manual de usuario

Manuales populares de Hardware de computadora de otras marcas

EMC2

EMC2 VNX Series Manual del propietario

Panasonic

Panasonic DV0PM20105 Manual de usuario

Mitsubishi Electric

Mitsubishi Electric Q81BD-J61BT11 Manual de usuario

Gigabyte

Gigabyte B660M DS3H AX DDR4 Manual de usuario

Raidon

Raidon iT2300 Manual de usuario

National Instruments

National Instruments PXI-8186 Manual de usuario

Hauppauge

Hauppauge WinTV-HVR-2250 Manual de usuario

Kontron

Kontron CP6002 Manual de usuario

Manhattan

Manhattan 702843 Manual de usuario

Aphex

Aphex 230 Manual de usuario

AMD

AMD Phenom II Manual operacional

Intel

Intel NUC 12 Pro Manual de usuario

dbx

dbx Zone Pro 1260 Manual de usuario

Galaxy

Galaxy GHDX2-2430S-24F4D Manual de usuario

Intel

Intel AXXRMFBU4 Manual de usuario

Kontron

Kontron DIMM-PC/MD Manual de usuario

ST X-NUCLEO-SAFEA1B Instrucciones de funcionamiento

STEINWAY LYNGDORF

STEINWAY LYNGDORF SP-1 Manual de usuario
