Siemens Simatic S7-1500 Documento técnico

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

SIMATIC

S7-1500/ET 200MP

Digital output module

DQ 16x230VAC/1A ST Triac

(6ES7522-5FH00-0AB0)

Equipment Manual

12/2021

A5E34934069

-AC

Preface

Documentation guide

Product overview

Wiring

Parameters/address space

Diagnostic alarms

Technical specifications

Dimensional drawing

Parameter data records

Siemens AG

Digital Industries

Postfach 48 48

90026 NÜRNBERG

GERMANY

A5E34934069-AC

Ⓟ

11/2021 Subject to change

Legal information

Warning notice system

This manual contains notices you have to observe in order to ensure your personal safety, as well as to prevent

damage to property. The notices referring to your personal safety are highlighted in the manual by a safety alert

symbol, notices referring only to property damage have no safety alert symbol. These notices shown below are

graded according to the degree of danger.

DANGER

indicates that death or severe personal injury will result if proper precautions are not taken.

WARNING

indicates that death or severe personal injury may result if proper precautions are not taken.

CAUTION

indicates that minor personal injury can result if proper precautions are not taken.

NOTICE

indicates that property damage can result if proper precautions are not taken.

If more than one degree of danger is present, the warning notice representing the highest degree of danger will

be used. A notice warning of injury to persons with a safety alert symbol may also include a warning relating to

property damage.

Qualified Personnel

The product/system described in this documentation may be operated only by personnel qualified for the specific

task in accordance with the relevant documentation, in particular its warning notices and safety instructions.

Qualified personnel are those who, based on their training and experience, are capable of identifying risks and

avoiding potential hazards when working with these products/systems.

Proper use of Siemens products

Note the following:

WARNING

Siemens products may only be used for the applications described in the catalog and in the relevant technical

documentation. If products and components from other manufacturers are used, these must be recommended

or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and

maintenance are required to ensure that the products operate safely and without any problems. The permissible

ambient conditions must be complied with. The information in the relevant documentation must be observed.

Trademarks

All names identified by ® are registered trademarks of Siemens AG. The remaining trademarks in this publication

may be trademarks whose use by third parties for their own purposes could violate the rights of the owner.

Disclaimer of Liability

We have reviewed the contents of this publication to ensure consistency with the hardware and software

described. Since variance cannot be precluded entirely, we cannot guarantee full consistency. However, the

information in this publication is reviewed regularly and any necessary corrections are included in subsequent

editions.

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

Equipment Manual, 12/2021, A5E34934069-AC 3

Preface

Purpose of the documentation

This manual supplements the system manual S7-1500/ET 200MP

(https://support.industry.siemens.com/cs/ww/en/view/59191792).

Functions that relate in general to the systems are described in this system manual.

The information provided in this manual and in the system/function manuals supports you in

commissioning the systems.

Changes compared to previous version

Compared to the previous version, this manual contains the following change:

The module features a switching cycle counter as of firmware version V1.2.0.

Conventions

CPU: The term "CPU" is used in this manual both for the CPUs of the S7-1500 automation

system and for interface modules of the ET 200MP distributed I/O system.

STEP 7: In this documentation, "STEP 7" is used as a synonym for all versions of the

configuration and programming software "STEP 7 (TIA Portal)".

Please also observe notes marked as follows:

Note

A note contains important information on the product described in the documentation, on

the handling of the product or on the section of the documentation to which particular

attention should be paid.

Preface

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

4Equipment Manual, 12/2021, A5E34934069-AC

Security information

Siemens provides products and solutions with industrial security functions that support the

secure operation of plants, systems, machines and networks.

In order to protect plants, systems, machines and networks against cyber threats, it is

necessary to implement – and continuously maintain – a holistic, state-of-the-art industrial

security concept. Siemens’ products and solutions constitute one element of such a concept.

Customers are responsible for preventing unauthorized access to their plants, systems,

machines and networks. Such systems, machines and components should only be connected

to an enterprise network or the internet if and to the extent such a connection is necessary

and only when appropriate security measures (e.g. firewalls and/or network segmentation)

are in place.

For additional information on industrial security measures that may be implemented, please

visit (https://www.siemens.com/industrialsecurity).

Siemens' products and solutions undergo continuous development to make them more

secure. Siemens strongly recommends that product updates are applied as soon as they are

available and that the latest product versions are used. Use of product versions that are no

longer supported, and failure to apply the latest updates may increase customers' exposure to

cyber threats.

To stay informed about product updates, subscribe to the Siemens Industrial Security RSS

Feed visit (https://www.siemens.com/industrialsecurity).

Open Source Software

Open-source software is used in the firmware of the I/O modules. Open Source Software is

provided free of charge. We are liable for the product described, including the open-source

software contained in it, pursuant to the conditions applicable to the product. Siemens

accepts no liability for the use of the open source software over and above the intended

program sequence, or for any faults caused by modifications to the software.

For legal reasons, we are obliged to publish the original text of the license conditions and

(https://support.industry.siemens.com/cs/ww/en/view/109741045).

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

Equipment Manual, 12/2021, A5E34934069-AC 5

Table of contents

Preface ................................................................................................................................................... 3

1 Documentation guide ............................................................................................................................ 6

2 Product overview................................................................................................................................... 8

2.1 Properties ............................................................................................................................ 8

2.2 Functions .......................................................................................................................... 10

2.2.1 Switching cycle counter ..................................................................................................... 10

3 Wiring .................................................................................................................................................. 12

4 Parameters/address space ................................................................................................................... 13

4.1 Parameters ........................................................................................................................ 13

4.2 Declaration of parameters.................................................................................................. 14

4.3 Address space.................................................................................................................... 15

5 Diagnostic alarms ................................................................................................................................ 20

5.1 Status and error displays .................................................................................................... 20

5.2 Diagnostics alarms............................................................................................................. 22

6 Technical specifications....................................................................................................................... 23

A Dimensional drawing........................................................................................................................... 27

B Parameter data records ....................................................................................................................... 29

B.1 Parameter assignment and structure of the parameter data records.................................... 29

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

6Equipment Manual, 12/2021, A5E34934069-AC

Documentation guide

The documentation for the SIMATIC S7-1500 automation system and the SIMATIC ET 200MP

distributed I/O system is arranged into three areas.

This arrangement enables you to access the specific content you require.

Basic information

The System Manual and Getting Started describe in detail the configuration, installation,

wiring and commissioning of the SIMATIC S7-1500 and ET 200MP systems. The STEP 7 online

help supports you in the configuration and programming.

Device information

Product manuals contain a compact description of the module-specific information, such as

properties, wiring diagrams, characteristics and technical specifications.

General information

The function manuals contain detailed descriptions on general topics regarding the SIMATIC

S7-1500 and ET 200MP systems, e.g. diagnostics, communication, motion control,

Web server, OPC UA.

You can download the documentation free of charge from the Internet

(https://support.industry.siemens.com/cs/ww/en/view/109742691).

Changes and supplements to the manuals are documented in a Product Information.

You can download the product information free of charge from the Internet

(https://support.industry.siemens.com/cs/us/en/view/68052815).

Documentation guide

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

Equipment Manual, 12/2021, A5E34934069-AC 7

Manual Collection S7-1500/ET 200MP

The Manual Collection contains the complete documentation on the SIMATIC S7-1500

automation system and the ET 200MP distributed I/O system gathered together in one file.

You can find the Manual Collection on the Internet

(https://support.industry.siemens.com/cs/ww/en/view/86140384).

SIMATIC S7-1500 comparison list for programming languages

The comparison list contains an overview of which instructions and functions you can use for

which controller families.

You can find the comparison list on the Internet

(https://support.industry.siemens.com/cs/ww/en/view/86630375).

"mySupport"

With "mySupport", your personal workspace, you make the best out of your Industry Online

Support.

In "mySupport", you can save filters, favorites and tags, request CAx data and compile your

personal library in the Documentation area. In addition, your data is already filled out in

support requests and you can get an overview of your current requests at any time.

You must register once to use the full functionality of "mySupport".

You can find "mySupport" on the Internet (https://support.industry.siemens.com/My/ww/en).

Application examples

The application examples support you with various tools and examples for solving your

automation tasks. Solutions are shown in interplay with multiple components in the system -

separated from the focus on individual products.

You will find the application examples on the Internet

(https://support.industry.siemens.com/cs/ww/en/ps/ae).

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

8Equipment Manual, 12/2021, A5E34934069-AC

Product overview

2.1 Properties

Article number

6ES7522-5FH00-0AB0

View of the module

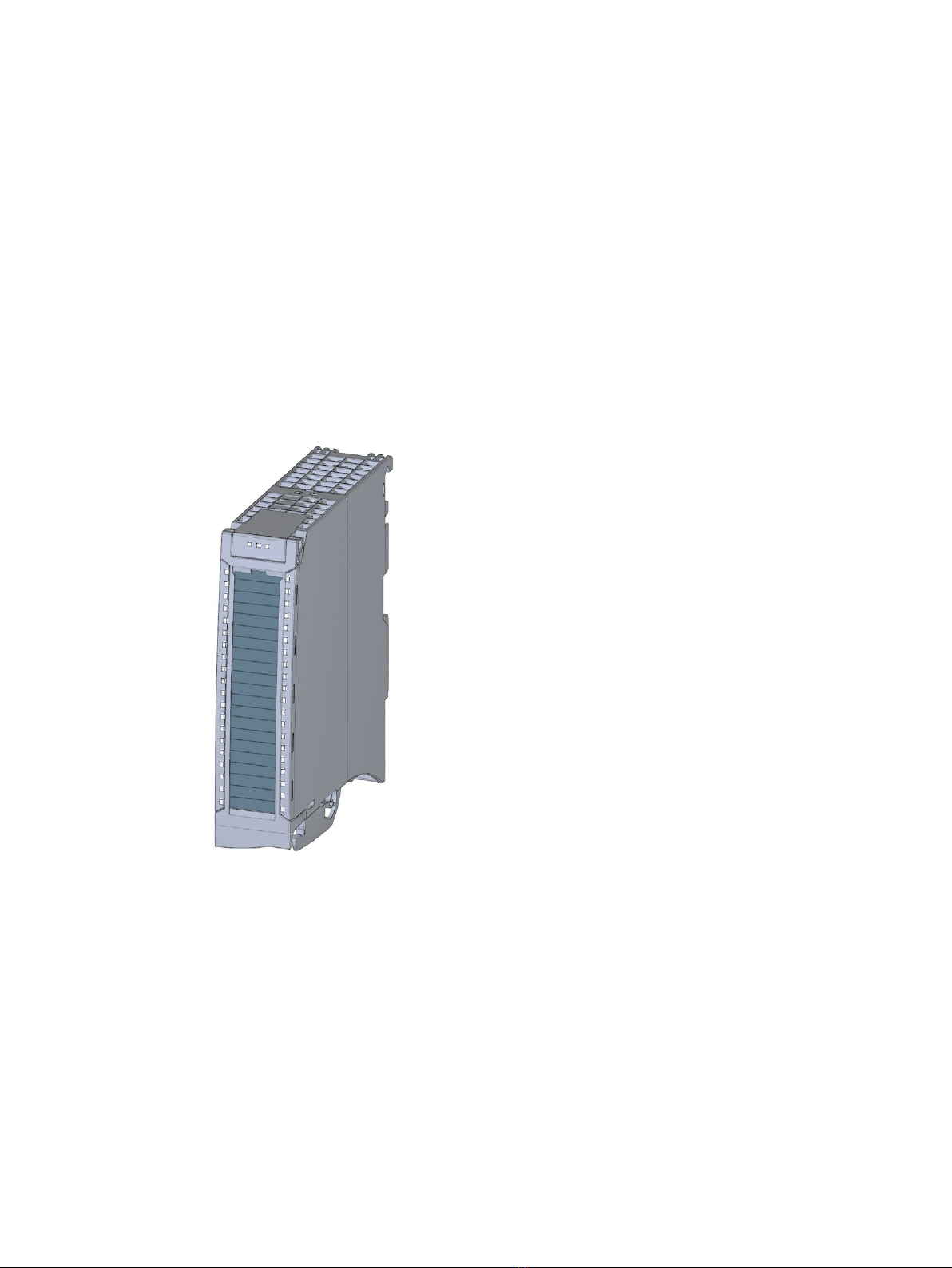

Figure 2-1 View of the DQ 16x230VAC/1A ST module

Properties

The module has the following technical properties:

•16 digital outputs (Triac)

•Rated output voltage 120 V/230 V AC

•Rated output current 1A (per channel)

•Configurable substitute values (per channel)

•Suitable for solenoid valves, DC contactors, indicator lights and smaller single phase drives

•Switching cycle counter for connected actuators, e.g. solenoid valves

Product overview

2.1 Properties

Digital output module DQ 16x230VAC/1A ST Triac (6ES7522-5FH00-0AB0)

Equipment Manual, 12/2021, A5E34934069-AC 9

The module supports the following functions:

Table 2- 1 Version dependencies of the module functions

Function

Firmware ver-

sion of the

module

Configuration software

STEP 7

as of V13 SP1 with

HSP 0119

GSD file in

STEP 7 , V12 or higher

STEP 7 V5.5 SP3 or higher

Firmware update

V1.0.0 or high-

--- / X

Identification data I&M0 to I&M3

V1.0.0 or high-

--- / X

Parameter assignment in RUN

V1.0.0 or high-

Module-internal Shared Output (MSO)

V1.0.0 or high-

(PROFINET IO only)

Configurable submodules/submodules for

shared device V1.0.0 or high-

er X

(PROFINET IO only)

Switching cycle counter V1.2.0 or high-

er V16, Update 4

or higher with HSP 0343 or

V17 or higher with HSP

0343

(PROFINET IO only, central

operation with a S7-

1500 CPU is supported)

(PROFINET IO only)

You can configure the module with STEP 7 (TIA Portal) and with a GSD file.

Accessories

The following components are supplied with the module and can also be ordered separately

as spare parts:

•Labeling strips

•U connector

•Universal front door

Other components

The following component can be ordered separately:

Front connectors, including potential jumpers and cable ties

For more information on accessories, refer to the S7-1500, ET 200MP system manual

(https://support.industry.siemens.com/cs/ww/en/view/59191792).

Otros manuales para Simatic S7-1500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de E/S de Siemens

Siemens

Siemens 6ES7141-6BG00-0BB0 Documento técnico

Siemens

Siemens CASTOMAT ION ANALOGINPUT T001 Manual de usuario

Siemens

Siemens SIMATIC ET 200S Manual de usuario

Siemens

Siemens Simantic ET200SP Guía del usuario

Siemens

Siemens 6ES7521-1BL00-0AA0 Manual de usuario

Siemens

Siemens SIMATIC 505 Manual de usuario

Siemens

Siemens simatic ET 200MP Manual de usuario

Siemens

Siemens RXM21.1 Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Documento técnico

Siemens

Siemens SIMATIC ET 200C Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Manual de usuario

Siemens

Siemens simatic ET 200MP Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Manual de usuario

Siemens

Siemens Simatic CFU Guía de inicio rápido

Siemens

Siemens Simatic S7-1500 Manual de usuario

Siemens

Siemens SIMATIC ET 200AL Manual de usuario

Siemens

Siemens SIMATIC ET 200R Manual de usuario

Siemens

Siemens SIMATIC ET 200M Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Manual de usuario

Siemens

Siemens Simantic ET 200S Manual de usuario

Siemens

Siemens SIMATIC ET 200SP Manual de usuario

Siemens

Siemens SINUMERIK 828D Turning Manual de usuario

Siemens

Siemens FDCI181-2 Manual de usuario

Manuales populares de Sistema de E/S de otras marcas

WAGO

WAGO 750-344 Manual de usuario

Teknim

Teknim TWM-1887 Manual de instrucciones

Intelligent Appliance

Intelligent Appliance IA-2662-E Manual de usuario

BERGHOF

BERGHOF ECC DIO 16/16 Manual de instrucciones

Advantech

Advantech PCM-27J3AU Manual de instalación y operación

Festo

Festo CP-E08-M12-CL Manual de usuario

Measurement Computing

Measurement Computing PCI-DAS64/M1/16 Manual de usuario

Hitachi

Hitachi HX-RIO3 Series Manual de usuario

NUUO

NUUO SCB-A08 Manual de usuario

M-system

M-system R3Y-RS8 Manual de usuario

jablotron

jablotron JB-110N Manual de usuario

Omron

Omron SYSMAC C200H Manual de usuario

DOLD

DOLD SAFEMASTER M Manual de usuario

ABB

ABB OPT-MF-001 Manual de usuario

Omron

Omron SYSMAC C2000H Manual de usuario

Helmholz

Helmholz TB20 Manual de usuario

ICP DAS USA

ICP DAS USA tM-AD2 Manual de usuario

Automationdirect.com

Automationdirect.com DL305 Manual de usuario
