Siemens SIMOVERT SLP Manual de usuario

SIMOVERT MASTERDRIVES Betriebsanleitung

Operating Instructions

SLP – SIMOLINK Puls Generator

SLP – SIMOLINK Pulse Generator

Ausgabe / Edition: AA GWE-477 764 4070.76 J

Weitergabe sowie Vervielfältigung dieser Unterlage, Verwertung und

Mitteilung ihres Inhalts nicht gestattet, soweit nicht ausdrücklich

zugestanden. Zuwiderhandlungen verpflichten zu Schadenersatz.

Patenterteilung oder GM-Eintragung.

Wir haben den Inhalt der Druckschrift auf Übereinstimmung mit der

beschriebenen Hard- und Software überprüft. Dennoch können

Abweichungen nicht ausgeschlossen werden, so daß wir für die

vollständige Übereinstimmung keine Garantie übernehmen. Die

Angaben in dieser Druckschrift werden jedoch regelmäßig überprüft

und notwendige Korrekturen sind in den nachfolgenden Auflagen

enthalten. Für Verbesserungsvorschläge sind wir dankbar SIMOVERTist ein Warenzeichen von Siemens

The reproduction, transmission or use of this document or its con-

tents is not permitted without express written authority. Offenders will

be liable for damages. All rights, including rights created by patent

grant or registration of a utility model or design, are reserved.

We have checked the contents of this document to ensure that they

coincide with the described hardware and software. However,

differences cannot be completely excluded, so that we do not accept

any guarantee for complete conformance. However, the information

in this document is regularly checked and necessary corrections will

be included in subsequent editions. We are grateful for any

recommendations for improvement. SIMOVERTRegistered Trade Mark

Änderungen von Funktionen, technischen Daten, Normen, Zeichnungen und Parametern vorbehalten.

We reserve the right to make changes to functions, technical data, standards, drawings and parameters.

SIMOLINK Puls Generator 02.2001 Contents

Siemens AG GWE-477 764 4070.76 J

SIMOVERT MASTERDRIVES Operating Instructions 1

Contents

1 DEFINITIONS AND WARNINGS......................................................................1-1

2 PRODUCT DESCRIPTION...............................................................................2-1

2.1 Description of function.......................................................................................2-2

3 TECHNICAL DATA...........................................................................................3-1

4 INSTALLATION ................................................................................................4-1

4.1 EMC measures..................................................................................................4-1

4.2 Housing .............................................................................................................4-1

5 CONNECTIONS................................................................................................5-1

5.1 Connector X1.....................................................................................................5-1

5.2 Encoder interface X2.........................................................................................5-2

5.3 Fiber-optic cable connection .............................................................................5-5

6 START-UP ........................................................................................................6-1

6.1 Setting the DIL switch........................................................................................6-1

6.2 LED displays......................................................................................................6-2

6.3 SIMOLINK data interface ..................................................................................6-3

SIMOLINK Pulse Generator 02.2001 Definitions and Warnings

Siemens AG GWE-477 764 4070.76 J

SIMOVERT MASTERDRIVES Operating Instructions 1-1

1 Definitions and Warnings

For the purpose of this documentation and the product warning labels,

a "Qualified person" is someone who is familiar with the installation,

mounting, start-up, operation and maintenance of the product. He or

she must have the following qualifications:

♦Trained or authorized to energize, de-energize, ground and tag

circuits and equipment in accordance with established safety

procedures.

♦Trained or authorized in the proper care and use of protective

equipment in accordance with established safety procedures.

♦Trained in rendering first aid.

indicates an imminently hazardous situation which, if not avoided, will

result in death, serious injury and considerable damage to property.

indicates a potentially hazardous situation which, if not avoided, could

result in death, serious injury and considerable damage to property.

used with the safety alert symbol indicates a potentially hazardous

situation which, if not avoided, may result in minor or moderate injury.

used without safety alert symbol indicates a potentially hazardous

situation which, if not avoided, may result in property damage.

NOTICE used without the safety alert symbol indicates a potential

situation which, if not avoided, may result in an undesirable result or

state.

For the purpose of this documentation, "Note" indicates important

information about the product or about the respective part of the

documentation which is essential to highlight.

Qualified personnel

DANGER

WARNING

CAUTION

NOTICE

NOTE

Definitions and Warnings 02.2001 SIMOLINK Pulse Generator

GWE-477 764 4070.76 J Siemens AG

1-2 Operating Instructions SIMOVERT MASTERDRIVES

Hazardous voltages are present in this electrical equipment during

operation.

Non-observance of the warnings can thus result in severe personal

injury or property damage.

Only qualified personnel should work on or around the equipment

This personnel must be thoroughly familiar with all warning and

maintenance procedures contained in this documentation.

The successful and safe operation of this equipment is dependent on

correct transport, proper storage and installation as well as careful

operation and maintenance.

This documentation does not purport to cover all details on all types of

the product, nor to provide for every possible contingency to be met in

connection with installation, operation or maintenance.

Should further information be desired or should particular problems

arise which are not covered sufficiently for the purchaser’s purposes,

the matter should be referred to the local SIEMENS sales office.

The contents of this documentation shall not become part of or modify

any prior or existing agreement, commitment or relationship. The sales

contract contains the entire obligation of SIEMENS AG. The warranty

contained in the contract between the parties is the sole warranty of

SIEMENS AG. Any statements contained herein do not create new

warranties or modify the existing warranty.

WARNING

NOTE

SIMOLINK Pulse Generator 02.2001 Definitions and Warnings

Siemens AG GWE-477 764 4070.76 J

SIMOVERT MASTERDRIVES Operating Instructions 1-3

Components which can be destroyed by electrostatic discharge (ESD)

The board contains components which can be destroyed by

electrostatic discharge. These components can be easily destroyed if

not carefully handled. If you have to handle electronic boards, please

observe the following:

Electronic boards should only be touched when absolutely necessary.

The human body must be electrically discharged before touching an

electronic board.

Boards must not come into contact with highly insulating materials - e.g.

plastic parts, insulated desktops, articles of clothing manufactured from

man-made fibers.

Boards must only be placed on conductive surfaces.

Boards and components should only be stored and transported in

conductive packaging (e.g. metalized plastic boxes or metal

containers).

If the packing material is not conductive, the boards must be wrapped

with a conductive packaging material, e.g. conductive foam rubber or

household aluminum foil.

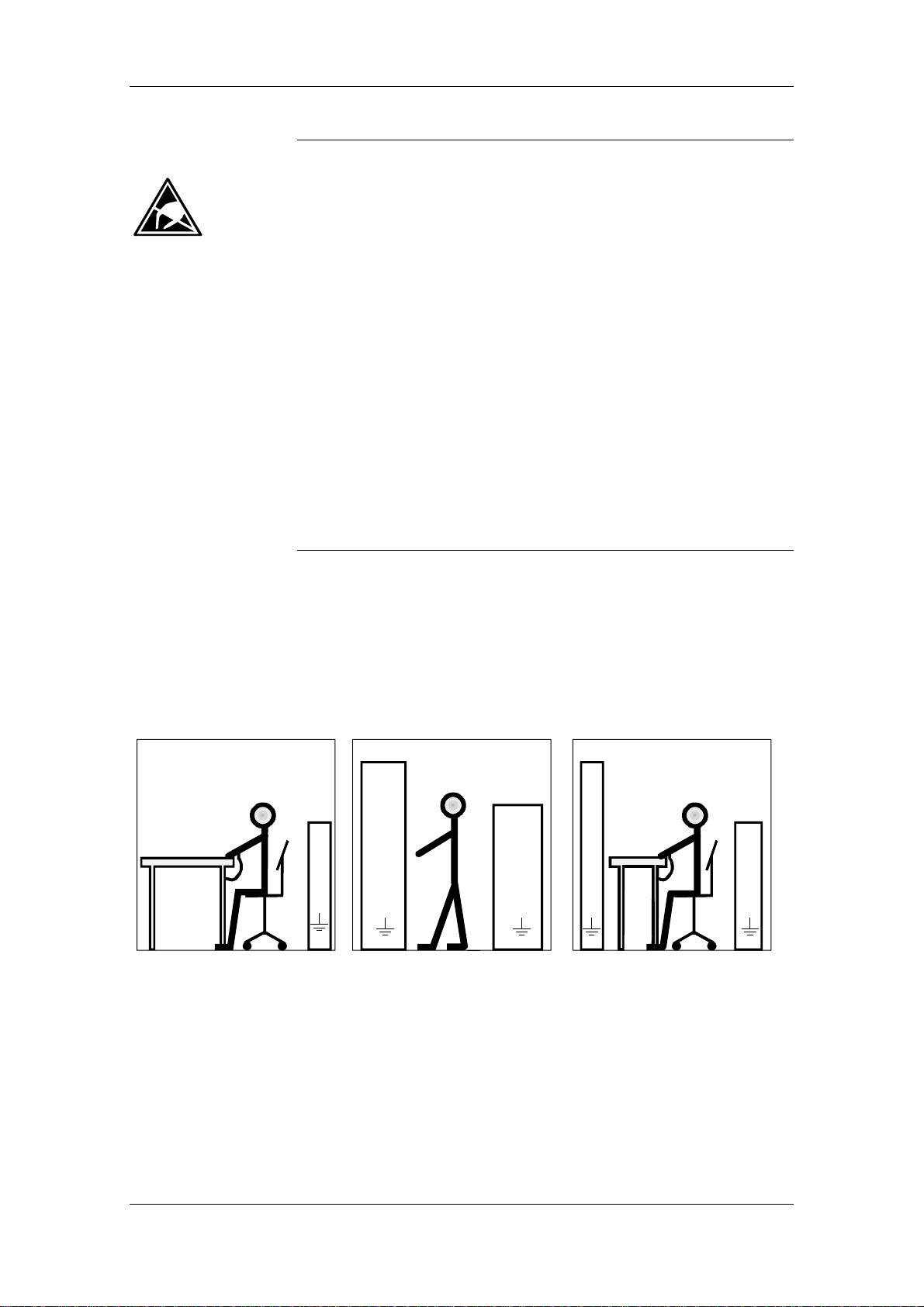

The necessary ESD protective measures are clearly shown again in the

following diagram:

♦a = Conductive floor surface

♦b = ESD table

♦c = ESD shoes

♦d = ESD overall

♦e = ESD chain

♦f = Cubicle ground connection

StandingSitting Standing / Sitting

ff f f

Fig. 1-1 ESD protective measures

CAUTION

SIMOLINK Pulse Generator 02.2001 Product Description

Siemens AG GWE-477 764 4070.76 J

SIMOVERT MASTERDRIVES Operating Instructions 2-1

2 Product Description

In drive configurations with an "electrical shaft", simple speed-

synchronized auxiliary drives or other devices which require an actual

machine value proportional to velocity are frequently needed in addition

to the main position-controlled drives. These auxiliary drives and

devices have a pulse encoder input and read in the data supplied by a

pulse encoder mounted centrally on the line shaft. On drives with an

electrical shaft and flexible configuration, this central point is often

impossible to physically define. The SIMOLINK Pulse Generator (SLP)

thus simulates an encoder on the electrical shaft and supplies a central

actual machine value (machine velocity) which is generated from the

master setpoint. The electrical shaft with the position-controlled main

drives is implemented by means of SIMOLINK and MASTERDRIVES

Motion Control drives.

The SIMOLINK Pulse Generator uses a speed setpoint transported via

SIMOLINK to generate two pulse signals in quadrature of proportional

frequency (100 % = 25 kHz). These are supplied to further devices via

the RS422 (EIA422 standard). The frequency output corresponds to

that of a pulse encoder with 1000 pulses/rev and a speed normalization

of 100 % = 1500 rev/min.

A "100 kHz operating mode" can be activated optionally. Instead of the

signals in quadrature, one signal supplies the quadruple frequency

proportional to the setpoint (100 % = 100 kHz) and the other signal

supplies the sign.

The SIMOLINK transmission medium is a fiber-optic cable. Fiber optics

made of glass or plastic may be used. SIMOLINK has a ring-shaped

structure, with each node in the ring acting as a signal amplifier. A

maximum of 201 active nodes can be interconnected on the SIMOLINK

ring.

For further information about SIMOLINK, please refer to Chapter

"Communication / SIMOLINK“ of the SIMOVERT MASTERDRIVES

Compendium Motion Control, Order No.: 6SE7087-6QX50.

NOTE

Product Description 02.2001 SIMOLINK Pulse Generator

GWE-477 764 4070.76 J Siemens AG

2-2 Operating Instructions SIMOVERT MASTERDRIVES

2.1 Description of function

The incoming optical signals from the fiber-optic cable are converted to

electrical signals by means of fiber optic receivers on all SIMOLINK

modules and then transferred to the fiber-optic transmitter where they

are converted back to optical signals. The propagation delays caused

by this process are calculated while SIMOLINK is booting and the dead

times compensated accordingly for active SIMOLINK nodes. The

receive information is derived, depending on parameterization, from the

buffered, electrical signals and transferred with the SYNC interrupt (last

telegram in SIMOLINK polling). The transmit information of the node is

transferred in the opposite direction and written to the associated

telegrams (electrical signals).

The SIMOLINK Pulse Generator is incorporated in the SIMOLINK ring

like a SIMOLINK slave; it is an active node and included in the dead-

time calculation. However, it does not have its own node address and

cannot therefore write transmit telegrams to the SIMOLINK (SLP does

not supply a return value).

The SIMOLINK receive address (0 ... 200; dispatcher mode: Address of

node which is sending the speed setpoint) is set via the DIL switches

on the front panel. The momentary speed setpoint is read in the

MASTERDRIVES 32-bit format (4000 0000 hex = 100 %) from channel

0. Only the 10 highest bits are resolved with a maximum output of

112 %, resulting in a speed resolution of 0.4 %. The speed setpoint

must be updated (new setpoint or identical value if velocity is constant)

in every SIMOLINK cycle by the transmitting node.

The speed setpoint is transferred to the frequency generator with the

SYNC interrupt which then generates the equivalent frequency with the

correct phase sequence of the two output signals (tracks A and B). An

output frequency of 25 kHz corresponds to a speed setpoint of 100 %.

Alternatively, a jumper can be inserted in the mating connector of X2 to

activate the "100 kHz signal" operating mode. The frequency generator

can then output signals from 0 to 100 kHz. In this mode, the frequency

signal is output via track A and the sign (direction of rotation) via track

B. The sign is a static 0 (positive) or 1 (negative) signal.

The RS422 interface forms the desired signal levels which can be

picked off on SUB D socket X2.

The operating states are indicated by the three LEDs on the housing

front panel.

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Accionamiento de CC de Siemens

Siemens

Siemens SINAMICS V20 Series Instrucciones de uso

Siemens

Siemens 3RV1986-0BA0 Manual de usuario

Siemens

Siemens SINAMICS S120 Manual de lista de piezas

Siemens

Siemens Simovert Masterdrives Compact Plus Series Manual de usuario

Siemens

Siemens SINAMICS S120 Manual de usuario

Siemens

Siemens SINAMICS SH150 Instrucciones de funcionamiento

Siemens

Siemens PXC00-PE96.A Manual de usuario

Siemens

Siemens SINAMICS GM150 Instrucciones de funcionamiento

Siemens

Siemens SKB62 Series Manual de usuario

Siemens

Siemens 3VT9100-3M.00 Manual de usuario

Siemens

Siemens SINAMICS PERFECT HARMONY GH150 Instrucciones de funcionamiento

Siemens

Siemens SINAMICS SL150 Manual de usuario

Siemens

Siemens SINAMICS SL150 Manual de usuario

Siemens

Siemens SINAMICS GM150 Manual de usuario

Siemens

Siemens SINAMICS V20 Inverter Manual de usuario

Siemens

Siemens SINAMICS G130 Manual de instalación y operación

Siemens

Siemens SINAMICS S120 Manual de usuario

Siemens

Siemens SINUMERIK 810D Manual de instalación y operación

Siemens

Siemens Sinamics S120M Documento técnico

Siemens

Siemens SINAMICS G120 CU230P-2 Manual de usuario

Siemens

Siemens SINAMICS SM150 6SL3815-7NP41-0AA1 Instrucciones de funcionamiento

Siemens

Siemens SINAMICS G115D Manual de usuario

Siemens

Siemens SINAMICS S120 Manual de usuario

Siemens

Siemens Micromaster Eco Manual de usuario

Manuales populares de Accionamiento de CC de otras marcas

Vincent Associates

Vincent Associates UNIBLITZ ED12DSS Manual de usuario

EKSMA OPTICS

EKSMA OPTICS DQ-100-4 Manual de lista de piezas

Chamberlain Garog

Chamberlain Garog D Series Manual de usuario

Parker

Parker PDS Series Manual de usuario

Festo

Festo DGC G Series Guía de configuración

Binks

Binks QS-5012-1-CE Manual de usuario

Danfoss

Danfoss VLT 2800 Series Hoja de especificaciones

ABB

ABB ACQ580-01 Series Manual de instalación

YASKAWA

YASKAWA CANopen SI-S3 Manual de usuario

GE D20A6 Manual de usuario

Unex

Unex MC-D-250-1000-050W-TW Manual de usuario

Geckodrive

Geckodrive G213V Manual de usuario

ABB

ABB RSYC-01 Manual de usuario

Rockwell Automation

Rockwell Automation PowerFlex 700S Manual del propietario

WEG

WEG DeviceNet CFW500 Manual de usuario

SOMFY

SOMFY JR RU 30 Manual de usuario

Beckhoff

Beckhoff AX8911 Manual del operador

Minarik

Minarik MM300 Series Manual de usuario
