Siemens SSA911.02ZB Manual de usuario

Connected Home Radiator Valve Actuator ZigBee, wireless

SSA911.02ZB

Wireless radiator valve actuator, works with SIEMENS Connected Home

●RF-controlled actuator communication based on ZigBee protocol (2.4 GHz,

bidirectional)

●Connects and operates with Connected Home hub and receiver

●Battery-operated with commercially available 1.5 V AA batteries

●Valve thread connection M30x1.5 mm

●Nominal stroke 5 mm

●Valve positioning force 90 N

●Adapts automatically to valve

●Integrated temperature sensor and PI controller

●Set temperature on device or via app

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Application

●The SSA911.02ZB wireless radiator valve actuator is designed to work on radiator

valves from different manufacturers in HVAC applications using M30x1.5 thread. It

operates the valve to control water flow and room temperature.

●The valve actuator works in combination with Connected Home Hub GTW100ZB and

wireless repeater RCR110.2ZB (as an option)

●One Connected Home Hub GTW100ZB can pair with up to 32 radiator valve actuators in

parallel. Wireless repeaters RCR110.2ZB extend the range of the network.

Siemens Connected Home

(App)

GTW100ZB

SSA911.02ZB

RCR110.2ZB

Basic functions

Functions

Description

Communication

The communication protocol is ZigBee.

ZigBee is a low-power wireless mesh networking protocol and enables device-to-device and

device-to-cloud communications. ZigBee is based on IEEE 802.15.4 radio standard.

Parallel operation

A single Connected Home Hub GTW100ZB can pair up to 32 actuators.

Pairing

The Connected Home app pairs the devices.

Calibration

The actuator automatically detects the end positions of the radiator valve.

Temperature

setting

Push buttons on the device set the setpoint temperature

Type summary

Type

Article number

Description

SSA911.02ZB

S55181-A105

Radiator valve actuator

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Scope of delivery

●Radiator valve actuator SSA911.02ZB

●2 AA alkaline batteries (LR6)

●Quick guide (A5W00205935A)

●Third-party valve adapter for Danfoss (RA, RAV, RAVL)

●Screw and nut for adapter

Equipment combinations

Siemens valves

The SSA911.02ZB is suited for the following Siemens radiator valve types:

Type

kVS

[m3/h]



[l/h]

Data sheet

VDN1.., VEN1..

Radiator valves

0.63…1.41

N2105

VDN2.., VEN2.., VUN2..

N2106

VD1..CLC..

1.9…2.6

N2103

VD1.., VE1.. *

Radiator valves

0.25…3.4

N2145

VD2.., VE2.., VU2.. *

N2146

VPD/VPE/VPU..

Radiator PICV

20…135

A6V13599366

kVS

Flow nominal value for cold water (5. 30 °C) through a fully opened valve (H100), at differential pressure

of 100kPa (1 bar)



Volume flow

No longer available

Third-party valves without adapter

The SSA911.02ZB can operate third-party radiator valves without adapter, provided they

have a M30x1.5 mm connecting thread and meet the following requirements:

Force

90 N nominal

Fully closed

x > 9,0 mm

Fully open

y ≤ 14,5 mm

Valve pre-adjustment / kV-limitation

For valve pre-adjustments, refer to the relevant technical documentation on the valves.

Ensure a minimum valve stroke of > 0.5 mm.

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Accessories

Adapters for SSA911.02ZB for use with third-party valves

Type

Article number

For use with...

Adapter thread

AV52

BPZ:AV52

Comap

M28x1,5

AV56

BPZ:AV56

Giacomini

AV57

BPZ:AV57

Herz

M28x1,5

AV58

BPZ:AV58

Oventrop < 2002

M30x1

AV59

BPZ:AV59

Vaillant

AV60

BPZ:AV60

TA < 2002

M28x1,5

AV61

BPZ:AV561

MMA Markaryd

M28x1.5

Contact your local office or branch for information on adapters for other radiator valve types

and manufacturers.

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

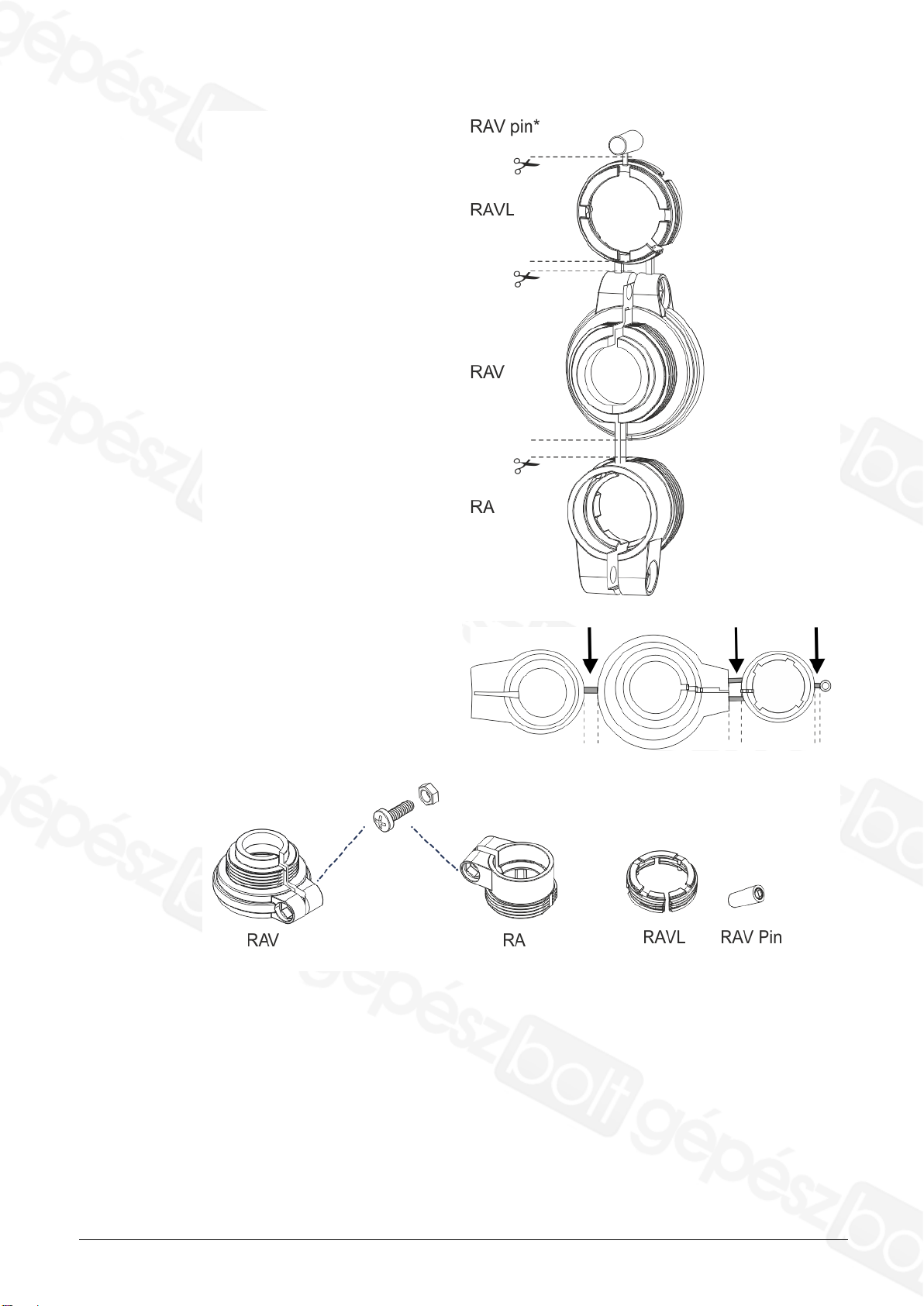

Third-party valve adapter

Adapters for Danfoss RA/RAV/RAVL valves included in delivery.

•Remove connects on the

plastic adapter before using

one of the included adapters.

•Use supplied screw and nut.

•Insert pin on valve stem.

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Product documentation

Title

Contents

Document ID

Connected Home Radiator Actuator

ZigBee SSA911.02ZB

Data sheet: Product description

A6V13722083

Quick guide Connected Home

Radiator Actuator ZigBee

SSA911.02ZB

Quick guide for mounting, commissioning, and

operation SSA911.02ZB

A5W00293080A

Connected Home Hub GTW100ZB

Data sheet: Product description

A6V12640776

Quick guide Connected Home Hub

GTW100ZB

Quick guide for mounting, commissioning, and

operation SSA911.02ZB

A6V12694180

Connected Home Receiver

RCR110.2ZB

Data sheet: Product description

A6V12680327

Quick guide Connected Home

Receiver RCR110.2ZB

Quick guide for mounting, commissioning, and

operation RCR110.2ZB

A6V11562443

Related documents such as environmental declarations, CE declarations, etc., can also be

downloaded at:

www.siemens.com/bt/download

Notes

Safety

CAUTION

National safety regulations

Failure to comply with national safety regulations may result in personal injury and property

damage.

●Observe national provisions and comply with the appropriate safety regulations.

WARNUNG

Burns from hot surface

The screw nut that fastens the actuator to the radiator valve can become hot. Risk of burns

from touching the screw nut.

When servicing the actuator:

●Switch off the radiator and allow it to cool down.

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

WARNUNG

Explosion due to fire or short circuit, even with empty batteries

Risk of injury due to flying parts

●Do not expose batteries to water.

●Do not recharge batteries.

●Do not damage or disassemble batteries.

●Do not expose batteries to temperatures over 85 °C.

WARNUNG

Leakage of electrolyte

Severe burns

●Wear protective gloves to handle damaged batteries.

●In case of contact with electrolyte, rinse eyes immediately with plenty of water. Consult

a doctor.

Observe the following:

●Correct polarity (+/-).

●Use new batteries and inspect for damage.

●Do not mix old and new batteries.

Store, transport and dispose of the batteries in compliance with local requirements,

regulations, and laws. Also observe the instructions of the battery manufacturer.

Switching off the device or loss of communication to the radiator valve actuator may result

in an “undefined state” and quickly drain the batteries.

Do not switch off Connected Home Hub and use a repeater as need to ensure proper

communications.

Mounting SSA911.02ZB is mounted on the radiator valve. There are no preferred mounting positions;

actuator SSA911.02ZB can be operated in all mounting positions. The display must be

clearly visible and the buttons easy to access.

WARNUNG

Falling objects

Overhead installation may result in injury from falling objects.

●Do not install the actuator more than 2 m above ground

●Firmly hand tighten the screw nut clockwise to attach the actuator to the valve or

adapter.

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

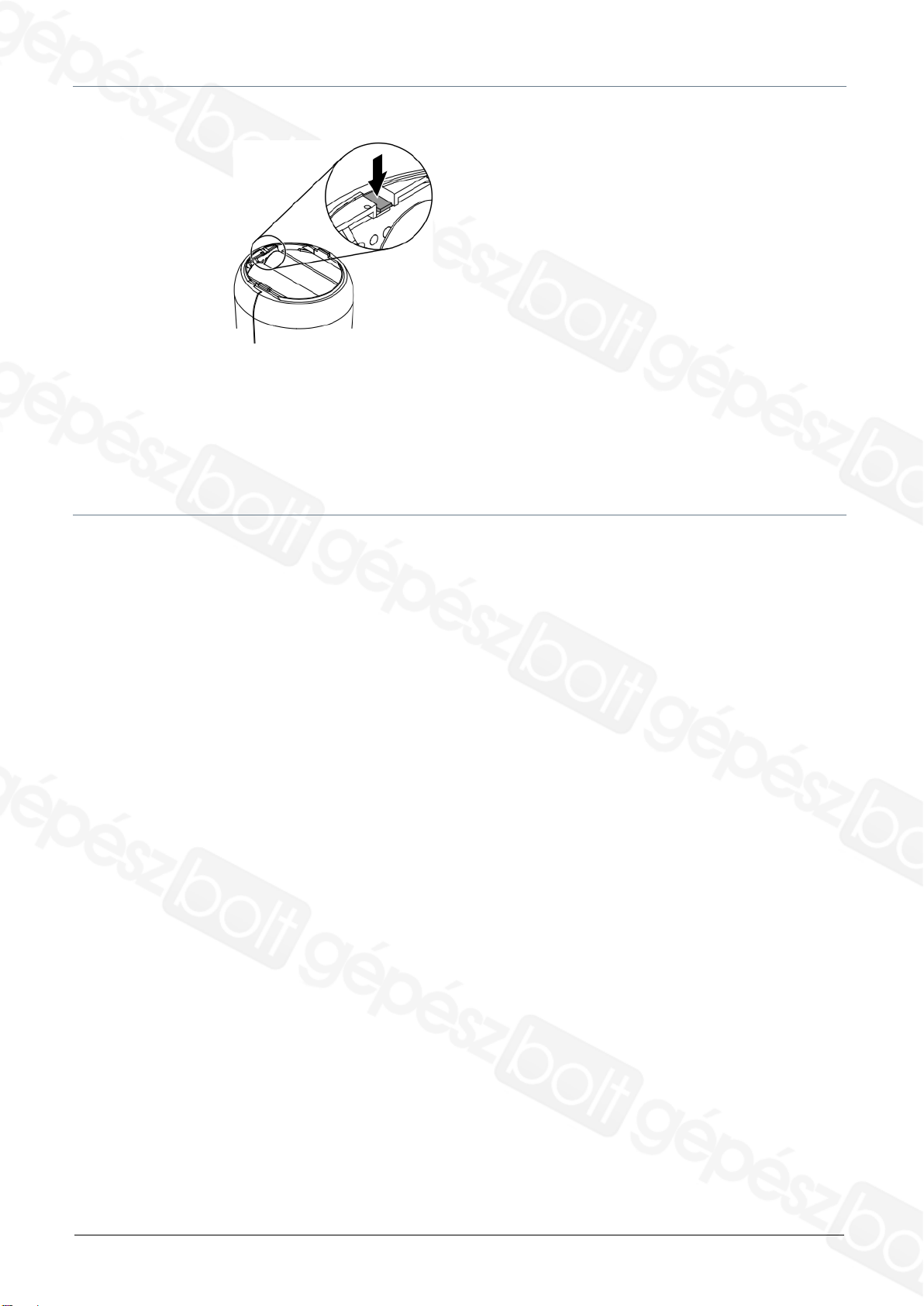

Removal

●Delete the device from the Siemens Connected Home App.

●Press the Reset button in the battery compartment for ca. 10 seconds.

●The LCD displays “PA” and counts up to 10.

●Release the Reset button after 10 seconds.

➔The LCD display turns off and the valve stem goes to the mounting position.

●Turn the screw nut counterclockwise and remove from the radiator valve actuator.

Commissioning

●Install the Connect Home mobile app.

–The app provides step-by-step commissioning instructions.

●Install and commission the Connected Home Hub GTW100ZB (see quick guide

A6V12694180).

●Optional: Install and commission the Connected Home Receiver Hub CR110.02ZB (see

quick guide A6V11562443).

●Install and commission the Connected Home Radiator valve actuator SSA911.02ZB (see

quick guide A5W00293080A).

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

Operation

HMI

The interface consists of an LCD display and two touch

elements.

Lower temperature

Increase temperature

Buttons

Press once

Lower room temperature by 0.5 ℃.

Press and hold

Immediately lowers room temperature by 0.5 ℃,

followed by another 0.5 ℃every 0.5 s the button

is held or until the lowest temperature is reached.

If the settings is less than 8 °C, the LCD displays

“—” and control is switched off.

Press once

Increases room temperature by 0.5 ℃.

Press and hold

Immediately increases room temperature by 0.5

℃, followed by another 0.5 ℃every 0.5 s the

button is held or until the highest temperature is

reached.

When a temperature higher than 28 °C is set,

"ON" appears on the LCD display. The boost

mode is activated for 5 min.

and

Press and hold together for 3 s

Lock or unlock buttons.

If “Ad”, press together and hold for

3 s

Starts adaptation

Reset button

Battery compartment

Press Reset button in battery

compartment and hold for 10 s

Delete the device list from the Connected Home

app to reset to factory settings.

Reset can be performed after 10 s (LCD indicates

how long to press as of 5 s).

Press and hold for 5 s

The device is deleted from the network.

Press and hold for 3 s

Displays the discovered network (Zigbee Node

ID).

Siemens

A6V13722083_de--_a

Smart Infrastructure

2022-12-12

LCD indication

Informs about wireless connection and pairing.

On: Connected to gateway.

Off: Not connected to gateway.

Pairing (inclusion) is active.

●Do not operate the actuators in pairing mode over longer periods; this

quickly drains the batteries.

Perform a factory reset if pairing fails after multiple attempts and then try

again per the documentation.

Remove mode (exclusion) active.

Start adaptation.

On during adaptation.

On if button lock is enabled/disabled.

On if battery capacity drops below 15%.

Change operating mode

Operating mode

OFF mode

Press touch element and hold until the LCD displays “--” and the radiator valve

actuator switches off.

Heating mode

The two touch elements and set the temperature between 8 and 28°C.

If the device is not in heating mode, use the touch elements to change the temperature

between 8 and 28 degrees.

Boost mode

To change the device to boost mode, press and hold touch element until the LCD

displays "ON".

Boost mode switches off automatically after 5 minutes.

Window open

mode

“Window open” activates if the temperature suddenly drops. SSA911.02ZB switches to

OFF mode for 15 minutes.

The Window open function switches off after 15 minutes and the device returns to the

last active mode.

Error codes

An error code displays on the SSA911.02ZB in the event of a malfunction or communication

error with Connected Home Hub.

Press the plus or minus button to clear error codes.

Otros manuales de Controladores de Siemens

Siemens

Siemens SINAMICS SL150 6SL38655UM427AA02 Manual de usuario

Siemens

Siemens SIMATIC S7-1200 Manual de usuario

Siemens

Siemens Hicom 300 optiset E Standard Manual de usuario

Siemens

Siemens 550-506 Manual de usuario

Siemens

Siemens PolyCool CPS 40 Manual de usuario

Siemens

Siemens Simatic S7-300 Manual de usuario

Siemens

Siemens 7SR224 Instrucciones de funcionamiento e instalación

Siemens

Siemens 3RK1304-5 S70 Series Manual de usuario

Siemens

Siemens SQK349.00/209 Manual de usuario

Siemens

Siemens OpenAir GIB13.1 Series Manual de usuario

Siemens

Siemens SINUMERIK 810DE Documento técnico

Siemens

Siemens Simatic S7-1500 Manual de usuario

Siemens

Siemens CLIMATIX C400 Manual de usuario

Siemens

Siemens OCI611 Series Manual de usuario

Siemens

Siemens 3RW51 Series Manual de usuario

Siemens

Siemens BACnet Manual de usuario

Siemens

Siemens Simatic S7-1500 Manual de lista de piezas

Siemens

Siemens Simatic S7-1500 Manual de usuario

Siemens

Siemens SIMOTION C230-2 Manual de usuario

Siemens

Siemens SQL321B Series Manual de usuario

Siemens

Siemens siprotec 7SA6 Manual de usuario

Siemens

Siemens GBB 1E Series Manual de usuario

Siemens

Siemens OpenAir Manual de usuario

Siemens

Siemens Acvatix G B111.9E/MO Series Manual de usuario

Manuales populares de Controladores de otras marcas

Digiplex

Digiplex DGP-848 Instrucciones de funcionamiento

YASKAWA

YASKAWA SGM series Manual de usuario

Sinope

Sinope Calypso RM3500ZB Manual de usuario

Isimet

Isimet DLA Series Style 2 Manual de instalación

LSIS

LSIS sv-ip5a Manual de usuario

Rockwell Automation

Rockwell Automation 1769-L31 Manual de usuario

Airflow

Airflow Uno hab Manual de usuario

ABB

ABB ACS580-01 drives Manual de usuario

Panasonic

Panasonic GM1 Series Manual de usuario

Emerson

Emerson SW93 Manual de usuario

AutoAqua

AutoAqua Smart ATO micro SATO-120P Manual de usuario

Panasonic

Panasonic FP? Positioning Unit RTEX Manual de usuario

Samson

Samson Type 5824 Manual de servicio

Alpha IP

Alpha IP MIOB 21001 Manual de usuario

Surecom

Surecom SR-629 Manual de usuario

Fishman

Fishman TriplePlay Manual de usuario

Regulus

Regulus SRS1 T Manual de usuario

3M MicroTouch EX113 Manual de usuario
