Siemens SIMATIC S5 CPU Direct Driver Manual de usuario

Siemens AG

SIMATIC S5 CPU

Direct Driver

1 System Configuration....................................................................................................... 3

2 Selection of External Device ............................................................................................ 6

3 Example of Communication Setting ................................................................................. 7

4 Setup Items ...................................................................................................................... 8

5 Cable Diagram ............................................................................................................... 13

6 Supported Device........................................................................................................... 14

7 Device Code and Address Code.................................................................................... 15

8 Error Messages.............................................................................................................. 16

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 2

PREFACE

This manual describes how to connect the Display and the External Device (target PLC).

In this manual, the connection procedure will be described by following the below sections:

1System Configuration

This section shows the types of External

Devices which can be connected and SIO

type.

)System Configuration (page 3)

2Selection of External Device

Select a model (series) of the External

Device to be connected and connection

method.

)Selection of External Device (page 6)

3Example of Communication Settings

This section shows setting examples for

communicating between the Display and

the External Device.

)Example of Communication Setting (page 7)

4Setup Items

This section describes communication

setup items on the Display.

Set communication settings of the Display

with GP-Pro EX or in off-line mode.

)Setup Items (page 8)

Operation

5Cable Diagram

This section shows cables and adapters

for connecting the Display and the

External Device.

)Cable Diagram (page 13)

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 3

1 System Configuration

The system configuration in the case when the External Device of Siemens AG and the Display are connected is

shown.

Connection Configuration

[1:1 Connection]

Series Name CPU Link I/F SIO Type Setting

Example

Cable

Diagram

Series

90U-115U

CPU 90U

CPU 95U

CPU 100

CPU 102

CPU 103

CPU 941

CPU 942

CPU 943

CPU 944

PG port on CPU RS232C

Setting

Example 1

(page 7)

Cable

Diagram 1

(page 13)

Series

135U/155U

CPU 922

CPU 928

CPU 928B

PG port on CPU RS232C

Display External Device

CA6-CBLTTY/5M-01

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 4

IPC COM Port

When connecting IPC with an External Device, the COM port used depends on the series and SIO type. Please

refer to the IPC manual for details.

Usable port

DIP switch setting: RS-232C

Series

Usable Port

RS-232C RS-422/485(4 wire) RS-422/485(2 wire)

PS-2000B COM1*1 , COM2,

COM3*1, COM4

*1 The RI/5V can be switched. Use the IPC’s switch to change if necessary.

PS-3450A, PS-3451A,

PS3000-BA, PS3001-BD COM1, COM2*1*2 COM2*1*2 COM2*1*2

PS-3650A, PS-3651A COM1*1 --

PS-3700A (Pentium®4-M)

PS-3710A

COM1*1, COM2*1,

COM3*2 , COM4

*2 Set up the SIO type with the DIP switch. Please set up as follows according to SIO type to be used.

COM3*2 COM3*2

PS-3711A COM1*1, COM2*2 COM2*2 COM2*2

PL-3000B, PL-3600T,

PL-3600K, PL-3700T,

PL-3700K, PL-3900T

COM1*1*2, COM2*1,

COM3, COM4 COM1*1*2 COM1*1*2

DIP switch Setting Description

1OFF

*1 When using PS-3450A, PS-3451A, PS3000-BA and PS3001-BD, turn ON the set value.

Reserved (always OFF)

2OFF

SIO type: RS-232C

3OFF

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 5

DIP switch setting: RS-422/485 (4 wire)

DIP switch setting: RS-422/485 (2 wire)

DIP switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 OFF Short-circuit of SDA (TXA) and RDA (RXA): Not available

8 OFF Short-circuit of SDB (TXB) and RDB (RXB): Not available

9OFF

RS (RTS) Auto control mode: Disabled

10 OFF

DIP switch Setting Description

1 OFF Reserved (always OFF)

2ON

SIO type: RS-422/485

3ON

4 OFF Output mode of SD (TXD) data: Always output

5 OFF Terminal resistance (220Ω) insertion to SD (TXD): None

6 OFF Terminal resistance (220Ω) insertion to RD (RXD): None

7 ON Short-circuit of SDA (TXA) and RDA (RXA): Available

8 ON Short-circuit of SDB (TXB) and RDB (RXB): Available

9ON

RS (RTS) Auto control mode: Enabled

10 ON

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 6

2 Selection of External Device

Select the External Device to be connected to the Display.

Setup Items Setup Description

Maker Select the maker of the External Device to be connected. Select "Siemens AG".

Driver

Select a model (series) of the External Device to be connected and connection method.

Select "SIMATIC S5 CPU Direct".

Check the External Device which can be connected in "SIMATIC S5 CPU Direct" in

system configuration.

)System Configuration (page 3)

Use System Area

Check this option when you synchronize the system data area of the Display and the device

(memory) of the External Device. When synchronized, you can use the ladder program of

the External Device to switch the display or display the window on the Display.

Cf. GP-Pro EX Reference Manual "Appendix 1.4 LS Area (Direct Access

Method)"

This can be also set with GP-Pro EX or in off-line mode of the Display.

Cf. GP-Pro EX Reference Manual " 5.17.6 Setting Guide of [System Setting

Window][Main Unit Settings] Settings GuideSystem Area Setting"

Cf. Maintenance/Troubleshooting "2.15.1 Settings common to all Display

modelsSystem Area Settings"

Port Select the Display port to be connected to the External Device.

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 7

3 Example of Communication Setting

Examples of communication settings of the Display and the External Device, recommended by Digital

Electronics Corp., are shown.

3.1 Setting Example 1

Settings of GP-Pro EX

Communication Settings

To display the setting screen, select [Device/PLC Settings] from [System setting window] in workspace.

Device Setting

To display the setting screen, click ([Setting]) of the External Device you want to set from [Device-Specific

Settings] of [Device/PLC Settings].

Settings of External Device

The communication setting of the External Device is fixed.

You need not set it.

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 8

4 Setup Items

Set communication settings of the Display with GP-Pro Ex or in off-line mode of the Display.

The setting of each parameter must be identical to that of External Device.

)Example of Communication Setting (page 7)

4.1 Setup Items in GP-Pro EX

Communication Settings

To display the setting screen, select [Device/PLC Settings] from [System setting window] in workspace.

Setup Items Setup Description

SIO Type Displays the SIO type to communicate with the External Device.

Speed Displays the communication speed between the External Device and the Display.

Data Length Displays data length.

Parity Displays how to check parity.

Stop Bit Displays stop bit length.

Flow Control Displays the communication control method to prevent overflow of transmission and

reception data.

Timeout Use an integer from "1 to 127" to enter the time (s) for which the Display waits for the

response from the External Device.

Retry In case of no response from the External Device, use an integer from "0 to 255" to enter

how many times the Display retransmits the command.

Wait To Send Use an integer from "0 to 255" to enter standby time (ms) for the Display from receiving

packets to transmitting next commands.

RI/VCC

You can switch RI/VCC of the 9th pin if you select RS232C for SIO type.

It is necessary to change RI/5V by changeover switch of IPC when connect with IPC.

Please refer to the manual of the IPC for more detail.

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 9

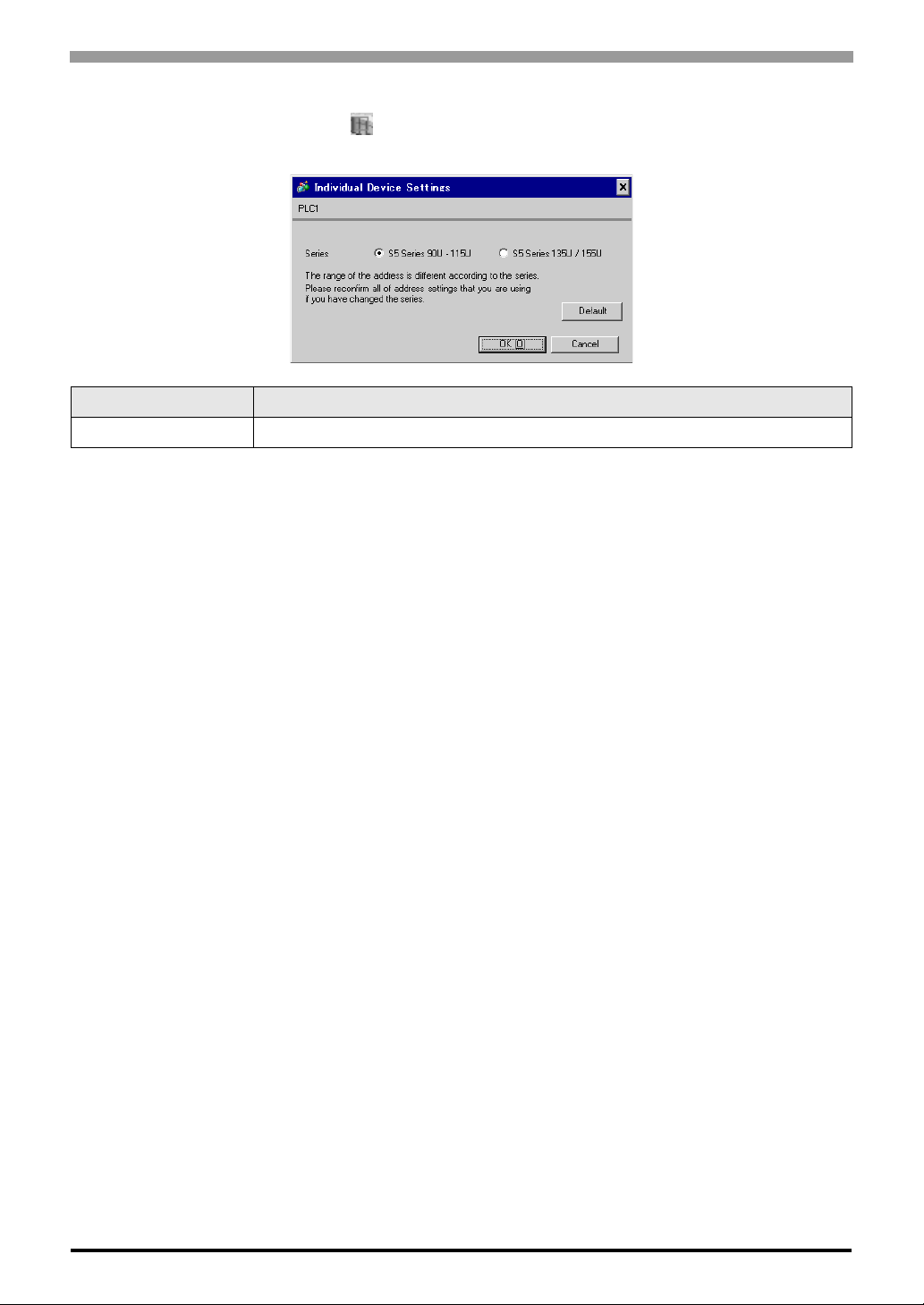

Device Setting

To display the setting screen, click ([Setting]) of the External Device you want to set from [Device-Specific

Settings ] of [Device/PLC Settings ].

Setup Items Setup Description

Series Select a model of the External Device.

SIMATIC S5 CPU Direct Driver

GP-Pro EX Device/PLC Connection Manual 10

4.2 Settings in Off-Line Mode

Communication Settings

To display the setting screen, touch [Device/PLC Settings] from [Peripheral Equipment Settings] in the off-line

mode. Touch the External Device you want to set from the displayed list.

• Refer to the Maintenance/Troubleshooting manual for information on how to enter off-line mode

or about the operation.

Cf. Maintenance/Troubleshooting Manual "2.2 Off-line Mode"

• The number of the setup items to be displayed for 1 page in the off-line mode depends on the

Display in use. Please refer to the Reference manual for details.

Setup Items Setup Description

SIO Type

Select the SIO type to communicate with the External Device.

To make the communication settings correctly, confirm the serial interface specifications of

Display unit for [SIO Type].

We cannot guarantee the operation if a communication type that the serial interface does

not support is specified.

For details concerning the serial interface specifications, refer to the manual for Display

unit.

Speed Displays the communication speed between the External Device and the Display.

Data Length Displays data length.

Parity Displays how to check parity.

Stop Bit Displays stop bit length.

Flow Control Displays the communication control method to prevent overflow of transmission and

reception data.

Timeout Use an integer from "1 to 127" to enter the time (s) for which the Display waits for the

response from the External Device.
