Shuttle HOT-591 Manual de usuario

HOT-591

Pentium™processor

Based AGPMAINBOARD

User's Manual

NOTICE

AllRightReserved

Manual Ver 1.0

Allinformation, documentation, andspecifications contained inthis manual aresubject to changewithout prior

notificationbythemanufacturer.

The author assumes no responsibility for any errors or omissions which may appear in this document nor does it make a

commitment to update the information contained herein.

TRADEMARKS

All the brands and product names referred to in this manual are trademarks or registered trademarks of their respective

holders.

FCC Notice:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC

Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency energy. If not installed and used properly, in strict accordance

with the manufacturer's instructions, may cause harmful interference to radio communications. However, there is no guarantee

that interference will not occur in a particular installation. If this equipment does cause interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interfer-

ence by one or more of the following measures :

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/television technician for help and for additional suggestions.

The user may find the following booklet prepared by the Federal Communications Commission helpful "How to Identify and

Resolve Radio-TV Interference Problems." This booklet is available from the U.S. Government Printing Office. Washington,

DC 20402, Stock 004-000-00345-4

FCCWarning

The user is cautioned that changes or modifications not expressly approved by the manufacturer could void the users authority

to operate this equipment.

Note: In order for an installation of this product to maintain compliancewith the limits for a Class B device, shielded cables

and power cord must be used.

CE Notice:

Following standards were applied to this product, in order to achieve compliance with the electromagnetic compatibility :

- Immunity in accordance with EN 50082-1: 1992

- Emissions in accordance with EN 55022: 1987 Class B.

TABLE OF CONTENTS

PREFACE ........................................................................................................................3

CHAPTER 1 FEATURES ......................................................................................................4

Accessories of HOT-591 .......................................................................................................................... 6

CHAPTER 2HARDWARE CONFIGURATION.............................................................................7

Jumper Setting........................................................................................................................................... 7

CPUClock Configurations -DIP Switch SW2........................................................................................ 8

SystemClock and CPUMultiplier Setting Manually- SW2 ................................................................ 12

CPUVoltage Setting Manually - SW1................................................................................................... 13

CPUBurst Mode Jumper-JP3................................................................................................................ 14

Flash EEPROM Vpp - JP13................................................................................................................... 14

ClearCMOS -JP6................................................................................................................................... 14

Connectors............................................................................................................................................... 15

CHAPTER 3MEMORY CONFIGURATION ..............................................................................14

CHAPTER 4 FLASH UTILITY .............................................................................................18

CHAPTER 5 VIA VXD AGP DRIVER INSTALLATION ............................................................20

CHAPTER 6 BIOS SETUP ...............................................................................................23

MainMenu .............................................................................................................................................. 24

StandardCMOS Setup............................................................................................................................ 26

BIOS Features Setup............................................................................................................................... 28

Chipset Features Setup............................................................................................................................ 30

PowerManagement Setup ...................................................................................................................... 32

PCIConfiguration Setup......................................................................................................................... 35

Integrated Peripherals ............................................................................................................................. 38

PasswordSetting ..................................................................................................................................... 41

HOT-591mainboard isa highly integrated IBM PC/AT compatible AT form-factor system

boarddesigned to meet the industry's most demanding desktop applications. Based on the

VIA'sVP3 chipset.

HOT-591accept AMD K5, K6, Intel Pentium P54C, Pentium MMX, IDT-C6 and Cyrix/

IBM6x86, 6x86L, 6x86MX processors and also featureshigh-performance pipelinedburst

secondarycache memory supportwith size of512KB. Thememory subsystem isdesigned

tosupport upto 256MBof EDORAM, StandardFast PageDRAM andSDRAM instandard

72-pinSIMM socket and 168-pin 3.3 V DIMM socket.

HOT-591is equipped withan Accelerated GraphicsPort (AGP) slot,a high performance

interconnectfor graphic-intensiveapplication, suchas 3Dapplications. The AGPis inde-

pendentof the PCIbus andis designed toexclusively use with graphical-display devices.

HOT-591provides a new level of I/O integration. VIA VP3 chipset provides increased

integrationandimprovedperformance over other chipsetdesigns.

TheVIA's VP3 chipset provides an integrated Bus Mastering IDE controller withtwo high

performanceUltra 33DMA IDE interfaces for up to four IDE devices.

TheonboardI/Ocontrollerprovides the standard PCI/Ofunctions:floppyinterface, two

FIFOserial ports,an IrDAdevice portand aSPP/EPP/ECP capableparallel port.

Upto three PCI local bus slots provide a high bandwidth datapath for data-movement

intensivefunctions suchas graphics,and up to three ISA slots complete the I/O function.

HOT-591provides the foundation for cost effective, high performance, highly expandable

platforms,which deliver the latest in Pentium processor and I/O standard.

HOT-591Mainboard is carefully designed for the demandingPC user who wants high

performanceand many intelligentfeatures in acompact package:

PREFACE

FEATURES

Chipset

FeaturesVIA's82C597AT VP3 AGPChipsetwith I/O subsystems

MainProcessor

AMD K6 166~266 MHz, K5 PR75~PR166,

IntelPentium (P54C) 75~200 MHz, Pentium MMX (P55C) 166~233MHz,

Cyrix/IBM6x86 P120+~P200+,6x86L P200+,6x86MX PR166~PR233,

IDT-C6150~200MHz

SecondaryCache

Onboard512KBPipelinedBurstCache

VersatileMemorySupports

Equippedwith twoSIMM andtwo DIMM sockets for (8, 16, 32, 64 or 128MB) 72-pin EDO or

FPMand 168-pin SDRAM memory modules up to 256 MB

ExpansionSlots

One AGP slot

Three PCI slot

Three ISA slot

AGPSupport(AcceleratedGraphicsPort)

HOT-591main boardequipped withan AGPslot foran AGPVGA cardthat supports133MHz

2Xmode for texture mapping z-buffering and alphablending. AGP allows3D applications to run

faster and smoothly.

OnboardI/O Chip

One Floppy port

One PS/2 mouse and Keyboard connector

Two high-speed UART compatible serial port

SerialPort 2 can also be directed fromCOM2 tothe Infrared Module for wireless connections

Oneparallelportwith ECP and EPPcapabilities

OnboardPCI Bus MasterIDE Controller

TwoUltra DMA/33 Bus Master IDEPorts supportsfour IDE devices up to33 MB/sec

IDEtransfers and supports Enhanced PIO Modes 3 and 4and BusMaster IDE DMA

Mode2 devices

Onboard12-pin ATand 20-pinATX Power Supply

ATXpower supports soft-on/offfunction

SystemBIOS

LicensedBIOSwithadditionalfeature:

*FlashEEPROM(128KB) for BIOSupdate

*ISAPlug & Playextension

*Powermanagement

*SupportDMI (Desktop Management Interface) function

ACPI:

SupportACPI(AdvancedConfigurationandPowerInterface) function. ACPI provide

moreEnergy SavingFeatures for the future operating system supporting OS Direct

PowerManagement (OSPM) functionality.

BoardSize:

AT form factor size 220mm x 220mm.

ACCESSORIESOF HOT-591

Figure 1 : Accessories of HOT-591

HardwareConfiguration

Thischapter is designed for explaininghow to configure the HOT-591'shardware. After youinstall the

mainboard, youcan setjumpers, installmemory onthe mainboard, andmake caseconnectors. Refer to

thischapter whenever youupgrades or reconfigureyour system.

Jumper Setting

Thissection describe the necessary proce-

duresand proper jumpersettings to configure

theHOT-591 mainboard.

Jumperpin headers and DIP Switch show on

rightside are used to configuresystem clock,

CPUmultiplier and CPU voltages.

SystemClock -

PinHeader 1~6 of Jumper JP1

Pinheader 1~6 are used toadjust System

Clock from 50MHz to 83 MHz.

CPU Multiplier -

PinHeader 7~12 of Jumper JP1

Pinheader 7~12are used to adjust CPU core

multiplierfrom 1.5X to5.5X.

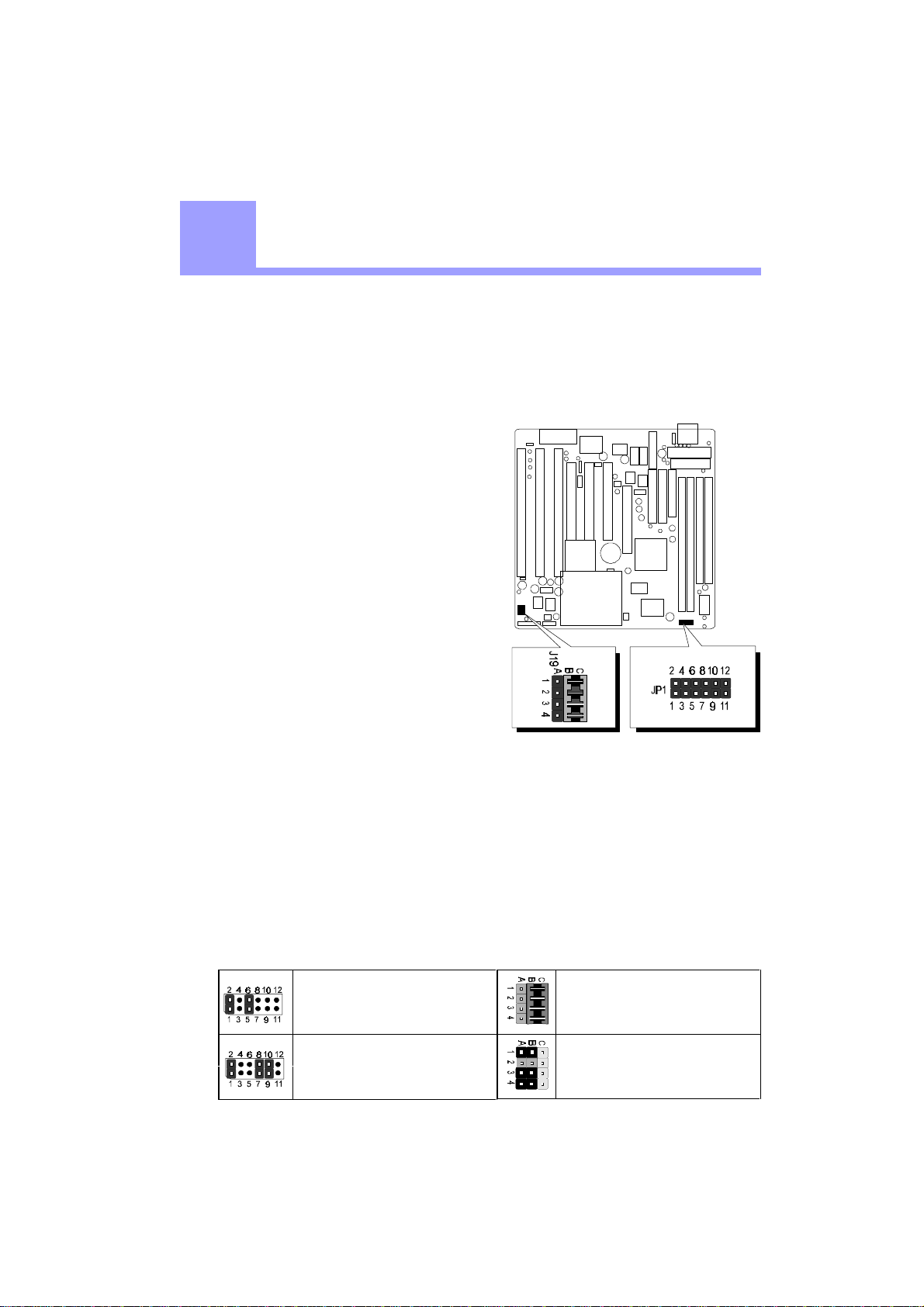

CPUVoltages Auto/Manual Figure 2-1 : SW1 & SW2 location

Insert a jumper pack on SW 1

Row B-C to set CPU voltage

auto-detecting

Remove jumper pack from SW1

and insert mini on pin 1, 3, 4 or

Row A-B to set voltage on 3.3V

Jumper-J19

HOT-591automaticallydetectsandadjuststhevoltage to the proper voltage.

Jumperblock J19 isused to setAutomaticallyor Manually adjustonboard voltages output

fromSwitching type regulators to CPU by inserting or removing mini jumperfrom pin

headers.(please also referto page 13)

Thosehardware settings are made through the useof jumpercaps to connect jumper pins on

the main board.

Thefollowing examplesshow theconventions usedin thischapter.

Insertminijumperson pin1-2,3-4

of JP1

Insertminijumperson pin1-2,7-8

and 9-10 ofJP1

CPU Clock Configuration - Jumper JP1

JumperJP1 andJumper BlockJ19 arethe Jumpersthat youneed toset foryour CPU on HOT-591.

Makesure thatyou know the type of CPU that you are installing and refer to the proper settings which

arelisted below. Normally, CPUvoltage is auto-detectedon HOT-591 andis set to Auto-detected when

HOT-591 is delivered. If you have a higher frequency CPU or you want to set CPU frequency and

voltagemanually, please refer to nexttwo sections.

Intel Pentium (P54C) Series CPUs Settings

ProcessorSpeedFrequency Settings

JumperJP1

JumperBlock J19

Vcore/Vio

Auto-detect

IntelPentium

(P54C)

200 MHz

3.3V/3.3V

166 MHz

150 MHz

133 MHz

120 MHz

100 MHz

90 MHz

75 MHz

Table 2-1

Intel Pentium MMX (P55C) Series CPUs Settings

ProcessorSpeedFrequency Settings

JumperJP1

JumperBlock J19

Vcore/Vio

Auto-detect

IntelPentium

MMX(P55C)

233 MHz

2.8V/3.3V

200 MHz

166 MHz

Table 2-2

AMD-K6 Series CPUs Settings

ProcessorSpeedFrequency Settings

JumperJP1

JumperBlock J19

Vcore/Vio

Auto-detect

AMD-K6

266 MHz

2.2V/3.3V

233 MHz

233 MHz3.2V/3.3V

200 MHz

2.9V/3.3V

166 MHz

Table 2-3

Note :The voltage of AMD-K6 233MHz may vary from market and CPU core. Please ask your

CPU provider for detail.
