Shure GLXD4+ Manual de usuario

GLXD4+

Wireless Receiver

Online user guide for GLXD4+ wireless system.

Version: 0.1 (2022-K)

Shure Incorporated
2/36
Table of Contents
GLXD4+   Wireless Receiver 3
System Overview 3
Receiver 3
Receiver Screen 5
Set Up the Receiver 6
Transmitters 6
Transmitter Status LED 8
Wearing the Bodypack Transmitter 8
Wearing the Headworn Microphone 8
Correct Microphone Placement 9
Install Transmitter Batteries 9
Batteries and Charging 10
Receiver Charging Bay 10
Charging from an AC Power Source 10
Charging Status LEDs 11
Charging Times and Transmitter Runtimes 11
Important Tips for Care and Storage of Shure Recharge
able Batteries 11
Tips to Improve Wireless System Performance 11
Additional Tips 12
System Set Up 13
Manually Linking Receivers and Transmitters 13
Linking Two Transmitters to a Receiver 13
Identifying Linked Transmitters and Receivers with Re
mote ID 13
Multiple Receiver Systems 14
Receiver Band Modes 14
Gain Adjustment 15
Locking and Unlocking the Controls 15
Locking the Receiver Controls 15
Locking the Transmitter Controls 15
Receiver Display Brightness 15
Firmware 16
Resetting Components 16
Resetting the Receiver 16
Resetting the Transmitter 16
Troubleshooting 16
Accessories 18
Specifications 18
Diagrams 23
Frequency Tables 23
IMPORTANT SAFETY INSTRUCTIONS 30
WARNING 32
Note: 32
Information to the user 32
Certifications 33

Shure Incorporated

3/36

•

GLXD4+

Wireless Receiver

System Overview

The GLX-D+ wireless systems from Shure combines the leading edge of automatic frequency management technology with

bestinclass intelligent lithiumion battery rechargeability, worldrenowned microphones and unparalleled design and construc

tion. Available in a wide offering of bodypack and handheld configurations - including vocal, headset and presenter systems as

well as traditional guitar options. The GLX-D+ wireless systems define the newest standard for seamless ease of operation and

exceptional digital audio clarity.

Exceptional digital audio clarity

Operates in 2.4 GHz and 5.8 GHz spectrum, available worldwide

Rechargeable batteries deliver cost-efficiency and up to 17 hours of runtime at 2.4 GHz and 12 hours of runtime at 5.8

GHz.

Adjustable transmitter gain to optimize audio signal

Automatically moves away from interference without audio interruption

RF back-channel for remote control of transmitter functions

Globallyunlicensed 2.4 GHz and 5.8 GHz frequency band allows operation of up to 4 compatible systems in a typical set

ting and up to 8 compatible systems under ideal conditions

Automatic transmitter power-off to conserve battery life when transmitter is not in use

Receiver

Shure Incorporated

4/36

◦

①Antenna

Two antennas per receiver. Antennas pick up the signal from the transmitter.

②RF status LED

ON = Linked transmitter is on

Flashing = Searching for transmitter

OFF = Linked transmitter off or transmitter unlinked

③Group button

Press and hold for two seconds to enable manual group edit.

④Link button

Press to manually link receiver to a transmitter or to activate the remote ID function.

⑤Channel button

Press to start a channel scan.

⑥Display

Shows receiver and transmitter status.

⑦Gain buttons

Press to increase or decrease transmitter gain in 1 dB increments.

⑧Battery charging indicator

Illuminates when battery is in charging bay:

Red = Battery charging

Green Flashing = Battery charge > 90%

Green = Battery charged

Amber Flashing = Charging error, replace battery

⑨Battery charging bay

Charges transmitter battery.

⑩Power switch

Powers the unit on and off.

Shure Incorporated

5/36

◦

⑪Power supply port

Connect the supplied 15 V DC external power supply.

⑫Mic output

XLR microphone output port supplies microphone-level audio output.

⑬USB-C port

Connect to computer to download firmware updates.

⑭Instr output

TRS ¼" (6.35mm) audio output. Connect to mixers, recorders, and amplifiers.

Receiver Screen

①Group

Displays the selected group.

②Channel

Displays the selected channel.

③Transmitter battery runtime

Displays remaining battery life in hours and minutes.

Alternatively displays the following battery status:

CALC = Battery life calculation

Lo = Battery life less than 15 minutes

Err = Replace battery

④Audio meter

Indicates audio signal level and peaks.

⑤Gain

Displays transmitter gain settings (dB).

⑥OL indicator

Indicates audio overload, reduce gain.

Shure Incorporated

6/36

⑦Transmitter locked

Displayed when linked transmitter controls are locked.

⑧Scanning

Indicates a scan is in progress.

⑨Auto

Indicates that the selected group has backup channels available.

Set Up the Receiver

Connect the PS43 power supply to the receiver and plug the cord into an AC power source.

Connect the audio output to an amplifier or mixer.

Shure Incorporated

7/36

◦

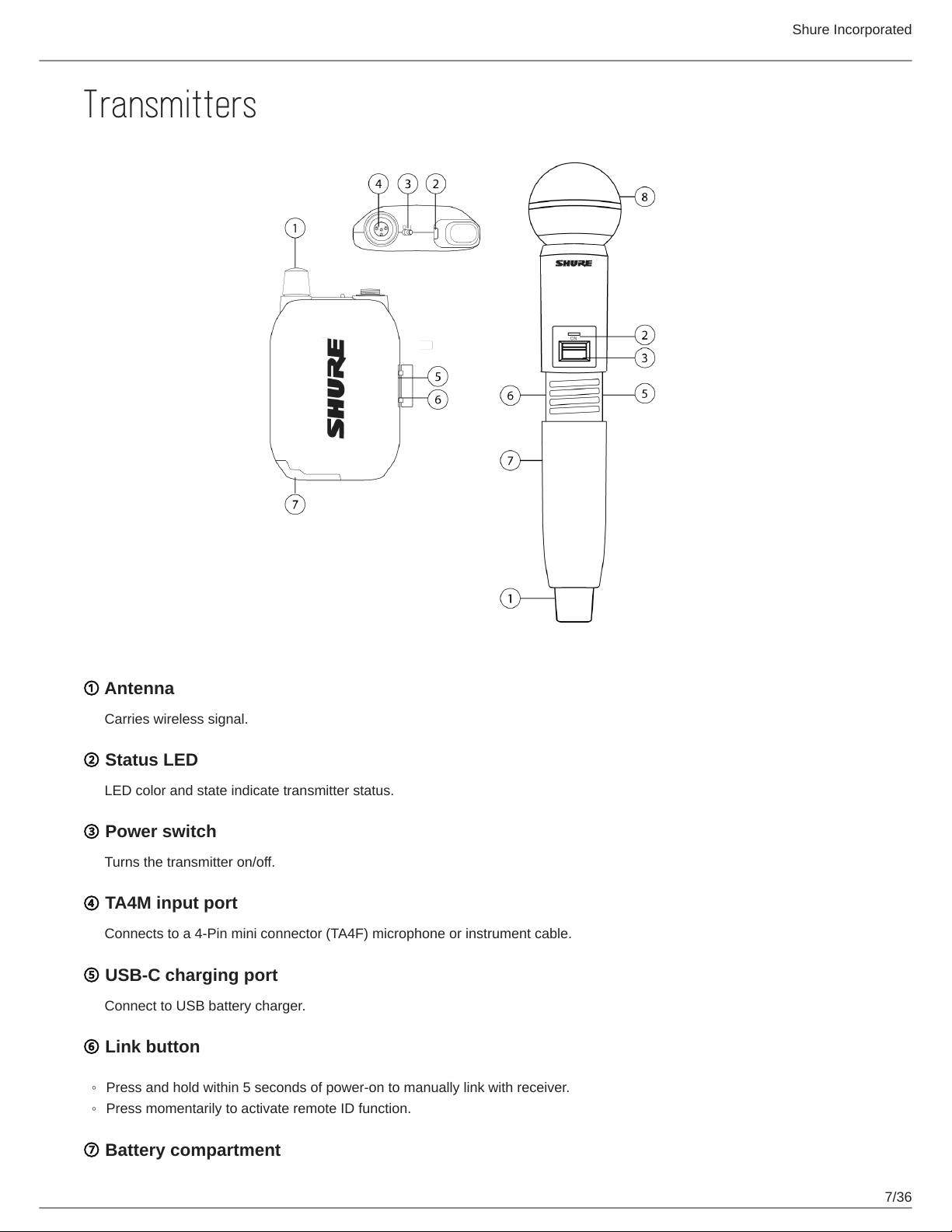

Transmitters

①Antenna

Carries wireless signal.

②Status LED

LED color and state indicate transmitter status.

③Power switch

Turns the transmitter on/off.

④TA4M input port

Connects to a 4-Pin mini connector (TA4F) microphone or instrument cable.

⑤USB-C charging port

Connect to USB battery charger.

⑥Link button

Press and hold within 5 seconds of power-on to manually link with receiver.

Press momentarily to activate remote ID function.

⑦Battery compartment

Shure Incorporated

8/36

•

Holds 1 Shure rechargeable battery.

⑧Microphone cartridge

GLXD2+ transmitter models are available with the following cartridge types: SM58, Beta 58, Beta 87A.

Transmitter Status LED

LED is green during normal operation.

LED color or flashing indicates a change in transmitter status as shown in the following table:

Color State Description

Green

Flashing (slow) Transmitter attempting relink with receiver

Flashing (fast) Unlinked transmitter searching for receiver

Flashes 3 times Indicates locked transmitter when power switch is pressed

Red

On Battery life < 1 hour

Flashing Battery life < 30 minutes

Red/Green Flashing Remote ID active

Amber Flashing Battery error; remove and insert again, or replace battery

Wearing the Bodypack Transmitter

Clip the transmitter to a belt or slide a guitar strap through the transmitter clip as shown.

For best results, the belt should be pressed against the base of the clip.

Wearing the Headworn Microphone

Position the headworn microphone 13 mm (1/2 in.) from the corner of your mouth.

Position lavalier and headworn microphones so that clothing, jewelry, or other items do not bump or rub against the micro

phone.

Shure Incorporated

9/36

•

Correct Microphone Placement

Hold the microphone within 12 inches from the sound source.

For a warmer sound with increased bass presence, move the microphone closer to the sound source.

Do not cover grille with hand.

Install Transmitter Batteries

Important: Always fully charge a new battery before first use.

Bodypack:

Move the locking lever to the open position and slide the battery door open.

Place the battery into the transmitter.

Close the battery door.

Handheld:

Unscrew and remove the battery cover.

Place the battery into the transmitter.

Replace and tighten the battery cover.

Shure Incorporated

10/36

Batteries and Charging

GLX-D+ transmitters are powered by Shure SB904 lithium-ion rechargeable batteries. Advanced battery chemistry maximizes

runtimes with zero memory effects, eliminating the need to discharge batteries prior to charging.

When not in use, recommended battery storage temperature is 10°C (50°F) to 25°C (77°F).

Note: The transmitter will not pass RF or audio signals when connected to the charging cable.

The following battery charging options are available:

Receiver Charging Bay

The receiver's built-in charging bay will charge transmitter batteries when the receiver is plugged in to a power outlet.

Insert the battery into the charging bay.

Monitor the battery charging indicator on the front panel.

Charging from an AC Power Source

Plug the charging cable into the charging port on the transmitter.

Plug the charging cable into an AC power source.
