Installation Guide
User guide for the A310-FM flush mount tray accessory for Shure MXA310 table array microphones.
Version: 2.2 (2023-E)
Shure Incorporated
3/9
1.
2.
3.
4.
A310-FM
Installation Guide
Installing the Flush Mount
The tube and wing nut required to install the rack tray are included with the MXA310 microphone. Refer to the MXA310 user
guide for replacement part information.
Tip:Thisprocessassumesthatbothendsofthenetworkcableareaccessible.Iftheotherendofthenetworkcableisnotac
cessible, before installing the tube and plugging in the microphone (step 2), you must guide the cable through the hardware
components in the following order:
Wing nut (see image for correct orientation)
Bracket (under table)
Table
Tray (above table)
Shure Incorporated
4/9
1.
2.
Installation Process
Remove the 3 screws located in the center on the bottom of the microphone.
Plug a network cable into the microphone and guide it through the center exit path. When the cable is secured, guide it
through the tube.
Note: If necessary, remove the retaining tabs to install thicker cable. Replace them after the cable is installed.
Shure Incorporated
5/9
3. Align the tube into the recessed area in the center of the microphone. Install the 3 screws that you removed in step 1 to
secure the tube.
Shure Incorporated
6/9

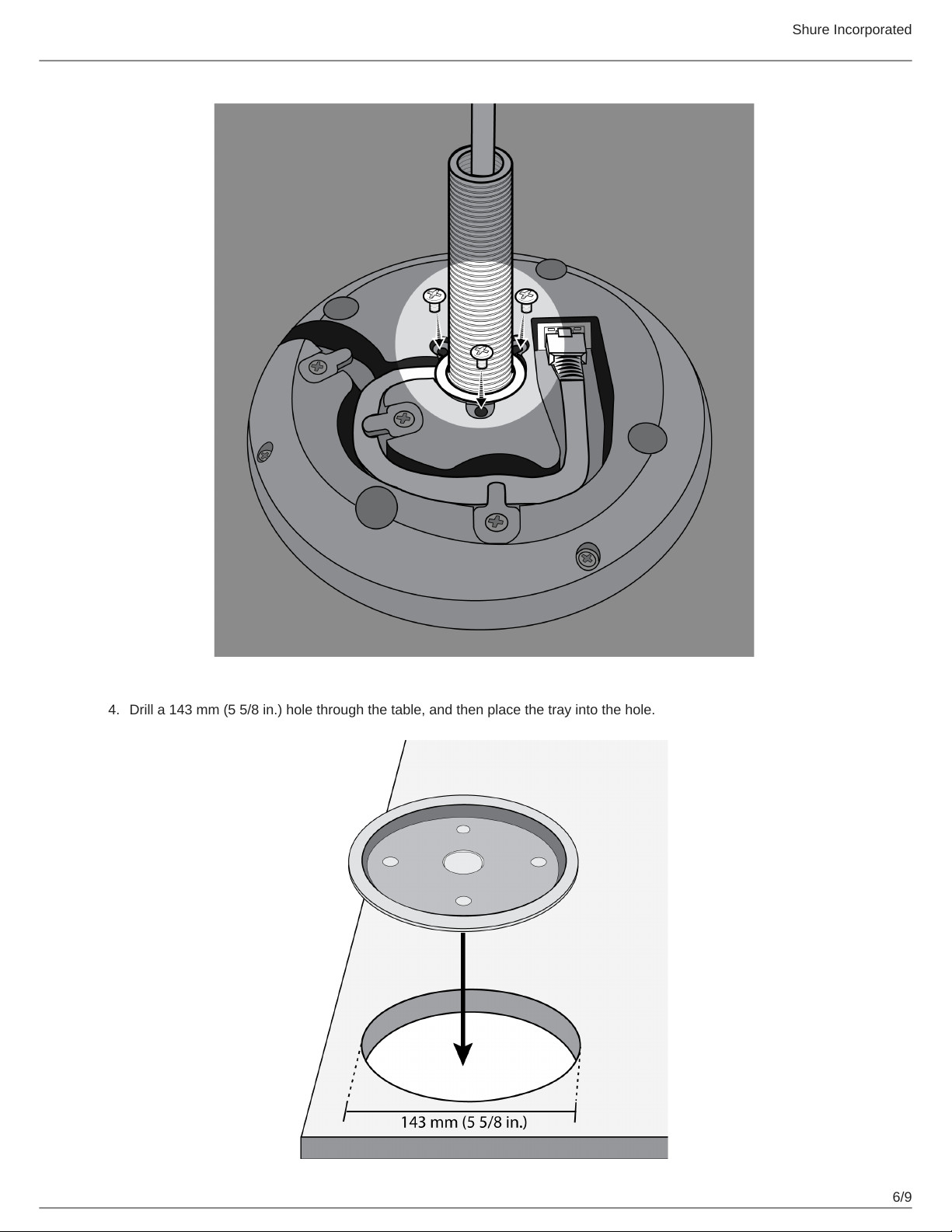

4. Drill a 143 mm (5 5/8 in.) hole through the table, and then place the tray into the hole.
Shure Incorporated
7/9
5.
6.
Guide the cable through the hole in the center of the tray. Then, place the tube through the hole in the table and gently
pressthemicrophoneintothetray.AligntheShurelogoonthemicrophonewiththeShurelogoonthetray.The4rub
ber feet on the bottom of the microphone fit into the 4 smaller holes in the tray.
Placethebracketunderneaththetable,withthetubegoingthroughthehole.Forthickertables(≥55mm),turnthe
bracket upside down for additional clearance.
Note: Maximum table thickness = 73 mm (2.87 in)
Shure Incorporated
8/9
7. Guide the cable through the wing nut, and attach the wing nut onto the tube from underneath the table. Then, hand
tighten the wing nut to secure the bracket against the table. Do not overtighten or exceed this torque value: 12.5
kgf·cm.
Optional: Use the hole in the wing nut to insert a cable tie for cable management.
Shure Incorporated
9/9
Dimensions
Certifications
CE Notice:
Hereby,ShureIncorporateddeclaresthatthisproductwithCEMarkinghasbeendeterminedtobeincompliancewithEuro
pean Union requirements. The full text of the EU declaration of conformity is available at the following site: https://
www.shure.com/en-EU/support/declarations-of-conformity.
Authorized European Importer / Representative:
Shure Europe GmbH
Department: Global Compliance
Jakob-Dieffenbacher-Str. 12
75031 Eppingen, Germany
Phone: +49-7262-92 49 0
Fax: +49-7262-92 49 11 4
UKCA Notice:
Hereby,ShureIncorporateddeclaresthatthisproductwithUKCAMarkinghasbeendeterminedtobeincompliancewithUK
CA requirements. The full text of the UK declaration of conformity is available at the following site: https://www.shure.com/en-
GB/support/declarations-of-conformity.
Shure UK Limited - UK Importer
Unit 2, The IO Centre, Lea Road,
Waltham Abbey, Essex, EN9 1 AS, UK
