SEWOO LUKHAN LK-P21B Manual de usuario
All specifications are subject to change without notice
MOBILE PRINTER
MODEL : LK-P21B
2
3
Table of Contents
1. Product overview
3
2.
Unpacking
4
3. Usage and Installation 5
3-1. Control panel usage
5
3-2. Battery Installation
6
3-3. Battery removal
7
3-4. Battery charging
8
3-5. Battery charger usage
9
3-6. Usage of Cigar Jack for charging
10
3-7. Belt clip usage
12
3-8. Roll paper installation
13
3-9. Leather case usage
14
3-10. Self test
15
3-11. MSR usage
16
4.
Peripherals connection 17
4-1. Bluetooth connectiontion
17
4-2. Interface cable connection
18
5.
Printer specification 19
5-1. Specification
19
1. Unpacking
Standard
Option
Printer Battery
Serial Cable
Roll paper
Belt Buckle
USB Cable Shielded
Charger
CD Quick Manual
Battery Holder (Cradle) Leather case Shoulder strip
Cigar Jack
4
5
Button
Name
function
Power
button
This button is used to turn the printer on and off.
When the printer is off,press this button for approximately 2 seconds
and it will turn on the power.When you press this button in a state
that the printer is on, the printer will turn off.
Paper
Feed
Button
Paper output can be done manually by pressing this button.
Additionally,self-testing and Hexadecimal Dumping can be
processed..
1. Refer to“3-10” for self test information.
2. Refer to the service manual regarding Hexadecimal Dumping.
Battery
Status
Lamp
1. If the Batt, LED are Lit,the battery is fully charged.
2. If you can hear beeping sound and LED light is turned off, it means
that the battery is at the lowest level.
3. If the battery is not charged at all, the printer turns off
automatically.
Error
Lamp
If the red light is turned on, it means there is no paper roll or the
paper cover is open.

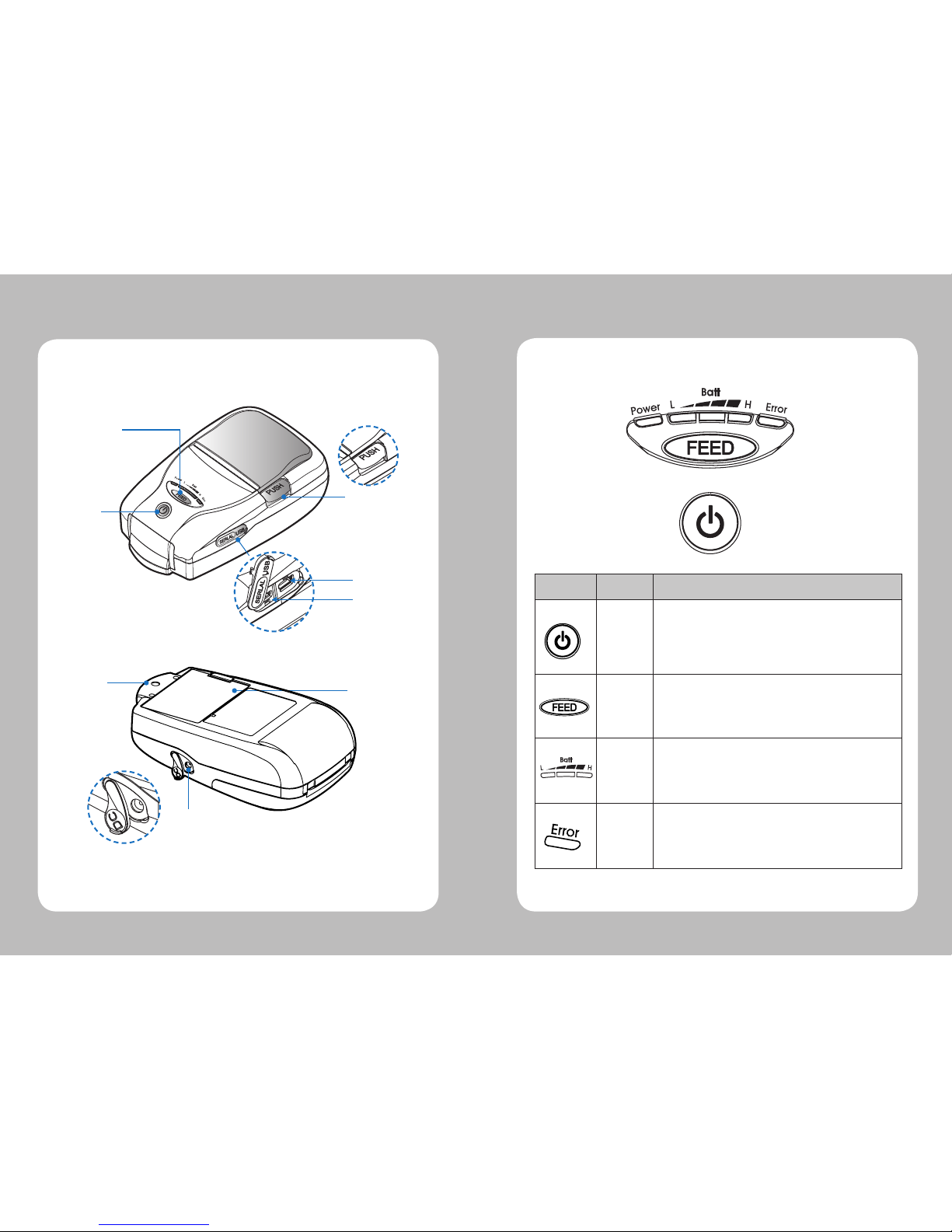

2. Product overview 3. Usage and Installation
3-1 Control panel usage
Paper feed
button
Open Button
Power
switch
SERIAL
USB
Belt clip
hole Battery
DC Power
6
7
1. Align battery hook as shown in the picture
2. Push the battery into the printer until it locks in place.
NOTE
As the battery is not charged at the time of your purchase, charge the
battery prior to using the printer
(Battery charger or Cradle can be used to charge)
Hook
1
2
Put up the Belt clip hole turning 180 degree.
After putting up the belt clip, remove the battery holding it up as shown above.
180˚
3-2 Battery Installation 3-3 Battery removal
8
9
3-5-1 The status of lamp in charging
lamp
Status charging charging complete
Charging Lamp Red
Green
NOTE
1. Unless the exclusive charger is used provided by the manufacturer, the printer
can be damaged, and the manufacturer is not liable for the consequential damage.
2. Before removing the battery, make sure that power is turned off.
3. Printer does not work in the status of being connected with charger only.
4. The battery should be installed to operate printer.
5. While charging, do not turn on the power.
6. Do not operate the print while charging the battery.
7. Do not connect the charger while the printer is operated.
NOTE
In the case the battery is not fixed properly in the holder, the red lamp will be
blinking, Then, extract and reinsert the battery.
1. Be sure that the printer is turned off
2. After open the DC JACK cover, insert DC JACK into the printer.
3. Plug the power code to electrical outlet.
1. Insert the battery into the battery holder as shown above
2. Connect the DC JACK to the power electrical outlet.
3. Once the charging is completed, remove the battery from the holder.
3-4 Battery charging 3-5 Battery charger usage
10
11
1
2

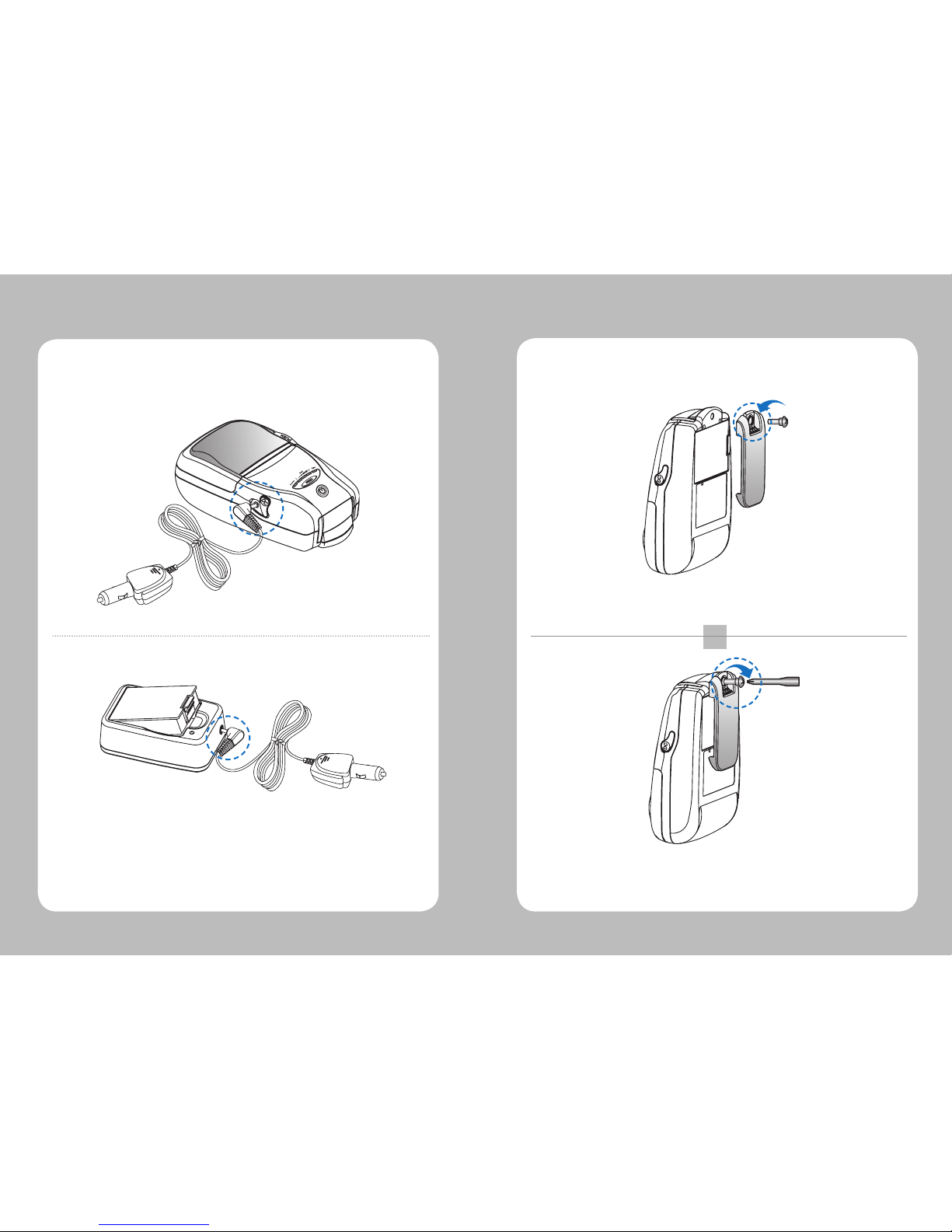

Connect the car cigar JACK charger into the printer or battery holder. As shown in the picture, tighten the screw with a screw driver.
Insert the belt clip screw into the hole of Belt clip
3-6 Usage of Cigar Jack for charging 3-7 Belt Clip usage
Printer
Battery holder
12
13
1 2
34
1 2
34
Press the PUSH button to open
paper cover
Open the leather case
Close the Velcro and stick the
cover.
Pull a short length of paper out of
the printer and close the cover.
Insert the paper in the right
direction
Place the printer into the leather
case
Fasten to the belt by using the clip
at the rear of the leather case
Tear off the additional paper using
tear bar.
3-8 Roll Paper installation 3-9 Leather case usage
14
15
1 2
3
NOTE
When the printer is installed initially or when you face a problem, you can run the
self test and check the information about
-Control Circuit, Mechanism, Print Quality, ROM Version
After checking with self-test and no issues are found, you can examine other
devices and software. This function is working independent of devices and software.
<The sample of self test printout>
●
Motor protection from being overheated
The motor should be stopped and cooled about more than 30 seconds after
continuous printing 1.5 meter
Turn off the power pressing the
power button for approximately
2 minutes.
The printout is produced.
While you are pressing the FEED
button, press the power button
3-10 Self Test
1. To print ASCII pattern additionally,
press the Feed button once more
2. After printing ASCII pattern, the
self test will be finished automatically.
3. If the Feed button is not pressed
to print ASCII pattern, self test will be
finished automatically after 30 seconds.
16
17
1. Printer can be connected to the PDA and PC which can do wireless
communication.
2. By using Bluetooth function supported in PC, printer can be connected.
This printer can communicate with Peripherals device via Bluetooth
and cables.
Insert and swipe the card in the direction of the arrow as shown in the
picture.
3-11 MSR usage
4-1 Bluetooth Connection
4. Peripherals connection
