SEWOO LK-B30 Manual de usuario
All specifications are subject to change without notice
4” DESKTOP LABEL PRINTER
MODEL : LK-B30
2
Table of Contents
1. UNPACKING
3
2. PRINTER IDENTIFICATION
4
3. CONNECTING POWER SUPPLY
6
4. HOOKING UP THE PRINTER AND COMPUTER
7
5. LOADING THE MEDIA
8
6. THE TREATMENT WHEN YOU RUN SHORT OF PAPER AND ENCOUN-
10
7. SETTING UP THE SENSORS
11
8. SELF TEST
12
9. AUTO SETUP FOR LABEL SIZE
13
10. PAUSE AND CANCEL FUNCTION
14
11. CONNECTOR
15
12. STANDARD ROLL MEDIA SPECIFICATION
17
13. STANDARD LABEL SPECIFICATION
18
14. SPECIFICATION OF THE LABEL WITH THROUGH-HOLE
19
15. SPECIFICATION OF THE LABEL WITH BLACK MARK
20
16. CONTINUOUS PAPER SPECIFICATION
21
17. SPECIFICATION OF THE PRODUCT
22
18. CONTROL COMMANDS
24
3
1. Unpacking
Printer
Power Cord(1EA) Power supply
CD (Manual and Software) Quick Manual
Interface cable (selected optionally)
Paper Spindle
4
2. Printer identification
Notch Sensor
Black Mark Sensor
Button
Interface Connectors
Power Connectors
Paper width Guide
Upper Cover Knob
Power Switch
Printer Head
5
Open the upper cover by pushing the knob in the
direction of the arrow.
Make sure to be careful of the HOT head after
using long time.
Opening the printer
Please make sure you hear the closing sound of the upper cover.
**If the cover is not shut down completely, the printer may not work properly**
6
1 2
34
Please check the specification of the AC power
cord if it is correct with your power system.
Turn off the power of the printer and connect
the power supply to the printer as shown above.
Connect the AC power cord to the power supply Insert a plug into the electrical outlet
3. Connecting power supply
220VAC
115VAC
Power Connectors
7

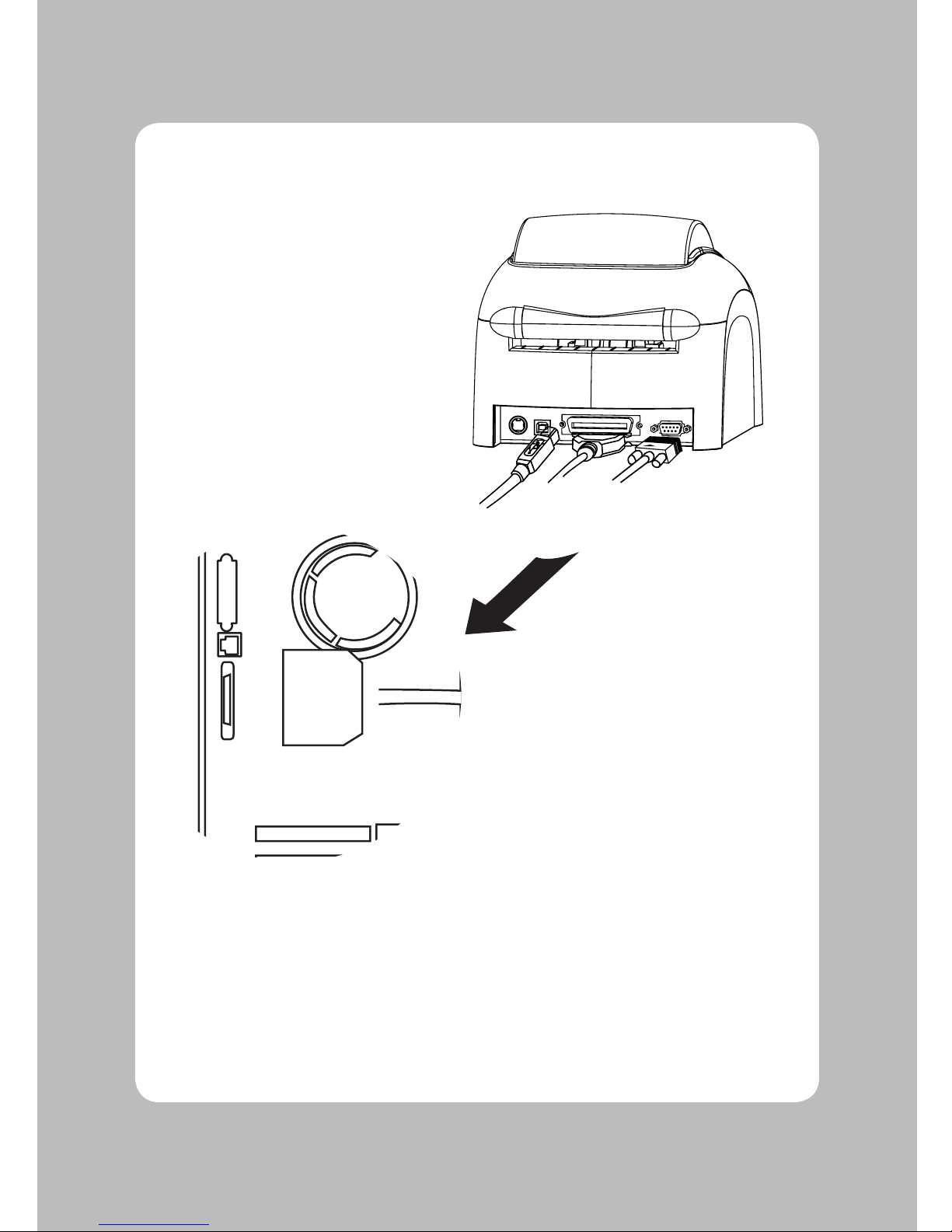

After making sure the printer is turned off, connect the printer to the PC.
4. Hooking up the printer and computer
USB
-Computer-
-Printer-
Serial
Parallel
8
1 2
34
Turn off the printer and open the upper cover by
pushing the knob in the direction of the arrow
Open the paper width guides by pushing them to the
right & Left sides.
5. Loading the media
Please open the upper cover as shown above
Insert the roll paper to the paper spindle as shown in
the picture.
9
5 6
7
Adjust the paper width guide to meet the
paper width
Insert the paper roll into the printer
Close the upper cover completely and make sure you hear the closing sound.
Paper xing tap is only for 1 inch core roll paper and fan-fold paper.
For 1.5” core roll paper, mount it to the label paper guide directly without using paper xing tap.
NOTE
**Please cut the paper in upper direction**
