Sennheiser AC 3200 Dimensiones

AC 3200

AC 3200

RF Wireless Systems | Wireless Monitoring System

Features

jActive 8-channel 0 dB transmitter combiner with highly constant RF

output power over the entire frequency range

jSignificant improvement of RF performance for multi-channel systems

jBroadband RF design to cover the UHF frequency range from 500–870 MHz

jMaximum input power of 250 mW

jLEDs on the front show whether a signal is present at the RF input

jCompatible with SR 3054, SR 3056, SR 3254, SR 3256, SR 300

and SR 350 transmitters

jDelivery Includes:AC 3200

3 mains cable (EU/UK/US)

4 self-adhesive device feet

1 instruction manual

General Description

The AC 3200 is an active, high-power 8:1 antenna combiner for large multi-channel

wireless monitoring systems. It combines up to eight channels for transmission via

one antenna. The AC 3200 features a broadband design, with the frequency range

reaching from 500 to 870 MHz. It significantly reduces intermodulation of wireless

monitoring transmitters while keeping backstage clutter to a minimum. Long dis-

tances can be covered reliably as the AC 3200 accepts up to 250 mW of input power.

Technical Data

Frequency range ...........................................500 – 870 MHz

Gain ..............................................................0 dB (+/- 1.5 dB)

Impedance.........................................................................50 O

Remarks........................................RF-Input-Power: 100 mW

(nominal) / 250 mW (max)

RF input ...............................................................................BNC

RF output.............................................................................BNC

Operating voltage (mains) ........................100–240 V AC /

50–60 Hz

Power consumption ............................................. max. 70 W

Dimensions ............................................436 x 44 x 250 mm

(17.7“ x 1.73“ x 9.84“)

Weight ....................................................4000 g (141.09 oz)

Cat. No. 502048

Accessories

jA 5000 CP Circular Polarized Antenna Cat. No. 500887

jA 2003 Directional Antenna Cat. No. 003658

jA 1031 Omnidirectional Antenna Cat. No. 004645

Otros manuales para AC 3200

1

Otros manuales de Transmisor de Sennheiser

Sennheiser

Sennheiser SKM 5200 Dimensiones

Sennheiser

Sennheiser SI 460 Manual de usuario

Sennheiser

Sennheiser SKP 100 G3 Manual de usuario

Sennheiser

Sennheiser TV Clear Transmitter 2 Manual de usuario

Sennheiser

Sennheiser SK 1007 Manual de usuario

Sennheiser

Sennheiser AC 3200 Manual de usuario

Sennheiser

Sennheiser SI 2 S Manual de usuario

Sennheiser

Sennheiser AC 3200 - 09-08 Manual de usuario

Sennheiser

Sennheiser sk100-g3 bodypak transmitter Manual de usuario

Sennheiser

Sennheiser SKP 30 Guía de inicio rápido

Sennheiser

Sennheiser SI 406 HDI 406 Manual de usuario

Sennheiser

Sennheiser SKP 2000 - 06-09 Manual de usuario

Sennheiser

Sennheiser SK 5212-II - FREQUENCY TABLES Manual de usuario

Sennheiser

Sennheiser SI 1013 Manual de usuario

Sennheiser

Sennheiser SYSTEM 2020 Manual de usuario

Sennheiser

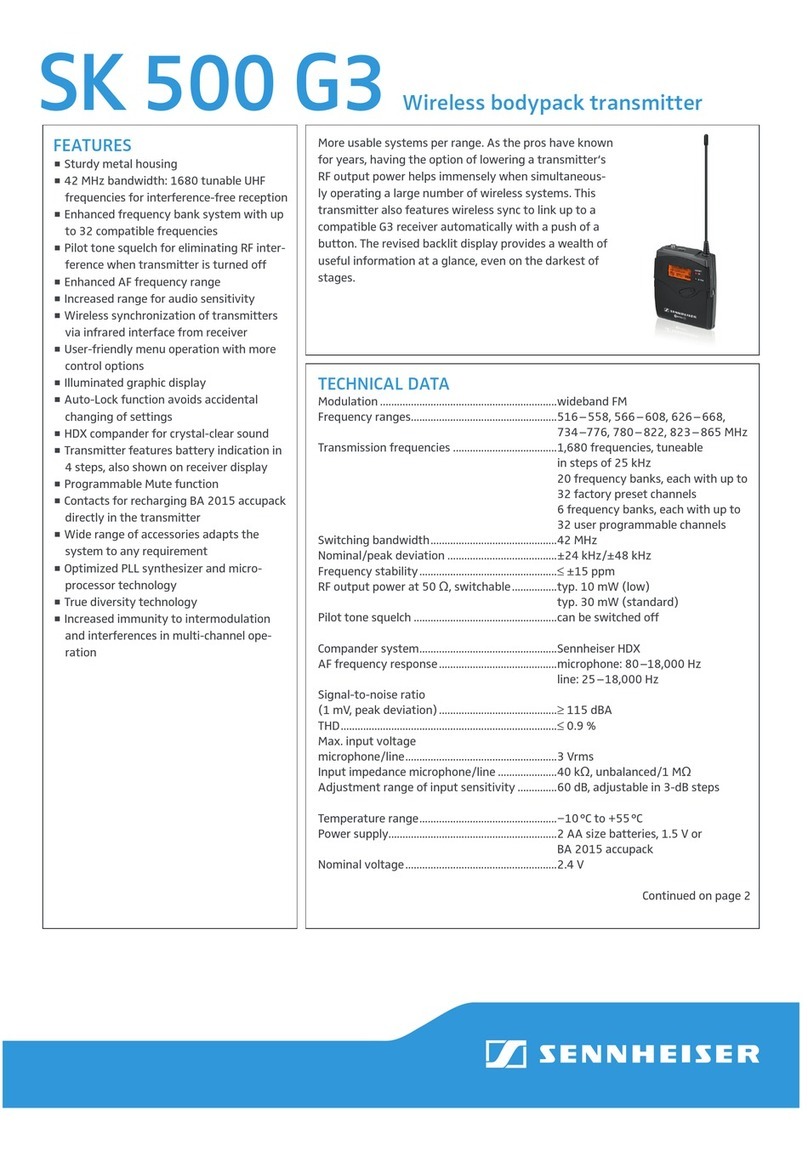

Sennheiser SK 500 G2 Manual de usuario
