Sennheiser MKE 1-4 Manual de usuario

MKE 1

Model: MKE 1-4

MKE 1-4-1

MKE 1-4-2

MKE 1-4-3

MKE 1-4-M

MKE 1-5

MKE 1-5-3

MKE 1-ew

MKE 1-ew-3

Instruction manual

MKE 1 | 9

Important safety instructions

1. Read these safety instructions and the instruction man-

ual of the product.

2. Keep these safety instructions and the instruction man-

ual of the product. Always include all instructions when

passing the product on to third parties.

3. Only use attachments, accessories and spare parts

speciﬁed by the manufacturer.

4. Caution: The protective basket and pop shield must be

completely dry when you mount them on the micro-

phone. Moisture can cause malfunctions or damage to

the capsule

5. Connect the microphone only to microphone inputs and

supply units that provide 48V phantom powering in ac-

cordance with IEC 61938.

6. Do not attempt to open the product housing on your own.

The warranty is voided for products opened by the customer.

7. Refer all servicing to qualiﬁed service personnel. Servic-

ing is required when the product has been damaged in

any way, liquid has been spilled or objects have fallen

into the product, when the product has been exposed to

rain or moisture, does not operate normally, or has been

dropped.

8. Use the product only under the conditions of use listed

in the speciﬁcations.

9. Let the product come to ambient temperature before

switching it on.

10. Do not operate the product if it was damaged during

transportation.

11. Always run cables so that no one can trip over them.

12. Keep the product and its connections away from liquids

and electrically conductive objects that are not neces-

sary for operating the product.

13. Do not use any solvents or aggressive cleaning agents to

clean the product.

14. Caution: Very high signal levels can damage your hearing

and your loudspeakers. Reduce the volume on the con-

nected audio devices before switching on the product;

this will also help prevent acoustic feedback.

10 | MKE 1

Intended use

The MKE 1 is a high-quality, sub-miniature, sweatresistant

clip-on condenser microphone. It features excellent sound

quality and rugged design. The frequency response curve

has been optimized for stage, studio and reporting applica-

tions (ENG). The MKE 1 is ﬁtted with a very thin (only 1 mm)

yet extremely rugged cable, making this microphone an ide-

al partner for all live sound applications.

Delivery includes

• MKE 1 microphone

• MZC 1-1 frequency response cap, small

• MZC 1-2 frequency response cap, large

• 3 make-up protectors

• Instruction manual

• MKE 1-4, MKE 1-4-1, MKE 1-5, MKE 1-ew: MZ 1

Putting into operation

Treble boost

Your microphone is supplied with two

different frequency response caps.

These caps allow you to adjust the tre-

ble response of the microphone (see

page 13).

In addition, the large frequency re-

sponse cap attenuates wind noise by

approx. 15 dB and provides an extended protection against

the ingress of moisture.

XSlip the cap of your choice onto the microphone until it

locks into place.

MZC 1-1

MZC 1-2

MKE 1 | 11

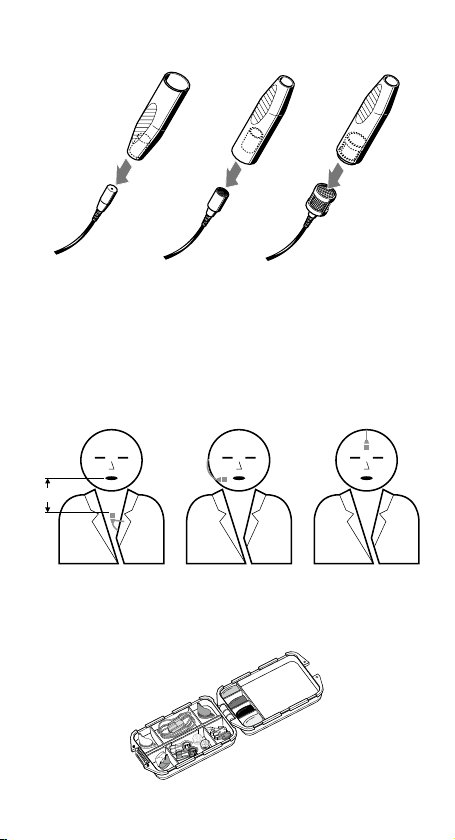

Make-up protection

XWhen putting on make-up or hair spray, protect the

MKE 1 by slipping the make-up protector onto the mi-

crophone (with or without frequency response cap).

XOnly remove the make-up protector after makeup has

been completed.

Attachment of the microphone

Depending on the area of application, you can attach the

MKE 1 in different ways to either clothing or the body.

25 cm

To do so, use the optional MZ 1 accessory kit (Art. no. 504060),

that offers multiple and secure attachment possibilities.

The clips, holders and mounts are suitable for almost any

wearing situation and ensure optimum sound quality.

12 | MKE 1

Speciﬁcations

Pick-up pattern Omni-directional

Frequency range 20 – 20,000 Hz, ± 2.5 dB

Free-ﬁeld open-circuit sensiti-

vity (1 kHz) 5 mV/Pa, ± 2.5 dB

Rated impedance 1000 Ω

Min. terminating impedance 4.7 kΩ

Equivalent noise level

A-weighted

CCIR-weighted

27 dB

39 dB

Sound pressure level limit 142 dB

Cable length 1.6 m

Diameter of the microphone 3.3 mm

Weight (w/o connector and

cable) 0.1 g

MKE 1 Color Connector

-4 black 3-Pin

-4-1 white 3-Pin

-4-2 brown 3-Pin

-4-3 beige 3-Pin

-4-M almond white 3-Pin

-5 black open-ended cable

-5-3 beige open-ended cable

-ew black 3,5 mm Jack plug

-ew-3 beige 3,5 mm Jack plug

MKE 1 | 13

Frequency response

100 1*00

0*000

-3

-4

-5

-6

-7

dBV

MZC 1-1 MZC 1-2

Pin assignment with open-ended cable

1µ F

+UB

18 kΩ

core AF

Ground

shield

Manufacturer declarations

Warranty

Sennheiser electronic GmbH & Co. KG gives a warranty of

24 months on these products.

For the current warranty conditions, please visit our website

at www.sennheiser.com or contact your Sennheiser partner.

In the US please contact:

Sennheiser Electronic Corporation

1 Enterprise Drive, Old Lyme, CT 06371

www.sennheiser.com

required connection

(ampliﬁer circuit)

Microphone

14 | MKE 1

In compliance with the following requirements

EU:

UK:

• WEEE Directive (2012/19/EU)

• WEEE Regulations (2013)

Notes on disposal

The symbol of the crossed-out wheeled bin on the product,

the battery/rechargeable battery (if applicable) and/or the

packaging indicates that these products must not be dis-

posed of with normal household waste, but must be dis-

posed of separately at the end of their operational lifetime.

For packaging disposal, please observe the legal regulations

on waste segregation applicable in your country.

Further information on the recycling of theses products can

be obtained from your municipal administration, from the

municipal collection points, or from your Sennheiser partner.

The separate collection of waste electrical and electronic

equipment, batteries/rechargeable batteries (if applicable)

and packagings is used to promote the reuse and recycling

and to prevent negative effects caused by e.g. potentially

hazardous substances contained in these products. Here-

with you make an important contribution to the protection of

the environment and public health.

UK Declaration of conformity

• RoHS Regulations (2012)

• EMC Regulations (2016)

EU Declaration of conformity

• RoHS Directive (2011/65/EU)

• EMC Directive (2014/30/EU)

The full text of the EU declaration of conformity is available

at the following internet address:

www.sennheiser.com/download

MKE 1 | 57

Compliance

Europe

China

Vietnam Kể từ ngày 1 tháng 12 năm 2012,

các sản phẩm được sản xuất bởi

Sennheiser tuân thủ Thông tư

30/2011/TT-BCT quy định về giới hạn

cho phép đối với một số chất độc hại

trong các sản phẩm điện và điện tử.

Sennheiser electronic GmbH & Co. KG

Am Labor 1, 30900 Wedemark, Germany

www.sennheiser.com

Printed in Germany, Publ. 08/21, 520110/A04
