High-quality dynamic microphone with cardioid pick-up

pattern.

Due to its compact design, the microphone is ideal for use

with drums (toms and snares). It can easily be positioned

in cramped space conditions (e.g. below the cymbals) and

the supplied MZH 604 microphone clamp allows to

precisely attach it to the rim of the instrument.

The 904 is also suitable for miking guitar amplifiers,

percussions as well as brass and woodwind instruments.

A rugged full metal body effectively protects the

microphone from impact damage.

The XLR connector turned by 45° allows the space saving

positioning of the microphone in the case of angled

connectors.

Features

yExtremely vivid, powerful sound with drums and

percussions

ySound can be shaped as needed to fit all styles of

music

yExtremely rugged for rough stage use

yHumbucking coil protects against electromagnetic

interference

yGold-plated XLR connector (turned by 45°)

Delivery includes

y904 microphone

yPouch

yMZH 604 microphone clamp

yInstructions for use

yWarranty Certificate

Pin assignment of XLR-3 connector

Removing the sound inlet basket

12 3

XLR 6,3 mm

12 3

XLR

6,3 mm

symmetrisch

XLR

balanced

Positioning the microphone

Drums

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone so

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 180°).

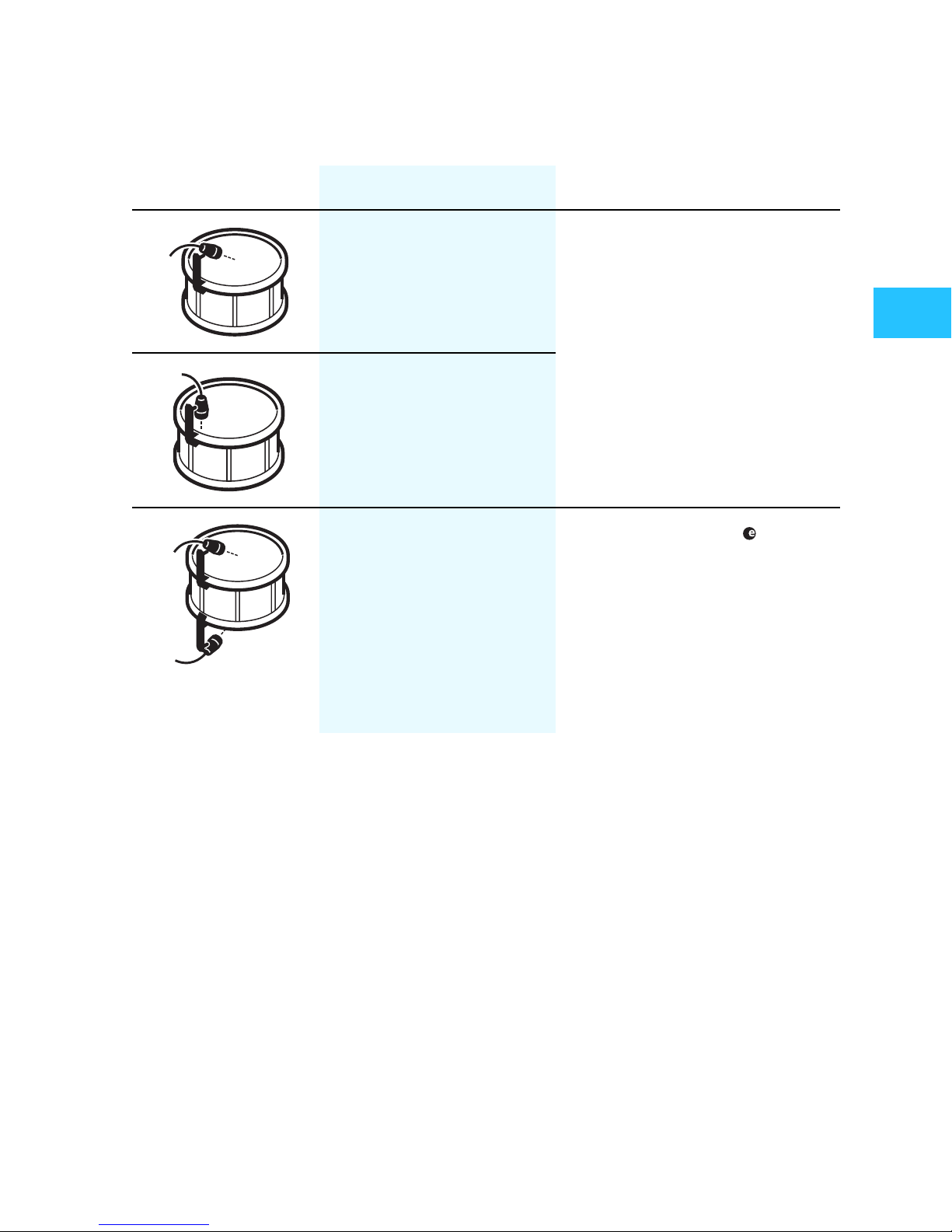

Position Resulting sound Commentary

More fundamental

tone,

little overtones

Position on the drum:

3–5 cm above the

batter head, the

fundamental tone to

overtones ratio can be

adjusted via the angle.

The most balanced

results are obtained at

an angle of 30–60°.

Less fundamental

tone,

many overtones

Use of a second 904

for picking up the

resonant head and

the snares. If necessary,

activate phase reversing

for one of the

microphones.

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

- 4

Accessories

The following accessories are available for the 904:

MZH 604 microphone clamp (Cat. No. 05299)

Specifications

Transducer principle dynamic

Frequency response 40

−

18,000 Hz

Pick-up pattern cardioid

Sensitivity (free field, no load) 2.0 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Weight 125 g

Dimensions diam.: 41 mm,

length: 63 mm

Overview of microphone applications

Modell

Anwendung

e901

e902

e904

e905

e906

e908B

e908B ew

e908D

e908T ew

e912

e914

e935/e945

Vocals x

Choir x x

Studio, acoustic

instruments

x x x

Orchestra x

Trumpets,Trombones

x x x

Saxophone x x x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxxx

Piano, grand piano x x

Kick Drum x x

Snare Drum x x x x

Rack toms x x x x x

Floor toms x x x x x

Congas x x x x

Cymbals x

Percussion x x x x x x

Overhead x

Conference table,

altar

Lectern x

Theater stage x

Manufacturer declarations

Warranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that this device

is in compliance with the applicable CE standards and regula-

tions.

WEEE Declaration

Please dispose of this product at the end of its operational li-

fetime by bringing it to your local collection point or recycling

centre for such equipment.

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 03/07 094274/A04
