Sennheiser Evolution E 602 Manual de usuario

602

Bedienungsanleitung

Instructions for use

Notice d‘emploi

Istruzioni per l‘uso

Instrucciones para el uso

Gebruiksaanwijzing

Bedienungsanleitung..............................................................3

Instructions for use .................................................................9

Notice d’emploi ......................................................................15

Istruzioni per l’uso.................................................................21

Instrucciones para el uso......................................................27

Gebruiksaanwijzing...............................................................33

602

The cardioid 602 is a dynamic microphone especially

suitable for use with kick drums, bass guitar cabs, tubas

and other low frequency instruments.

It combines a lightweight high-performance voice coil

construction with a traditional large diaphragm capsule

design to deliver a very low bass response and fast

transient signals. The low frequency extension and mid

band attenuation produce an ultra-smooth pre-shaped

signal enabling the microphone to be used without

corrective EQing, even on the most problematic bass

signal sources.

Features

yRugged metal body

yLightweight high-performance voice coil construction

with large diaphragm design

yFast transient response

yLow frequency estension

yHumbucking coil

yIntegral stand mount

Delivery includes

602 microphone

Pouch

Instructions for use

yWarranty Certificate

Removing the sound inlet basket

Positioning the microphone

Kick drums

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone so

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 180°; see polar diagram).

Position Resulting sound Commentary

Much attack,

little resonance, dry

Position the

microphone at a

distance of a few

centimeters from

the batter head.

Less attack,

much resonance,

smooth, voluminous

Position the

microphone at the

level of the resonant

head.

Less attack Position the micro-

phone in the middle

between the batter

head and the re-

sonant head. For

less attack in all

three positions,

turn the micro-

phone away from

where the beater

strikes.

Polar diagram

Frequency response curve

000

8000

6000

500

000

- 7

500

000

5000

0000

5 c

- 4

Specifications

Transducer principle dynamic

Frequency response 20.....16,000 Hz

Pick-up pattern cardioid

Sensitivity

(free field, no load at 1 kHz) 1.0 mV/Pa

Nominal impedance (at 1 kHz) 250 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Dimensions Ø 60 x L 153 mm

Weight 550 g

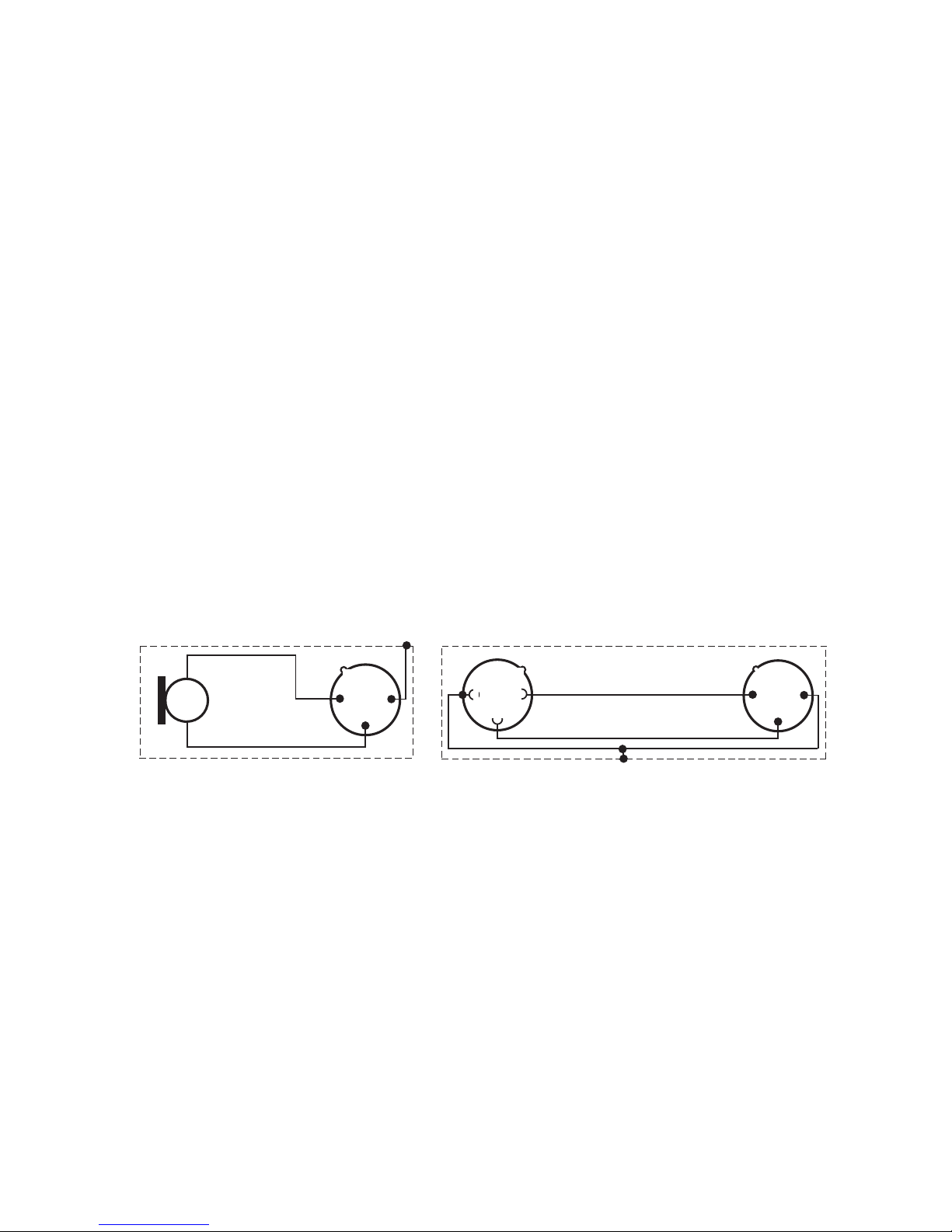

Pin assignment of XLR-3 connector

12 3

XLR

XLRXLR

Overview of microphone applications

Variant

Application

e602

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals xxxxxx

Choirs x

Studio,

acoustic instruments

Orchestra x

Brass / Saxophone xx x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie xxx

Piano, grand piano x

Kick drums x

Snare drums xxx

Rack toms xxx

Floor toms xxx

Congas xxx

Cymbals x

Percussion xxxx

Overheads x

Konformitätserklärung

Sennheiser electronic GmbH & Co. KG erklären, dass dieses Gerät

die anwendbaren CE-Normen und Vorschriften erfüllt.

Approval

Sennheiser electronic GmbH & Co. KG declare that this device is

in compliance with the applicable CE standards and regulations.

Certification

Sennheiser electronic GmbH & Co. KG déclarons que cet appareil

est en conformité avec les normes CE.

Certificazione

Sennheiser electronic GmbH & Co. KG diachiara che questo appa-

recchio risponde alle normative e alle prescrizioni CE applicabili.

Autorizacion

Sennheiser electronic GmbH & Co. KG declara que este aparato

cumple las normas y directrices de la CE aplicables.

Vergunning

Sennheiser electronic GmbH & Co. KG verklaren, dat dit toestel

voldoet aan de toepasselijke CE-normen en voorschriften.

Diese Service-Nummer gilt nur für Deutschland

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 09/04 511649/A01
