Sennheiser E 602-II - 03-06 Manual de usuario

602-II

Bedienungsanleitung

Instructions for use

Notice d‘emploi

Istruzioni per l‘uso

Instrucciones para el uso

Gebruiksaanwijzing

TitelSeite_Sp6.fm Seite 1 Donnerstag, 30. März 2006 1:58 13

602-II

The cardioid 602-II is a dynamic microphone especially

suitable for use with kick drums, bass guitar cabs, tubas

and other low frequency instruments.

Its lightweight high-performance voice coil construction

delivers fast transient signals. The low frequency

extension and mid band attenuation produce an ultra-

smooth pre-shaped signal. The microphone is ideal for

direct use on the most problematic bass signal sources.

Features

yRugged, lightweight aluminium body for stable

positioning on long microphone boom arms

yLightweight high-performance voice coil construction

for fast transient response

yLow frequency extension

Ideal for direct use on the most problematic bass signal

sources

Frequency-independent directivity provides effective

rejection of incidental rear noise

yHumbucking coil

yIntegral stand mount

e 602 II_US.fm Seite 3 Donnerstag, 30. März 2006 1:50 13

Delivery includes

602-II microphone

Pouch

Instructions for use

yWarranty Certificate

Removing the sound inlet basket

e 602 II_US.fm Seite 4 Donnerstag, 30. März 2006 1:50 13

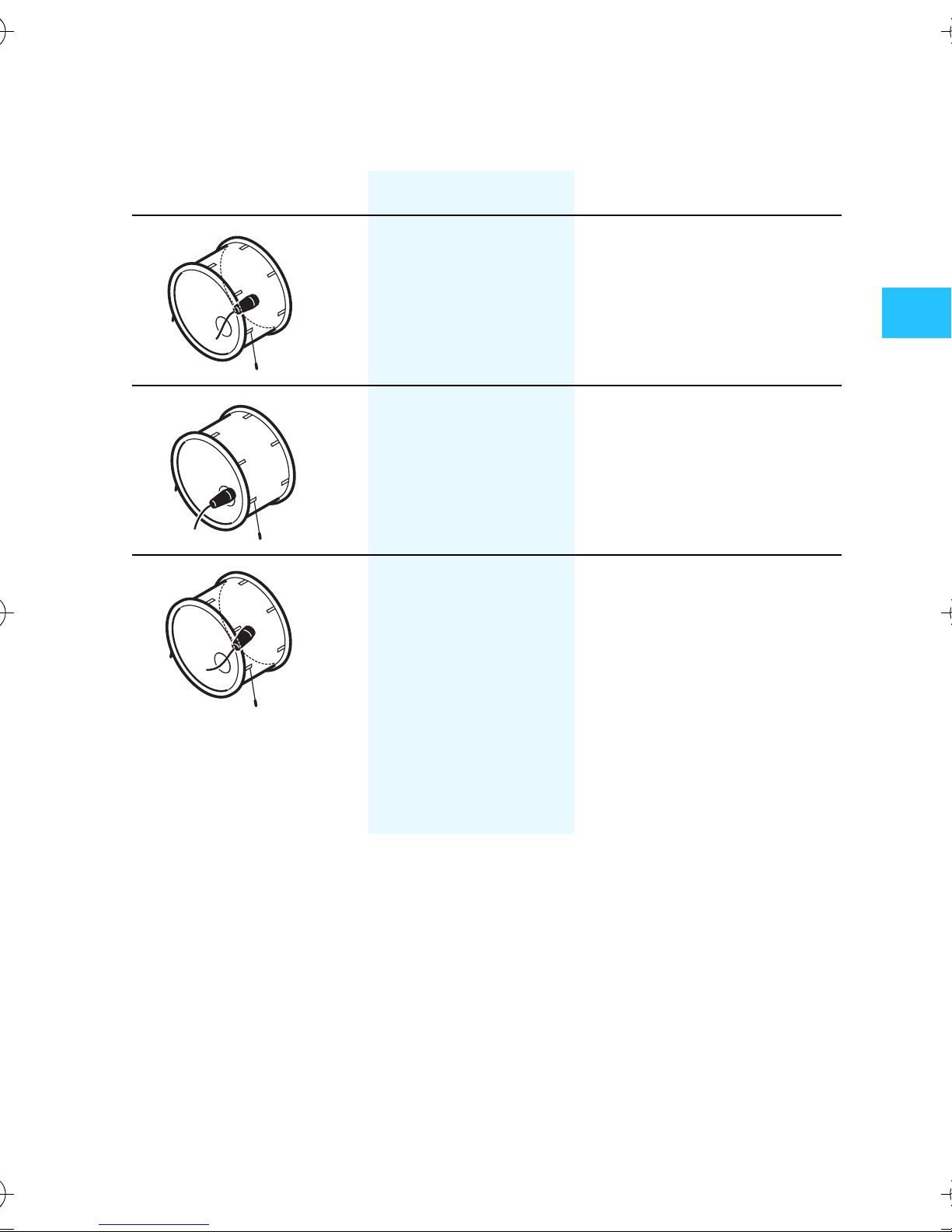

Positioning the microphone

Kick drums

In order to prevent interference due to crosstalk between

adjacent sound sources, try to position the microphone so

that the interfering sound source is located in the angle

area of the highest cancellation of the microphone

(approx. 180°; see polar diagram).

Position Resulting sound Commentary

Much attack,

little resonance,

dry

Position the microphone

at a distance of a few

centimeters from the

batter head.

Less attack,

much resonance,

smooth,

voluminous

Position the microphone

at the level of the

resonant head.

Less attack Position the microphone

in the middle between

the batter head and the

re-sonant head. For less

attack in all three

positions,

turn the microphone

away from where the

beater strikes.

e 602 II_US.fm Seite 5 Donnerstag, 30. März 2006 1:50 13

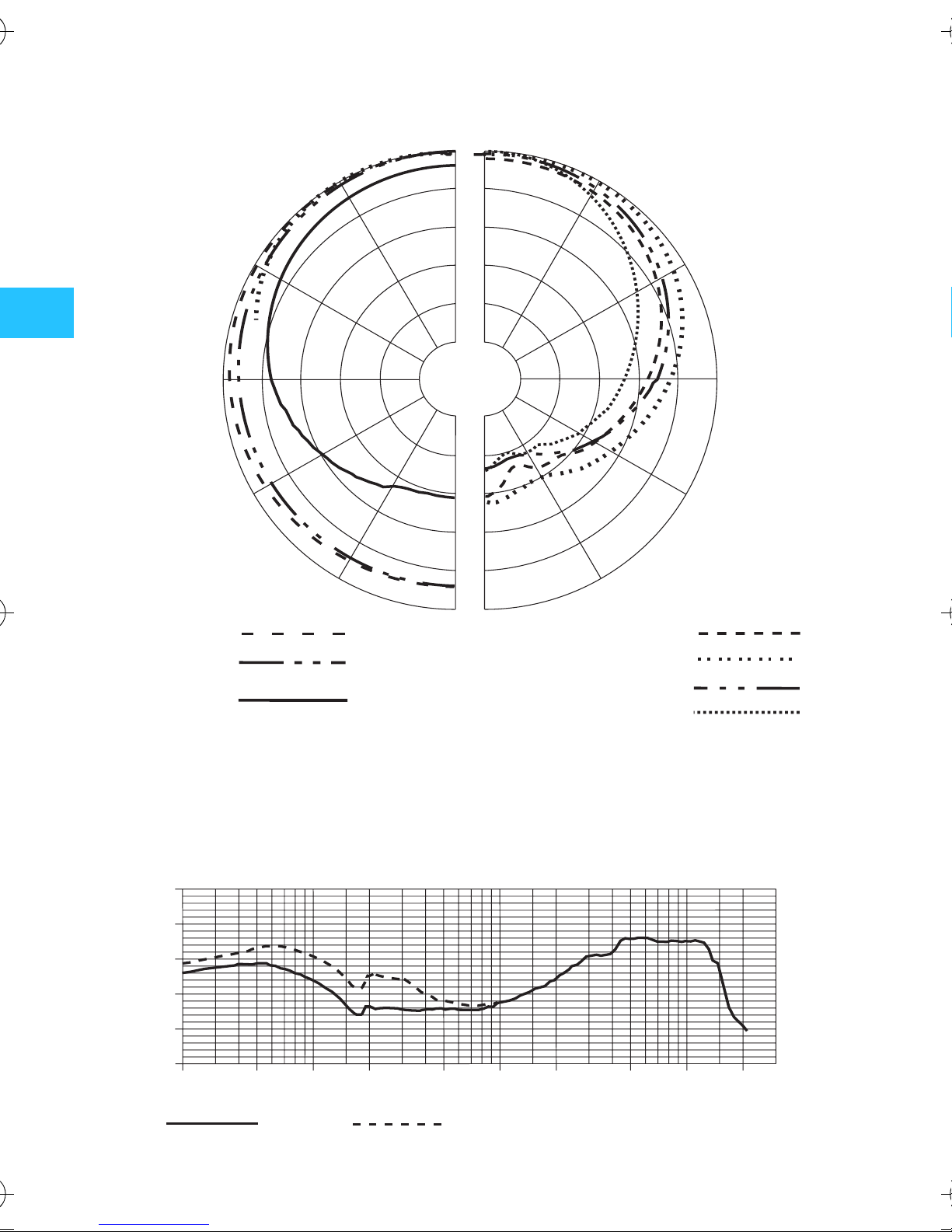

Polar diagram

Frequency response curve

0°

30°

60°

90°

30°

60°

90°

120°

150°

180°

150°

120°

2000 Hz

4000 Hz

8000 Hz

16000 Hz

125 Hz

250 Hz

500 Hz

1000 Hz

- 50

- 60

- 70

- 80

- 90 20 50 100 200 500 1000 2000 5000 10000 20000 Hz

0°, 1 m 0°, 5 cm

- 40

dBv

e 602 II_US.fm Seite 6 Donnerstag, 30. März 2006 1:50 13

Specifications

Transducer principle dynamic

Frequency response 20.....16,000 Hz

Pick-up pattern cardioid

Sensitivity 0.9 mV/Pa (at 50 Hz)

(free field, no load) 0.25 mV/Pa (at 1 kHz)

Nominal impedance (at 1 kHz) 350 Ω

Min. terminating impedance 1 kΩ

Connector XLR-3

Dimensions Ø 60 x L 153 mm

Weight 318 g

Pin assignment of XLR-3 connector

12 3

XLR

XLRXLR

e 602 II_US.fm Seite 7 Donnerstag, 30. März 2006 1:50 13

Overview of microphone applications

Variant

Application

e602-II

e604

e606

e608

e614

e815

e825

e835

e840

e845

e865

Vocals x x x x x x

Choirs x

Studio,

acoustic instruments

Orchestra x

Brass / Saxophone x x x

Acoustic guitar x

Acoustic bass x

Guitar amplifiers x

Bass amplifiers x

Leslie x x x

Piano, grand piano x

Kick drums x

Snare drums x x x

Rack toms x x x

Floor toms x x x

Congas x x x

Cymbals x

Percussion x x x x

Overheads x

e 602 II_US.fm Seite 8 Donnerstag, 30. März 2006 1:50 13

Manufacturer declarations

Warranty

2 years

Approval

Sennheiser electronic GmbH & Co. KG declare that

this device is in compliance with the applicable CE

standards and regulations.

WEEE Declaration

Please dispose of this product at the end of its operati-

onal lifetime by bringing it to your local collection point

or recycling centre for such equipment.

e 602 II_US.fm Seite 9 Donnerstag, 30. März 2006 1:50 13

e 602 II_US.fm Seite 10 Donnerstag, 30. März 2006 1:50 13

Sennheiser electronic GmbH & Co. KG

30900 Wedemark, Germany

Phone +49 (5130) 600 0

Fax +49 (5130) 600 300

www.sennheiser.com

Printed in Germany Publ. 03/06 515863/A02
