Sena ABC Manual de usuario

ABC

MOTORCYCLE MESH COMMUNICATION SYSTEM

FOR AVA ARROW HELMETS

ENGLISH

USER’S GUIDE

Version 1.0.0

TABLE OF CONTENTS

1. ABOUT THE ABC 5

1.1 Product Features 5

1.2 Product Details 6

1.3 Package Contents 7

2. INSTALLING THE HEADSET ON YOUR HELMET 8

2.1 Preparing the Helmet for Installation 8

2.2 Installing the Headset 9

3. GETTING STARTED 13

3.1 Downloadable Software 13

3.1.1 Sena Motorcycles App 13

3.1.2 Sena Device Manager 13

3.2 Charging 14

3.3 Legend 14

3.4 Powering On and Off 14

3.5 Volume Adjustment 15

3.6 Checking the Battery Level 15

4. PAIRING THE HEADSET WITH OTHER

BLUETOOTH DEVICES 16

4.1 Phone Pairing 16

4.1.1 Initially Pairing the ABC 16

4.1.2 Pairing When the ABC is Turned Off 17

4.1.3 Pairing When the ABC is Turned On 17

4.2 Second Mobile Phone Pairing - Second

Mobile Phone and GPS 18

4.3 GPS Pairing 18

TABLE OF CONTENTS CONTINUED

5. MOBILE PHONE USAGE 19

5.1 Making and Answering Calls 19

5.2 Speed Dialing 19

5.2.1 Assigning Speed Dial Presets 19

5.2.2 Using Speed Dial Presets 19

5.3 HD Voice (Always On) 20

6. STEREO MUSIC 21

6.1 Playing Music with Bluetooth Devices 21

7. MESH INTERCOM 22

7.1 What is Mesh Intercom? 22

7.1.1 Open Mesh 23

7.1.2 Group Mesh 23

7.2 Starting Mesh Intercom 24

7.3 Using the Mesh in Open Mesh 24

7.3.1 Channel Setting (Default: channel 1) 24

7.4 Using Mesh in Group Mesh 25

7.4.1 Creating a Group Mesh 25

7.4.2 Joining an Existing Group Mesh 26

7.5 Enable/Disable Mic (Default: Enable) 27

7.6 Toggling Open Mesh/Group Mesh 27

7.7 Reset Mesh 27

8. MESH AUDIO MULTITASKING (ALWAYS ON) 28

9. FUNCTION PRIORITY AND FIRMWARE

UPGRADES 29

9.1 Function Priority 29

9.2 Firmware Upgrades 29

TABLE OF CONTENTS CONTINUED

10. CONFIGURATION SETTING 30

10.1 Headset Conﬁguration Menu 30

10.1.1 Remote Control Pairing 30

10.2 Software Conﬁguration Setting 31

10.2.1 Headset Language 31

10.2.2 Audio Equalizer (Default: Off) 31

10.2.3 VOX Phone (Default: Enable) 31

10.2.4 VOX Sensitivity (Default: 3) 31

10.2.5 Intercom-Audio Overlay Sensitivity (Default: 3) 32

10.2.6 Audio Overlay Volume Management

(Default: Disable) 32

10.2.7 Voice Prompt (Default: Enable) 32

11. TROUBLESHOOTING 33

11.1 Fault Reset 33

11.2 Factory Reset 33

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 5

1. ABOUT THE ABC

1.1 Product Features

Bluetooth®5.2

Mesh Intercom™ up to 2 km (1.2 mi)*

Audio Multitasking™

* in open terrain

CHAPTER

1 ABOUT THE ABC

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 6

1.2 Product Details

Speaker

Charging &

Status LED

Speaker Antenna

Button Module

(+) Button

(-) Button

Mesh Intercom Button

Center Button

DC Power Charging &

Firmware Upgrade Port

Microphone

Connector

1 ABOUT THE ABC

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 7

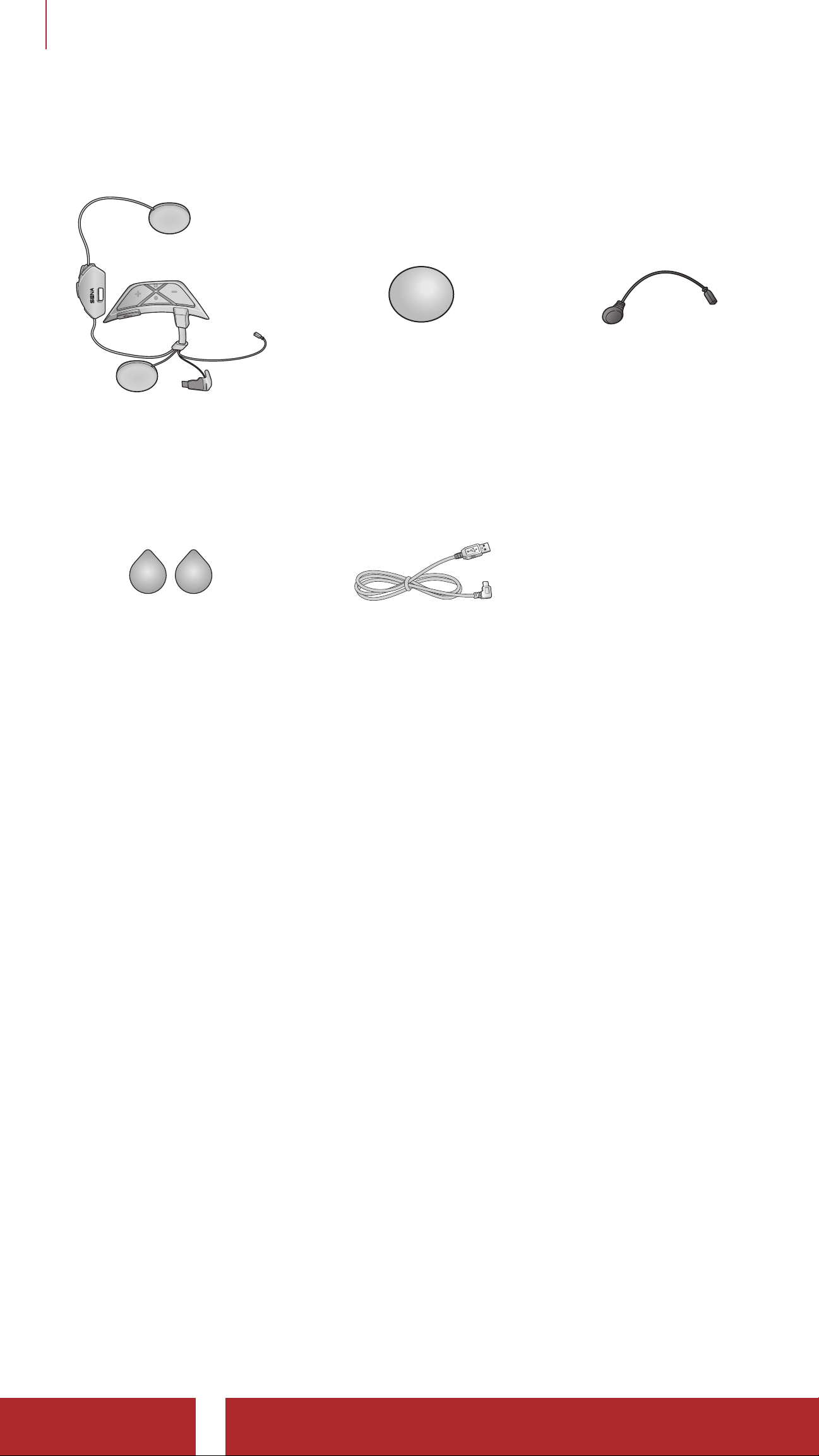

1.3 Package Contents

ABC Hook and Loop Fastener

for Wired Microphone Wired Microphone

Hook and Loop Fasteners

for Speakers

USB Power & Data Cable

(USB-C)

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 8

2. INSTALLING THE HEADSET ON YOUR

HELMET

To securely install the ABC on your helmet, please follow this procedure.

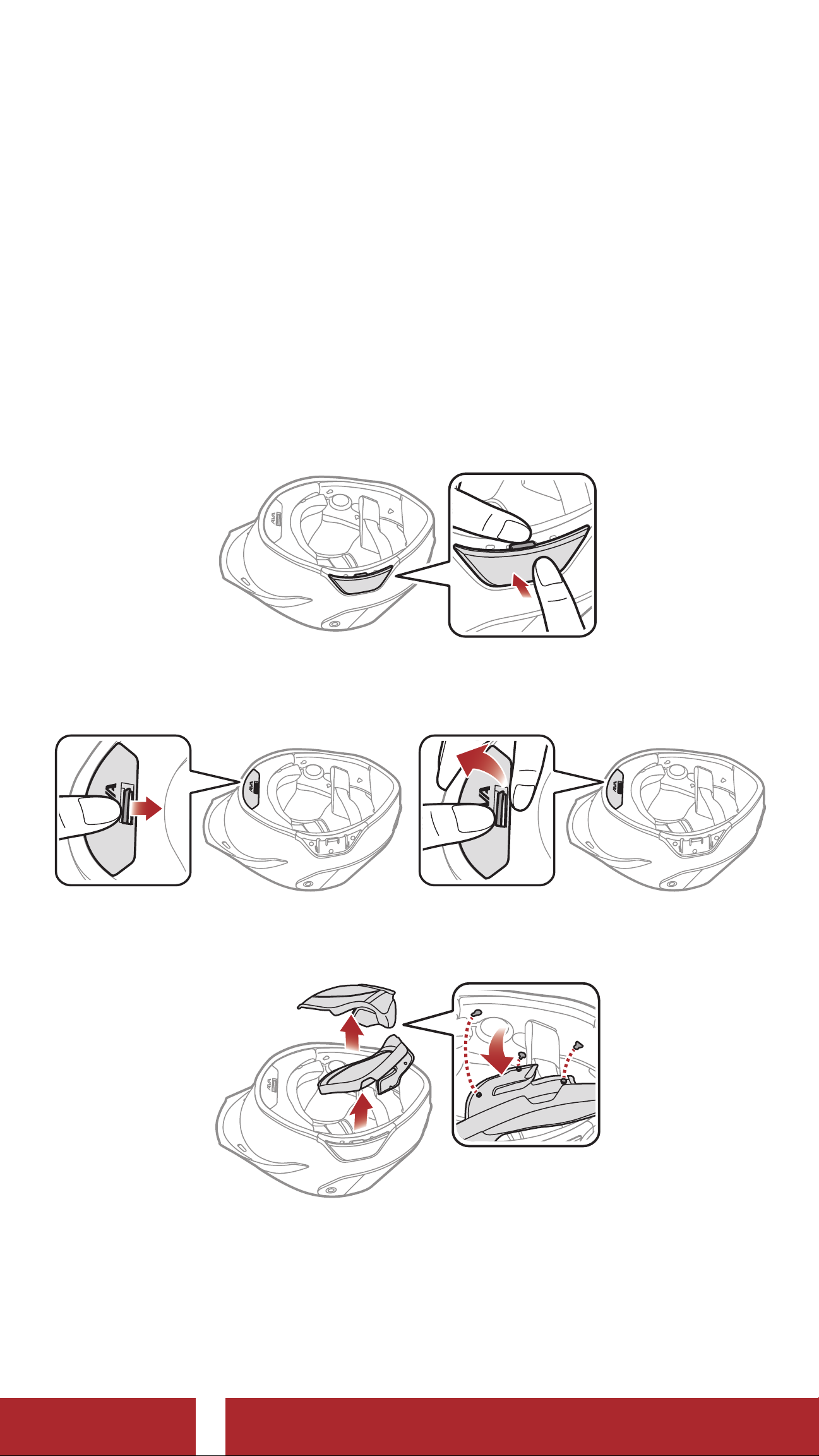

2.1 Preparing the Helmet for Installation

1. While pushing the tab on the Button Module cover, push it upward

to remove it.

2. While pushing the tab on the rear cover, remove the rear cover with

your thumbs.

3. Detach the cheek pads’ snap fasteners and remove the cheek pads

from the helmet.

CHAPTER

2 INSTALLING THE HEADSET ON YOUR HELMET

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 9

4. Detach the center pad’s snap fasteners and take the center pad off.

2.2 Installing the Headset

1. Align the arrows on the microphone cable with the microphone

connector. Then, insert the cable into the connector.

2. Push the Battery Module into the corresponding slot until you hear a

click.

Note: Make sure the helmet’s rubber guard is not jammed between

the Battery Module and its slot.

2 INSTALLING THE HEADSET ON YOUR HELMET

ABC Motorcycle Mesh Communication System for Ava Arrow Helmets | 10

3. Peel off the cover of the hook and loop fastener’s adhesive tape for

the microphone and attach it to the groove in the inner shell of the

helmet. Then, attach the microphone to the hook and loop fastener.

4. Insert the microphone connector into the groove in the inner shell.

Place the remaining portion of the microphone’s cable in the left

speaker pocket for installing the left speaker unit as shown in the

illustration.

5. Peel off the cover of the hook and loop fastener’s adhesive tape for

the left speaker and attach it to the groove in the inner shell of the

helmet. Then, attach the left speaker to the hook and loop fastener.

Note: To prevent them from interfering with the installation pads, tuck

the remaining portion of the cable into the grooves and crevices in the

inner shell.
