Sena SRL Manual de usuario

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

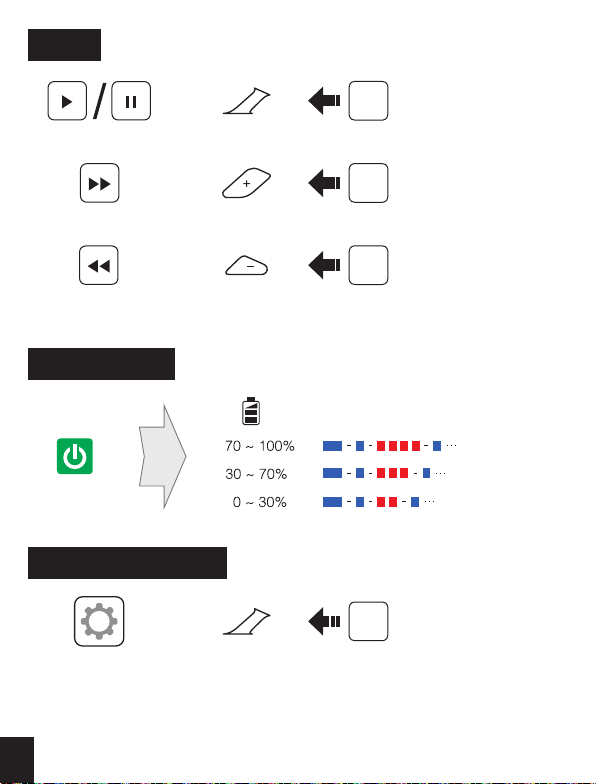

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

Product Details

Speaker

Bluetooth

Module

Microphone

(–) Button

Center Button

(+) Button

SRL for Shoei NeotecⅡ

Quick Start Guide

Installation

1 2

3 4

5 6

1 2 3 4 5 6

7 8

9 10

11 12

Button Operation

Tap Tapping

Tap Double Tapping

1” Press for 1 sec

6”

12” Press and Hold

Power On/Off

Powering On Powering Off

(+) Button

Press

1”

(+) Button

Tap

+ +

Center Button Center Button

Volume Adjustment

Volume Up Volume Down

(+) Button

Tap (-) Button

Tap

Bluetooth Pairing Phone, MP3 and GPS

12”

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Tap

Center Button Press (+) Button

Select Sena SRL in your mobile phone

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Status LED

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Enter

Mobile Phone

Tap

Answer Center Button

2”

End / Reject Center Button Press

3”

Voice Dial Center Button Press

3”

Speed Dial (+) Button Press

Music

1”

Play / Pause music Center Button Press

1”

Track forward (+) Button Press

1”

Track backward (-) Button Press

Battery Check

Power On

Status LED

Configuration Menu

12”

Conguration Menu Center Button Press

7 8 9 10 11

Using the Sena Device Manager

Connect the headset to your computer via a USB cable. Launch the Sena

Device Manager and click DEVICE SETTING to configure the headset

settings. For more information on downloading the Sena Device Manager,

please visit Sena.com.

Using the Sena Smartphone App

1. On your smartphone, download the Sena Smartphone App for Android

or iPhone from Google Play or App Store. Please refer to www.sena.

com/headset-app/ for more details.

2. Pair your smartphone with the headset.

3. Run the Sena Smartphone App. Swipe the screen to the right and tap

Setting to congure the headset settings.

Intercom Pairing

Headset A Headset B

Pairing

8”

PressCenter Button

Center Button

Status LED

8”

Press

Status LED

Tap

Start / End Intercom

Tap

Center Button Center Button

1st Friend 2nd Friend

Tap

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

3rd ~ 9th

Friend,

Cancel

(+) Button

(-) Button

or Tap

Center Button

3rd Friend and above

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Conrm

Center Button

Tap

Start / End Group Intercom

(+) Button

(-) Button

Tap

Note:

You can use Group Intercom after saving

your own group in the Sena Smartphone

App. Please refer to the SRL User’s Guide in

more details.

Radio On / Off

1”

(-) Button Press

Radio Seek Station

Seek

Tap

(+) Button

Seek

Down

Tap

(-) Button

A full version of the manual is downloadable at

www.sena.com.

Sena Technologies, Inc.

www.sena.com

Customer Support: support.sena.com

E-mail: suppor[email protected]

Radio Scan Up FM Band

1”

Press

Save to preset while scanning

Start

Stop

Save

Tap

(+) Button

Center Button

Radio Save and Delete Preset

3”

1”

PressCenter Button

Press

1 ~ 10, Cancel

Delete

Save

(+) Button

(-) Button

or Tap

(+) Button

(-) Button

Radio Move to Preset Station

Preset [# + 1]

1”

Center Button Press

Voice Command

“Hello Sena”

Center Button

(-) Button

Tap

Voice Command Function

“Music” Play/Pause music

“FM radio” FM Radio on/off

“Intercom

[one, two, … , nine]” Start/End each intercom

“Speed dial

[one, two, three]” Speed dialing

Troubleshooting

Factory Reset

If you want to restore the SRL to factory default settings, use the Factory

Reset in the configuration menu. The headset automatically restores the

default settings and turns off.

Fault Reset

If the SRL is not working properly for any reason, reset by gently pushing

the pin-hole reset button located next to the DC Power Charging & Firmware

Upgrade Port.

7 8 9 10 11

Using the Sena Device Manager

Connect the headset to your computer via a USB cable. Launch the Sena

Device Manager and click DEVICE SETTING to configure the headset

settings. For more information on downloading the Sena Device Manager,

please visit Sena.com.

Using the Sena Smartphone App

1. On your smartphone, download the Sena Smartphone App for Android

or iPhone from Google Play or App Store. Please refer to www.sena.

com/headset-app/ for more details.

2. Pair your smartphone with the headset.

3. Run the Sena Smartphone App. Swipe the screen to the right and tap

Setting to congure the headset settings.

Intercom Pairing

Headset A Headset B

Pairing

8”

PressCenter Button

Center Button

Status LED

8”

Press

Status LED

Tap

Start / End Intercom

Tap

Center Button Center Button

1st Friend 2nd Friend

Tap

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

3rd ~ 9th

Friend,

Cancel

(+) Button

(-) Button

or Tap

Center Button

3rd Friend and above

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Conrm

Center Button

Tap

Start / End Group Intercom

(+) Button

(-) Button

Tap

Note:

You can use Group Intercom after saving

your own group in the Sena Smartphone

App. Please refer to the SRL User’s Guide in

more details.

Radio On / Off

1”

(-) Button Press

Radio Seek Station

Seek

Tap

(+) Button

Seek

Down

Tap

(-) Button

A full version of the manual is downloadable at

www.sena.com.

Sena Technologies, Inc.

www.sena.com

Customer Support: support.sena.com

E-mail: suppor[email protected]

Radio Scan Up FM Band

1”

Press

Save to preset while scanning

Start

Stop

Save

Tap

(+) Button

Center Button

Radio Save and Delete Preset

3”

1”

PressCenter Button

Press

1 ~ 10, Cancel

Delete

Save

(+) Button

(-) Button

or Tap

(+) Button

(-) Button

Radio Move to Preset Station

Preset [# + 1]

1”

Center Button Press

Voice Command

“Hello Sena”

Center Button

(-) Button

Tap

Voice Command Function

“Music” Play/Pause music

“FM radio” FM Radio on/off

“Intercom

[one, two, … , nine]” Start/End each intercom

“Speed dial

[one, two, three]” Speed dialing

Troubleshooting

Factory Reset

If you want to restore the SRL to factory default settings, use the Factory

Reset in the configuration menu. The headset automatically restores the

default settings and turns off.

Fault Reset

If the SRL is not working properly for any reason, reset by gently pushing

the pin-hole reset button located next to the DC Power Charging & Firmware

Upgrade Port.

7 8 9 10 11

Using the Sena Device Manager

Connect the headset to your computer via a USB cable. Launch the Sena

Device Manager and click DEVICE SETTING to configure the headset

settings. For more information on downloading the Sena Device Manager,

please visit Sena.com.

Using the Sena Smartphone App

1. On your smartphone, download the Sena Smartphone App for Android

or iPhone from Google Play or App Store. Please refer to www.sena.

com/headset-app/ for more details.

2. Pair your smartphone with the headset.

3. Run the Sena Smartphone App. Swipe the screen to the right and tap

Setting to congure the headset settings.

Intercom Pairing

Headset A Headset B

Pairing

8”

PressCenter Button

Center Button

Status LED

8”

Press

Status LED

Tap

Start / End Intercom

Tap

Center Button Center Button

1st Friend 2nd Friend

Tap

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

3rd ~ 9th

Friend,

Cancel

(+) Button

(-) Button

or Tap

Center Button

3rd Friend and above

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Conrm

Center Button

Tap

Start / End Group Intercom

(+) Button

(-) Button

Tap

Note:

You can use Group Intercom after saving

your own group in the Sena Smartphone

App. Please refer to the SRL User’s Guide in

more details.

Radio On / Off

1”

(-) Button Press

Radio Seek Station

Seek

Tap

(+) Button

Seek

Down

Tap

(-) Button

A full version of the manual is downloadable at

www.sena.com.

Sena Technologies, Inc.

www.sena.com

Customer Support: support.sena.com

E-mail: suppor[email protected]

Radio Scan Up FM Band

1”

Press

Save to preset while scanning

Start

Stop

Save

Tap

(+) Button

Center Button

Radio Save and Delete Preset

3”

1”

PressCenter Button

Press

1 ~ 10, Cancel

Delete

Save

(+) Button

(-) Button

or Tap

(+) Button

(-) Button

Radio Move to Preset Station

Preset [# + 1]

1”

Center Button Press

Voice Command

“Hello Sena”

Center Button

(-) Button

Tap

Voice Command Function

“Music” Play/Pause music

“FM radio” FM Radio on/off

“Intercom

[one, two, … , nine]” Start/End each intercom

“Speed dial

[one, two, three]” Speed dialing

Troubleshooting

Factory Reset

If you want to restore the SRL to factory default settings, use the Factory

Reset in the configuration menu. The headset automatically restores the

default settings and turns off.

Fault Reset

If the SRL is not working properly for any reason, reset by gently pushing

the pin-hole reset button located next to the DC Power Charging & Firmware

Upgrade Port.

7 8 9 10 11

Using the Sena Device Manager

Connect the headset to your computer via a USB cable. Launch the Sena

Device Manager and click DEVICE SETTING to configure the headset

settings. For more information on downloading the Sena Device Manager,

please visit Sena.com.

Using the Sena Smartphone App

1. On your smartphone, download the Sena Smartphone App for Android

or iPhone from Google Play or App Store. Please refer to www.sena.

com/headset-app/ for more details.

2. Pair your smartphone with the headset.

3. Run the Sena Smartphone App. Swipe the screen to the right and tap

Setting to congure the headset settings.

Intercom Pairing

Headset A Headset B

Pairing

8”

PressCenter Button

Center Button

Status LED

8”

Press

Status LED

Tap

Start / End Intercom

Tap

Center Button Center Button

1st Friend 2nd Friend

Tap

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

3rd ~ 9th

Friend,

Cancel

(+) Button

(-) Button

or Tap

Center Button

3rd Friend and above

Device A

Device B

......

Sena SRL v1.0

Bluetooth

0 0 0 0

Conrm

Center Button

Tap

Start / End Group Intercom

(+) Button

(-) Button

Tap

Note:

You can use Group Intercom after saving

your own group in the Sena Smartphone

App. Please refer to the SRL User’s Guide in

more details.

Radio On / Off

1”

(-) Button Press

Radio Seek Station

Seek

Tap

(+) Button

Seek

Down

Tap

(-) Button

A full version of the manual is downloadable at

www.sena.com.

Sena Technologies, Inc.

www.sena.com

Customer Support: support.sena.com

E-mail: suppor[email protected]

Radio Scan Up FM Band

1”

Press

Save to preset while scanning

Start

Stop

Save

Tap

(+) Button

Center Button

Radio Save and Delete Preset

3”

1”

PressCenter Button

Press

1 ~ 10, Cancel

Delete

Save

(+) Button

(-) Button

or Tap

(+) Button

(-) Button

Radio Move to Preset Station

Preset [# + 1]

1”

Center Button Press

Voice Command

“Hello Sena”

Center Button

(-) Button

Tap

Voice Command Function

“Music” Play/Pause music

“FM radio” FM Radio on/off

“Intercom

[one, two, … , nine]” Start/End each intercom

“Speed dial

[one, two, three]” Speed dialing

Troubleshooting

Factory Reset

If you want to restore the SRL to factory default settings, use the Factory

Reset in the configuration menu. The headset automatically restores the

default settings and turns off.

Fault Reset

If the SRL is not working properly for any reason, reset by gently pushing

the pin-hole reset button located next to the DC Power Charging & Firmware

Upgrade Port.

Otros manuales para SRL

Tabla de contenidos

Otros manuales de Sistema de conferencias de Sena

Manuales populares de Sistema de conferencias de otras marcas

Kramer

Kramer VIA GO Manual de usuario

AVT

AVT MAGIC AC1 Go Manual de usuario

ProSoft Technology

ProSoft Technology AN-X4-AB-DHRIO Manual de usuario

Sony

Sony PCS-I150 Manual de usuario

Middle Atlantic Products

Middle Atlantic Products VTC Series Manual de usuario

Prentke Romich Company

Prentke Romich Company Vanguard Plus Guía

Speakerbus

Speakerbus iD 712 Manual de usuario

Trelleborg

Trelleborg SafePilot CAT PRO Manual de usuario

Sennheiser

Sennheiser ADN Manual de usuario

ADTRAN

ADTRAN NetVanta 7100 Manual de usuario

AINA

AINA PTT Voice Responder Manual de usuario

Yamaha

Yamaha ProjectPhone PJP-100H Manual de usuario

vissonic

vissonic VLI Series Manual de usuario

Panasonic

Panasonic KX-VC500 Manual de usuario

Poly

Poly Trio 8300 Manual de usuario

Crestron

Crestron Mercury CCS-UCA-SMK Dibujo dimensional

Inmarsat

Inmarsat mini M Manual de usuario

Tenveo

Tenveo ALL-IN-ONE Manual de usuario
