SCHUNK PZH-plus 30 Instrucciones de uso

Original operating manual

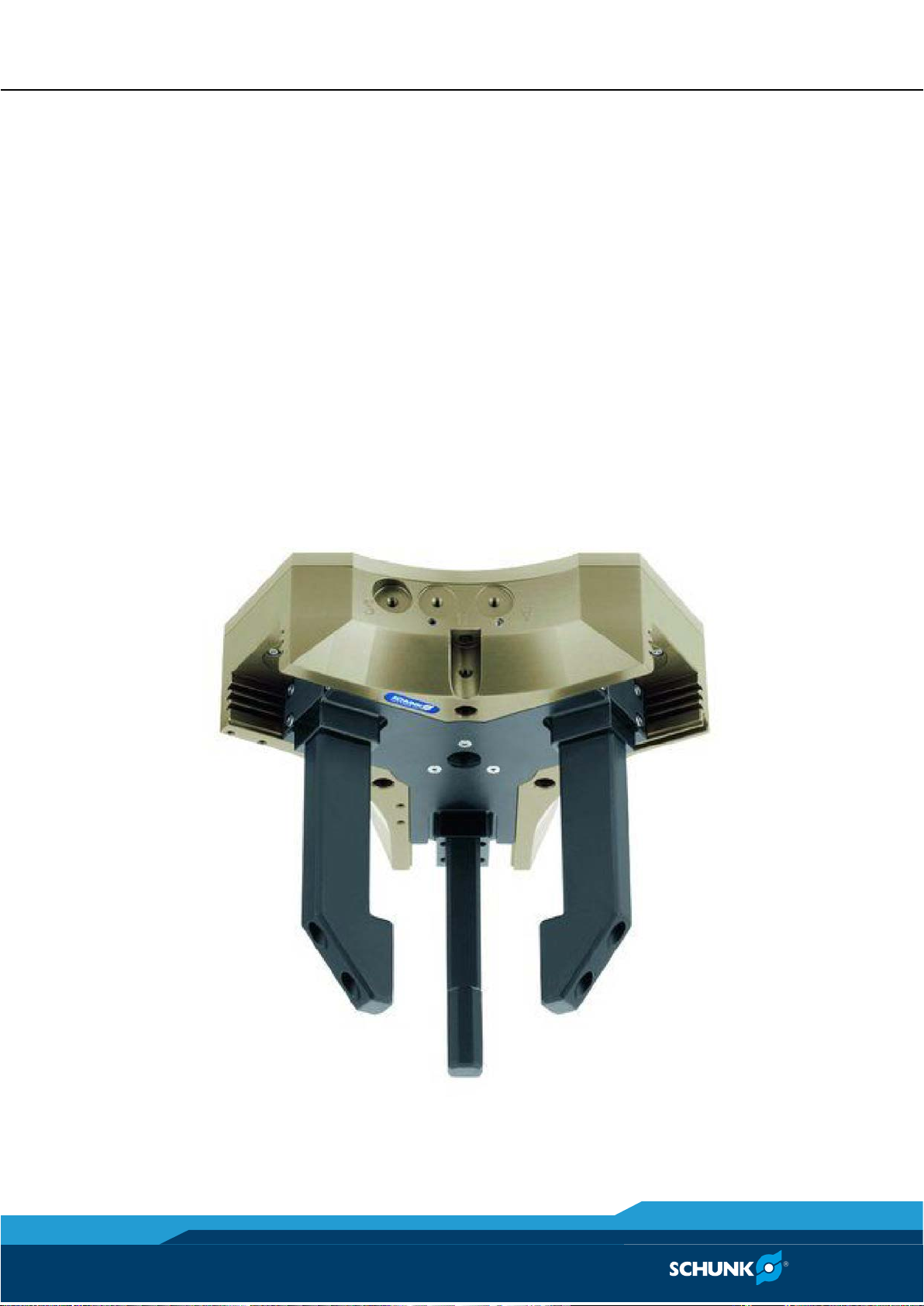

3-finger centric gripper

PZH-plus 020-075

Assembly and Operating Manual

Superior Clamping and Gripping

Imprint

2 02.00|PZH-plus 020-075|en

Imprint

This manual remains the copyrighted property of SCHUNK GmbH & Co. KG. It is solely sup-

plied to our customers and operators of our products and forms part of the product. This

documentation may not be duplicated or made accessible to third parties, in particular com-

petitive companies,

without our prior permission.

Technical changes:

We reserve the right to make alterations for the purpose of technical improvement.

Document number: 0389504

Edition: 02.00 |26/10/2016|en

Dear customer,

congratulations on choosing a SCHUNK product. By choosing SCHUNK, you have opted for

the highest precision, top quality and best service.

You are going to increase the process reliability of your production and achieve best

machining results – to the customer's complete satisfaction.

SCHUNK products are inspiring.

Our detailed assembly and operation manual will support you.

Do you have further questions? You may contact us at any time – even after purchase.

Kindest Regards

Yours SCHUNK GmbH & Co. KG

Spann- und Greiftechnik

Bahnhofstr. 106 – 134

D-74348 Lauffen/Neckar

Tel. +49-7133-103-0

Fax +49-7133-103-2399

[email protected]k.com

www.schunk.com

Table of contents

02.00|PZH-plus 020-

075|en

Table of contents

General .............................................................................................................................. 5

1.1

About this manual ............................................................................................................. 5

1.1.1

Presentation of Warning Labels ........................................................................... 5

1.1.2

Applicable documents........................................................................................... 6

1.1.3

Sizes ........................................................................................................................ 6

1.2

Warranty ............................................................................................................................ 6

1.3

Scope of delivery................................................................................................................ 6

1.3.1

Accessory pack....................................................................................................... 6

1.4

Accessories ......................................................................................................................... 7

1.4.1

Seal kit .................................................................................................................... 7

1.4.2

Mounting kit for proximity switch IN................................................................... 7

1.4.3

Pressure piece assembly kit.................................................................................. 7

Basic safety notes ............................................................................................................. 8

2.1

Intended use ...................................................................................................................... 8

2.2

Not intended use ............................................................................................................... 8

2.3

Constructional changes ..................................................................................................... 8

2.4

Spare parts ......................................................................................................................... 8

2.5

Gripper fingers .................................................................................................................. 9

2.6

Environmental and operating conditions ........................................................................ 9

2.7

Personnel qualification...................................................................................................... 9

2.8

Personal protective equipment ...................................................................................... 10

2.9

Notes on safe operation.................................................................................................. 11

2.10

Transport .......................................................................................................................... 11

2.11

Malfunctions .................................................................................................................... 11

2.12

Disposal ............................................................................................................................ 12

2.13

Fundamental dangers...................................................................................................... 12

2.13.1

Protection during handling and assembly......................................................... 12

2.13.2

Protection during commissioning and operation ............................................. 13

2.13.3

Protection against dangerous movements ....................................................... 13

2.13.4

Protection against electric shock ....................................................................... 14

2.14

Notes on particular risks ................................................................................................. 14

Technical data.................................................................................................................. 16

Design and description .................................................................................................... 17

4.1

Configuration ................................................................................................................... 17

4.2

Description ....................................................................................................................... 17

Assembly ......................................................................................................................... 18

Table of contents

4 02.00|PZH-plus 020-075|en

5.1

Connections ..................................................................................................................... 18

5.1.1

Mechanical connection....................................................................................... 18

5.1.2

Air connection ..................................................................................................... 20

5.2

Mounting the sensor ....................................................................................................... 22

5.2.1

Overview of sensors ............................................................................................ 22

5.2.2

IN 80 inductive proximity switch........................................................................ 23

5.2.3

MMS 22 magnetic switch ................................................................................... 25

5.2.4

MMS-P programmable magnetic switch........................................................... 27

Troubleshooting .............................................................................................................. 32

6.1

Product is not moving ..................................................................................................... 32

6.2

The module does not travel through the entire stroke? .............................................. 32

6.3

Product opens or closes abruptly................................................................................... 33

6.4

The gripping force is dropping ........................................................................................ 33

6.5

Product does not achieve the opening and closing times............................................ 34

Maintenance.................................................................................................................... 35

7.1

Notes................................................................................................................................. 35

7.2

Maintenance and lubrication intervals .......................................................................... 35

7.3

Lubricants/Lubrication points......................................................................................... 35

7.4

Disassembly of the module ............................................................................................ 36

7.4.1

Assembly tool X ................................................................................................... 37

7.4.2

Assembly tool Y ................................................................................................... 38

7.5

Servicing and assembling the module............................................................................ 39

7.5.1

Screw tightening torques.................................................................................... 39

Assembly drawing ........................................................................................................... 40

Translation of original declaration of incorporation........................................................ 41

Annex to Declaration of Incorporation............................................................................ 42

General

02.00|PZH-plus 020-

075|en

General

About this manual

This manual contains important information for a safe and appropri-

ate use of the product.

This manual is an integral part of the product and must be kept ac-

cessible for the personnel at all times.

Before starting work, the personnel must have read and understood

this operating manual. Prerequisite for safe working is the ob-

servance of all safety instructions in this manual.

Illustrations in this manual are provided for basic understanding and

may differ from the actual product design.

In addition to these instructions, the documents listed under

(1.1.2, Page 6) are applicable.

Presentation of Warning Labels

To make risks clear, the following signal words and symbols are used

for safety notes.

DANGER

Danger for persons!

Non-observance will inevitably cause irreversible injury or death.

WARNING

Dangers for persons!

Non-observance can lead to irreversible injury and even death.

CAUTION

Dangers for persons!

Non-observance can cause minor injuries.

NOTICE

Material damage!

Information about avoiding material damage.

1.1

1.1.1

General

6 02.00|PZH-plus 020-075|en

Applicable documents

• General terms of business *

• Catalog data sheet of the purchased product *

• Assembly and Operating manuals of the accessories *

The documents marked with an asterisk (*) can be downloaded on

our homepage www.schunk.com.

Sizes

This operating manual applies to the following sizes:

• PZH-plus 20

• PZH-plus 30

• PZH-plus 50

• PZH-plus 75

Warranty

If the product is used as intended, the warranty is valid for 24 months

from the ex-works delivery date under the following conditions:

• Intended use in 1-shift operation

• Observe the mandatory maintenance and lubrication intervals

• Observe the environmental and operating conditions

Parts touching the work piece and wear parts are not part of the warranty.

Scope of delivery

The scope of delivery includes

• 3-finger centric gripper PZH-plus in the version ordered

• Accessory pack

Accessory pack

ID.-No. of the accessory pack

Accessory pack for

ID number

PZH-plus 20

5522173

PZH-plus 30

5522174

PZH-plus 50

5522175

PZH-plus 75

5522176

Content of the accessories pack: (8, Page 40).

1.1.2

1.1.3

1.2

1.3

1.3.1

General

02.00|PZH-plus 020-

075|en

Accessories

A wide range of accessories are available for this product

For information about which accessories can be used with the ap-

propriate product version see catalog.

Seal kit

ID.-No. of the seal kit

Seal kit for

ID number

PZH-plus 20

5522219

PZH-plus 30

5522220

PZH-plus 50

5522221

PZH-plus 75

5522222

Contents of the sealing kit, (8, Page 40).

Mounting kit for proximity switch IN

ID no. of the mounting kit

ID number

PZH-plus

0305364

Pressure piece assembly kit

ID no. of the assembly kit

Assembly kit for

ID number

PZH-plus 20

0305363

PZH-plus 30

0305373

PZH-plus 50

0305383

PZH-plus 75

0305393

1.4

1.4.1

1.4.2

1.4.3

Basic safety notes

8 02.00|PZH-plus 020-075|en

Basic safety notes

Intended use

The product is designed exclusively for gripping and temporarily hold-

ing workpieces or objects.

• The product may only be used within the scope of its technical da-

ta, (3, Page 16).

• The product is intended for installation in a machine/system. The

applicable guidelines must be observed and complied with.

• The product is intended for industrial use.

• Appropriate use of the product includes compliance with all in-

structions in this manual.

Not intended use

It is not intended use if the product is used, for example, as a pressing

tool, stamping tool, lifting gear, guide for tools, cutting tool, clamping

device or a drilling tool.

• Any utilization that exceeds or differs from the appropriate use is

regarded as misuse.

Constructional changes

Making constructional changes

Modifications, constructional changes and subsequent work, e.g. ad-

ditional threads, drill holes and safety devices may impair the opera-

tion and safety or damage the product.

• Constructional changes may only be done with SCHUNK's permis-

sion.

Spare parts

Use of unauthorised spare parts

Using unauthorised spare parts can endanger personnel and damage

the product or cause it to malfunction.

• Use only original spare parts or spares authorised by SCHUNK.

2.1

2.2

2.3

2.4

Basic safety notes

02.00|PZH-plus 020-

075|en

Gripper fingers

Requirements for the gripper fingers

Stored energy within the product creates the risk of serious injuries

and significant property damage.

• Arrange the gripper fingers in a way that the product reaches ei-

ther the position "open" or "closed" in a de-energized state.

• Only exchange the gripper fingers when no residual energy re-

mains in the product.

Environmental and operating conditions

Required ambient conditions and operating conditions

Incorrect ambient and operating conditions can make the product

unsafe, leading to the risk of serious injuries, considerable material

damage and/or a significant reduction to the product's life span.

• Make sure that the product and the top jaws are a sufficient size

for the application.

• Observe maintenance and lubrication intervals, (7.2, Page 35).

• Make sure that the environment is free from splash water and

vapors as well as from abrasion or processing dust. Exceptions are

products that are designed especially for contaminated environ-

ments.

Personnel qualification

Inadequate qualifications of the personnel

If the personnel working with the product is not sufficiently qualified,

the result may be serious injuries and significant property damage.

• All work may only be performed by qualified personnel.

• Before working with the product, the personnel must have read

and understood the complete assembly and operating manual.

• Observe the national safety regulations and rules and general

safety instructions.

The following personal qualifications are necessary for the various ac-

tivities related to the product:

Due to their technical training, knowledge and experience, trained

electricians are able to work on electrical systems, recognize and

2.5

2.6

2.7

Trained electrician

Basic safety notes

10 02.00|PZH-plus 020-075|en

avoid possible dangers and know the relevant standards and regula-

tions.

Pneumatics specialists have been trained for this particular area of

responsibility and know the relevant standards and regulations.

Hydraulic specialists have been trained for this particular area of re-

sponsibility and knows the relevant standards and regulations.

Due to its technical training, knowledge and experience, qualified

personnel is able to perform the delegated tasks, recognize and avoid

possible dangers and knows the relevant standards and regulations.

Instructed persons were instructed by the operator about the dele-

gated tasks and possible dangers due to improper behaviour.

Due to its technical training, knowledge and experience, service per-

sonnel of the manufacturer is able to perform the delegated tasks

and to recognize and avoid possible dangers.

Personal protective equipment

Using personal protective equipment

Not wearing personal protective equipment while working with the

product, may result in dangers that impact the personnel's safety and

health.

• While working with the product, observe the health and safety

regulations and wear the required personal safety equipment.

• Observe the valid safety and accident prevention regulations.

• In case of sharp edges and corners and rough surfaces, wear pro-

tection gloves.

• In case of hot surfaces, wear heat-resistant protection gloves.

• When dealing with hazardous substances, wear protection gloves

and goggles.

• In case of moving parts, wear tight protection clothes.

Pneumatics specialist

Hydraulic specialist

Qualified personnel

Instructed person

Service personnel of

the manufacturer

2.8

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Herramientas eléctricas de SCHUNK

SCHUNK

SCHUNK TANDEM KSF plus Series Instrucciones de uso

SCHUNK

SCHUNK KSP3-IM 100 Instrucciones de uso

SCHUNK

SCHUNK KSC-D 80 Guía del usuario

SCHUNK

SCHUNK KSC 160 Series Guía del usuario

SCHUNK

SCHUNK RST-P 060 Instrucciones de uso

SCHUNK

SCHUNK TANDEM KSH3 IM 100 Instrucciones de uso

SCHUNK

SCHUNK TANDEM KSPplus-BWM Instrucciones de uso

SCHUNK

SCHUNK GSP-P 08 Instrucciones de uso

SCHUNK

SCHUNK PGN-plus-E Series Manual de reparación

SCHUNK

SCHUNK NST3 series Instrucciones de uso

SCHUNK

SCHUNK CRT Instrucciones de uso

SCHUNK

SCHUNK KSC2 40 Manual de usuario

SCHUNK

SCHUNK TRIBOS SVP-Mini auto Instrucciones de uso

SCHUNK

SCHUNK PWG-S 40 Instrucciones de uso

SCHUNK

SCHUNK KSP3 64 Instrucciones de uso

SCHUNK

SCHUNK LMG 64 Instrucciones de uso

SCHUNK

SCHUNK KSC-F 80 Manual de usuario

SCHUNK

SCHUNK PGB Series Instrucciones de uso

SCHUNK

SCHUNK ROTA NCO 165 Manual de usuario

SCHUNK

SCHUNK TANDEM KSH plus Instrucciones de uso

SCHUNK

SCHUNK PGF Instrucciones de uso

SCHUNK

SCHUNK VERO-S NSE mini 90-25 Instrucciones de uso

SCHUNK

SCHUNK PRONTO Instrucciones de uso

SCHUNK

SCHUNK SRH-plus Series Instrucciones de uso

Manuales populares de Herramientas eléctricas de otras marcas

AEG

AEG OMNI-JS Manual de usuario

SIP

SIP 01533 Manual de usuario

Ribimex

Ribimex PRS499 Manual de usuario

3M Fiber Optic Connector Crimp Tool Manual de usuario

Ryobi

Ryobi P524 Manual de usuario

ROJEK

ROJEK FSN 300A Manual de usuario

Kemper

Kemper 1740PRO Manual de usuario

WABCO

WABCO OptiTire Manual de usuario

EINHELL

EINHELL TE-MS 18/210 Li Manual de usuario

Orgapack

Orgapack OR-T 85 Guía rápida

TOUGHCUT

TOUGHCUT Diamond 400 Manual de usuario

Yaros

Yaros PB-3603 Manual de usuario

Fein

Fein BSS 2.0 E Guía de configuración

Baileigh Industrial

Baileigh Industrial SS-2725 Manual de usuario

Milwaukee

Milwaukee 2674-20 Manual de usuario

Fein

Fein BLs 1.6 Manual de usuario

Princess

Princess Electric Multi Sharpener Manual de usuario

FOREDOM

FOREDOM K.1050 Manual
