Scantronic 601 Manual de usuario

601/602 USER GUIDE

TO FULL SET

Key in your user code. The Armed light

flashes and the exit tone starts. Leave

the premises by the designated exit

route.

The exit tone stops after a preset time

and the Armed light glows steadily.

The alarm system is then set.

TO PART SET

To set your alarm system so that you

can move around part of the area nor-

mally covered by detectors:

Key in 2 + ENTER followed by your

security code. The Armed light flashes

slowly. Leave the protected area. After

a preset time the panel gives a double

bleep. The system is now part set.

Note: The installer may have disabled

the part set facility. Contact them if

you have any difficulty.

TO OMIT A ZONE

Key in your user code, followed by

OMIT and the zone number within five

seconds. The Armed light and the zone

light to be omitted flash, and the exit

tone starts. Leave the premises. After a

pre-set time the exit tone stops and

the Armed light glows steadily. The

system is now set with an omitted

zone.

CHIME

Key in 7 + ENTER followed by your

user code. The panel gives a two tone

bleep. While chime is on, the panel

gives a two tone bleep every time a

detector is triggered. Note: The installer

may not have programmed every

detector to trigger a chime.

To switch Chime off: key in 7 + ENTER

followed by your user code.

TO SWITCH OFF

Enter by the designated entry route.

The entry tone starts. Go to the control

panel and key in your four digit user

code. The Armed light goes out. The

system is unset.

PANIC ALARM

Press 1 and 3 at the same time. The

panel does not give any indication of

an alarm.

= four digit user code

()

Leave by

designated

route

ENTER

OMIT

ZONE

NUMBER

OMIT

ZONE

NUMBER

FOR OTHER

ZONES

()

ENTER

Enter by

designated

route

Go to

panel

Service Telephone No:

Part No: 496181 Issue 1

Intelligent Security & Fire Ltd

TO RESET AFTER AN ALARM

The panel sounds the alarm by giving a

siren tone from its internal sounder,

and triggering the external bell and

strobe (if you have one).

Go to the panel and key in your user

code. The panel stops the tone and

switches off the external bell/strobe. A

flashing zone light indicates the cause

of the alarm.

To reset system: Enter your user code

again. The flashing zone light goes out.

If the system does not go to reset, call

the installer.

Tamper Alarm: If the panel gives an

internal alarm while unarmed then go

to the control panel and key in your

user code to stop the sounder. The

Tamper light flashes. Call the installer

for service.

TO READ THE LOG

Your alarm system keeps a record of

the last 15 alarm events.

Key in 5 + ENTER followed by your

user code. The panel lights show the

last event.

Press 4 repeatedly to see earlier alarms.

Press 6 repeatedly to see more recent

alarms. The panel gives a low tone

when you reach the end of the log.

Press ENTER at any time to leave the

log.

TO CHANGE YOUR USER CODES

You can have up to eight user codes

and one duress code. Each code can be

any four digit number not starting with

0 (zero). Key in 4 + ENTER followed by

your user code. Key in the existing user

code that you want to change. The

panel gives a double bleep. Key in the

new user code. The panel gives a dou-

ble bleep when it accepts the new

code. If you hear a single low bleep the

panel did not accept the new code. Try

again from the beginning.

TO WALK TEST THE DETECTORS

Key in 9 + ENTER followed by your

user code.

Activate each detector in turn. The

panel gives a two tone bleep and lights

the corresponding zone when it

receives a signal from a detector. To

end the test press ENTER.

TO TEST BELLS

Key in 8 + ENTER followed by your

user code. The panel sounds the exter-

nal bell, strobe, and internal sounder

for three seconds each.

Check the premises

ENTER

new user codeexisting code

ENTER

Walk past

detectors

Note: The default code for user one is

‘1234’. The default for user two is

‘0001’, user three is ‘0002’ and so on

up to user 8, which is ‘0007’.

Intelligent Security & Fire Ltd

Otros manuales para 601

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de seguridad de Scantronic

Scantronic

Scantronic 760ES Manual de usuario

Scantronic

Scantronic Spartan 650F Manual de usuario

Scantronic

Scantronic DET-RSDC Manual de usuario

Scantronic

Scantronic 9800 Manual de usuario

Scantronic

Scantronic 500r+ Manual de usuario

Scantronic

Scantronic i-on Series Manual de usuario

Scantronic

Scantronic 9452 Manual de usuario

Scantronic

Scantronic 8136UK-50 Manual de usuario

Scantronic

Scantronic KEY-RAS Manual de usuario

Scantronic

Scantronic i-on30R+ Manual de usuario

Scantronic

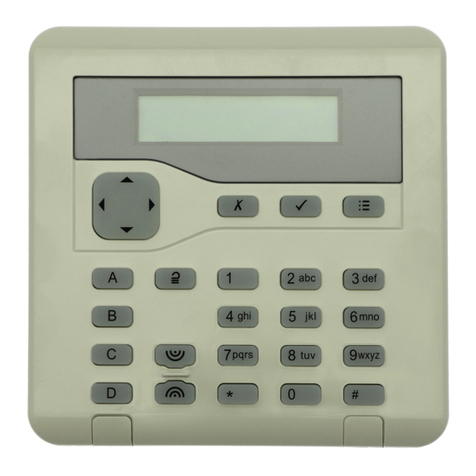

Scantronic i-on Security System Manual de usuario
