Satel SPL-2030 Manual de usuario
SPL-2030
OPTICAL-ACOUSTIC OUTDOOR SIREN
spl2030_en 07/16
The SPL-2030 siren provides information about alarm situations by means of optical and
acoustic signaling.
1. Features
Acoustic signaling by means of piezoelectric transducer.
Three selectable tones for acoustic signaling.
Optical signaling by means of LEDs.
Weatherproofed electronic circuit.
Tamper protection in 2 ways – cover removal and tearing enclosure from the wall.
High-impact polycarbonate enclosure, featuring a very high mechanical strength.
2. Description
Explanations for Fig. 1:
mounting holes.
auxiliary hole.
mounting holes for additional SPL-TO tamper sensor.
piezoelectric transducer.
opening for wires.
2 SPL-2030 SATEL
electronic board.
tamper element with mounting hole.
water drain holes (do not plug).
Terminals
+SO- - input to trigger the optical signal. The signaling will be triggered after +12 V DC
voltage is applied to terminal “+” and 0 V voltage (common ground) is applied to
terminal “-“.
+SA- - input to trigger the acoustic signal. The signaling will be triggered after +12 V DC
voltage is applied to terminal “+” and 0 V voltage (common ground) is applied to
terminal “-“.
TMP - tamper output (NC). Connect one terminal to the control panel zone programmed
as tamper, and the other to the control panel common ground.
Pins for selecting acoustic signal
Fig. 2 shows how the jumpers should be placed to select the tone which will be used by the
siren: A – tone 1; B – tone 2; C – tone 3.
Additional tamper protection
Optionally, the SPL-TO optical tamper sensor can be installed in the siren. It will detect any
attempt to tamper with the siren using mounting foam. The sensor can be used to create an
independent tamper circuit or connected in series with the tamper circuit of the siren.
3. Installation and start-up
Power down the control panel before connecting the siren to it.
The siren must be installed on the wall, high above the floor, at a hard to access location, so
as to minimize the risk of tampering. Make sure that some free space is left above the siren
(at least 4.5 cm). Otherwise, it will be impossible to replace the cover.
1. Remove the cover locking screw.
2. Lift up the enclosure cover by approx. 60º and remove it.
3. Place the enclosure base on the wall and mark the location of mounting holes. Remember
to allow for the mounting hole in the tamper element (see Fig. 1).
4. Drill the holes for wall plugs (screw anchors).
5. Run the wires through the opening in the enclosure base (see Fig. 1).
6. Using wall plugs (screw anchors) and screws, fasten the enclosure base to the wall (the
wall plugs and screws are included in the siren delivery set). Be careful when screwing
down the tamper element so as not to break the narrowings.
SATEL SPL-2030 3
7. Connect the siren terminals with wires to the control panel terminals.
Note: Some alarm control panels may require that a resistor R (approx. 1 kΩ) be connected
between the +SA- terminals in the siren (see Fig. 3). Otherwise, the siren will produce
a buzzing sound when inactive.
8. Use jumpers to select the tone which will be used by the siren (see: Fig. 2).
9. Replace the siren cover, close the cover and then lock it with the screw.
10.Power on the control panel.
11.Test the siren for correct functioning. In order to test the siren you can use the output test
function, which is available in some control panels, or you can trigger an alarm for testing
purposes.
4. Specifications
Supply voltage ................................................................................................... 12 V DC ±15%
Maximum current consumption:
optical signaling ..........................................................................................30 mA
acoustic signaling .....................................................................................180 mA
Sound pressure level (at 1 m distance) .................................................................up to 120 dB
Environmental class according to EN50130-5 ........................................................................ III
Operating temperature range..................................................................................-35...+55 °C
Maximum humidity.......................................................................................................... 93±3%

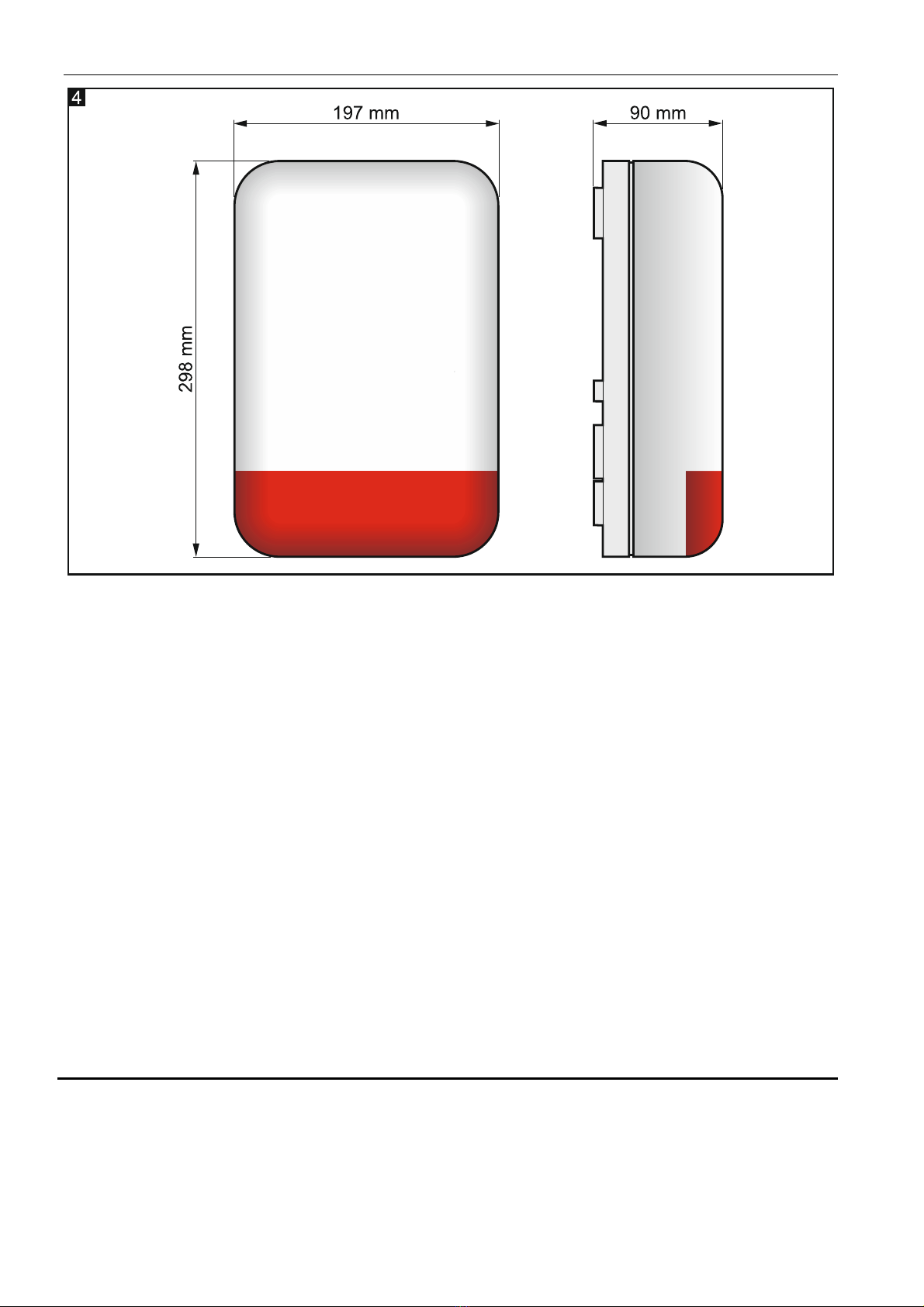

Dimensions ..................................................................................................298 x 197 x 90 mm
Weight............................................................................................................................... 725 g
The declaration of conformity may be consulted at www.satel.eu/ce
4 SPL-2030 SATEL
SATEL sp. z o.o. • ul. Budowlanych 66 • 80-298 Gdańsk • POLAND
tel. +48 58 320 94 00
www.satel.eu
