Sanyo VCC-P7574 - 1/4" Color CCD Indoor Mini Dome... Manual de usuario

PAN-FOCUS

MINI DOME CAMERA

VCC-P7574

VCC-P7574S

VCC-P7574N

• No Focus Adjustments Required

• Built-in X2.6 motorized zoom pan-focus lens, f=2.8-

7.3mm (F=1.9-3.0)

• 1/4” CCD type high resolution color camera

• Super-high horizontal resolution of 520 TV lines

• Minimum illumination: 1.9 lx (F1.9)

• Easy installation, easy adjustment and easy set-up

• Indoor mini dome type

• Built-in Motion Detection and Privacy Masking

Functions

• Preconfigured versions for SSP or Network Control

• Accessories Include:

» VA-50ST (RS-485/UTP, Coaxial Control Board)

[Protocols Supported: SANYO SSP, SANYO H.SSP,

SANYO Coax, Pelco-C, Pelco-D]

» VA-50LAN (JPEG, POE Network Board + Audio)

• 24V AC / 12V to 15V DC Dual Power Supply

Note: VCC-P7574N Network version available August, 2006

SANYO Security Products

21605 Plummer Street

Chatsworth, CA 91311

Phone: (888) 893-7403

Fax: (888) 818-2597

Technical Support: (888) 66-SANYO

www.sanyocctv.com

PAN-FOCUS

MINI DOME CAMERA

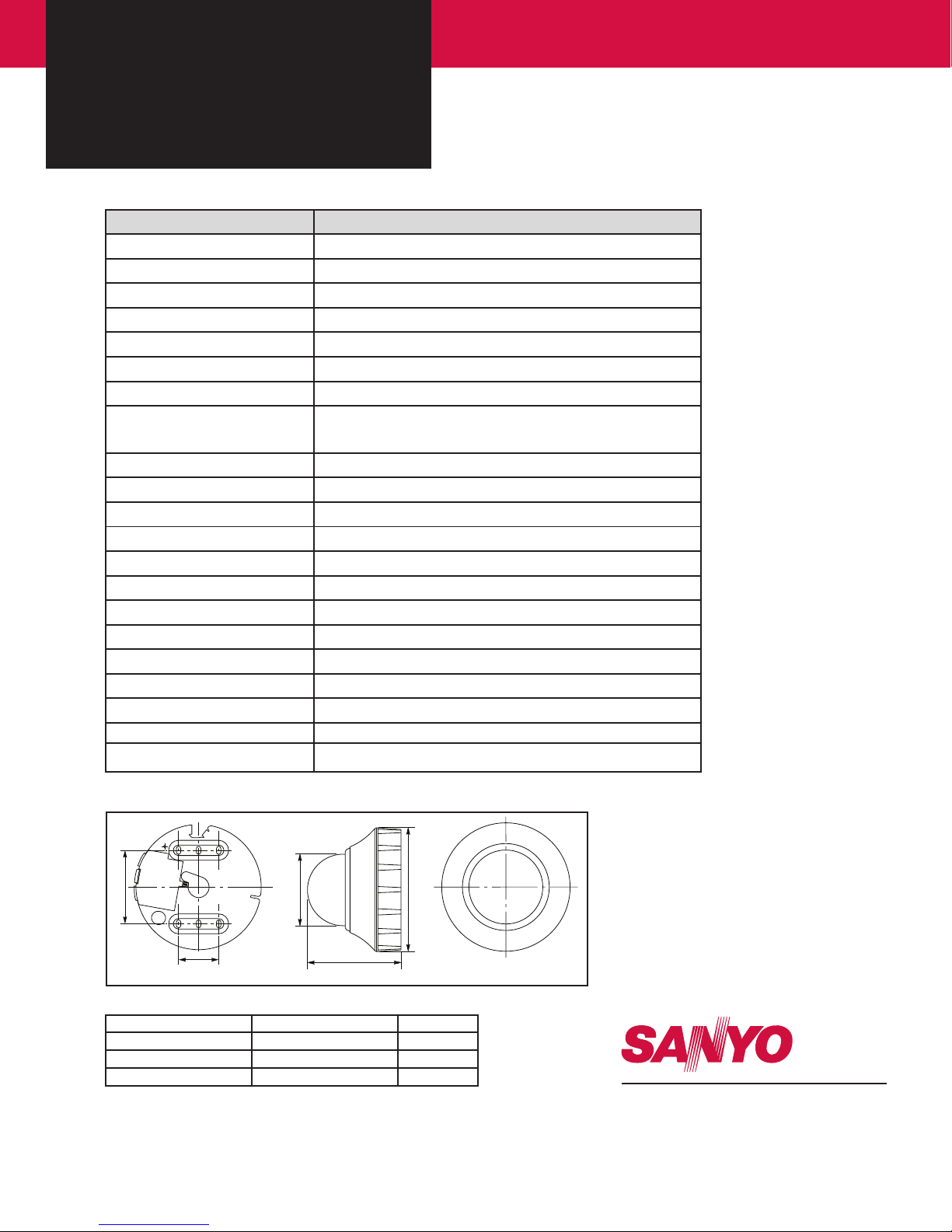

Specifications

83.4 (3.3)

45.5 (1.8) [Unit: mm (inch)]

150.6 (6.0)

99 (3.9)

115.5 (4.5)

Dimensions

RS-485/Coax (SSP) Network

VCC-P7574

VCC-P7574S X

VCC-P7574N X

Available Models

Specifications and product design are subject to change without notice.

Model

VCC-P7574/ VCC-P7574S/ VCC-P7574N

Scanning system

NTSC standard 525 lines, 30 frames/sec

Image sensor

1/4” Interline transfer method CCD (3.6 mm x 2.7 mm), 2.1 interlace

Picture elements

Total: 811(H) x 508(V), Effective: 768(H) x 494(V)

Horizontal resolution

More than 520 TV lines

Video output level

1.0 V (p-p) (75Ω, composite)

Video S/N Ratio

More than 50dB (AGC off))

Synchronizing system

Internal sync. / Line lock

Minimum 50 IRE

1.9lx (F1.9, GAIN: High)

Illumination 20 IRE

0.76 lx (F1.9, GAIN: High)

Backlight compensation

ON (CENTER/MULTI-SPOT) / OFF

White balance

ATW/AWC/Manual/Outdoor/Indoor/Fluorescent

Gain control

HIGH/NORMAL/OFF

Lens

Built-in X2.6 motorized zoom pan-focus lens, f=2.8 - 7.3mm, F1.9 - 3.0

Electronic shutter

1/60, 1/100, 1/250, 1/500, 1/1000, 1/2000, 1/4000, 1/10000

Motion detector

ON/OFF: Motion zoom function

Privacy masking

ON/OFF: Max 4 locations

Aperture

HIGH (2 step) / NORMAL / OFF

Environmental conditions

Temperature: -10 to +50 degrees C, Humidity: Less than 90% RH

Power requirement

12-15V DC / 24V AC± 10%, 50Hz

Power consumption

3.5W, with VA-50ST or VA-S0LAN = 9.5W

Dimension

Ø150.6 x 115.5mm [Ø5.9 x 4.5 in.]

Weight

600g (1.3 lbs) w/o options
