Sanus MMF12b Manual de usuario

MMF12b Instruction Manual

Does your TV weigh more than 60 lb (27 kg) including accessories?

—

Perfect!

Yes

—

This mount is NOT compatible. Visit MountFinder.Sanus.com or call 1-800-359-5520 (UK: 0800-056-2853) to ﬁnd a compatible mount.

IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE

Before getting started, let’s make sure this mount is perfect for you!

60 lb

(27 kg)

Ready to begin?

Please read through these instructions completely to be sure you’re comfortable with this easy install process. Also check your TV

owner’s manual to see if there are any special requirements for mounting your TV.

If you do not understand these instructions or have doubts about the safety of the installation, assembly or use of this product, contact

Customer Service at 1-800-359-5520 (UK: 0800-056-2853).

CAUTION: Avoid potential personal injuries and property damage!

ƕThis product is designed for use in wood stud, solid concrete, and concrete block walls - DO NOT install into drywall alone

ƕThe wall must be capable of supporting ﬁve times the weight of the TV and mount combined

ƕDo not use this product for any purpose not explicitly speciﬁed by manufacturer

ƕManufacturer is not responsible for damage or injury caused by incorrect assembly or use

What is your wall made of?

Solid concrete or

concrete block? Perfect! Unsure? Call 1-800-359-5520

(UK: 0800-056-2853)

Drywall with

wood studs? Perfect!

3/8 in.

(10 mm)

Do you have all of the tools needed?

7/32 in.

(5.5 mm) 1/2 in.

(13 mm)

Stud Finder Awl Pencil Level Phillips

Screwdriver Tape

Measure Wood

Drill Bit Masonry

Drill Bit

Drill Hammer Socket

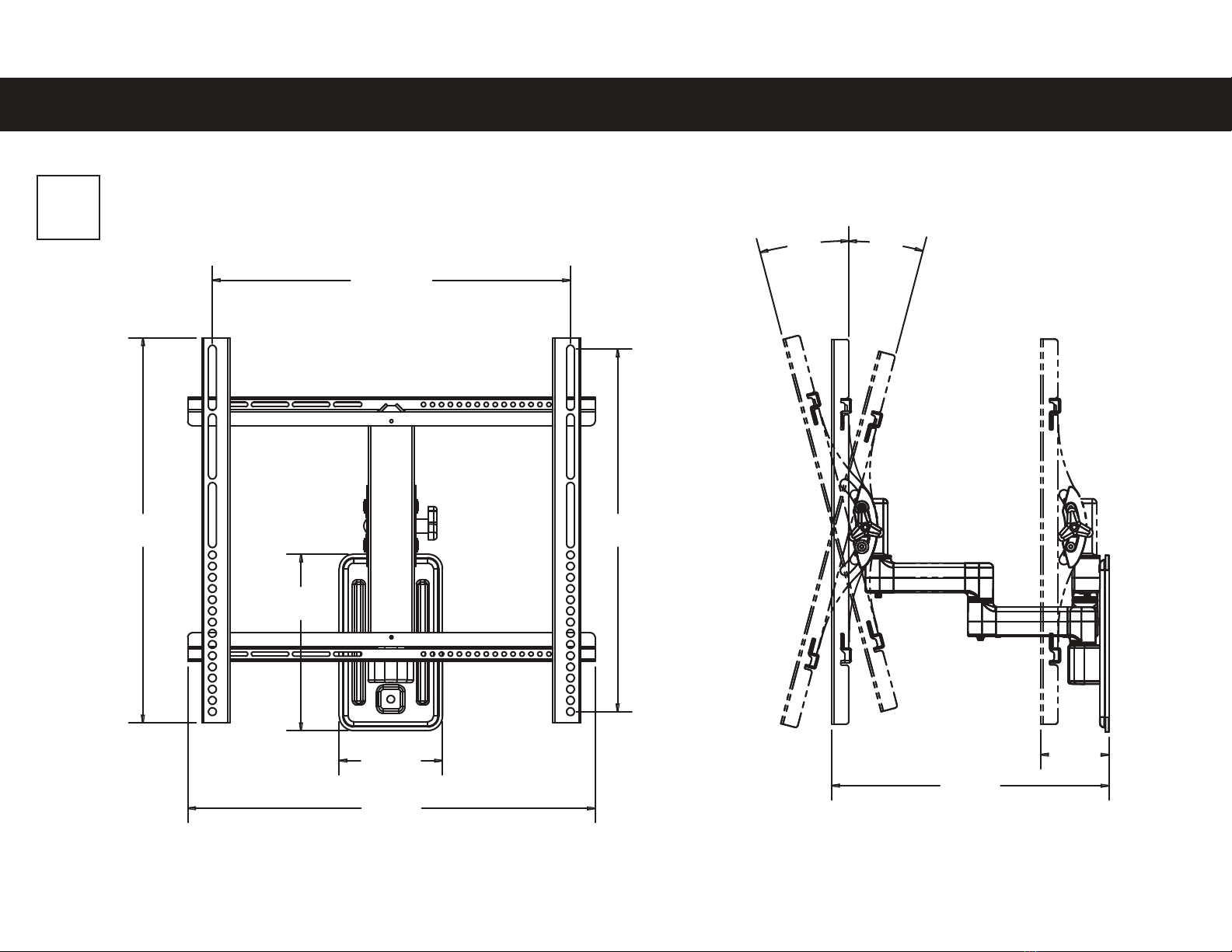

Dimensions

in.

[mm]

16.54

[420.0]

8.25

209.6

15.77

[400.6]

3.93 to 16.54

[100 to 420]

18.70

[455.0]

5.00

[127.0]

12.02

[

305.4

]

3.02

[76.8]

15° 15°

Parts and Hardware

WARNING: This product contains small items that could be a choking hazard if swallowed. Before starting assembly, verify all parts

are included and undamaged. If any parts are missing or damaged, do not return the damaged item to your dealer; contact Customer Service.

Never use damaged parts!

Parts and Hardware for STEP 1

NOTE: Not all hardware included will be used.

M4 x 12mm

M5 x 12mm

M6 x 12mm M6 x 35mm

M5 x 35mm

M4 x 35mm

M6 x 20mm

M8 x 16mm M8 x 35mm

M8 x 20mm

TV Interface Brackets

Right Left

01 x1 02 x1

03 x4 09 x4

04 x4 10 x4

05 x4 07 x4 11 x4

06 x4 08 x4 12 x4

13 x4 14 x4

15 x4

TV Screws

Washers

Spacers

8-32 x 3/8 in.

3/16 in. 5/32 in.

8-32 x 9/16 in.

Horizontal TV Interface Brackets

16 x1 17 x1

Parts and Hardware for STEP 2

5⁄16 in. x 2¾ in.

Horizontal Bracket

Interface Screws

18 x4

Parts and Hardware for STEP 1 Continued

Additional Hardware

Wall Plate/Arm Lag Bolts Locking Screw

Hex

Keys

Anchors

Washers

21 x2

22 x2

23 x1 24 x1

25 x1 26 x1

20 x2

Top Bottom

STEP 1 Attach Brackets to TV

FLAT BACK ROUND BACK CABLESINSET HOLES

1-1 Select TV

Screw Diameter

1-2 Select TV

Screw Length

Hand thread screws into the threaded inserts

on the back of your TV to determine which

screw diameter (M4, M5, M6, or M8) to use.

If your TV has a flat back AND you want your TV closer to

the wall, use the shorter screws (a).

Use the spacers and longer screws (b) to accommodate:

• Round/irregular back TVs

• TVs with inset mounting holes

• Extra space needed for cables

Too Short

Too Long

CAUTION:

Verify adequate thread

engagment with the screw or

screw/spacer combination.

-Too short will not hold the TV.

-Too long will damage the TV.

Correct

Standard configurations

are shown. For special

applications, or if you

are uncertain about your

hardware selection,

contact Customer Service

at 1-800-359-5520.

M6M5M4 M8

1-3 Attach L/R TV Interface Brackets

Ensure that your brackets are centered and level on the back of the TV. Secure brackets using your screw/washer (Flat Back) or screw/washer/

spacer (Round Back / Extra Space) selection.

aFlat Back

bRound Back / Extra Space

11 12

06 07

1-4 Attach Horizontal TV Interface Brackets

Ensure horizontal brackets 16 17 are centered and screws 18 are securely fastened.

02 02

01 01

STEP 2 Attach Wall Plate to Wall Wood Stud Option

CAUTION: Avoid potential personal injuries and property damage!

ƕDrywall covering the wall must not exceed 5/8 in. (16 mm)

ƕMinimum wood stud size: common 2 x 4 in. (51 x 102 mm) nominal 1½ x 3½ in. (38 x 89 mm)

1. Locate your stud. Verify and mark the center of the stud by finding the stud edges using an awl, a thin nail, or an edge to edge stud finder.

2. Level the wall plate 19 and mark your hole locations.

1Max. 5/8 in.

(16 mm)

33 in.

(75 mm)

3. Drill pilot holes using a 7/32 in. (5.5 mm) diameter drill bit.

IMPORTANT: Be sure to drill into the center of the stud.

IMPORTANT: Pilot holes must be drilled to a depth of 3 in. (75 mm).

4. Install wall plate 19 using two lag bolts 20 and two washers 21 . Tighten the lag bolts only until they are pulled firmly against the wall

plate.

CAUTION: Avoid potential personal injury or property damage! Both lag bolts 20 MUST BE firmly tightened to prevent unwanted

movement of the wall plate 19 . Ensure the wall plate is securely fastened to the wall before continuing on to the next step.

7/32 in.

(5.5 mm) 19 18 19
