Sanus VLF510 Manual de usuario
Customer Service
Americas: 800-359-5520 • 952-225-6013 • info@sanus.com
UK: 0800 056 2853
Asia Pacic: 86 755 8996 9226 • sanus.ap@milestone.com
SANUS • 6436 City West Parkway • Eden Prairie, MN 55344 USA
©2013 Milestone AV Technologies. All rights reserved. Sanus is a division of Milestone.
All other brand names or marks are used for identication purposes and are trademarks of their respective owners.
We are here
to help!
Please contact
Customer
Service with
any questions.
VLF510
Instruction Manual
Installation
video available at
Sanus.com
sanus.com
6901-002284 00
2
Before You Begin
WARNING: This product contains a magnet. If an implanted medical device such as a pacemaker or implantable
cardioverter debrillator (ICD) is in use, magnetic elds may aect the operation of those devices, resulting in serious injury
or death. If you have an implanted medical device, keep at least 13 cm (5 in.) between your device and the magnet. Please
consult with your physician or medical professional prior to using this product.
CAUTION: Avoid potential personal injuries and property damage!
Refer to the documentation that came with your TV for additional considerations
Do not use this product for any purpose not explicitly specied by manufacturer
The wall must be capable of supporting ve times the weight of the monitor and mount combined
This product is not designed for use in metal stud walls
If you do not understand these instructions, or have doubts about the safety of the installation, assembly or use of this
product, contact Customer Service or call a qualied contractor
Manufacturer is not responsible for damage or injury caused by incorrect assembly or use
Required Tools
13mm
(1/2 in.)
5.5mm
(7/32 in.)
10mm
(3/8 in.)
Specifications
Weight capacity-DO NOT EXCEED: 57 kg (125 lb.) includes TV and any accessories
Swivel: ±30°
Tilt: +0° to –10°
Level: ±1.5°
IMPORTANT SAFETY INSTRUCTIONS – SAVE THESE INSTRUCTIONS – PLEASE READ ENTIRE MANUAL PRIOR TO USE
3
Technical Specifications
4.80
121.9
6.18
156.9
30.60
777.2
16.54
420.0
29.22
742.2
32.16
816.9
20.34
516.5
2.14
54.4
MONITOR BRACKET
CENTER
WALL PLATE
CENTER
4.00
101.6
10.80
274.3
18.80
477.5
14.80
375.9
22.80
579.1
8.98
228.0
12.31
312.6
13.51
343.0
1.54
39.2
10.29
261.3
10.00°
4
M4 M6/M8
M4 x 12 mm M4 x 30 mm M6 x 14 mm M6 x 40 mm M8 x 16 mm
5/16 x 2¾ in.
Supplied Parts and Hardware
WARNING: This product contains small items that could be a choking hazard if swallowed.
Before starting assembly, verify all parts are included and undamaged. If any parts are missing or damaged, do not return the
damaged item to your dealer; contact Customer Service. Never use damaged parts!
NOTE: M4, M6, or M8 describes the diameter, mm describes the length of screws that are labeled M# X ##mm. Not all hardware
included will be used.
[01] x 1
[02] x 2
[03] x 4 [04] x 4
[05] x 4
[06] x 4 [07] x 4
[08] x 4 [09] x 4 [10] x 4 [11] x 4 [12] x 4
5
M8 x 40 mm
14 mm 24 mm
3mm
M4 x 25mm 10-32 x 3/8 in. 10-32 x 3/4 in. 1/8 in.
5/32 in.
[13] x 4 [14] x 4
[15] x 4 [16] x 4 [17] x 1
[18] x 2 [19] x 2 [20] x 8 [21] x 1 [22] x 2
[23] x 1 [24] x 1
[25] x 2 [26] x 1 [27] x 1
6

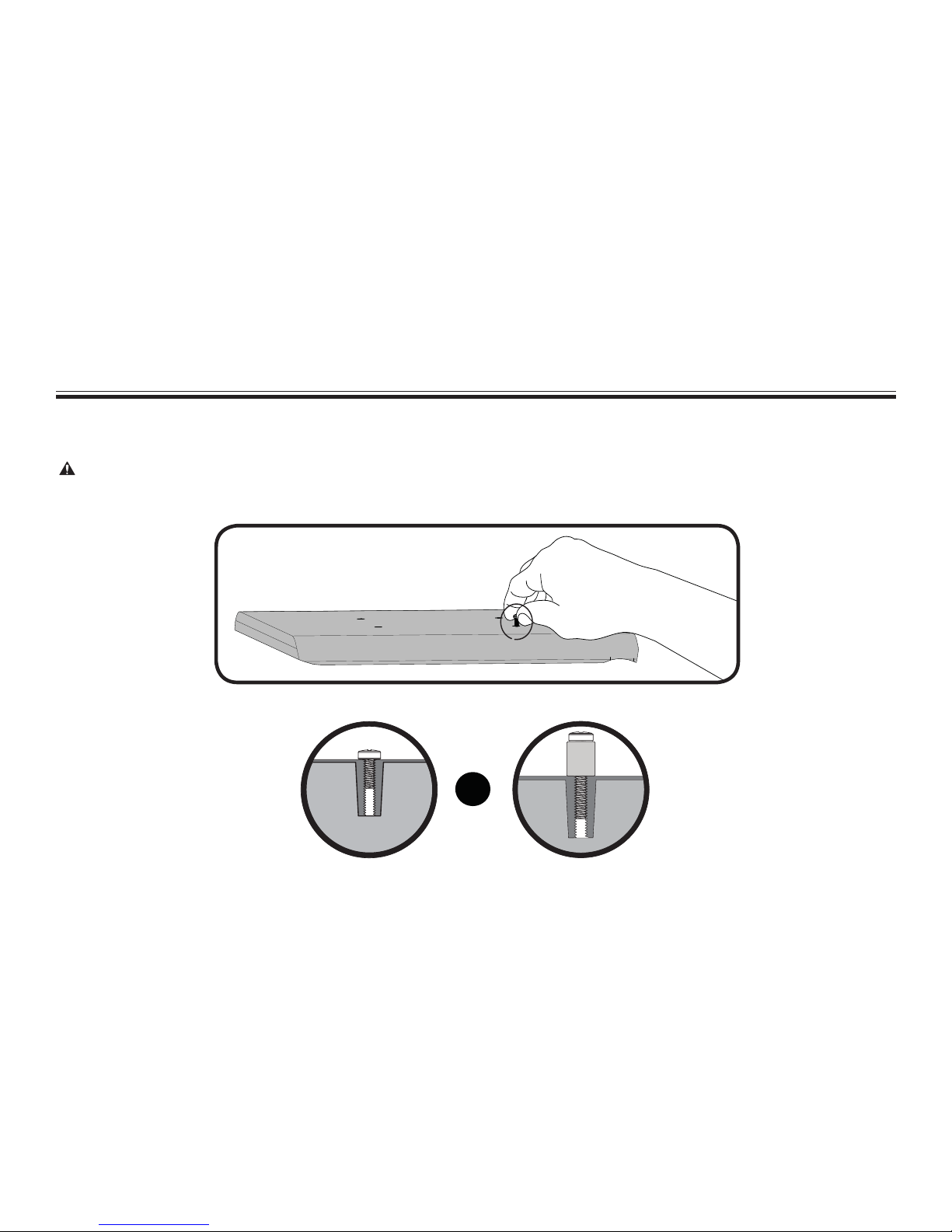

1 Select TV Hardware
Hand thread screws into the threaded inserts on the back of your TV to determine the correct screw diameter (M4, M6, or M8). Try
using a screw alone first. If you need more space, try a screw with a spacer.
CAUTION: Avoid potential personal injuries and property damage! Using hardware that is too long may damage your TV. If
you encounter resistance, stop immediately and contact customer service.
OR
7
1-1 Attach brackets to TV
Using the hardware you selected in step 1, attach the brackets to your TV.
A. Use option A if your TV has a flat/unobstructed back.
B. Use option B if your TV has an irregular back, recessed mounting holes,
or if you need more room for cables, recesses, or protrusions.
Confirm that the brackets are level on the back of the TV.
OR
AB
B
[08] [10] [12]
[06] [07]
[02]
[02]
[09] [11] [13]
[06] [07]
[15] [16]
[14]
[14]
[02]
[15] [16]
8

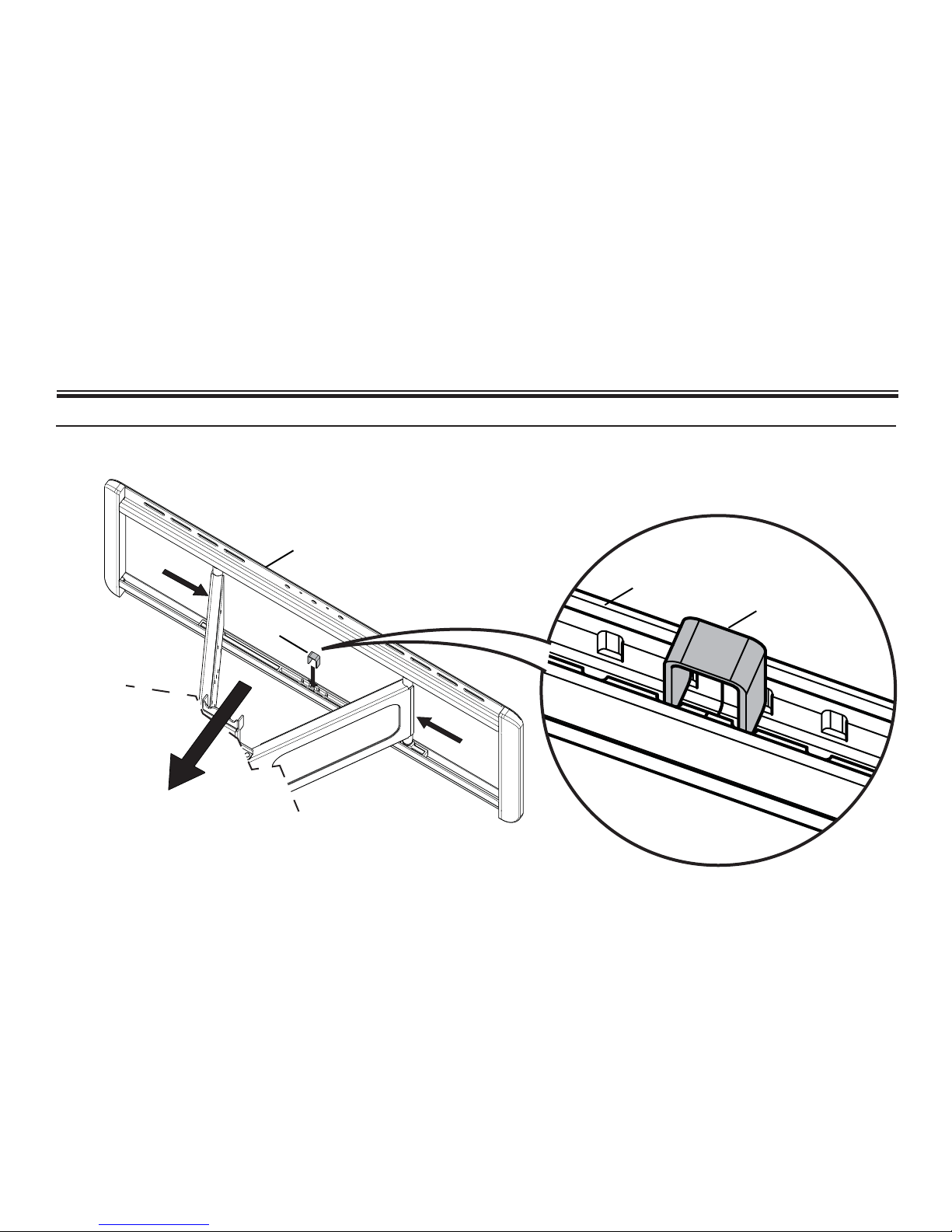

Slide the arms of the wall plate [01] together and insert the slide lock [17] into place. This will lock the arms into full extension
making the wall plate mounting and TV attachment easier.
[01]
[17]
[01]
[17]
2 Mount the Wall Plate
2-1 Prepare the Wall Plate for Mounting
9

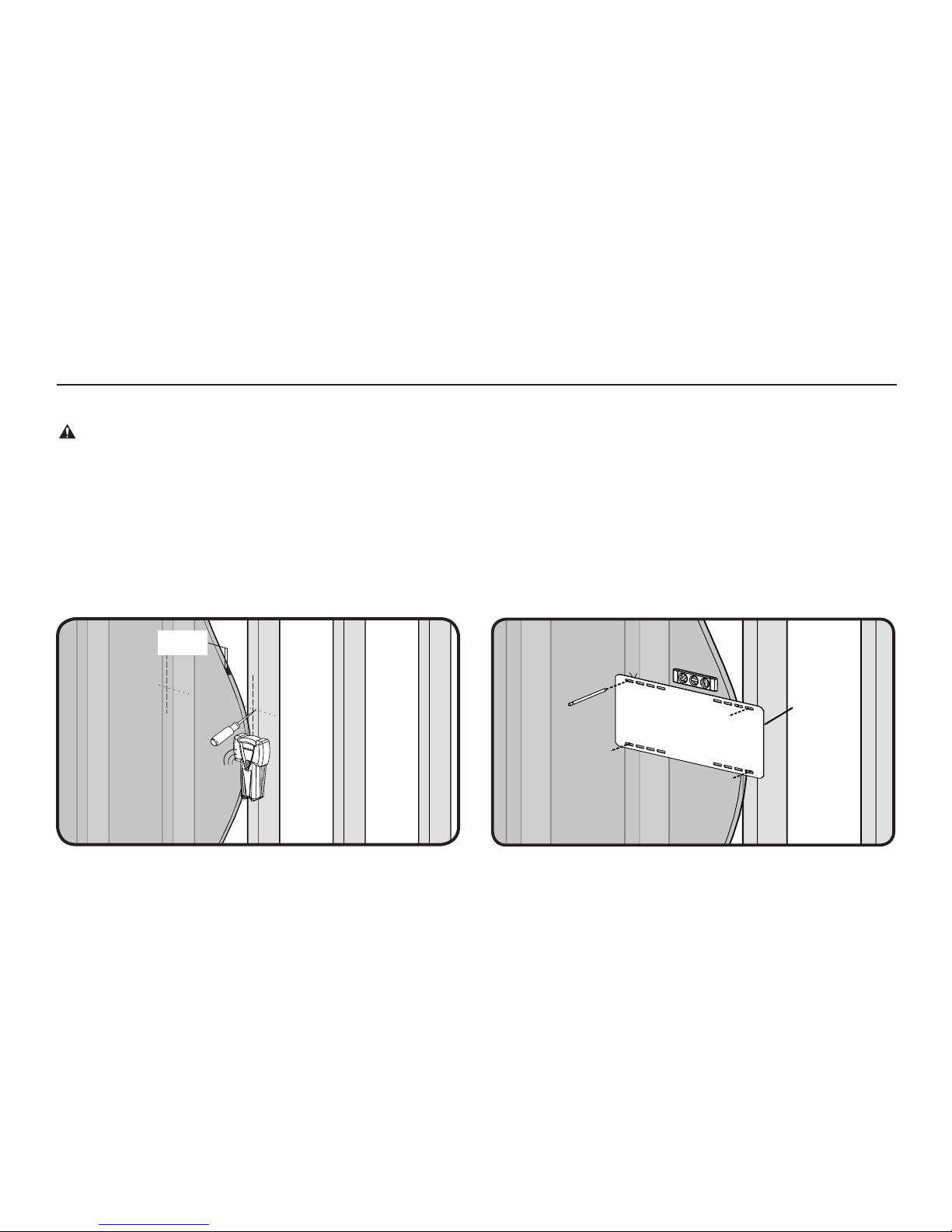

2-2 (Wood stud mounting) Locate studs and mark the wall
For assistance in determining wall plate location, see Height Finder at sanus.com.
CAUTION: Avoid potential personal injuries and property damage!
Drywall covering the wall must not exceed 16 mm (5/8 in.)
Minimum wood stud size: common 51 x 102 mm (2 x 4 in.) nominal 38 x 89 mm (1/ x 3/ in.)
1. Locate studs. Verify the center of the stud with an awl or thin nail or use an edge to edge stud finder.
2. Level the wall plate template [27] and mark the hole locations.
≤ 16 mm
(5/8 in.)
[27]
10
75 mm
(3 in.)[04]
CAUTION: Avoid potential injuries or property damage! Pilot holes MUST be drilled to a depth of 75 mm (3 in.), using a 5.5
mm (7/32 in.) diameter drill bit.
CAUTION:
Improper use could reduce the holding power of the lag bolt.
DO NOT over-tighten the lag bolts [03].
Tighten the lag bolts [03] only until the washers [04] are pulled firmly against the wall plate [01].
2-3 Drill pilot holes and attach wall plate
5.5 mm
(7/32 in.)
[03]
13 mm
(1/2 in.)
