Santec E-Series Manual de usuario

E-SERIES SERIES

SQUARE COLLECTIONS

ROBE HOOK

MODEL: 2466SQ10

2466SQ75

KEEP THIS INSTRUCTION BOOKLET FOR FUTURE REFERENCE

Important : Please register your product online at www.santecfaucet.com within

30 days of purchase. Santec reserves the right to request additional documents

before servicing warranty requests.

01 02

Installation Instructions

Place the post against the assigned wall location. Make sure that the holder is leveled. Mark the holder

post position.

Using the Allen key provided, remove the holder post from the mounting post. Press the mounting post

against marked post position on the wall and mark the screw hole positions.

NOTE: MAKE SURE THE ALLEN SCREW HOLE ON THE MOUNTING POST IS FACING DOWN

WHEN SECURING TO WALL.

INSTALLING ON WOODEN SURFACE

For wooden surface, the mounting post can be

secured by screwing the screws directly into the wall.

INSTALLING ONTO DRYWALL SURFACE

Using a drill, pre-drill holes for the anchors. Insert the

anchors into the wall. The mounting post can be

secured by screwing the screws into the anchors.

INSTALLING ONTO A SOLID SURFACE

Measure the dimensions carefully. Using a drill,

pre-drill the holes. Secure the mounting post by

screwing the screws into the wall.

holder post

holder post mark

mounting post

WALL

03 04

PLEASE REGISTER YOUR PRODUCT ONLINE FOR WARRANTY SERVICES

www.santecfaucet.com/registration

SANTEC LIFETIME LIMITED WARRANTY

Finishes: SANTEC Polished Chrome, Polished Nickel and Satin Nickel finishes carry a Lifetime

Limited warranty against manufacturing defects and tarnish to the original purchaser. Custom finishes

carry a ten (10) years limited warranty against manufacturing defects and tarnish to the original

purchaser only. Kitchen products carry a three (3) year limited warranty.

Cartridges: Santec cartridges carry a lifetime limited warranty, with the exception of thermostatic and

pressure balanced cartridges, which carry a three (3) year limited warranty against manufacturing

defects to the original purchaser.

Parts: Santec parts carry a ten (10) year limited warranty against manufacturing defects, to the

original purchaser. Kitchen products carry a five (5) year limited warranty.

Warranty exclusions and limitations:

Drains

Crystals and/or glass Changes in the finish or in the product due to normal wear or aging does not

cover any products or parts which have been altered or used in a manner not typical for the product.

Loss, damages, or expense, incidental or consequential whatsoever, originating from the purchase,

installation, use, repair, failure, or replacement of any SANTEC product or part, allowed by law.

Commercial and/or Industrial installations and use of the product.

This warranty does not include labor, travel charges, or any costs incurred for repair, removal,

installation, servicing, diagnosing, or handling of either defective or replacement parts.

Replaces and supersedes any previously issued warranty

FINISH CARE INFORMATION

For clear coated or enamel color nishes:

We recommend that all faucets, drains, etc

be gently wiped dry with a soft cloth after use

to avoid water spotting and water deposit

buildup. A mild liquid hand soap, such as

Ivory may be used occasionally if desired.

Use of non-abrasive carnauba wax will add

protection to the nish and should be used if

the faucets will not be dried after use.

For non-clear coated and specialty nishes:

We recommend that all faucets, drains, etc be

gently wiped dry with a soft cloth after use to

avoid water spotting and water deposit

buildup. Use of a non-abrasive carnauba wax

is required occasionally.

Installation Instructions

Press the holder post over the mounting post. Align the holder and secure it by tightening the set

screw.

Check the holder post to make sure it is rmly secured. If not, tighten the set screw with the Allen key.4.

Effective: 05/01/2015

Otros manuales para E-Series

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Producto de plomería de Santec

Santec

Santec Widespread 9220ED Manual de usuario

Santec

Santec E-Series Manual de usuario

Santec

Santec BAROSA 2455MC-TM Manual de usuario

Santec

Santec Heritage I 2970EY Manual de usuario

Santec

Santec FLUID IMAGINATION CHADWICK 4320GL Manual de usuario

Santec

Santec AVA Series Manual de usuario

Santec

Santec ATHENA 3450HO-TM Manual de usuario

Santec

Santec E-Series Manual de usuario

Santec

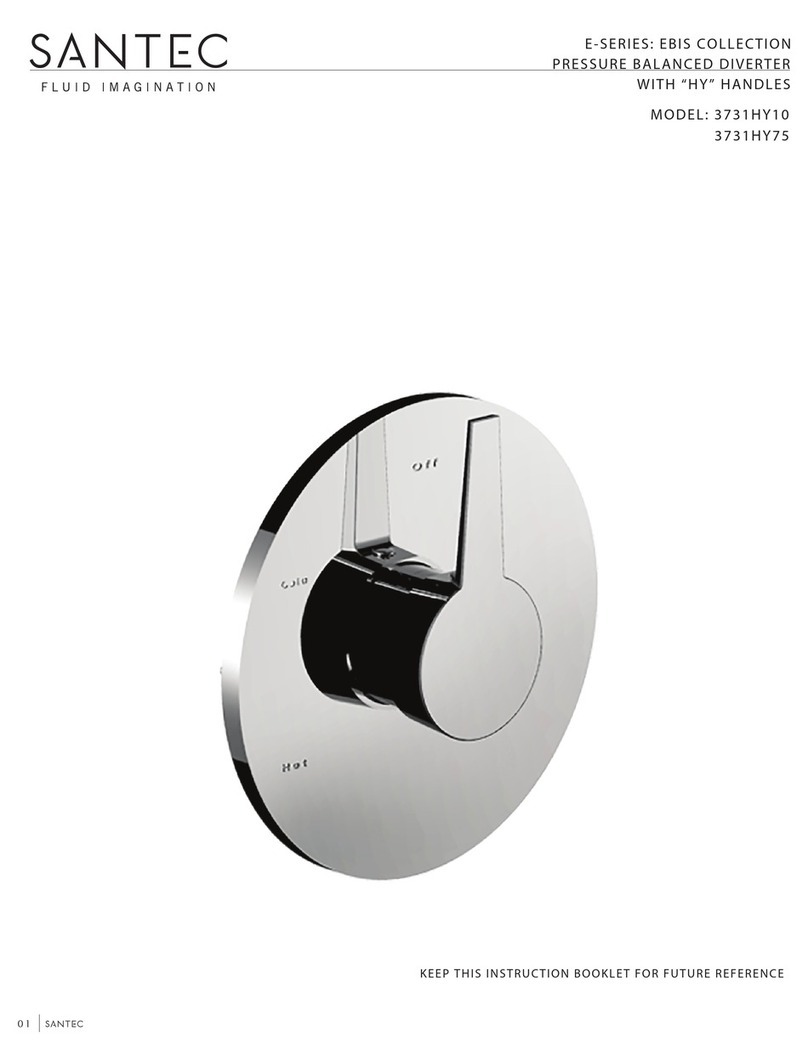

Santec EBIS E Series Manual de usuario
