Samsung HW-Q600A Instrucciones de instalación

HW-Q600A

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING



not expose this appliance to rain or moisture.

To prevent injury, this apparatus must be



accordance with the installation instructions.

CAUTION

Do not expose this apparatus to dripping or



liquids, such as vases, on the apparatus.

To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

CAUTION (for Canada)

This device contains licence-exempt

transmitter(s)/receiver(s) that comply with

Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is

subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

This device and its antenna(s) must not be co-

located or operation in conjunction with any other

antenna or transmitter.

This device may automatically discontinue

transmission if there is no information to

transmit, or an operational failure. Note that this

is not intended to prohibit the transmission of

control or signaling information or the use of

repetitive codes where required by the

technology.

This Class B digital apparatus complies with

Canadian ICES-003.

ENG - iii

Radiation Exposure Statement

This equipment complies with IC RSS-102

radiation exposure limits set forth for an

uncontrolled environment. This equipment should

be installed and operated with minimum distance

20 cm between the radiator & your body.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other



heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug



electrician for replacement of the obsolete

outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11. 

by the manufacturer.

12. Use only with the cart, stand,

tripod, bracket, or table



or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14. 

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

ENG - iv

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power



sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (3~4 inches).

Make sure the ventilation slots are not



or other equipment which may become hot.

This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC

plug from the wall outlet. Unplug the unit if

you intend to leave it unused for a long

period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.



equipment creating strong magnetic or



the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct



disassemble, or overheat the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - v

ABOUT THIS MANUAL

The user manual has two parts: simple paper USER MANUAL and a detailed FULL MANUAL you can

download.

USER MANUAL

See this manual for safety instructions, product installation,



FULL MANUAL

You can access the FULL MANUAL on Samsung’s on-line

customer support center by scanning the QR code on the left.

To see the manual on your PC or mobile device, download the

manual in document format from Samsung’s website.

(http://www.samsung.com/support)



ENG - vi

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Top Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

Connecting the Soundbar to the Subwoofer ------------------------- 6

– Automatic connection between the Subwoofer and the Soundbar ------------------------- 6

– Manually connecting the Subwoofer if automatic connection fails ------------------------- 7

Connecting an SWA-9100S (Sold Separately) to your Soundbar ------------------------- 9

04 Connecting to your TV 11

Method 1. Connecting with a Cable ------------------------- 11

– Connecting a TV using an HDMI Cable ------------------------- 11

– Connecting using an Optical Cable ------------------------- 13

Method 2. Connecting Wirelessly ------------------------- 15

– Connecting a TV via Bluetooth ------------------------- 15

05 Connecting an External Device 17

Connecting using an HDMI Cable

(Capable of Dolby Atmos decoding and playback) ------------------------- 17

Connecting using an Optical Cable ------------------------- 18

06 Connecting a USB Storage Device 19

ENG - vii

07 Connecting a Mobile Device 20

Connecting via Bluetooth ------------------------- 20

Using Tap Sound ------------------------- 24

08 Using the Remote Control 25

How to Use the Remote Control ------------------------- 25

Adjusting the Soundbar volume with a TV remote control ------------------------- 28

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 29

 ------------------------- 29

09 Installing the Wall Mount 30

Installation Precautions ------------------------- 30

Wallmount Components ------------------------- 30

10 Placing the Soundbar on a TV stand 32

11 Software Update 33

Update Procedure ------------------------- 33

If UPDATE is not displayed ------------------------- 34

Reset ------------------------- 34

12 Troubleshooting 35

13 License 37

14 Open Source License Notice 38

15 Important Notes About Service 38

16 SpecicationsandGuide 39

 ------------------------- 39

ENG - 2

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Subwoofer Remote Control / Batteries

x 2

Power Cord

(Subwoofer, Soundbar)

AC/DC Adapter

(Soundbar)

HDMI Cable

x 2 x 2

(M4 x L10)

x 2

Wall Mount Guide Holder-Screw

Bracket-Wall Mount

Screw

For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the back cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the back cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

Position the product so that

the SAMSUNG logo is

located on the top. Top Panel

󱂔 󱂕

󱂖

󱂓

󱂓Display

Displays the product’s status and current mode.

󱂔

(Power) Button

Turns the power on and off.

Auto Power Down Function

The unit turns off automatically in the following situations:

– In D.IN / HDMI / BT / USB Mode : If there is no audio signal for 20 minutes.

󱂕

(Volume) Button

Adjusts the volume.

When adjusted, the volume level appears on the Soundbar’s front display.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

HDMI input HDMI

BLUETOOTH mode BT

USB mode USB

To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

ENG - 4

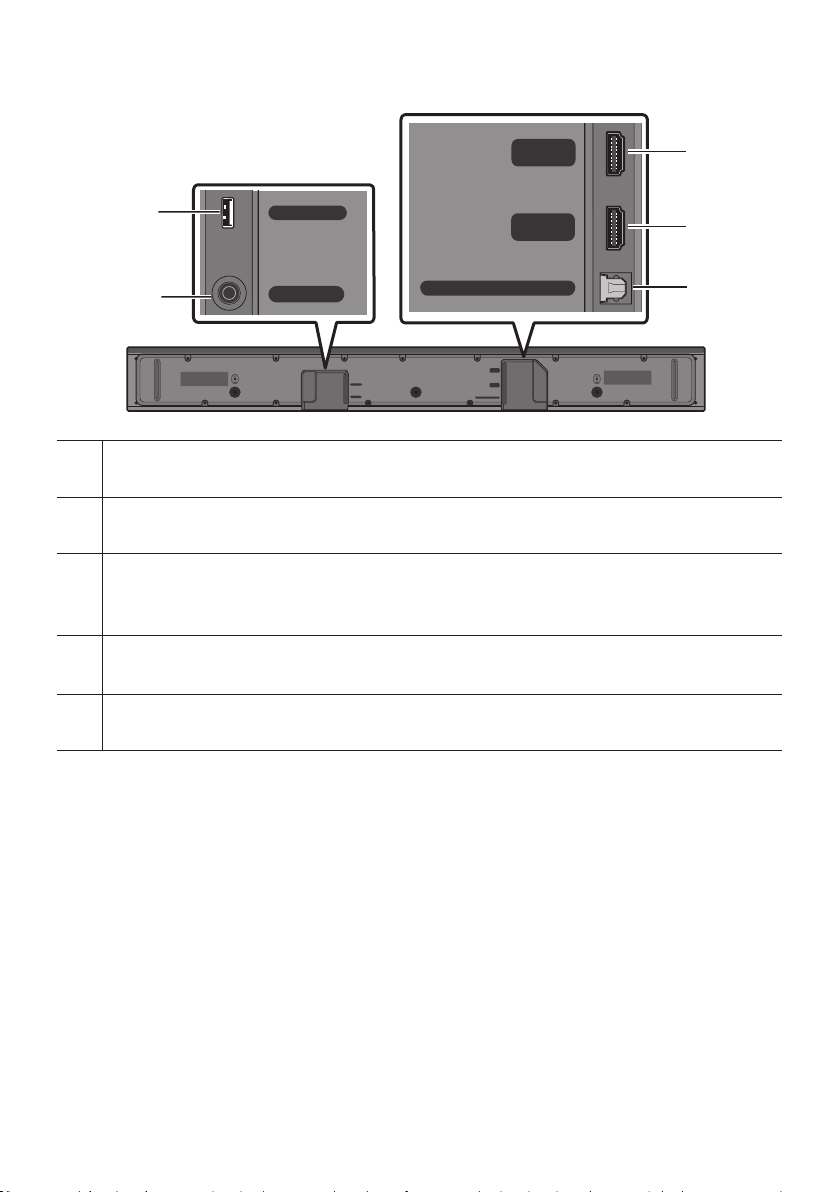

Bottom Panel of the Soundbar

HDMI

HDMI TO TV

(ARC)

USB (5V 0.5A)

DC 24V

DIGITAL AUDIO IN (OPTICAL)

HDMI

HDMI TO TV

(ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(ARC)

USB (5V 0.5A)

DC 24V

DIGITAL AUDIO IN (OPTICAL)

HDMI

HDMI TO TV

(ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

HDMI

HDMI TO TV

(ARC)

USB (5V 0.5A)

DC 24V

DIGITAL AUDIO IN (OPTICAL)

HDMI

HDMI TO TV

(ARC)

DIGITAL AUDIO IN (OPTICAL)

USB (5V 0.5A)

DC 24V

󱂕

󱂖

󱂗

󱂓

󱂔

󱂓USB (5V 0.5A)



󱂔DC 24V (Power Supply In)

Connect the AC/DC power adapter.

󱂕

HDMI

Inputs digital video and audio signals simultaneously using an HDMI cable.

Connect to the HDMI output of an external device.

󱂖HDMI TO TV (ARC)

Connect to the HDMI (ARC) port on a TV.

󱂗DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

When disconnecting the power cable of the AC/DC power adapter from a wall outlet, pull the plug.

Do not pull the cable.

Do not connect this unit or other components to an AC outlet until all connections between

components are complete.

Otros manuales para HW-Q600A

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung harman/kardon HWQ90RXY Instrucciones de instalación

Samsung

Samsung HW-C400 Instrucciones de instalación

Samsung

Samsung Q Series Instrucciones de instalación

Samsung

Samsung HW-J450-TK Manual de usuario

Samsung

Samsung HW-N950 Instrucciones de instalación

Samsung

Samsung HW-T530 Instrucciones de instalación

Samsung

Samsung HW-Q610A Instrucciones de instalación

Samsung

Samsung HW-E550 Manual de usuario

Samsung

Samsung HW-T650 Instrucciones de instalación

Samsung

Samsung HW-T420 Manual de usuario

Samsung

Samsung HW-N550 Instrucciones de instalación

Samsung

Samsung HW-S60A Instrucciones de instalación

Samsung

Samsung HW-KM36 Manual de usuario

Samsung

Samsung HW-R470 Instrucciones de instalación

Samsung

Samsung HW-A450 Instrucciones de instalación

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung MX-HS8000 Manual de usuario

Samsung

Samsung HW-B45E Instrucciones de instalación

Samsung

Samsung HW-C450 Manual de usuario

Samsung

Samsung HW-M4500 Instrucciones de instalación

Samsung

Samsung HW-E550 Manual de usuario

Samsung

Samsung HW-Q930B Manual de usuario

Samsung

Samsung HW-MM45 Instrucciones de instalación

Samsung

Samsung MAX-DVD9910 Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
