Samsung HW-J8500R Manual de usuario

HW-J8500R

HW-J8501R

For further information, refer to the Web Manual.

Web manual : www.Samsung.com →Support →

Product name search →HW-J8500R or HW-J8501R

User Manual

· 2 · English

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

This symbol indicates that high voltage is

present inside. It is dangerous to make any

kind of contact with any internal part of this

product.

This symbol indicates that important literature

concerning operation and maintenance has

been included with this product.

Class II product : This symbol indicates that it does not require a safety connection to electrical

earth (ground).

AC voltage : This symbol indicates that the rated voltage marked with the symbol is AC

voltage.

DC voltage : This symbol indicates that the rated voltage marked with the symbol is DC

voltage.

Caution, Consult instructions for use : This symbol instructs the user to consult the user

manual for further safety related information.

WARNING : To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

CAUTION : TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

• This apparatus shall always be connected to a AC outlet with a protective grounding connection.

• To disconnect the apparatus from the mains, the plug must be pulled out from the mains socket, therefore the

mains plug shall be readily operable.

CAUTION

• Do not expose this apparatus to dripping or splashing. Do not put objects filled with liquids, such as vases on

the apparatus.

• To turn this apparatus off completely, you must pull the power plug out of the wall socket. Consequently, the

power plug must be easily and readily accessible at all times.

· 3 · English

PRECAUTIONS

1. Ensure that the AC power supply in your house complies with the power requirements listed on the

identification sticker located on the rear of your product. Install your product horizontally, on a suitable base

(furniture), with enough space around it for ventilation (7~10 cm). Make sure the ventilation slots are not

covered. Do not place the unit on amplifiers or other equipment which may become hot. This unit is

designed for continuous use. To fully turn off the unit, disconnect the AC plug from the wall outlet. Unplug the

unit if you intend to leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC plug from the wall outlet. Voltage peaks due to lightning could

damage the unit.

3. Do not expose the unit to direct sunlight or other heat sources. This could lead to overheating and cause the

unit to malfunction.

4. Protect the product from moisture (i.e. vases), and excess heat (e.g. a fireplace) or equipment creating strong

magnetic or electric fields. Unplug the power cable from the AC wall socket if the unit malfunctions. Your

product is not intended for industrial use. It is for personal use only. Condensation may occur if your product

has been stored in cold temperatures. If transporting the unit during the winter, wait approximately 2 hours

until the unit has reached room temperature before using.

5. The battery used with this product contains chemicals that are harmful to the environment.

Do not dispose of the battery in the general household trash. Do not expose the battery to excess heat,

direct sunlight, or fire. Do not short circuit, disassemble, or overheat the battery. Danger of explosion if the

battery is replaced incorrectly. Replace only with the same or equivalent type.

WARNING: DO NOT INGEST BATTERY. CHEMICAL BURN HAZARD.

The remote control supplied withthis product contains a coin/button cell battery. If the coin/button cell battery is

swallowed, it can cause severe internal burns in just 2 hours and can lead to death. Keep new and used batteries

away from children. If the battery compartment does not close securely, stop using the product and keep it away from

children. If you think batteries might have been swallowed or placed inside any part of the body, seek immediate

medical attention.

· 4 · English

CHECKING THE COMPONENTS

Subwoofer

Remote Control /

Battery HDMI Cable

1Power Cord

Soundbar Main Unit

2AC/DC Adapter 3Power Cord

cUse Cat 7 (*STP Type) cable for the connection.

* Shielded Twist Pair

CONNECTING ELECTRICAL POWER

Use the power components (1, 2, 3) to connect the power supplies in the following order:

Subwoofer Soundbar Main Unit

cFor more information about the power supply and power consumption, refer to the label attached to the

product. (Label : Bottom of Soundbar main unit)

AUX IN LAN HDMI IN OPTICA

HDMI OUT

(TV-ARC)

SERVICE

SPK ADDWi-Fi SETUP DC 24V

DC 24V

(Power Jack)

POWER

Connecting electrical

power

1Power Cord

2AC/DC Adapter

3Power Cord

Rear of

Subwoofer Rear of the Soundbar Main Unit

cMake sure to rest the AC/DC Adapter flat on a table or the floor. If you place the AC/DC Adapter so that it is

hanging with the AC cord input facing upwards, water or other foreign substances could enter the Adapter

and cause the Adapter to malfunction.

· 5 · English

CONNECTING THE SUBWOOFER TO THE SOUNDBAR

MAIN UNIT

You can enjoy rich bass tones and better sound quality by linking the subwoofer to the Soundbar main unit.

Subwoofer

Soundbar Main Unit

Unit

The Soundbar main unit and subwoofer should link (connect wirelessly) automatically when the Soundbar main

unit and subwoofer are turned on. When auto-connection is complete, the blue indicator on the top of the

subwoofer stops blinking and glows blue continuously.

cIf the indicator on the top of the subwoofer displays in red or flashes in blue, the subwoofer has not

automatically connected. If this occurs, follow the directions below to connect the subwoofer manually.

cImportant: Before you begin, put the battery into the remote. See page 17 for instructions.

POWER

1. Plug the power cords of the Soundbar main unit and subwoofer into an AC wall outlet.

2. Press the ID SET button on the rear of the subwoofer for 5 seconds. The red indicator on the top of the

subwoofer turns off and the blue indicator flashes rapidly.

3. Press the button on your remote control for 5 seconds while the Soundbar main unit is turned OFF.

4. The ID SET message appears on the display of the Soundbar main unit for a short period of time, and then

disappears.

ID SET

5. While the subwoofer's indicator is flashing blue, press the button on your remote control or on the top of

the Soundbar main unit to turn on the Soundbar main unit.

6. The connection is complete if the indicator on the top of the subwoofer stops flashing and glows

continuously.

cIf the connection process fails, the blue indicator will flash continuously. Go to Step 2 and start again.

· 6 · English

CONNECTING TO YOUR TV

You can enjoy TV sound after connecting the Soundbar to your TV with or without a cable.

cImportant: Before you begin, put the battery into the remote. See page 17 for instructions.

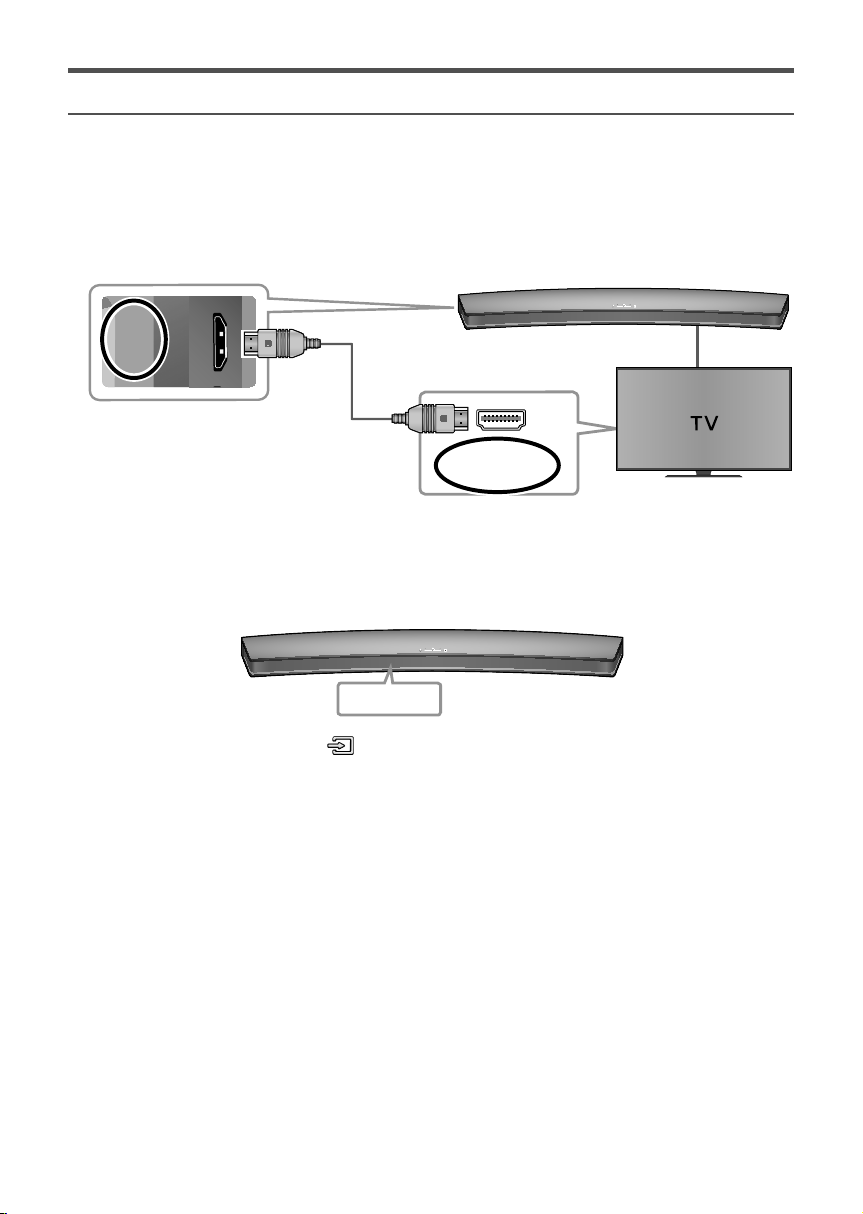

Method 1. Connecting with a Cable

HDMI OUT

(TV-ARC)

Bottom of Soundbar

HDMI IN

(TV-ARC)

Soundbar

HDMI Cable

Check the HDMI OUT (TV-ARC)

port of the Soundbar main unit.

Check the (TV-ARC) at

HDMI IN port of your TV.

1. Connect the HDMI cable as in the picture above.

2. TV ARC appears on display of the product and TV sound is output.

TV ARC

cIf TV sound is not output, press the button on the top of your Soundbar or the SOURCE button on the

remote control to select the D.IN mode on Soundbar main unit display. Then, the D.IN mode is changed to

TV ARC and TV sound is output.

cIf the Soundbar main unit display does not change to TV ARC, check the cable connections.

cYou can conveniently control the volume of the Soundbar and interlock power supply.

· 7 · English

Method 2. TV SoundConnect (Linking to a Samsung TV with Bluetooth)

1. Turn on your Samsung TV and the Soundbar.

2. Select TV mode in your Soundbar display by pressing the button on the top of the Soundbar or the

SOURCE button on your remote control. (Modes are displayed in the following order: D.IN →AUX →HDMI

→BT →TV.)

3. When the connection message shown below appears on the TV screen, select <Yes> with your TV remote

control.

Samsung Audio Device detected.

Do you want to hear TV sound

through this device?

Yes No

Select <Yes> with your TV remote control.

4. The Soundbar outputs TV sound.

cIf the TV SoundConnect linking process fails, navigate to SoundConnect in the TV's Sound menu, select

Add New Device, and set Add New Device to ON. Then, try again.

cIf your Soundbar is connected to your TV through TV SoundConnect, you can conveniently control the

volume with the Soundbar's remote or the TV's remote.

cThe TV SoundConnect (Soundshare) function is only available in some Samsung TV products released since

2012.

cIf you want to disconnect the existing connection to your TV and establish a new connection to another TV,

press the &button on your remote control for more than 5 seconds.

cIn the TV SoundConnect mode, the Soundbar cannot be paired to another Bluetooth device.

cDo not place electronic devices or metallic objects on top of the product.

e.g., Wired/wireless router, set-top box, or modem.

cPlacing the product on the floor may degrade wireless network performance, depending on the floor material.

· 8 · English

Method 3. Connecting to a Wireless Network

Installing the Samsung Multiroom App and Connecting Wirelessly

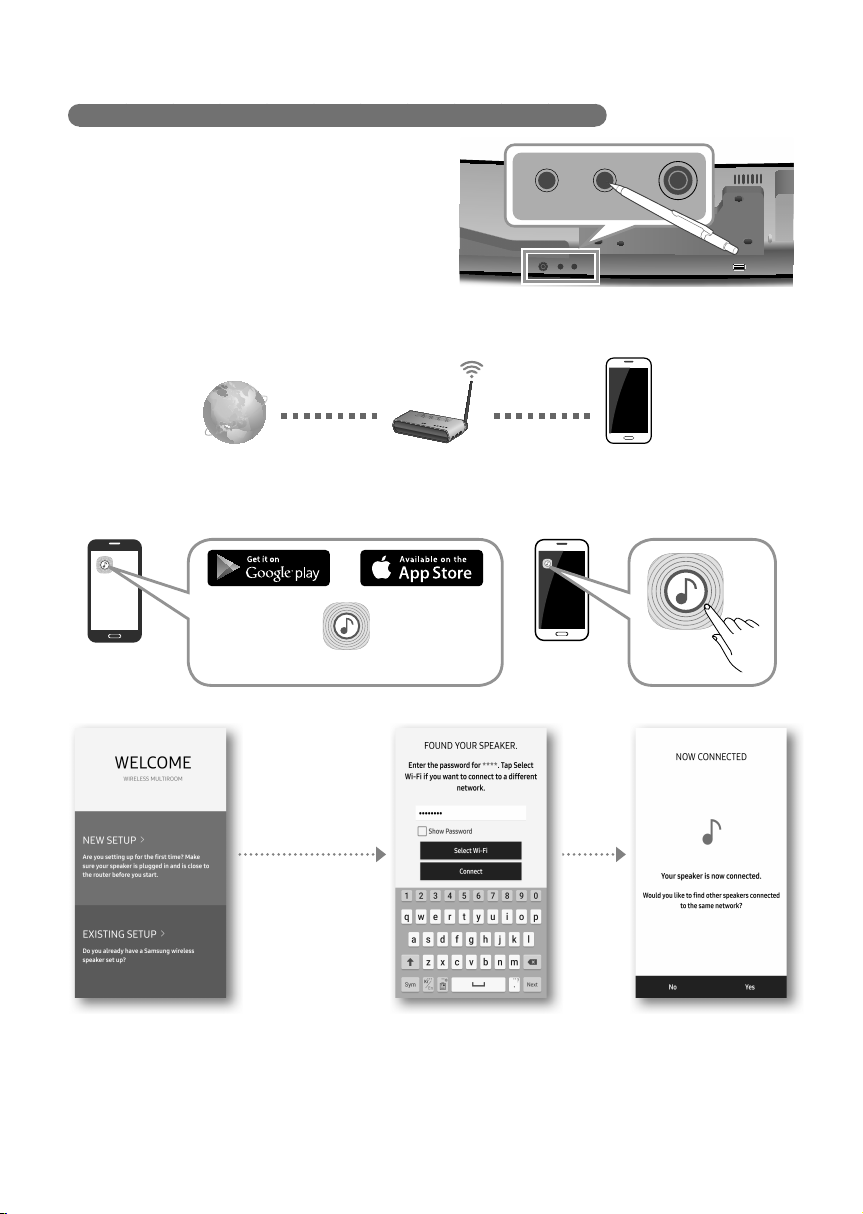

To install Samsung Multiroom app for the first time, follow

the steps shown below.

1. Press and hold the SPK ADD button on the rear of the

Soundbar for more than 1 second.

• There is a notification sound and the message

“ADD SPEAKER” appears on the Soundbar’s main

unit. Afterwards, the message “WIFI READY” appears

when standby-for-connection mode activates.

2. Connect your smart device (smart phone, tablet, etc.)

to your wireless router.

Samsung

Multiroom

Internet Wireless Router Smart Device

3. Install the Samsung Multiroom app on your smart device (smart phone, tablet, etc.).

4. Launch the Samsung Multiroom app.

Android iOS

Samsung Multiroom app

Samsung

Multiroom

5. Complete the initial settings by following the instructions on the app screen.

Complete the settings

by following the

instructions on the

Samsung Multiroom

app screen.

Start screen Entering the password

for the wireless router

Speaker connection

complete

cYou must enter the password of your wireless router to connect your Soundbar to your wireless network

through Samsung Multiroom app.

cIf your wireless router has no designated password, the app completes the initial settings without asking you

to enter a password.

AUX IN LAN HDMI IN OPTICAL IN

HDMI OUT

(TV-ARC)

SERVICE

SPK ADDWi-Fi SETUP DC 24V

Rear of Soundbar

· 9 · English

Adding the Soundbar to an Existing Multiroom Audio System

If the Samsung Multiroom app is already installed for use with

another multiroom audio device, follow these steps to add the

Soundbar.

1. Press and hold the SPK ADD button on the rear of the

Soundbar for more than 1 second.

• There is a notification sound and the message

“ADD SPEAKER” appears on the Soundbar’s main

unit. Afterwards, the message “WIFI READY” appears

when standby-for-connection mode activates.

2. Connect your smart device (smart phone, tablet, etc.) to your wireless router.

Samsung

Multiroom

Internet Wireless Router Smart Device

3. Launch the Samsung Multiroom app.

4. Touch to go to the list of all speakers.

5. Select More > Add New Speaker in the app, and then follow the instructions on the app screen.

Complete the settings

by following the

instructions on the

Samsung Multiroom

app screen.

Start screen Selection of network Speaker addition

complete

cTo connect a different network, select No.

You must enter the password of your wireless router to connect your Soundbar to your wireless network

through the Samsung Multiroom app.

If your wireless router does not have a designated password, the app completes the initial settings without

asking you to enter a password.

AUX IN LAN HDMI IN OPTICAL IN

HDMI OUT

(TV-ARC)

SERVICE

SPK ADDWi-Fi SETUP DC 24V

Rear of Soundbar

· 10 · English

Connecting the Soundbar to your Samsung Smart TV

You can connect your TV to the Soundbar through a wireless network and enjoy the TV sound.

cImportant: Make sure that the TV and Soundbar are connected to the same network.

(How to check your Samsung TV network : Home menu Network Network Status)

Configuring Settings from your Samsung Smart TV

cTo play sound via the Soundbar, make sure that your TV model supports the Multiroom feature

(Samsung Smart TVs released after 2014).

cIf the TV is disconnected from the wireless network due to a change to the input source of the Soundbar,

use the TV menu to re-establish the connection.

For TVs released in 2016

1. Home menu Settings ( ) Sound Sound Output Select [Samsung] HW-Jxxxx (Wi-Fi)

2. TV sound is output.

For TVs released in 2015

1. Home menu



Sound

 Speaker List 

Select [Samsung] HW-Jxxxx (Wi-Fi)

2. TV sound is output.

For TVs released in 2014

1. Home menu



Sound

 Speaker Settings 

Select

Multiroom Link - Settings  Soundbar+Surround

2. From the Soundbar position, select "J8500" and select "OK".

3. Home menu



Sound

 Speaker Settings 

Select

TV Sound Output  Multiroom Link

TV Speaker

•

TV Installation Type

Stand

TV SoundConnect

• Samsung Audio Device List

• Add New Device On

Multiroom Link

• Settings

Soundbar+Surround

Bluetooth headphone

• Bluetooth headphone List

Speaker Settings

TV Sound Output Multiroom Link

󱂕

󱂓

Multiroom Link

OK Volume Level Speaker Test

Soundbar

[Samsung] HW-J8500

Soundbar+Surround

[Samsung] HW-J8500

Don't Use

󱂔

Edit Na

4. TV sound is output.

Otros manuales para HW-J8500R

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung HW-S40T Instrucciones de instalación

Samsung

Samsung CRYSTAL SURROUND AIR TRACK HW-D451 Manual de usuario

Samsung

Samsung HW-Q610A Instrucciones de instalación

Samsung

Samsung HW-Q930C Manual de usuario

Samsung

Samsung Harman Kardon HW-Q60R Manual de usuario

Samsung

Samsung HW-Q930B Instrucciones de instalación

Samsung

Samsung HW-M550 Instrucciones de instalación

Samsung

Samsung HW-S68CB Instrucciones de instalación

Samsung

Samsung HW-Q910B Manual de usuario

Samsung

Samsung MAX-DVD9910 Manual de usuario

Samsung

Samsung HW-Q950A/ZA Instrucciones de instalación

Samsung

Samsung HW-T450 Instrucciones de instalación

Samsung

Samsung HW-Q600B Instrucciones de instalación

Samsung

Samsung HW-FM45C Manual de usuario

Samsung

Samsung HW-F350 Manual de usuario

Samsung

Samsung MX-HS8000 Manual de usuario

Samsung

Samsung HW-T550 Manual de usuario

Samsung

Samsung HW-K370 Manual de usuario

Samsung

Samsung harman/kardon HW-Q80R Instrucciones de instalación

Samsung

Samsung HW-Q7CB Manual de usuario

Samsung

Samsung HW-F350 Manual de usuario

Samsung

Samsung HW-E450 Manual de usuario

Samsung

Samsung Harman JBL KS12 Manual de usuario

Samsung

Samsung HW-N650 Instrucciones de instalación

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
