Samsung HW-N860 Manual de usuario

HW-N860

USER MANUAL

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To reduce the risk of re or electric shock, do

not expose this appliance to rain or moisture.

CAUTION

•TO PREVENT ELECTRIC SHOCK, MATCH WIDE

BLADE OF PLUG TO WIDE SLOT, FULLY

INSERT.

•This apparatus shall always be connected to a

AC outlet with a protective grounding

connection.

•To disconnect the apparatus from the mains,

the plug must be pulled out from the mains

socket, therefore the mains plug shall be

readily operable.

•Do not expose this apparatus to dripping or

splashing. Do not put objects lled with

liquids, such as vases on the apparatus.

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

ENG - iii

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (7~10 cm).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use. To

fully turn off the unit, disconnect the AC plug

from the wall outlet. Unplug the unit if you

intend to leave it unused for a long period of

time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.

vases), and excess heat (e.g. a replace) or

equipment creating strong magnetic or

electric elds. Unplug the power cable from

the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct

sunlight, or re. Do not short circuit,

disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ABOUT THIS MANUAL

The user manual has two parts: this simple paper

USER MANUAL and a detailed FULL MANUAL you

can download.

USER MANUAL

See this manual for safety instructions,

product installation, components,

connections, and product specications.

FULL MANUAL

You can access the FULL MANUAL on

Samsung’s on-line customer support centre by

scanning the QR code. To see the manual on

your PC or mobile device, download the

manual in document format from Samsung’s

website. (http://www.samsung.com/support)

Design, specications, and App screen are subject to

change without prior notice.

ENG - iv

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Top Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 3

03 Connecting the Soundbar 4

Connecting Electrical Power ------------------------- 4

Connecting the Soundbar to the Subwoofer ------------------------- 5

– Automatic connection between the Subwoofer and the Soundbar ------------------------- 5

– Manually connecting the Subwoofer if automatic connection fails ------------------------- 6

04 Connecting to a TV 7

Method 1. Connecting with a Cable ------------------------- 7

– Connecting a TV using an HDMI Cable ------------------------- 7

– Connecting using an Optical Cable ------------------------- 8

Method 2. Connecting Wirelessly ------------------------- 9

– Connecting a TV via Bluetooth ------------------------- 9

– Connecting via Wi-Fi ------------------------- 11

05 Connecting an External Device 13

Connecting using an HDMI Cable (Dolby Atmos® supported) ------------------------- 13

Connecting using an HDMI Cable ------------------------- 14

Connecting using an Optical Cable ------------------------- 15

ENG - v

06 Connecting a Mobile Device 16

Connecting via Bluetooth ------------------------- 16

Connecting via Wi-Fi (Wireless Network) ------------------------- 17

07 Using the Remote Control 18

How to Use the Remote Control ------------------------- 18

Adjusting the Soundbar volume with a TV remote control ------------------------- 21

08 Installing the Wall Mount 22

Installation Precautions ------------------------- 22

Wallmount Components ------------------------- 22

09 Software Update 24

10 Troubleshooting 25

11 Licence 26

12 Open Source Licence Notice 27

13 Important Notes About Service 27

14 SpecicationsandGuide 28

Specications ------------------------- 28

ENG - 2

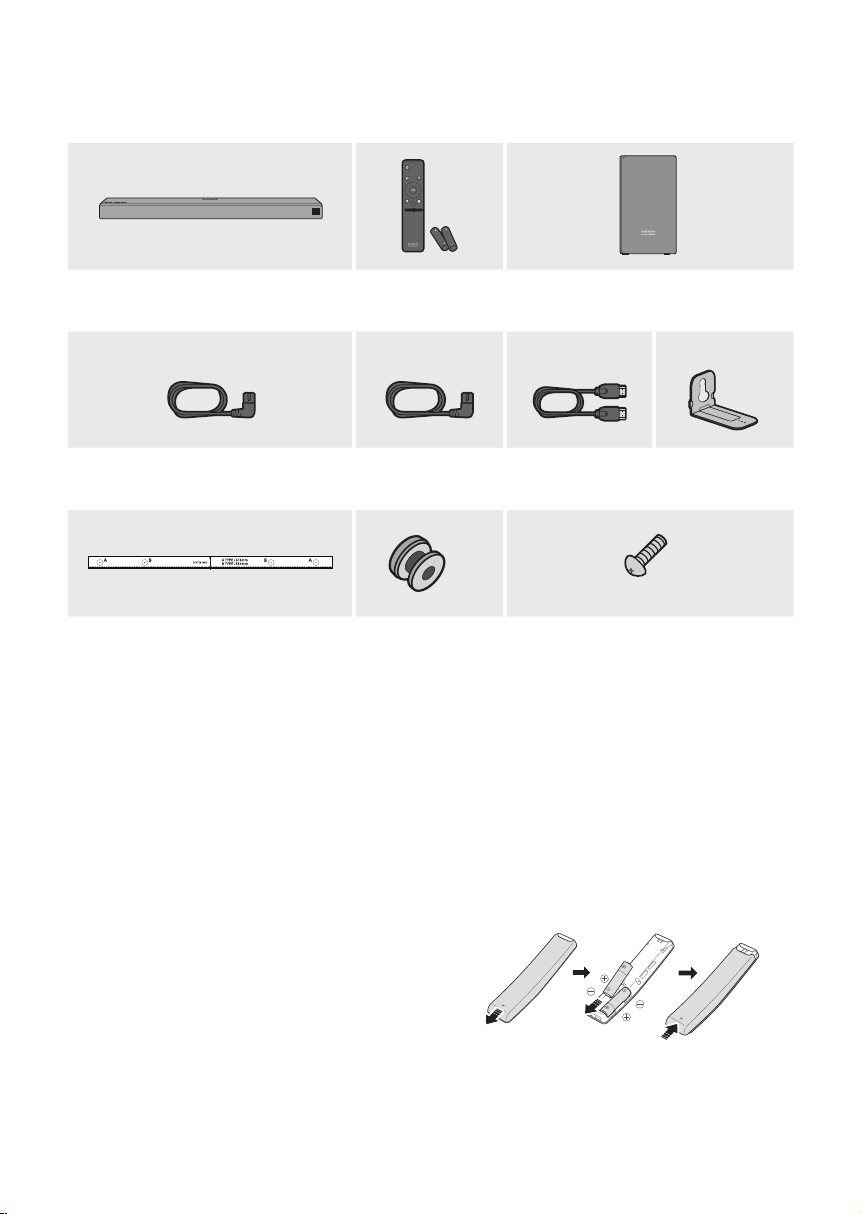

01 CHECKING THE COMPONENTS

VOL WOOFER

SOUNDBAR

SOUND

MODE

PAIR

Soundbar Main Unit Remote Control

/ Batteries

Subwoofer

1 2

x 2

Power Cord (Subwoofer) Power Cord

(Main Unit)

HDMI Cable Bracket-Wall

Mount

x 2 x 2

(M4 x L10)

Wall Mount Guide Holder-Screw Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label : Bottom of the Soundbar Main Unit)

•The power components are labelled (

). For more information about power connections, see page

•For Soundbar wall mounting components, see page 22.

•To purchase additional components or optional cables, contact a Samsung Service Centre or

Samsung Customer Care.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow

until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide

the battery cover back into position.

ENG - 3

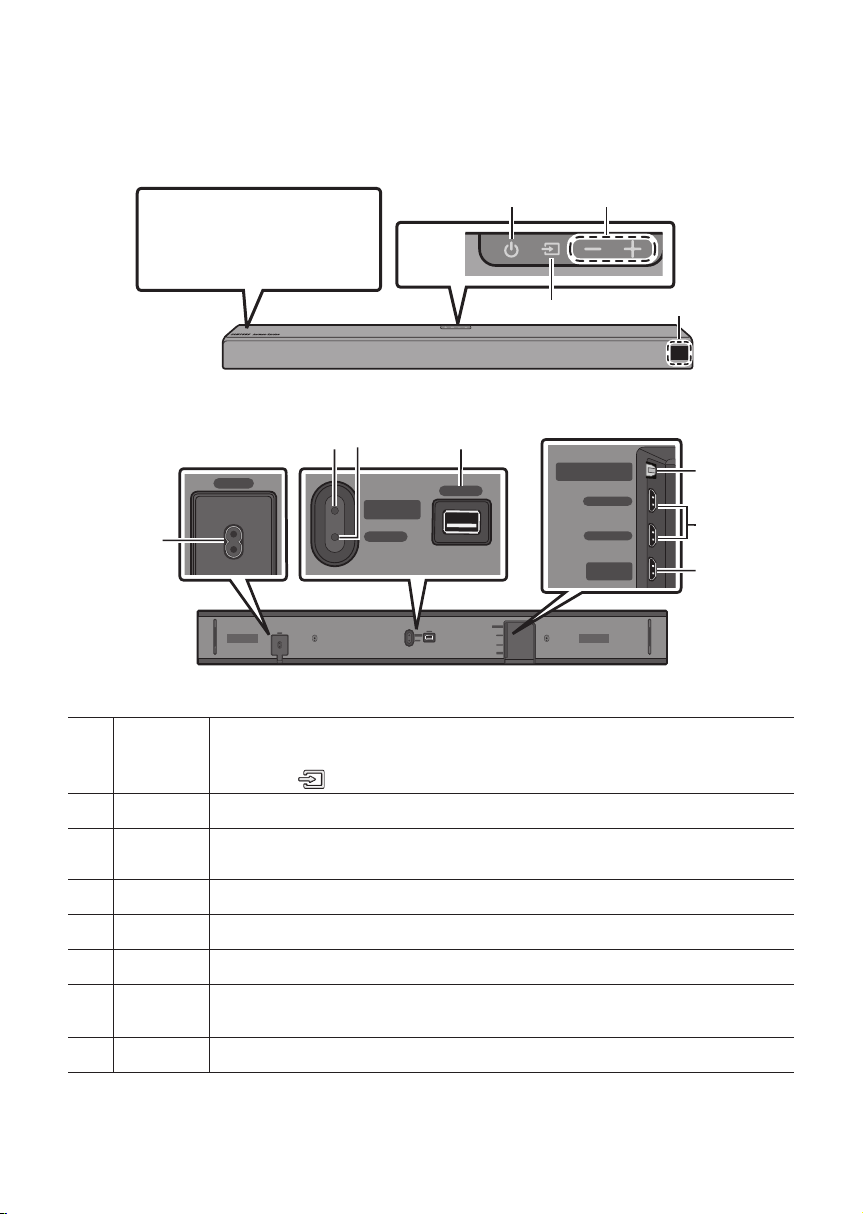

02 PRODUCT OVERVIEW

Front Panel / Top Panel of the Soundbar

Display

Top

Panel

Position the product so that

the "Samsung Harman Kardon"

logo is located on the top.

VolumePower

󱂓

Bottom Panel of the Soundbar

POWER

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

POWER

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

POWER

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

POWER

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

POWER

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

POWER

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

POWER

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

POWER

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

󱂔

󱂘

󱂙

󱂚

󱂖󱂕 󱂗

󱂓Source

Selects the source input mode. (D.IN / HDMI 1 / HDMI 2 / WIFI / BT)

•To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and

hold the (Source) button on the top panel for more than 5 seconds.

󱂔POWER Connect the Soundbar's AC power cable.

󱂕ID SET Press to connect the Soundbar to surround speakers and a subwoofer wirelessly.

•Press and hold the Up button on the remote for 5 seconds to complete ID SET.

󱂖NETWORK Press to connect to a wireless network (Wi-Fi) via the SmartThings app.

󱂗SERVICE Connect a USB storage device to upgrade the product's software.

󱂘D.IN Connect to the digital (optical) output of an external device.

󱂙HDMI IN Inputs digital video and audio signals simultaneously using an HDMI cable.

Use when connecting a supported external device.

󱂚HDMI OUT Connect to the HDMI (ARC) jack on a TV.

ENG - 4

03 CONNECTING THE SOUNDBAR

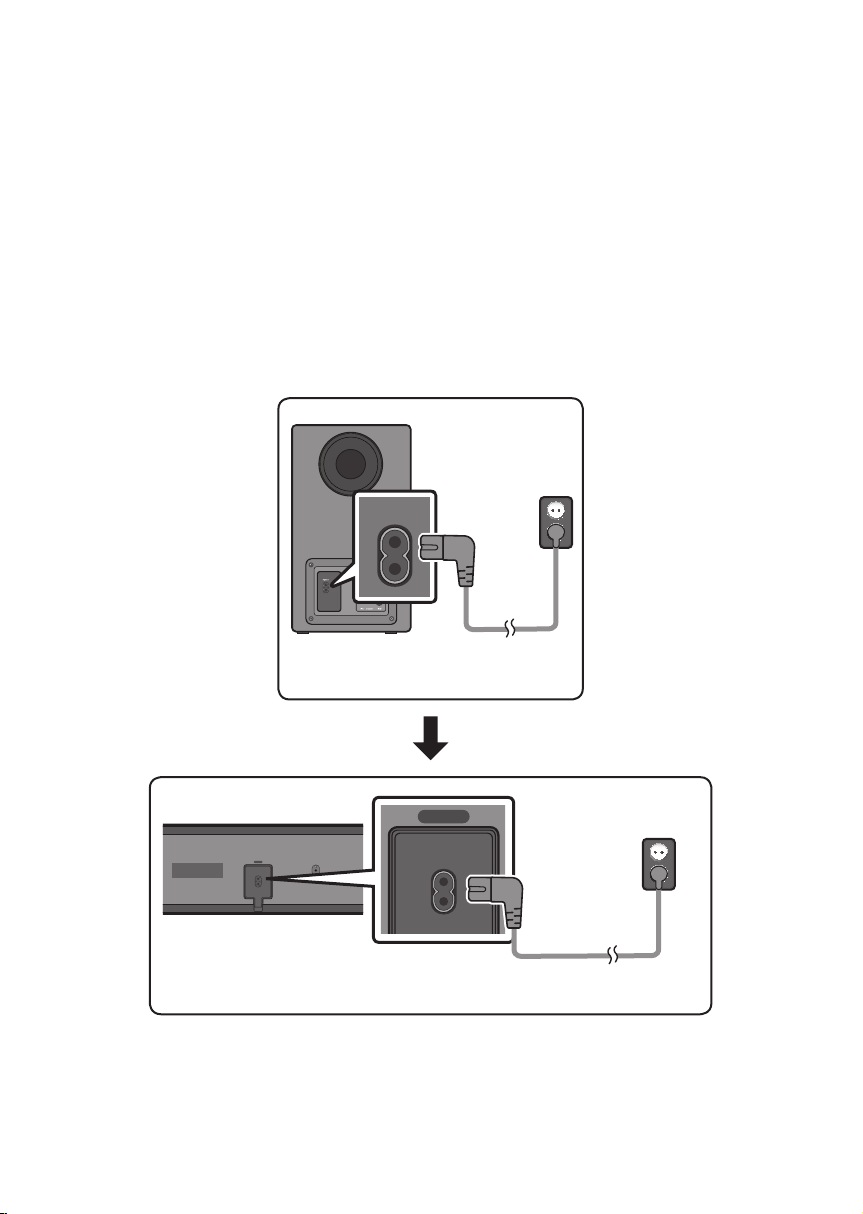

Connecting Electrical Power

Use the power components (1, 2) to connect the Subwoofer and Soundbar to an electrical outlet in the

following order:

1 Connect the power cord to the Subwoofer.

Connect the power cord to the Soundbar.

See the illustrations below.

•For more information about the required electrical power and power consumption, refer to the

label attached to the product. (Label : Bottom of the Soundbar Main Unit)

POWER

Rear of Subwoofer

1Power Cord

Connecting

Electrical Power

Bottom of the Soundbar

Main Unit

POWER

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

POWER

DIGITAL AUDIO IN

(OPTICAL)

HDMI IN 1

HDMI IN 2

HDMI OUT

(TV-ARC)

SERVICE

NETWORK

ID SET

(WOOFER/REAR)

POWER

Connecting Electrical Power

2Power Cord

POWER

ENG - 5

Connecting the Soundbar to the Subwoofer

When the subwoofer is connected, you can enjoy rich bass sound.

Automatic connection between the Subwoofer and the Soundbar

When you turn the power on after connecting the power cables to the Soundbar and subwoofer, the

subwoofer is automatically connected to the Soundbar.

•When auto pairing is complete, the blue indicators at the rear of the subwoofer turn on.

LED Indicator Lights on the Rear of Subwoofer

LED Status Description Resolution

Blue

On Successfully connected

(normal operation) -

Blinking

Standby (with the Soundbar

main unit turned off)

Check the power supply to the Soundbar

main unit.

Connection failed Connect again. (Refer to the instructions on

manual connection on page 6.)

Red On

Standby (with the Soundbar

main unit turned off)

Check the power supply to the Soundbar

main unit.

Connection failed Connect again. (Refer to the instructions on

manual connection on page 6.)

Red and

blue Blinking Malfunction See the contact information for the

Samsung Service Centre in this manual.

ENG - 6

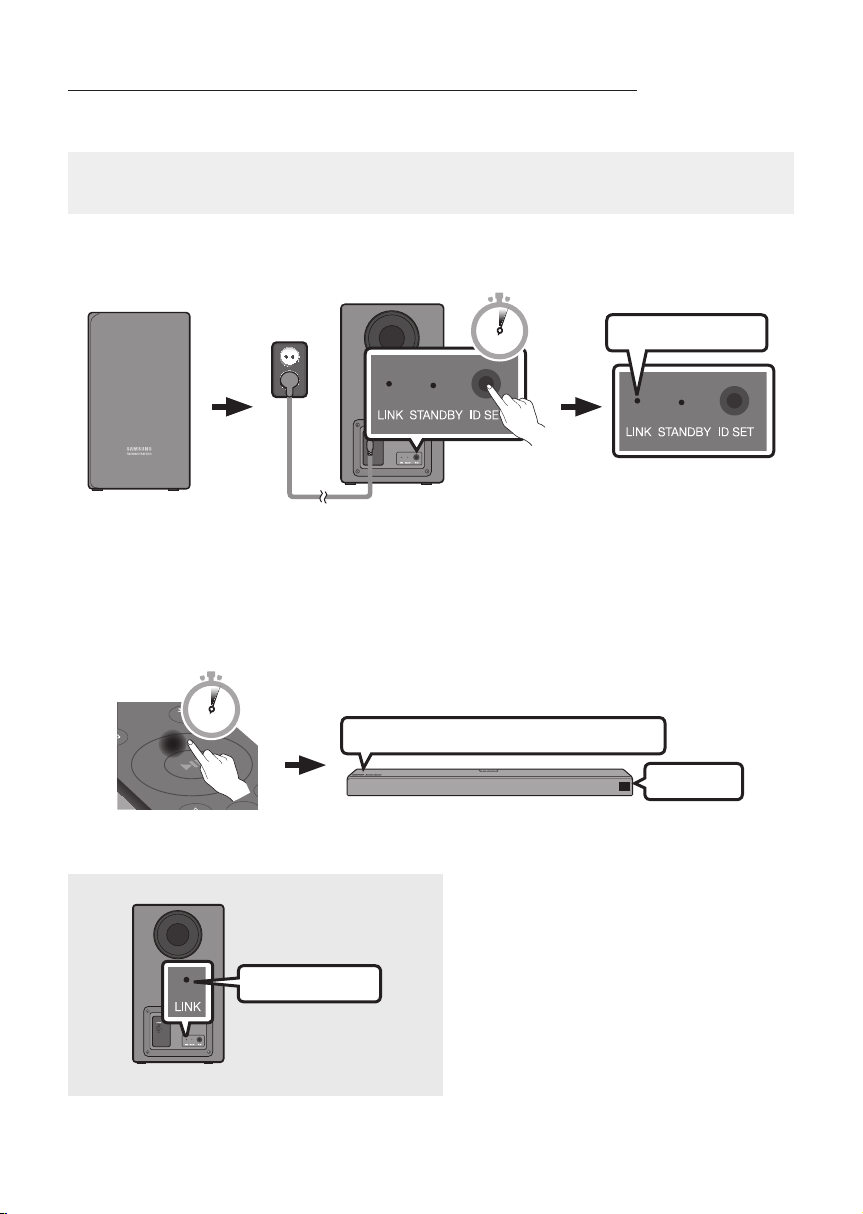

Manually connecting the Subwoofer if automatic connection fails

Before performing the manual connection procedure below:

•Check whether the power cables for the Soundbar and subwoofer are connected properly.

•Make sure that the Soundbar is turned on.

1. Press and hold ID SET on the rear of the subwoofer for at least 5 seconds.

•The red indicator on the rear of the subwoofer turns off and the blue indicator blinks.

Rear of Subwoofer

5 Sec Blue LED Blinking Fast

2. Press and hold the Up button on the remote control for at least 5 seconds.

•The ID SET message appears on the display of the Soundbar for a moment, and then it

disappears.

•The Soundbar will automatically power on when ID SET is complete.

SOUND

MODE

PAIR

5 Sec

ID SET

“Samsung Harman Kardon” logo is on the top

3. Check if the LINK LED is solid blue (connection complete).

Blue is On

The LINK LED indicator stops blinking and

glows a solid blue when a connection is

established between the Soundbar and the

Wireless Subwoofer.

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung HW-K450 Manual de usuario

Samsung

Samsung HW-A550 Instrucciones de instalación

Samsung

Samsung HW-T50M Instrucciones de instalación

Samsung

Samsung HW-Q65T Instrucciones de instalación

Samsung

Samsung HW-R530 Instrucciones de instalación

Samsung

Samsung HW-LST70T Instrucciones de instalación

Samsung

Samsung HW-A430 Instrucciones de instalación

Samsung

Samsung Crystal Surround Air Track HW-F550 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F750 Manual de usuario

Samsung

Samsung HW-J260 Manual de usuario

Samsung

Samsung HW-J250/ZA Manual de usuario

Samsung

Samsung MX-FS9000 Instrucciones de funcionamiento

Samsung

Samsung HW-Q950T Manual de usuario

Samsung

Samsung 6 series Instrucciones de instalación

Samsung

Samsung MultiXpress K430 SERIES Manual de usuario

Samsung

Samsung HW-R470 Instrucciones de instalación

Samsung

Samsung HW-MM45C Instrucciones de instalación

Samsung

Samsung HW-B550 Instrucciones de instalación

Samsung

Samsung SWA-9500S Manual de usuario

Samsung

Samsung HW-K470 Manual de usuario

Samsung

Samsung HT-SB1G Manual de usuario

Samsung

Samsung HW-K360 Manual de usuario

Samsung

Samsung HW-M360 Manual de usuario

Samsung

Samsung HW-Q800A Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
