Samsung HW-LST70T Instrucciones de instalación

HW-LST70T

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

ENG - 2

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

Refer to the table below for an explanation of

symbols which may be on your Samsung product.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to

make any kind of contact with any

internal part of this product.

This symbol indicates that this product

has included important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that it does not require a safety

connection to electrical earth (ground).

If this symbol is not present on a

product with a power cord, the product

MUST have a reliable connection to

protective earth (ground).

AC voltage : This symbol indicates that

the rated voltage marked with the

symbol is AC voltage.

DC voltage : This symbol indicates that

the rated voltage marked with the

symbol is DC voltage.

Caution, Consult instructions for use :

This symbol instructs the user to

consult the user manual for further

safety related information.

WARNING

•To prevent injury, this apparatus must be

securely attached to the oor/wall in

accordance with the installation instructions.

CAUTION

•To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

CAUTION (for Canada)

This device contains licence-exempt

transmitter(s)/receiver(s) that comply with

Innovation, Science and Economic Development

Canada’s licence-exempt RSS(s). Operation is

subject to the following two conditions:

(1) This device may not cause interference.

(2) This device must accept any interference,

including interference that may cause undesired

operation of the device.

This device and its antenna(s) must not be co-

located or operation in conjunction with any other

antenna or transmitter.

This device may automatically discontinue

transmission if there is no information to

transmit, or an operational failure. Note that this

is not intended to prohibit the transmission of

control or signaling information or the use of

repetitive codes where required by the

technology.

This Class B digital apparatus complies with

Canadian ICES-003.

ENG - 3

Radiation Exposure Statement

This equipment complies with IC RSS-102

radiation exposure limits set forth for an

uncontrolled environment. This equipment should

be installed and operated with minimum distance

20 cm between the radiator & your body.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Clean only with dry cloth.

6. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

7. Do not install near any heat sources such as

radiators, heat registers, stoves, or other

apparatus (including ampliers) that produce

heat.

8. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug

does not t into your outlet, consult an

electrician for replacement of the obsolete

outlet.

9. Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

10.Only use attachments/accessories specied

by the manufacturer.

11. Use only with the cart, stand,

tripod, bracket, or table

specied by the manufacturer,

or sold with the apparatus.

When a cart is used, use caution

when moving the cart/apparatus

combination to avoid injury from tip-over.

12. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

13. Refer all servicing to qualied service

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as damage to the power-supply cord or

plug, product malfunction, and product

fall-down.

ENG - 4

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power

requirements listed on the identication

sticker located on the bottom of your

product. Install your product horizontally, on

a suitable base (furniture), with enough

space around it for ventilation (3~4 inches).

Make sure the ventilation slots are not

covered. Do not place the unit on ampliers

or other equipment which may become hot.

This unit is designed for continuous use.

To fully turn off the unit, disconnect the AC

plug from the wall outlet. Unplug the unit if

you intend to leave it unused for a long

period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to other heat sources.

This could lead to overheating and cause the

unit to malfunction.

4. Protect the product from excess heat (e.g. a

replace) or equipment creating strong

magnetic or electric elds. Unplug the power

cable from the AC wall socket if the unit

malfunctions. Your product is not intended

for industrial use. It is for personal use only.

Condensation may occur if your product has

been stored in cold temperatures. If

transporting the unit during the winter, wait

approximately 2 hours until the unit has

reached room temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat or re. Do

not short circuit, disassemble, or overheat

the battery.

CAUTION : Danger of explosion if the battery

is replaced incorrectly. Replace only with the

same or equivalent type.

ENG - 5

DURABILITY

•The Soundbar provides the robust durability by IP55 so that it can be used in outdoor environment

(when installed and used as per the instructions in this User Manual).

•The remote control of this product provides durability by IP56.

Protection against solids

Protection against water

5 5

No protection 0 0 No protection

Solids > 50 mm 1 1 Vertically falling water

Solids > 12 mm 2 2 Vertically water - enclosure tilted 15°

Solids > 2.5 mm 3 3 Sprayed water 60° from vertical

Solids > 1.0 mm 4 4 Splashed water from all directions

Dust Protected 5 5 Hosing jets from all directions

Dust tight 6 6 Strong hosing jets from all directions

- 7 Temporary Immersion: 1 m for 30 minutes

- 8 Immersion: manufacturer dened depth and time

Despite the IP55 and IP56 ratings, your Soundbar and remote control are not impervious to water damage

in any situation. To help prevent damage to your products, avoid the products being subjected to:

•Water projected by a source greater than 6.3 mm against enclosure from any direction or

submersion in water.

•Water projected at greater than 30 kPa (4.4 psi) with a water volume greater than 12.5 litres/minute

for more than 3 minutes and extreme weather conditions.

ENG - 6

CONTENTS

01 Checking the Components 8

Inserting Batteries before using the Remote Control

(AAA batteries X 2) ------------------------- 9

02 Product Overview 10

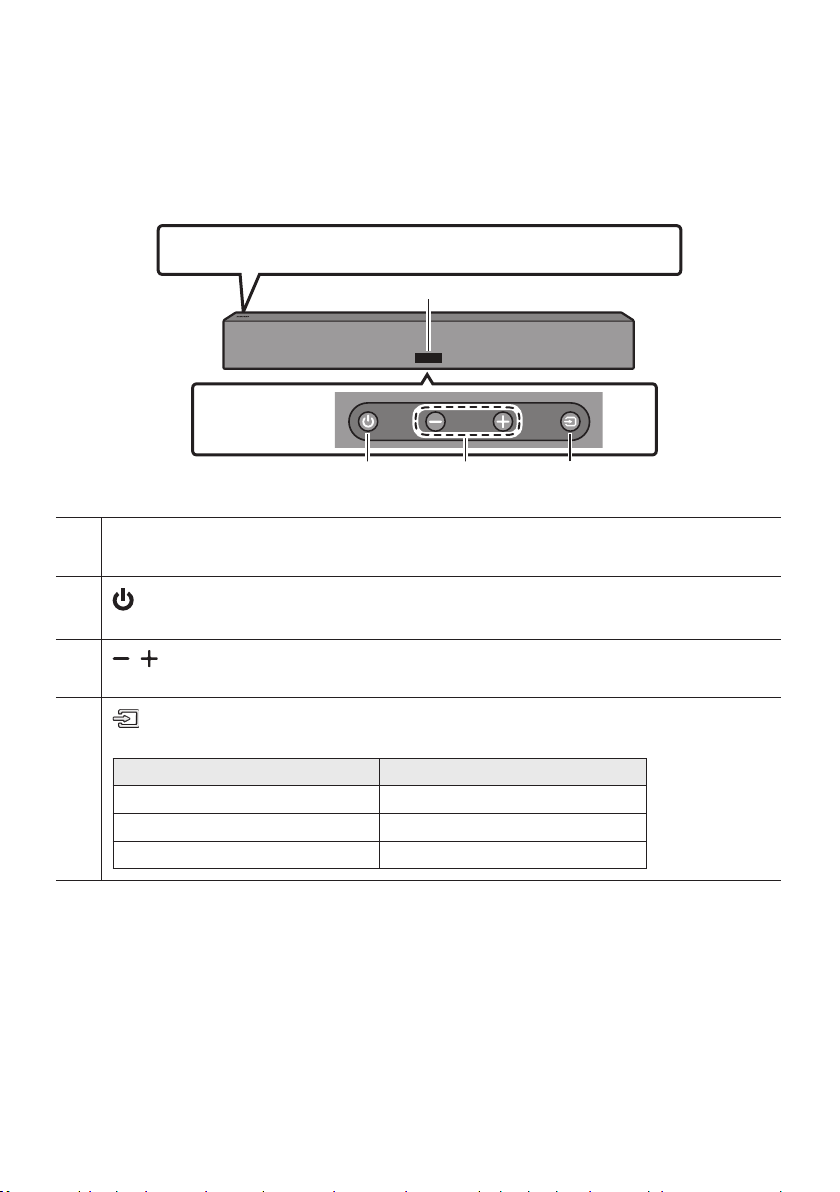

Front Panel / Bottom Panel of the Soundbar ------------------------- 10

Rear Panel of the Soundbar ------------------------- 11

03 Using the Remote Control 12

How to Use the Remote Control ------------------------- 12

Using the Hidden Buttons (Buttons with more than one function) ------------------------- 15

Output specications for the different sound effect modes ------------------------- 15

Adjusting the Soundbar volume with a TV remote control ------------------------- 16

04 Connecting the Soundbar 17

Connecting Electrical Power ------------------------- 17

How to mount the AC/DC adapter ------------------------- 17

05 Installing the Wall Mount 18

Installation Precautions ------------------------- 18

Method 1. TV mount ------------------------- 18

Method 2. Wall mount ------------------------- 21

06 Using a wired connection to the TV 23

Connecting using an Optical Cable ------------------------- 23

07 Using a wireless connection to the TV 25

Method 1. Connecting via Bluetooth ------------------------- 25

Method 2. Connecting via Wi-Fi ------------------------- 27

ENG - 7

08 Connecting an External Device 28

Connecting using an Optical Cable ------------------------- 28

09 Connecting a Mobile Device 29

Method 1. Connecting via Bluetooth ------------------------- 29

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 32

Using the Tap Sound ------------------------- 33

10 Connecting an Amazon product 34

Connect and use with an Amazon product (Amazon Echo) ------------------------- 34

Use voice commands to control the Soundbar ------------------------- 34

11 Software Update 35

Auto Update ------------------------- 35

USB Update ------------------------- 35

Initialization ------------------------- 35

12 Troubleshooting 36

13 License 37

14 Open Source License Notice 38

15 Important Notes About Service 38

16 SpecicationsandGuide 39

Specications ------------------------- 39

ENG - 8

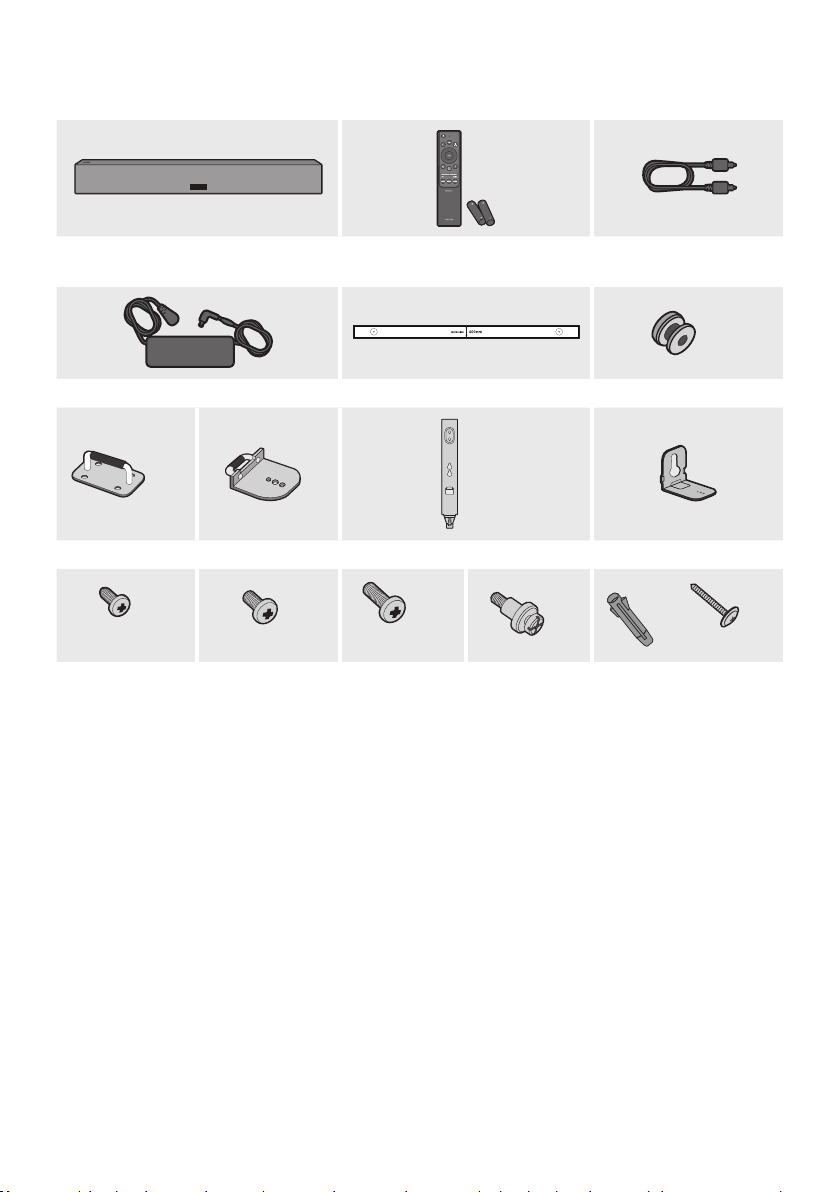

01 CHECKING THE COMPONENTS

Soundbar Main Unit Soundbar Remote Control /

Batteries

Optical Cable

x 2

AC/DC Adapter Wall Mount Guide Holder-Screw

x 2

x 2 x 2 x 2

Bracket-Top Bracket-Bottom Bracket-Guide Bracket-Wall Mount

x 4

(M3 x L10)

x 2

(M4 x L10)

x 2

(M6 x L10) x 2 x 2

(M5 x L50)

x 2

Screw-Taptype Screw-Machine Bolt-Etc A/S Bolt-Etc Anchor / Screw

•For more information about the power supply and power consumption, refer to the label attached

to the product. (Label: Bottom of the Soundbar Main Unit)

•To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

•For Soundbar wall mounting components, see pages 35~22.

•This Soundbar is intended only for TV mount or wall mount.

•Design, specications, and App screen are subject to change without prior notice.

•The appearance of the accessories may differ slightly from the illustrations above.

ENG - 9

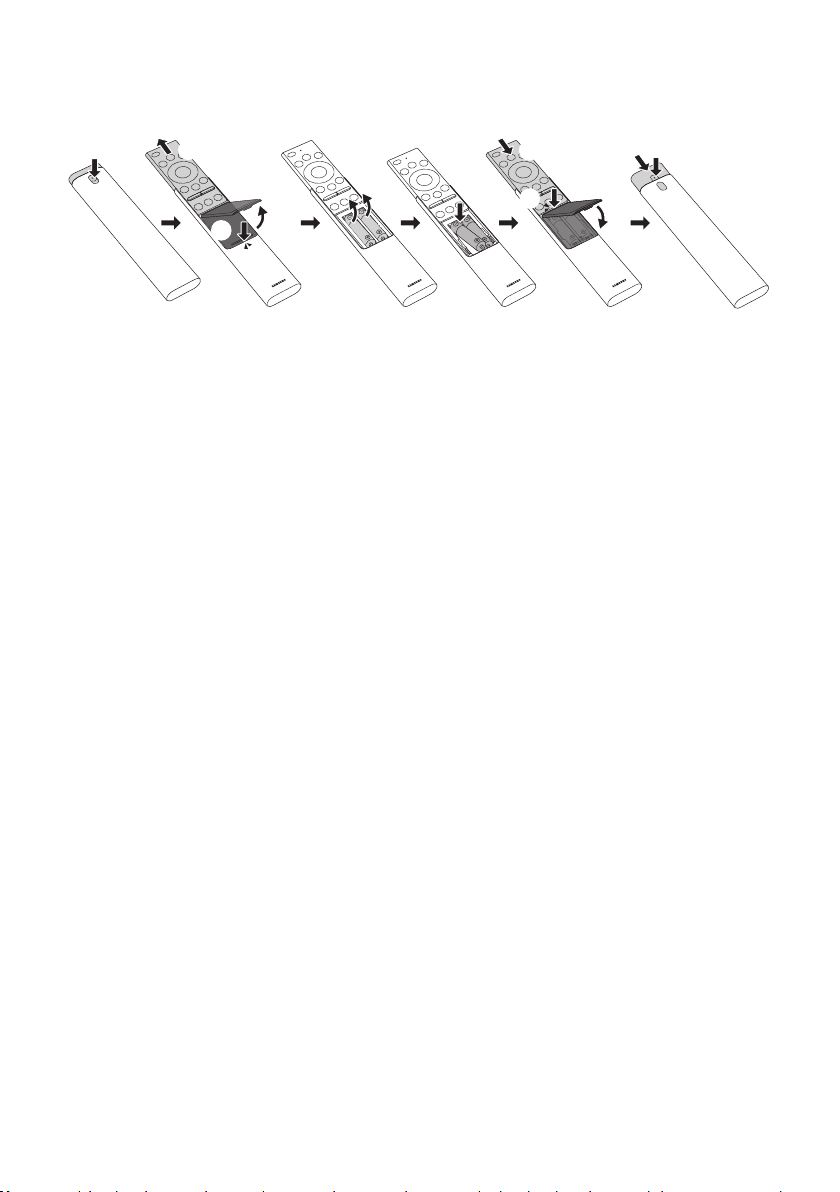

Inserting Batteries before using the Remote Control

(AAA batteries X 2)

232

1. Press the ^ button at the top rear of the Soundbar remote control. The body will pop out slightly

from the body cover.

2. Turn the remote over, push the body of the remote upwards until the battery compartment is

revealed, and then remove the battery cover.

3. If there are batteries in the remote, to remove the existing batteries.

4. Insert two new batteries (1.5V AAA type) into the battery compartment making sure that the

batteries’ polarities (+, -) are oriented correctly.

5. Once the batteries have been inserted, attach the battery cover and then slide down the body of

the remote.

6. Turn the remote over, press and hold the ^ button on the top rear, and then slide the body of the

remote down into place.

•Alkaline batteries are recommended for longer battery life.

ENG - 10

02 PRODUCT OVERVIEW

Front Panel / Bottom Panel of the Soundbar

Bottom Panel

Position the product so that the SAMSUNG logo is located on the top.

󱂔

󱂓

󱂕 󱂖

󱂓Display

Displays the product’s status and current mode.

󱂔(Power) Button

Turns the power on and off.

󱂕(Volume) Button

Adjusts the volume.

󱂖

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

Wi-Fi mode WIFI

BLUETOOTH mode BT

•When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

•When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

•If you hear sounds from both the TV and Soundbar, go to the Settings menu for the TV audio and

change the TV speaker to External Speaker.

Otros manuales para HW-LST70T

Tabla de contenidos

Idiomas:

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung SWA-9100S Manual de usuario

Samsung

Samsung HW-S60T Instrucciones de instalación

Samsung

Samsung HW-B53M Instrucciones de instalación

Samsung

Samsung HW-Q950A Instrucciones de instalación

Samsung

Samsung HW-T530 Instrucciones de instalación

Samsung

Samsung HW-M4500 Manual de usuario

Samsung

Samsung HW-K450 Manual de usuario

Samsung

Samsung HW-N300 Manual de usuario

Samsung

Samsung HW-Q600A Instrucciones de instalación

Samsung

Samsung HW-K360 Manual de usuario

Samsung

Samsung HW-Q900A Instrucciones de instalación

Samsung

Samsung HW-Q900T Instrucciones de instalación

Samsung

Samsung HW-A430 Instrucciones de instalación

Samsung

Samsung harman/kardon HWQ60RXY Instrucciones de instalación

Samsung

Samsung HW-H600 Manual de usuario

Samsung

Samsung HW-S40T Instrucciones de instalación

Samsung

Samsung HWR650XY Manual de usuario

Samsung

Samsung HW-N550 Instrucciones de instalación

Samsung

Samsung HW-Q930C Manual de usuario

Samsung

Samsung HW-B670 Instrucciones de instalación

Samsung

Samsung HW-N860 Manual de usuario

Samsung

Samsung HW-K950 Manual de usuario

Samsung

Samsung SWA-8500S/ZF Manual de usuario

Samsung

Samsung HW-Q700C Manual de usuario

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
