Samsung HW-MS6500 Instrucciones de instalación

FULL MANUAL

Imagine the possibilities

Thank you for purchasing this Samsung product.

To receive more complete service, please register

your product at www.samsung.com/register

HW-MS6500

ENG - ii

SAFETY INFORMATION

SAFETY WARNINGS

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO

NOT REMOVE THE COVER (OR BACK).

NO USER-SERVICEABLE PARTS ARE INSIDE.

REFER SERVICING TO QUALIFIED SERVICE

PERSONNEL.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

This symbol indicates that high voltage

is present inside. It is dangerous to make

any kind of contact with any internal

part of this product.

This symbol indicates that this product

comes with important literature

concerning operation and maintenance.

Class II product : This symbol indicates

that a safety connection to electrical

earth (ground) is not required.

AC voltage : Rated voltage marked with

this symbol is AC voltage.

DC voltage : Rated voltage marked with

this symbol is DC voltage.

Caution. Consult Instructions for use :

This symbol instructs the user to consult

the user manual for further safety

related information.

WARNING



not expose this appliance to rain or moisture.

To prevent injury, this apparatus must be



accordance with the installation instructions.

This product contains chemicals known to the

State of California to cause cancer and birth

defects or other reproductive harm.

CAUTION

Do not expose this apparatus to dripping or



liquids, such as vases, on the apparatus.

To turn this apparatus off completely, you

must pull the power plug out of the wall

socket. Consequently, the power plug must

be easily and readily accessible at all times.

FCC NOTE (for U.S.A):

Class B FCC Statement

The included module(s) has been tested and

found to comply with the limits for a Class B

digital device, pursuant to Part 15 of the FCC

Rules. These limits are designed to provide

reasonable protection against harmful

interference in a residential installation. This

equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which can be

determined by turning the equipment off and on,

the user is encouraged to try to correct the

interference by one of the following measures:

ENG - iii

Reorienting or relocating the receiving

antenna.

Increasing the separation between the

equipment and receiver.

Connecting the equipment to an outlet that is

on a different circuit than the radio or TV.

Consulting the dealer or an experienced

radio/TV technician for help.

FCC Radiation Exposure Statement :

This equipment complies with FCC radiation

exposure limits set forth for an uncontrolled

environment.

This equipment should be installed and operated

so there is at least 8 inches (20 cm) between the

radiator and your body. This device and its

antenna(s) must not be co-located or operated in

conjunction with any other antenna or

transmitter.

FCC Caution :



approved by the party responsible for

compliance could void the user’s authority to

operate this equipment. This device complies

with Part 15 of the FCC Rules. Operation is

subject to the following two conditions: (1)

This device may not cause harmful

interference, and (2) this device must accept

any interference received, including

interference that may cause undesired

operation.



shielded cables and connectors are used to

connect the unit to other equipment. To

prevent electromagnetic interference with

electric appliances, such as radios and

televisions, use shielded cables and

connectors for connections.

Important Safety Instructions

Read these operating instructions carefully

before using the unit. Follow all the safety

instructions listed below. Keep these operating

instructions handy for future reference.

1. Read these instructions.

2. Keep these Instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings.

Install in accordance with the manufacturer’s

instructions.

8. Do not install near any heat sources such as

radiators, heat registers, stoves, or other



heat.

9. Do not defeat the safety purpose of the

polarized or grounding-type plug.

A polarized plug has two blades with one

wider than the other. A grounding type plug

has two blades and a third grounding prong.

The wide blade or the third prong are

provided for your safety. If the provided plug



electrician for replacement of the obsolete

outlet.

10.Protect the power cord from being walked

on or pinched particularly at plugs,

convenience receptacles, and the point

where they exit from the apparatus.

11. 

by the manufacturer.

ENG - iv

12. Use only with the cart, stand,

tripod, bracket, or table



or sold with the apparatus.

When a cart is used, use caution when

moving the cart/apparatus combination to

avoid injury from tip-over.

13. Unplug this apparatus during lightning

storms or when unused for long periods of

time.

14. 

personnel. Servicing is required when the

apparatus has been damaged in any way,

such as power-supply cord or plug is

damaged, liquid has been spilled or objects

have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does

not operate normally, or has been dropped.

PRECAUTIONS

1. Ensure that the AC power supply in your

house complies with the power



sticker located on the back of your product.

Install your product horizontally, on a

suitable base (furniture), with enough space

around it for ventilation (3~4 inches). Make

sure the ventilation slots are not covered. Do



equipment which may become hot. This unit

is designed for continuous use. To fully turn

off the unit, disconnect the AC plug from the

wall outlet. Unplug the unit if you intend to

leave it unused for a long period of time.

2. During thunderstorms, disconnect the AC

plug from the wall outlet. Voltage peaks due

to lightning could damage the unit.

3. Do not expose the unit to direct sunlight or

other heat sources. This could lead to

overheating and cause the unit to

malfunction.

4. Protect the product from moisture (i.e.



equipment creating strong magnetic or



the AC wall socket if the unit malfunctions.

Your product is not intended for industrial

use. It is for personal use only. Condensation

may occur if your product has been stored in

cold temperatures. If transporting the unit

during the winter, wait approximately

2 hours until the unit has reached room

temperature before using.

5. The battery used with this product contains

chemicals that are harmful to the

environment. Do not dispose of the battery

in the general household trash. Do not

expose the battery to excess heat, direct



disassemble, or overheat the battery.

Danger of explosion if the battery is replaced

incorrectly. Replace only with the same or

equivalent type.

ENG - v

ABOUT THIS MANUAL

The user manual has two parts: this simple paper USER MANUAL and a detailed FULL MANUAL you can

download.

USER MANUAL

See this manual for safety instructions, product installation,



FULL MANUAL

You can access the Full Manual on Samsung’s on-line customer

support center by scanning the QR code. To see the manual on

your PC or mobile device, download the manual in document

format from the website. (http://www.samsung.com/support)



ENG - vi

CONTENTS

01 Checking the Components 2

Inserting Batteries before using the Remote Control (AA batteries X 2) ------------------------- 2

02 Product Overview 3

Front Panel / Right Side Panel of the Soundbar ------------------------- 3

Bottom Panel of the Soundbar ------------------------- 4

03 Connecting the Soundbar 5

Connecting Electrical Power ------------------------- 5

04 Connecting to your TV 7

Method 1. Connecting with a Cable ------------------------- 7

– Connecting using an Optical Cable ------------------------- 7

– Connecting a TV using an HDMI Cable ------------------------- 8

Method 2. Connecting Wirelessly ------------------------- 9

– Connecting a TV via Bluetooth ------------------------- 9

– Connecting via Wi-Fi ------------------------- 11

05 Connecting an External Device 13

Connecting using an Optical or Analog Audio (AUX) Cable ------------------------- 13

Connecting using an HDMI Cable ------------------------- 14

06 Connecting a Mobile Device 15

Method 1. Connecting via Bluetooth ------------------------- 15

Method 2. Connecting via Wi-Fi (Wireless Network) ------------------------- 18

ENG - vii

07 Connecting an Amazon product 20

08 Controlling your Soundbar with an

Amazon device 23

09 Using the Remote Control 24

How to Use the Remote Control ------------------------- 24

Adjusting the Soundbar volume with a TV remote control ------------------------- 27

Using the Hidden Buttons ------------------------- 28

 ------------------------- 28

10 Installing the Wall Mount 29

Installation Precautions ------------------------- 29

Wallmount Components ------------------------- 29

Assembling the Holder-Cable ------------------------- 31

Installing the Holder Foot ------------------------- 32

11 Software Update 32

12 Troubleshooting 33

13 License 35

14 Open Source License Notice 35

15 Important Notes About Service 35

16 SpecicationsandGuide 36

 ------------------------- 36

ENG - 2

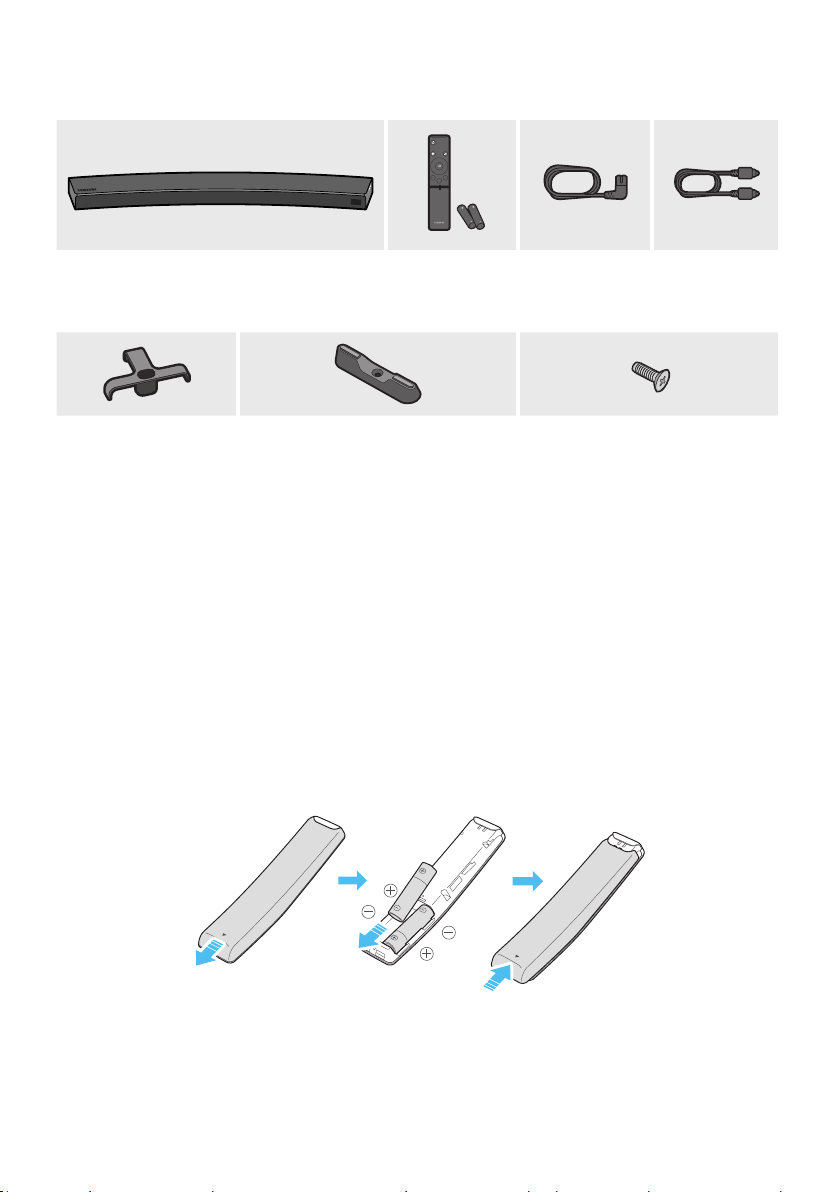

01 CHECKING THE COMPONENTS

Surround

VOL BASS

SOUNDBAR

SOUND

MODE

SMART

MODE

Soundbar Main Unit Remote Control

/ Batteries

(AH59-02759A)

Power Cord

(Main Unit)

(3903-001188)

Optical Cable

(AH39-00779A)

Holder-Cable

(AH61-04173A)

Holder-Foot (2EA)

(AH96-04069A)

Screw

(for Holder-Foot : 2 EA)

(for Holder-Cable : 1 EA)

(6001-001961)

For Soundbar wall mounting components, see page 29.

See page 31 for instructions on how to use the Holder-Cable.

To purchase additional components or optional cables, contact a Samsung Service Center or

Samsung Customer Care.

The appearance of the accessories may differ slightly from the illustrations above.

Inserting Batteries before using the Remote Control (AA batteries X 2)

Slide the battery cover in the direction of the arrow until it is completely removed. Insert 2 AA batteries

(1.5V) oriented so that their polarity is correct. Slide the battery cover back into position.

ENG - 3

02 PRODUCT OVERVIEW

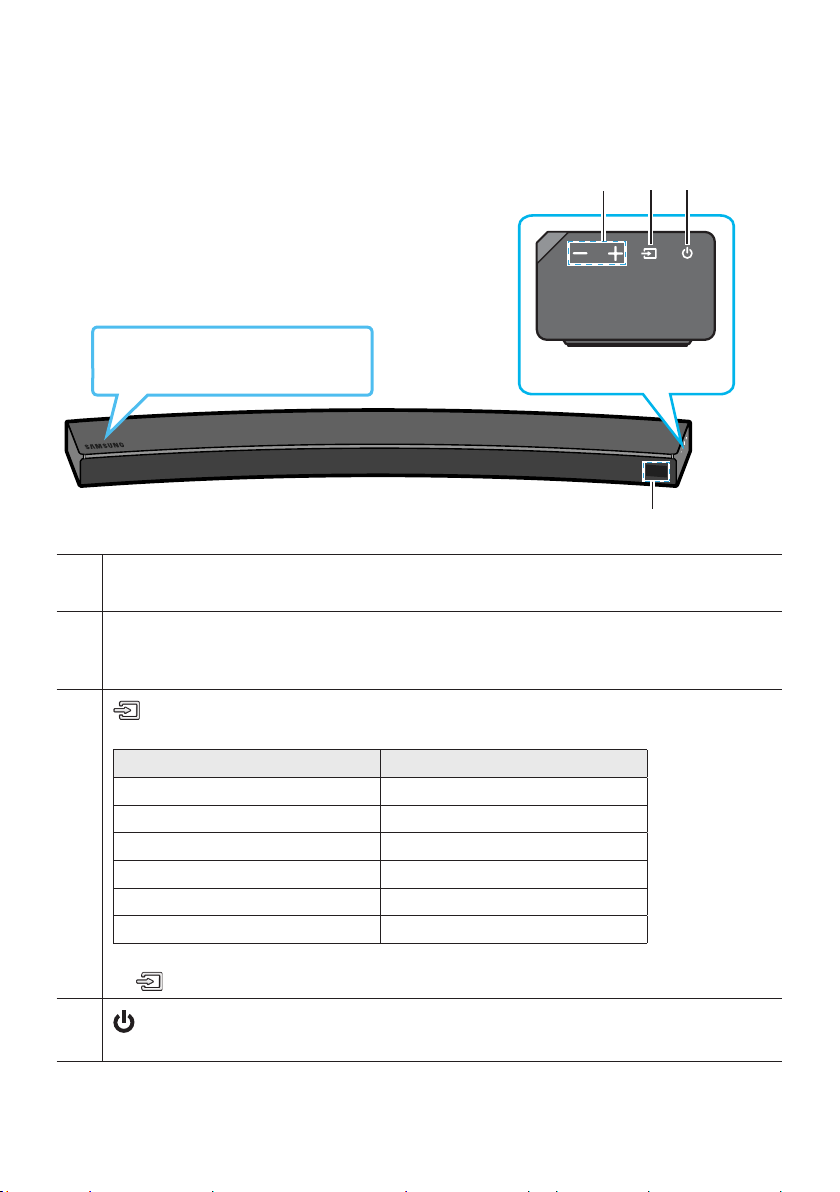

Front Panel / Right Side Panel of the Soundbar

󱂔 󱂕 󱂖

Right Side of the Soundbar

󱂓

Position the product so that the

SAMSUNG logo is located on the top.

󱂓Display

Displays the product’s status and current mode.

󱂔

-/+ (Volume) Button

Adjusts the volume.

When adjusted, the volume level appears on the Soundbar’s front display.

󱂕

(Source) Button

Selects the source input mode.

Input mode Display

Optical Digital input D.IN

ARC (HDMI OUT) input D.IN TV ARC (Auto conversion)

AUX input AUX

HDMI input HDMI

Wi-Fi mode WIFI

BLUETOOTH mode BT

To turn on “BT PAIRING” mode, change the source to “BT” mode, and then press and hold the

(Source) button for more than 5 seconds.

󱂖(Power) Button

Turns the power on and off.

ENG - 4

When you plug in the AC cord, the power button will begin working in 4 to 6 seconds.

When you turn on this unit, there will be a 4 to 5 second delay before it produces sound.

If you want to enjoy sound only from the Soundbar, you must turn off the TV’s speakers in the Audio

Setup menu of your TV. Refer to the owner’s manual supplied with your TV.

Bottom Panel of the Soundbar

POWER

OUT

(For TV)

Wi-Fi SETUP SPK ADD

HDMI IN

HDMI OUT

(TV-ARC)

WIRELESS

AUX IN

DIGITAL AUDIO IN

(OPTICAL)

POWER

OUT

(For TV)

󱂓

󱂘

󱂚

󱂔

󱂙

󱂕

󱂖

󱂗

󱂓

POWER OUT (For TV)

Connect the power cord of a Samsung TV connected to the Soundbar and mounted on the wall using a

Wall Mount Kit (WMN300SB - not supplied).

󱂔POWER IN

Connect the Soundbar's AC power cable.

󱂕DIGITAL AUDIO IN (OPTICAL)

Connect to the digital (optical) output of an external device.

󱂖

WIRELESS

Attach the wireless dongle that connects the Soundbar to surround speakers and a subwoofer wirelessly.

(The surround speaker, subwoofer, and wireless dongle are sold separately.)

The WIRELESS jack is not USB-compatible.

The availability of subwoofers differs by area. Check the availability at

http://www.samsung.com/support.

󱂗AUX IN

Connect to the Analog output of an external device.

Otros manuales para HW-MS6500

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Sistema de altavoces de Samsung

Samsung

Samsung MM-C8DAB Manual de usuario

Samsung

Samsung HW-K550 Manual de usuario

Samsung

Samsung HW-M4500 Manual de usuario

Samsung

Samsung Crystal Surround Air Track HW-F550 Manual de usuario

Samsung

Samsung HW-K650 Manual de usuario

Samsung

Samsung HW-B63C Instrucciones de instalación

Samsung

Samsung HT-WS1 Manual de usuario

Samsung

Samsung WAM7500 Manual de usuario

Samsung

Samsung HW-A650 Instrucciones de instalación

Samsung

Samsung Crystal Surround Air Track HW-F550 Manual de usuario

Samsung

Samsung HW-T550 Instrucciones de instalación

Samsung

Samsung HW-M450 Instrucciones de instalación

Samsung

Samsung HW-R40M Instrucciones de instalación

Samsung

Samsung HW-S50A Instrucciones de instalación

Samsung

Samsung HW-Q990C Manual de usuario

Samsung

Samsung HW-JM6000C Manual de usuario

Samsung

Samsung HW-J6501 Manual de usuario

Samsung

Samsung HW-MM55 Instrucciones de instalación

Samsung

Samsung Harman/Kardon HW-Q80R/ZA Instrucciones de instalación

Samsung

Samsung HW-LST70T Instrucciones de instalación

Samsung

Samsung HW-Q990B Instrucciones de instalación

Samsung

Samsung HW-S46T Manual de usuario

Samsung

Samsung HW-Q60T Instrucciones de instalación

Samsung

Samsung HW-T50M Instrucciones de instalación

Manuales populares de Sistema de altavoces de otras marcas

JVC

JVC CA-MXK5R Manual de usuario

LG NB4532B Manual de usuario

JVC

JVC CA-FSH100 Manual de usuario

5Core

5Core Pro Series Manual de usuario

EAW

EAW MQV1394e Manual de usuario

Lynx

Lynx GXR-LA10A Manual de usuario

iLive

iLive ITB066B Manual de usuario

RDX

RDX QuickStation 4 Manual de usuario

Electro-Voice

Electro-Voice S-122 Manual de usuario

Sven

Sven SPS-619 GOLD Manual de usuario

Pioneer

Pioneer CS-7070 Manual de usuario

EAW

EAW UB82e Manual de usuario

Sondpex

Sondpex Active Speaker System and Digital Music... Manual de usuario

JVC

JVC NX-PN7 Manual de usuario

Marshall Amplification

Marshall Amplification AR-DM61-BT Manual de usuario

Yamaha

Yamaha NX-A01 - Speaker Sys Manual de usuario

SE Audiotechnik

SE Audiotechnik I-LINE Manual de usuario

Gemini

Gemini WRX-843 Series Manual de usuario
