Enhanced convenience. Better cooking. Easy maintenance. Your new electric range has been designed to

bring you these benefits and more.

True Convection

Your new range has Surround Airvection TM, which heating element and a fan system that

circulates the heat evenly in all directions. You get more efficient energy consumption and more

even cooking.

Steam Quick cleaning

Thanks to Steam Quick TM, Samsung's unique technology for light-duty cleaning jobs, keeping

your oven spick-and-span is a snap -- no hassle, no odor, no chemicals. Steam Quick TM cleans

the inside of your range with high-temperature steam in just 20 minutes.

Bigger is better

With a capacity of 5.9 cubic feet, your new range is equipped with more space than any of its

competitors in the U.S. market. This means greater convenience for you when cooking for the

holidays or when entertaining.

A cooktop with 5 burners

- Four main burners with two that dial heat up to different pot sizes.

- A smaller warming burner in the center of the range top.

Read and follow all instructions before using your oven to prevent the

risk of fire, electric shock, personal injury, or damage when using the

range, This guide does not cover all possible conditions that may occur. Always

contact your service agent or manufacturer about problems that you do not

understand,

WHAT YOU NEED TO KNOW ABOUT SAFETY

INSTRUCTIONS

Warnings and important Safety instructions in this manual do not cover all

possible conditions and situations that may occur, it is your responsibility to use

common sense, caution, and care when installing, maintaining, and operating

your oven.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual mean:

1 features of your new range

NE595ROABSR_AA_DG68-00433A-02_EN.indd 1 30/10/2012 15:03:28

irk Hazards or unsafe practices that may result in severe

WARNING personal injury or death.

Hazards or unsafe practices that may result in minor

CAUTION personal injury or property damage,

To reduce the risk of fire, explosion, electric shock, or

'/_ personal injurywhen using your oven, follow these basic

CAUTION safety precautions.

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric

shock.

Call the service center for help.

Note

These warning signs are here to prevent injury to you and others.

Please follow them explicitly.

After reading this section, keep it in a safe place for future reference.

ANTI-TIP DEVICE

WARNING WARNING =To reduce the risk of tipping the range, the range must be

secured by a properly installed Anti-Tip device. AFTER THE RANGE

HAS BEEN INSTALLED, CONFIRM THAT THE ANTI-TIP DEVICE

HAS BEEN PROPERLY INSTALLED AND VERIFY THAT THE ANTI=

TIP DEVICE IS PROPERLY ENGAGED, Refer to the installation manual

for instructions.

a} If the anti-tip device is not installed, a child or adult can tip the range

and be killed.

b) Verify the anti-tip device has been properly installed and engaged at

rear right (or rear left) of the range bottom.

c) Ifyou move the range and then move it back into place, ensure the anti-

tip device is re-engaged at the right or left rear of the range bottom.

d) Do not operate the range without the anti-tip device in place and

engaged.

e) Failure to do so can result in death or serious burns to children or adults.

NE595ROABSR_AA_DG68-00433A-02_EN.indd 2

Hmportant safety instructons 2

30/10/2012 15:03:29

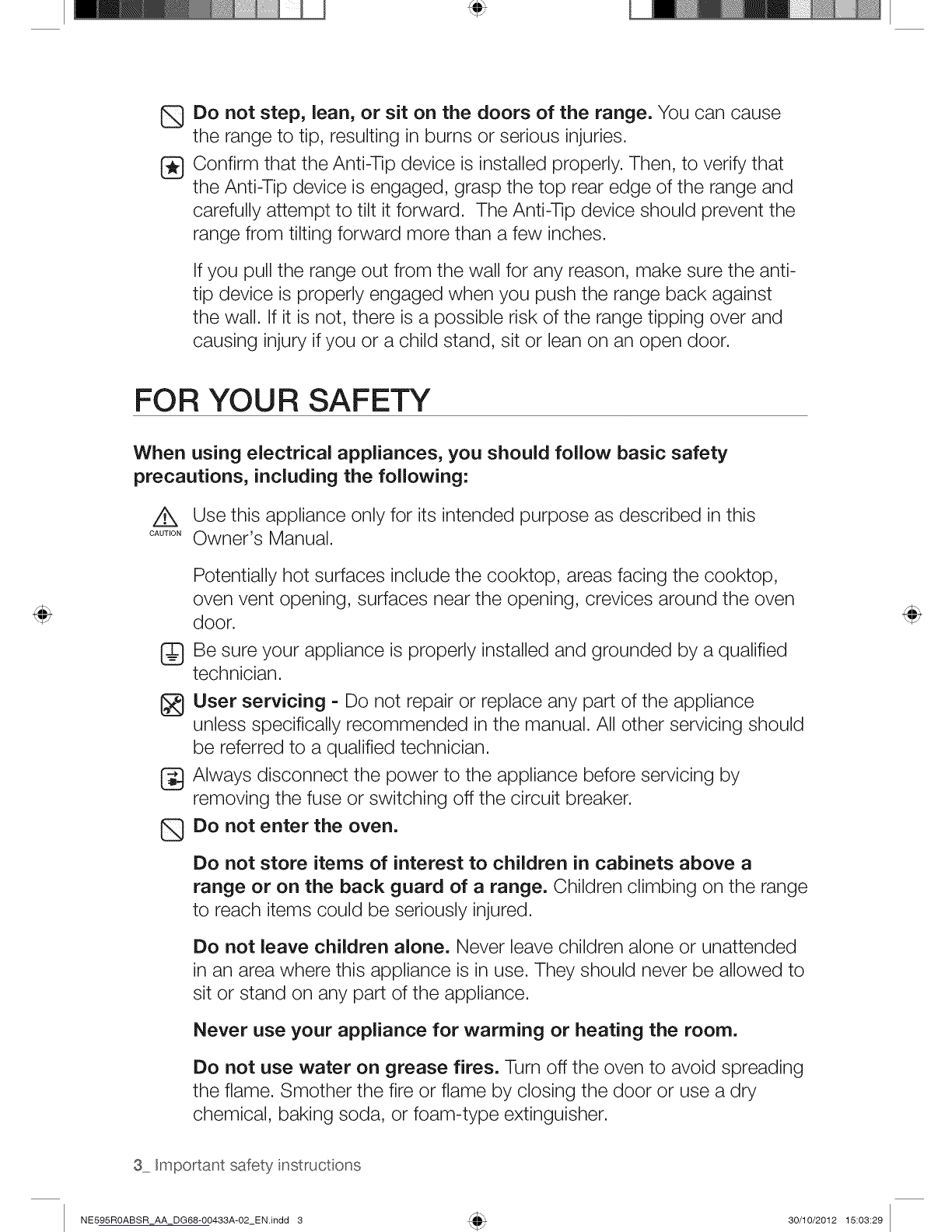

Do not step, lean, or sit on the doors of the range. You can cause

the range to tip, resulting in burns or serious injuries.

Confirm that the Anti-Tip device is installed properly. Then, to verify that

the Anti-Tip device is engaged, grasp the top rear edge of the range and

carefully attempt to tilt it forward. The Anti-Tip device should prevent the

range from tilting forward more than a few inches.

If you pull the range out from the wall for any reason, make sure the anti-

tip device is properly engaged when you push the range back against

the wall. If it is not, there is a possible risk of the range tipping over and

causing injury ifyou or a child stand, sit or lean on an open door.

FOR YOUR SAFETY

When using electrical appliances, you should follow basic safety

precautions, including the following:

/iX Use this appliance only for its intended purpose as described in this

oAuT,o,Owner's Manual.

Potentially hot surfaces include the cooktop, areas facing the cooktop,

oven vent opening, surfaces near the opening, crevices around the oven

door.

Be sure your appliance is properly installed and grounded by a qualified

technician.

User servicing - Do not repair or replace any part of the appliance

unless specifically recommended in the manual. All other servicing should

be referred to a qualified technician.

Always disconnect the power to the appliance before servicing by

removing the fuse or switching off the circuit breaker.

Do not enter the oven.

Do not store items of interest to children in cabinets above a

range or on the back guard of a range. Children climbing on the range

to reach items could be seriously injured.

Do not leave children alone. Never leave children alone or unattended

in an area where this appliance is in use. They should never be allowed to

sit or stand on any part of the appliance.

Never use your appliance for warming or heating the room.

Do not use water on grease fires. Turn off the oven to avoid spreading

the flame. Smother the fire or flame by closing the door or use a dry

chemical, baking soda, or foam-type extinguisher.

3 Hmportant safety instructions

NE595ROABSR_AA_DG68-00433A-02_EN.indd 3 30/10/2012 15:03:29

®Storage in or on appliance. Do not store flammable materials in the

oven or near the surface units. Be sure all packing materials are removed

from the appliance before operating it. Keep plastics, clothes, and paper

away from parts of the appliance that may become hot.

Wear proper apparel. Never wear loose-fitting or hanging garments

while using the appliance.

Use only dry potholders. Placing moist or damp potholders on hot

surfaces may result in burns from steam. Do not let the potholder touch

hot heating elements. Do not use a towel or other bulky cloth.

Teach children not to play with the controls or any other part of the range.

For your safety, do not use high-pressure water cleaners or steam jet

cleaners.

If the power cord is damaged, it must be replaced by the manufacturer,

its service agent or similarly qualified persons in order to avoid a hazard.

The appliance is not intended for use by persons (including children) with

reduced physical, sensory or mental capabilities, or lack of experience

and knowledge, unless they have been given supervision or instruction

concerning use of the appliance by a person responsible for their safety.

SURFACE COOKING UNITS

Never leave surface units unattended at high heat settings.

Boilovers cause smoking and greasy spillovers that may ignite.

Do not lift the cooktop. Lifting the cooktop can damage the range and

cause the range to malfunction.

Do not operate the cooktop without cookware. If the cooktop

operates without cookware, the control knobs will become hot.

Never use the glass cooktop surface as a cutting board.

NE595ROABSR_AA_DG68-OO433A-O2_EN.indd 4

Hmportant safety instructons 4

30/10/2012 15:03:29

Use care when touching the cooktop. The glass surface of the

cooktop will retain heat after the controls have been turned off.

Be careful when placing spoons or other stirring utensils on the

glass cooktop surface when it is in use. They may become hot and

could cause burns.

Use proper pan sizes. This appliance is equipped with surface units of

different size. Select pots and pans that have flat bottoms large enough

to cover the surface area of the heating element. Using undersized

cookware will expose a portion of the heating element to direct contact

and may result in the ignition of clothing. Matching the size of the pot or

pan to the burner will also improve efficiency.

Utensil Handles Should Be Turned Inward and Not Extend Over Adjacent

Surface Units - To reduce the risk of burns, ignition of flammable

materials, and spillage due to unintentional contact with the utensil, the

handle of a utensil should be positioned so that it is turned inward, and

does not extend over adjacent surface units.

Glazed cooking utensils. Only certain types of glass, glass/ceramic,

ceramic, earthenware, or other glazed cookware are suitable for range-

top service without breaking due to sudden changes in temperature.

Cookware handles should be turned outward and not extend

over adjacent surface units. To reduce the risk of burns, ignition

of flammable materials, and spillage due to unintentional contact with

cookware, cookware handles should be positioned so that they are

turned outward, and do not extend over adjacent surface units.

Cleaning. Read and follow all instructions and warnings on the cleaning

cream labels.

Be sure you know which control knob operates each surface unit. Make

sure you turned on the correct surface unit.

Always turn the surface units off before removing cookware.

When preparing flaming foods under the hood, turn the fan on.

Keep an eye on foods being fried at high or medium high heat settings.

5 Hmportant safety instructions

NE595ROABSR_AA_DG68-00433A-02_EN.indd 5 30/10/2012 15:03:29

ELECTRICAL SAFETY

WARNING

Proper Installation- Be sure your appliance is properly installed and

grounded by a qualified technician.

The appliance should be serviced only by qualified service personnel.

Repairs carried out by unqualified individuals may cause injury or a

serious malfunction. If your appliance is in need of repair, contact a

Samsung authorized service center. Failure to follow these instructions

may result in damage and void the warranty.

Flush - mounted appliances may be operated only after they have

been installed in cabinets and workplaces that conform to the relevant

standards. This ensures sufficient protection against contact for electrical

units as required by the essential safety standards.

If your appliance malfunctions or if fractures, cracks or splits appear:

switch off all cooking zones

unplug the range from the AC wall outlet

contact your local service center.

WARNING-If the surface is cracked, switch off and unplug the appliance

to avoid the possibility of electrical shock. Do not use your Induction

Cooktop until the glass surface has been replaced.

WARNING- Ensure that the appliance is switched off before replacing

the lamp to avoid the possibility of electric shock.

The range should not be placed on a base.

The oven must be switched off before removing the guard and that, after

cleaning, the guard must be replaced in accordance with the instructions.

CHILD SAFETY

WARNING WARNING-This appliance is not intended for use by young children or

infirm persons without the adequate supervision of a responsible adult.

Young children should be supervised to ensure that they do not play with

the appliance.

Keep children away from the door when opening or closing it as they may

bump themselves on the door or catch their fingers in the door.

The cooking zones will become hot when you cook. Always keep small

children away from the appliance.

During cleaning, the surfaces may get hotter than usual and children

should be kept away.

Important safety instructons 6

NE595ROABSR_AA_DG68-00433A-02_EN.indd 6 30/10/2012 15:03:29

Z_ WARNING- Accessible parts may become hot during use. To avoid

....... burns, young children should be kept away.

OVEN

GDO NOT TOUCH THE HEATING ELEMENTS OR INTERIOR

SURFACES OF THE OVEN. Heating elements may be hot even though

they are dark in color. Interior surfaces of an oven become hot enough to

cause burns. During and after use, do not touch or let clothing or other

flammable materials contact the heating elements or interior surfaces

of the oven until they have had sufficient time to cool. Other surfaces of

the appliance may become hot enough to cause burns. Among these

surfaces are oven vent openings and surfaces near these openings, oven

doors, and windows of oven doors.

Do not heat unopened food containers. Build-up of pressure may

cause the container to burst and result in injury.

Do not use the oven to dry newspapers. If overheated, they can

catch on fire.

Do not use the oven for a storage area. Items stored in an oven can

ignite.

Use care when opening the door. Let hot air or steam escape before

you remove food from or replace food into the oven.

Protective liners. Do not use aluminum foil to line the oven bottoms,

except as suggested in the manual. Improper installation of these liners

may result in a risk of electric shock or fire.

Keep oven vent ducts unobstructed. The oven vent is located above

the right rear surface unit. This area could become hot during oven use.

Never block this vent or place plastic or heat-sensitive items on it.

Placement of oven racks. Always place oven racks in the desired

location while the oven is cool. If the rack must be moved while the oven

is hot, use potholders. Do not let the potholders come in contact with the

hot heating element in the oven.

Do not allow aluminum foil or a meat probe to contact the heating

elements.

During use the appliance becomes hot.

Care should be taken to avoid touching heating elements inside the oven.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the

oven door glass since they can scratch the surface, which may result in

shattering of the glass.

7 Important safety instructions

NE595ROABSR_AA_DG68-00433A-02_EN.indd 7 30/10/2012 15:03:29

SELF-CLEANING OVENS

Do not clean the door gasket. The door gasket is essential for a good

seal. Care should be taken not to rub, damage, or move the gasket.

[_ Never keep pet birds in the kitchen. Birds are extremely sensitive

to the fumes released during an oven self-clean cycle. Fumes may be

harmful or fatal to birds. Move birds to a well-ventilated room.

Clean only the parts listed in this manual in the self=clean cycle.

Before self-cleaning the oven, remove the partition, rack, utensils, and

food.

Do not use any commercial oven cleaner or oven liner protective coating

of any kind in or on the outside of the oven. Use only a ceramic cooktop

cleaner or the cleaner supplied with this appliance to clean the glass

cooktop.

Remove the nickel oven shelves from the oven before you begin the self-

cleaning cycle, or they may discolor.

Ifthe self-clean mode malfunctions, turn the oven off and disconnect the

power supply. Have it serviced by a qualified technician.

Excess spillage must be removed before cleaning and shall specify which

utensils can be left in the oven during cleaning.

VENTILATING HOOD

Clean ventilating hoods frequently. Do not let grease accumulate on

the hood or filter.

When flaming foods under the hood, turn the fan on.

GLASS/CERAMIC COOKING SURFACES

QDO NOT TOUCH SURFACE UNITS OR AREAS NEAR UNITS.

Surface units may be hot even though they are dark in color. Areas near

surface units may become hot enough to cause burns. During and after

use, do not touch, or let clothing or other flammable materials contact the

surface units or areas near the units until they have had sufficient time to

cool. Among these areas are the cook-top and the facing of the cook-top.

Do not cook on a broken cooktop. If the cooktop should break,

cleaning solutions and spillovers may penetrate the broken cook-top and

create a risk of electric shock. Contact a qualified technician immediately.

NE595ROABSR_AA_DG68-00433A-02_EN.indd 8

Hmportant safety instructons 8

30/10/2012 15:03:29

Clean the cooktop with caution. If a wet sponge or cloth is used to

wipe spills on a hot cooking area, be careful to avoid steam burns. Some

cleaners can produce noxious fumes ifapplied to a hot surface.

BEFORE YOU BEGIN

Clean the oven thoroughly before using for the first time. Remove

the accessories and operate the oven at the bake setting of 400 °F for 1

hour before using. There will be a distinctive odor. This is normal. Ensure

your kitchen is well ventilated during this conditioning period.

v, oCRITICAL INSTALLATIONWARNINGS

This appliance must be installed by a qualified technician or service company.

Failing to have a qualified technician install the range may result in electric

shock, fire, an explosion, problems with the product, or injury.

Unpack the oven, remove all packaging material and examine the oven for

any damage such as dents on the interior or exterior of the oven, broken door

latches, cracks in the door, or a door that is not lined up correctly. If there is any

damage, do not operate the oven and notify your dealer immediately.

Plug the power cord into a properly grounded outlet with the proper

configuration. Your oven should be the only item connected to this circuit.

Keep all packaging materials out of the reach of children. Children may use them

for play and injure themselves.

Install your appliance on a level and hard floor that can support its weight.

Failing to do so may result in abnormal vibrations, noise, or problems with the

product.

This appliance must be properly grounded.

Do not ground the appliance to a gas pipe, plastic water pipe, or telephone line.

This may result in electric shock, fire, an explosion, or problems with the

product

Do not cut or remove the ground prong from the power cord under any

circumstances.

Connect the oven to a circuit that provides the correct amperage.

9 Hmportant safety instructions

NE595ROABSR_AA_DG68-OO433A-O2_EN.indd 9 30/10/2012 15:03:29

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Rango de Samsung

Samsung

Samsung NX58H9500W Series Manual de usuario

Samsung

Samsung NE58K9850 Series Manual de usuario

Samsung

Samsung NE59 751 Series Manual de usuario

Samsung

Samsung NX58M9420SS Series Manual de usuario

Samsung

Samsung NE63 Series Manual de usuario

Samsung

Samsung NE58F9710WS/AA Manual de usuario

Samsung

Samsung NE59M4320 Series Manual de usuario

Samsung

Samsung NE63A6751S-02 Series Manual de usuario

Samsung

Samsung NX58 942 Series Manual de usuario

Samsung

Samsung NE59K3321 SERIES Manual de usuario

Samsung

Samsung NE59J7850 series Manual de usuario

Samsung

Samsung NE595R0ABWW Manual de usuario

Samsung

Samsung FTQ387 Series Manual de usuario

Samsung

Samsung NE63-6515S Series Manual de usuario

Samsung

Samsung NX60 85 S Series Manual de usuario

Samsung

Samsung NE58K9850 Series Manual de usuario

Samsung

Samsung NE59N6630S Series Manual de usuario

Samsung

Samsung NE59T7511SS Manual de usuario

Samsung

Samsung NE59N6630SG Manual de usuario

Samsung

Samsung NE63 821 Series Manual de usuario

Samsung

Samsung NE63T8311SG Manual de usuario

Samsung

Samsung NE63CB831512AA Manual de usuario

Samsung

Samsung NE58K9850WG Manual de usuario

Samsung

Samsung NE58K9430 SERIES Manual de usuario

Manuales populares de Rango de otras marcas

Kenmore

Kenmore 790.45712 Manual de usuario

Wolf

Wolf CHR CHSSR Manual de usuario

Smeg

Smeg Built-in Microwave Oven Manual de instrucciones

Zanussi

Zanussi ZCG054G Manual de usuario

Whirlpool

Whirlpool 8575985-W Manual de lista de piezas

Frigidaire

Frigidaire 316000635 Manual de usuario

GE JCSS630 Manual de usuario

Hotpoint

Hotpoint RB524R Guía de instalación

Whirlpool

Whirlpool Roper FGP305KW3 Manual de usuario

Amana

Amana ART6610 SERIES Manual de usuario

Maytag

Maytag MERH770WB Manual de usuario

Fulgor Milano

Fulgor Milano SOFIA Manual de usuario

Premier

Premier EF-4358GH Manual de usuario

Kenmore

Kenmore 790.9010 Series Manual de usuario

KitchenAid

KitchenAid KESC300 Manual de usuario

Frigidaire

Frigidaire FFEF3012LS Guía del usuario

Diamond

Diamond G65/2F4T Manual de usuario

LG LRE3091 Manual de usuario
