Samsung SyncMaster 2253BW, 2253LW Manual de usuario

LCD MONITOR

quick start guide

SyncMaster 2253BW, 2253LW

Introduction

Package Contents

Note

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Unpacking

Monitor

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord DVI Cable (option)

Others

Cleaning Cloth

Note

This is only provided for highly polished black products as a product feature.

Your Monitor

Initial Settings

Select the language using the up or down key.

The displayed content will disappear after 40 seconds.

Turn the Power button off and on. It will be displayed again.

It can be displayed up to three (3) times. Make sure to adjust the resolution of your PC before reaching

the maximum count.

Note

The resolution displayed on the screen is the optimal resolution for this product.

Adjust your PC resolution so that it is the same as the optimal resolution for this product.

Front

MENU button [MENU/ ]

Opens the on-screen menu and exits from the menu. Also use to exit the OSD menu

or return to the previous menu.

Customized Key[ ]

You can customize key assignment for the Custom button according to your pref-

erences.

Introduction

Note

You can configure the customized key for a required function via Setup > Cus-

tomized Key.

Brightness button [ ]

When OSD is not on the screen, push the button to adjust brightness.

>> Click here to see an animation clip

Adjust buttons [ ]

These buttons allow you to adjust items in the menu.

Enter button [ ] / SOURCE button

Activates a highlighted menu item.

Push the ' /SOURCE', then selects the video signal while the OSD is off. (When

the /SOURCE button is pressed to change the input mode, a message appears

in the upper left of the screen displaying the current mode -- analog or digital input

signal.)

Note

If you select the digital mode, you must connect your monitor to the graphic card's

DVI port using the DVI cable.

>> Click here to see an animation clip

AUTO button

Use this button for auto adjustment.

>> Click here to see an animation clip

Power button [ ]

Use this button for turning the monitor on and off.

Rear

Note

The configuration at the back of the monitor may vary from product to product.

POWER port

Introduction

Connect the power cord for your monitor to the POWER port on the back of the

monitor.

DVI IN port

Connect the DVI Cable to the DVI IN port on the back of your monitor.

RGB IN port

Connect the D-sub cable to the 15-pin, RGB IN port on the back of your monitor.

Kensington Lock

The Kensington lock is a device used to physically fix the system when using it in a

public place. (The locking device has to be purchased separately.) For using a locking

device, contact where you purchase it.

Note

See Connecting Cables for further information regarding cable connections.

Introduction

Connections

Connecting Cables

Connect the power cord for your monitor to the power port on the back of the monitor.

Plug the power cord for the monitor into a nearby outlet.

Use a connection appropriate for your computer.

Using the D-sub (Analog) connector on the video card.

• Connect the signal cable to the 15-pin, D-sub port on the back of your monitor.

[RGB IN]

Using the DVI (Digital) connector on the video card.

• Connect the DVI Cable to the DVI IN Port on the back of your Monitor.

[DVI IN]

Connected to a Macintosh.

• Connect the monitor to the Macintosh computer using the D-sub connection cable.

Note

If the monitor and the computer are connected, you can turn them on and use them.

Using the Stand

Monitor Assembly

Monitor and Bottom

Attaching a Base

This monitor accepts a 100 mm x 100 mm VESA-compliant mounting interface pad.

A. Monitor

B. Mounting interface pad (Sold separately)

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the screen.

3. Remove the stand.

4. Align the mounting interface pad with the holes in the rear cover mounting pad and secure it with

four screws that came with the arm-type base, wall mount hanger or other base.

• Do not use screws longer than the standard dimension, as they may damage the

inside of the Monitor.

• For wall mounts that do not comply with VESA standard screw specifications,

the length of the screws may differ depending on their specifications.

• Do not use screws that do not comply with the VESA standard screw specifica-

tions.

Do not fasten the screws too tightly, as this may damage the product or cause the

product to fall, leading to personal injury.

Samsung is not liable for these kinds of accidents.

• Samsung is not liable for product damage or personal injury when a non-VESA

or non-specified wall mount is used or the consumer fails to follow the product

installation instructions.

• To mount the monitor on a wall, you should purchase the wall mounting kit that

allows you to mount the monitor at least 10 cm away from the wall surface.

• Contact the nearest Samsung Service Center for more information. Samsung

Electronics will not be responsible for damages caused by using a base other than

those specified.

• Please use Wall Mount according to the International standards.

Connections

Troubleshooting

Self-Test Feature Check

Note

Your monitor provides a self test feature that allows you to check whether your monitor is functioning

properly.

Self-Test Feature Check

1. Turn off both your computer and the monitor.

2. Unplug the video cable from the back of the computer.

3. Turn on the monitor.

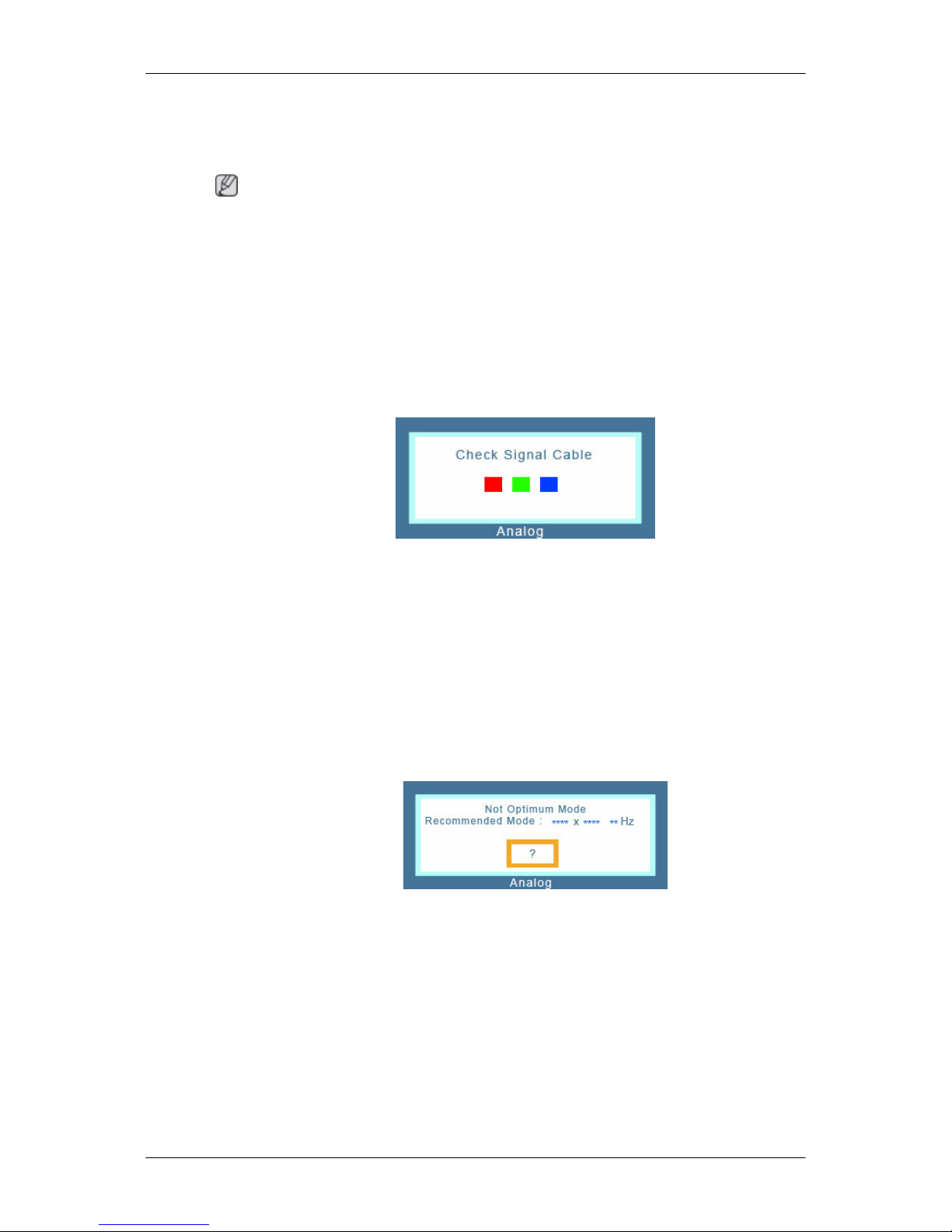

If the monitor is functioning properly, you will see a box in the illustration below.

This box appears during normal operation if the video cable becomes disconnected or damaged.

4. Turn off your monitor and reconnect the video cable; then turn on both your computer and the

monitor.

If your monitor screen remains blank after using the previous procedure, check your video controller

and computer system; your monitor is functioning properly.

Warning Messages

If there is something wrong with the input signal, a message appears on the screen or the screen goes

blank although the power indicator LED is still on. The message may indicate that the monitor is out

of scan range or that you need to check the signal cable.

Environment

The location and the position of the monitor may influence the quality and other features of the monitor.

If there are any sub woofer speakers near the monitor, unplug and relocate the woofer to another room.

Remove all electronic devices such as radios, fans, clocks and telephones that are within 3 feet (one

meter) of the monitor.

Useful Tips

A monitor recreates visual signals received from the computer. Therefore, if there is a problem with

the computer or the video card, this can cause the monitor to become blank, have poor coloring, become

noisy, and video mode not supported, etc. In this case, first check the source of the problem, and then

contact the Service Center or your dealer.

Judging the monitor's working condition

If there is no image on the screen or a "Not Optimum Mode", "Recommended Mode 1680 x 1050

60 Hz" message comes up, disconnect the cable from the computer while the monitor is still powered

on.

If there is a message coming up on the screen or if the screen goes white, this means the monitor is in

working condition.

In this case, check the computer for trouble.

Check List

Note

Before calling for assistance, check the information in this section to see if you can remedy any prob-

lems yourself. If you do need assistance, please call the phone number on the Information section or

contact your dealer.

No images on the screen. I cannot turn on the monitor.

Q: Is the power cord connected properly?

A: Check the power cord connection and supply.

Q: Can you see "Check Signal Cable" on the screen?

A: (Connected using the D-sub cable)

Check the signal cable connection.

(Connected using the DVI cable)

If you still see an error message on the screen when the monitor is connected properly, check to

see if the monitor status is set to analog.

If you still see an (error) message on the screen when the monitor is connected properly, check

to see if the monitor status is set to analog. Press ‘ /SOURCE’ button to have the monitor

double-check the input signal source.

Q: If the power is on, reboot the computer to see the initial screen (the login screen), which can be

seen.

A: If the initial screen (the login screen) appears, boot the computer in the applicable mode (the

safe mode for Windows ME/XP/2000) and then change the frequency of the video card.

(Refer to the Preset Timing Modes)

If the initial screen (the login screen) does not appear, contact the Service Center or your deal-

er.

Q: Can you see "Not Optimum Mode", "Recommended Mode 1680 x 1050 60 Hz" on the screen?

A: You can see this message when the signal from the video card exceeds the maximum resolution

and frequency that the monitor can handle properly.

A: Adjust the maximum resolution and frequency that the monitor can handle properly.

Troubleshooting

A: If the display exceeds SXGA or 75 Hz, a "Not Optimum Mode", "Recommended Mode 1680

x 1050 60 Hz" message is displayed. If the display exceeds 85 Hz, the display will work properly

but the "Not Optimum Mode", "Recommended Mode 1680 x 1050 60 Hz" message appears

for one minute and then disappears.

Please change to the recommended mode during this one-minute period.

(The message is displayed again if the system is rebooted.)

Q: There is no image on the screen. Is the power indicator on the monitor blinking at 1 second

intervals?

A: The monitor is in PowerSaver mode.

A: Press a key on the keyboard to activate the monitor and restore the image on the screen.

A: If there is still no image, press the ' /SOURCE' button. Then press any key on the keyboard

again to activate the monitor and restore the image on the screen.

Q: Connected using the DVI cable?

A: You may get a blank screen if you boot the system before you connect the DVI cable, or dis-

connect and then reconnect the DVI cable while the system is running as certain types of graphic

cards do not send out video signals. Connect the DVI cable and then reboot the system.

I cannot see the On Screen Display.

Q: Have you locked the On Screen Display (OSD) Menu to prevent changes?

A: Unlock the OSD by pressing the [MENU/ ] button for at least 5 seconds.

The screen shows strange colors or just black and white.

Q: Is the screen displaying only one color as if looking at the screen through a cellophane paper?

A: Check the signal cable connection.

A: Make sure the video card is fully inserted in its slot.

Q: Have the screen colors become strange after running a program or due to a crash between ap-

plications?

A: Reboot the computer.

Q: Has the video card been set properly?

A: Set the video card by referring to the video card manual.

The screen suddenly has become unbalanced.

Q: Have you changed the video card or the driver?

A: Adjust screen image position and size using the OSD.

Q: Have you adjusted the resolution or frequency to the monitor?

A: Adjust the resolution and frequency at the video card.

(Refer to the Preset Timing Modes).

Troubleshooting

Otros manuales para SyncMaster 2253BW, 2253LW

Este manual sirve para los siguientes modelos

Tabla de contenidos

Otros manuales de Monitor de Samsung

Samsung

Samsung SyncMaster 460DMn Manual de usuario

Samsung

Samsung DM82D Manual de usuario

Samsung

Samsung SyncMaster 400UXn-UD Manual de usuario

Samsung

Samsung U28D590D Manual de usuario

Samsung

Samsung SyncMaster P50FP Guía del usuario

Samsung

Samsung SyncMaster T24A350 Guía

Samsung

Samsung S24C650PL Manual de usuario

Samsung

Samsung 920NW - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung LH015I SERIES Manual de usuario

Samsung

Samsung DP15HS Manual de usuario

Samsung

Samsung 940MW - SyncMaster - 19" LCD Monitor Manual de usuario

Samsung

Samsung NK15N Series Manual de usuario

Samsung

Samsung FS5515-5001-01 Manual de usuario

Samsung

Samsung HP-S4253 Manual de usuario

Samsung

Samsung PPM50M7HB - Plamsa HD Display Guía de configuración

Samsung

Samsung SMC-211FN Manual de usuario

Samsung

Samsung SyncMaster FX2490HD Guía del usuario

Samsung

Samsung 214T - SyncMaster - 21.3" LCD Monitor Manual de usuario

Samsung

Samsung STM-17LV Manual de usuario

Samsung

Samsung PANTALLA PDP PROFESSIONAL PPM42M6H Manual de usuario

Samsung

Samsung 151MP - SyncMaster 151 MP Manual de usuario

Samsung

Samsung S24A600UCE Manual de usuario

Samsung

Samsung SyncMaster 2033HD Manual de usuario

Samsung

Samsung 320MXn-2 - SyncMaster - 32" LCD Flat Panel... Manual de usuario

Manuales populares de Monitor de otras marcas

Linear Acoustic

Linear Acoustic LQ-1000 Manual de usuario

AOC

AOC I2579V Manual de usuario

Gateway

Gateway FPD1520 Manual de usuario

Furuno

Furuno Mu 120c Manual de usuario

Asus

Asus VB171D - 17" LCD Monitor Manual de usuario

Dell

Dell S2230MX Instrucciones de uso

Philips

Philips 107C64 Manual de usuario

Dell

Dell S2409WFP Manual de usuario

EverFocus

EverFocus EN-7517E Manual de usuario

Panasonic

Panasonic TH152UX1 - 152" PLASMA TV Manual de usuario

Dell

Dell Precision 7680 Manual de instrucciones

LG 50PM1M - - 50" Plasma Panel Manual de usuario

Bosch

Bosch DDU 9 Manual de usuario

Acer

Acer A231HL Manual de usuario

Philips

Philips 86BDL4152T Manual de usuario

NEC

NEC AccuSync LCD5V Manual de usuario

Emay

Emay SleepO2 Manual de usuario

IBM

IBM 6360 Instrucciones de instalación
