Samsung SyncMaster 320MX-2 Manual de usuario

LCD DISPLAY

quick start guide

320MX-2, 320MXn-2

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

This stand is not for the Floor Standing Type.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

Power Cord

Others

Remote Control Batteries (AAA X 2) HDD Cover

Others

(Not available in all loca-

tions)

Sold separately

D-Sub Cable DVI Cable LAN Cable

(Applicable to the MXn-2

model only)

Wall Mount KIT TV tuner box NetWork Box

(Applicable to the MX-2

model only)

Semi Stand KIT

Note

•You can purchase and connect a separate network box or TV tuner box. For information

on how to use these, refer to their respective user manuals.

• You can only connect one external box.

Introduction

Your LCD Display

Front

MENU button [MENU]

Opens the on-screen menu and exits from the menu. Also use to exit the

OSD menu or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu

values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected

menu values. When OSD is not on the screen, push the button to adjust

volume.

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Changing the source is only al-

lowed for external devices that are connected to the LCD Display at the

time.

[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo] → [TV]

Note

•The TV menu is available when a TV tuner box is installed.

• MX-2 model can use MagicInfo menu when mounted Network box.

D.MENU

Opens the on-screen D.MENU.

Note

•This is available when a TV tuner box is installed.

Introduction

Power button [ ]

Use this button for turning the LCD Display on and off.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding

power saving functions. For energy conservation, turn your LCD Display

OFF when it is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

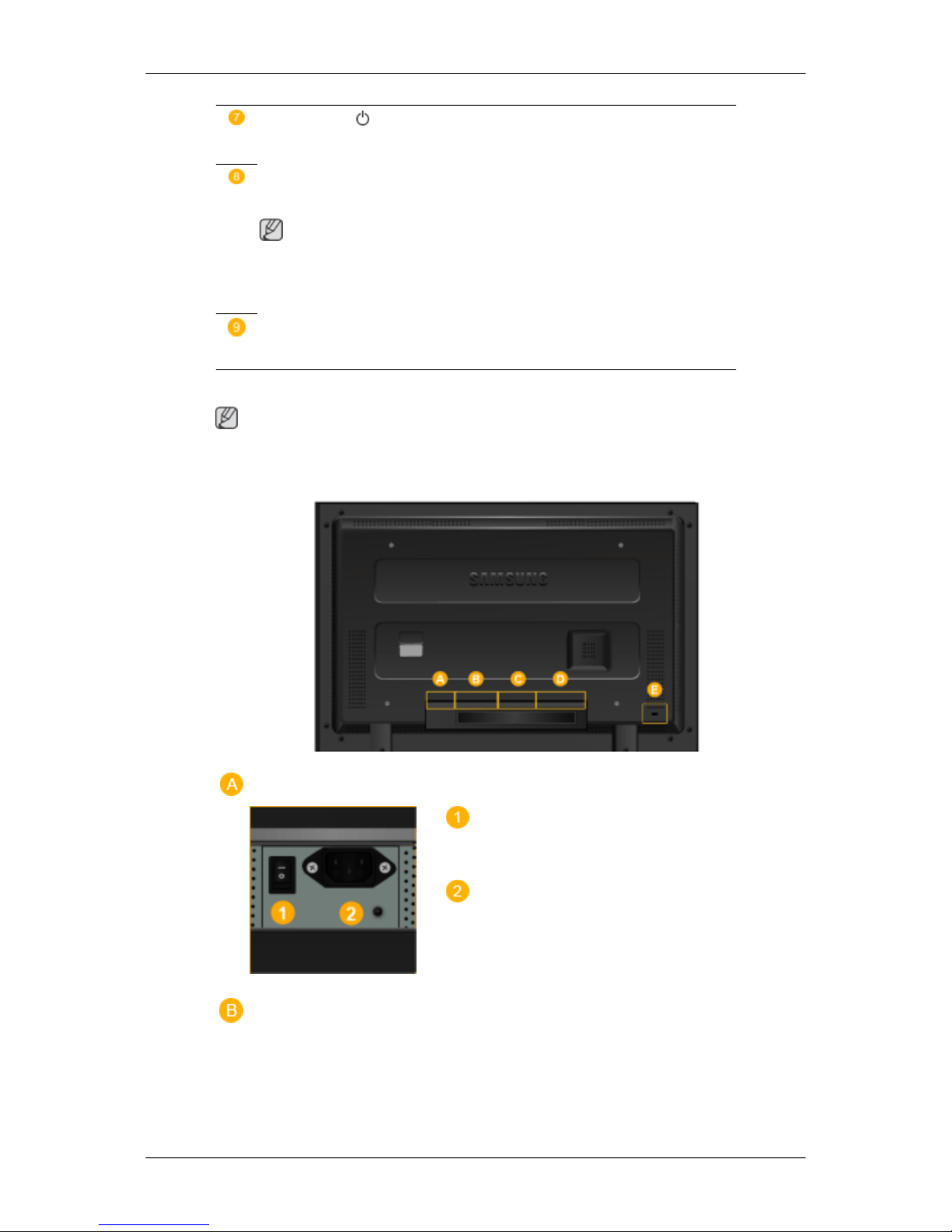

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under

Setup. The LCD Display 's configuration at the back may vary slightly depending on the LCD

Display model.

POWER S/W ON [

│

] / OFF [O]

Switches the LCD Display On/Off.

POWER IN

The power cord plugs into the LCD Display

and the wall plug.

Introduction

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

DVI / PC / HDMI IN [DVI/PC/HDMI AU-

DIO IN] (PC/DVI/HDMI Audio Connection

Terminal (Input))

DVI / PC / HDMI IN [HDMI]

Connect the HDMI terminal at the back of

your LCD Display to the HDMI terminal of

your digital output device using a HDMI ca-

ble.

DVI / PC / HDMI IN [RGB](PC Video

Connection Terminal)

Using a D-Sub Cable (15 pin D-Sub) - PC

mode (Analog PC)

DVI / PC / HDMI IN [DVI] (PC Video Con-

nection Terminal)

Using a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

DC OUT [5V/1.5A]

Connect this to the power connector of a TV

tuner box or network box.

AV IN [VIDEO] (VIDEO Connection Ter-

minal)

Connect the [ VIDEO ] terminal of your LCD

Display to the video output terminal of the

external device using a VIDEO cable.

AV AUDIO IN [L-AUDIO-R](LCD Display

Audio Connection Terminal (Input))

AV AUDIO OUT [L-AUDIO-R] (LCD Dis-

play Audio Connection Terminal (Output))

Introduction

RGB OUT

(Applicable to the MXn-2 model only)

LAN (LAN Connection Terminal)

(Applicable to the MXn-2 model only)

USB(USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device

Compatible.

(Applicable to the MXn-2 model only)

Note

The number of LCD Displays that can be

connected to loopout may differ depending

on the cables, signal source etc. With cables

where there is no degradation or signal

source, up to ten LCD Displays can be con-

nected.

Kensington Lock

The Kensington Lock is a device used to

physically fix the system when using it in a

public place. The locking device has to be

purchased separately. The appearance and

locking method may differ from the illustra-

tion depending on the manufacturer. Refer to

the manual provided with the Kensington

Lock for proper use. The locking device has

to be purchased separately.

Note

The location of the Kensington Lock may be

different depending on its model.

Using the Anti-Theft Kensington Lock

1. Insert the locking device into the Ken-

sington slot on the LCD Display and

turn it in the locking direction .

2. Connect the Kensington Lock cable.

3. Fix the Kensington Lock to a desk or a

heavy stationary object.

Introduction

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device

operating near the LCD Display , causing a malfunction due to interference with the frequen-

cy.

POWER

OFF

Number Buttons

DEL button

+ VOL -

MUTE

TV/DTV

INFO

COLOR BUTTONS

TTX/MIX

STILL

AUTO

S.MODE

MDC

LOCK

SOURCE

ENTER/PRE-CH

CH/P

D.MENU

GUIDE

RETURN

Up-Down Left-Right buttons

EXIT

SRS

MagicInfo

P.MODE

DUAL/MTS

Introduction

PIP

SWAP

1. POWER Turns the product On.

2. Off Turns the product Off.

3. Number Buttons Press to change the channel.

4. DEL button

The "-" button operates only for DTV. It is used to select

MMS (multi-channel) for a DTV.

5. + VOL - Adjusts the audio volume.

6. MUTE Pauses (mutes) the audio output temporarily. This is dis-

played on the lower left corner of the screen. The audio

resumes if MUTE or - VOL + is pressed in the Mute mode.

7. TV/DTV Selects the TV and DTV mode directly.

8. MENU Opens the on-screen menu and exits from the menu or

closes the adjustment menu.

9. Activates a highlighted menu item.

10. INFO Current picture information is displayed on the upper left

corner of the screen.

11.COLOR BUTTONS Press to add or delete channels and to store channels to the

favorite channel list in the “Channel List” menu.

12. TTX/MIX TV channels provide written information services via tele-

text.

- Teletext Buttons

For more information > TTX / MIX

13.STILL Press the button once to freeze the screen. Press it again

to unfreeze.

14.AUTO Adjusts the screen display automatically in PC mode. By

changing the resolution in the control panel, auto function is

performed.

15. S.MODE When pressing this button, the current mode is displayed at

the bottom centre of the screen. The LCD Display has a

built-in high fidelity stereo amplifier. Then press the button

again to circle through available preconfigured modes.

( Standard → Music → Movie → Speech → Custom )

16.MDC MDC Quick Launch Button.

17.LOCK Activates or deactivates all function keys on both the remote

control and the LCD Display except for the Power and LOCK

buttons.

Introduction

18. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices

that are connected to the LCD Display at the time.

19. ENTER/PRE-CH This button is used to return to the immediately previous

channel.

20. CH/P In TV mode, selects TV channels.

21.D.MENU DTV menu display

22.GUIDE Electronic Program Guide (EPG) display.

23. RETURN Returns to the previous menu.

24. Up-Down Left-Right but-

tons

Moves from one menu item to another horizontally, vertically

or adjusts selected menu values.

25. EXIT Exits from the menu screen.

26. SRS Selects SRS TruSurround XT mode.

27.MagicInfo MagicInfo Quick Launch Button.

28. P.MODE When you press this button, current picture mode is dis-

played on the lower center of the screen.

AV / HDMI / TV : P.MODE

The LCD Display has four automatic picture settings that are

preset at the factory. Then push button again to circle

through available preconfigured modes. ( Dynamic →

Standard → Movie → Custom )

PC / DVI / MagicInfo: M/B (MagicBright)

MagicBright is a feature providing the optimum viewing en-

vironment depending on the contents of the image you are

watching. Then push button again to circle through available

preconfigured modes. (Entertain → Internet → Text → Cus-

tom )

29. DUAL/MTS

DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

broadcasting type by using the DUAL button on the remote

control while watching TV.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual

Change

Stereo Mono ↔ Stereo

Introduction
