LCD MONITOR

quick start guide

400MX(n) 460MX(n)

Introduction

Package Contents

Note

Please make sure the following items are included with your LCD Display.

If any items are missing, contact your dealer.

Contact a local dealer to buy optional items.

Note

This stand is not for the Floor Standing Type.

Unpacking

LCD Display

Manuals

Quick Setup Guide Warranty Card

(Not available in all loca-

tions)

User's Guide

Cables

D-Sub Cable Power Cord

Others

Remote Control Batteries (AAA X 2)

(Not available in all loca-

tions)

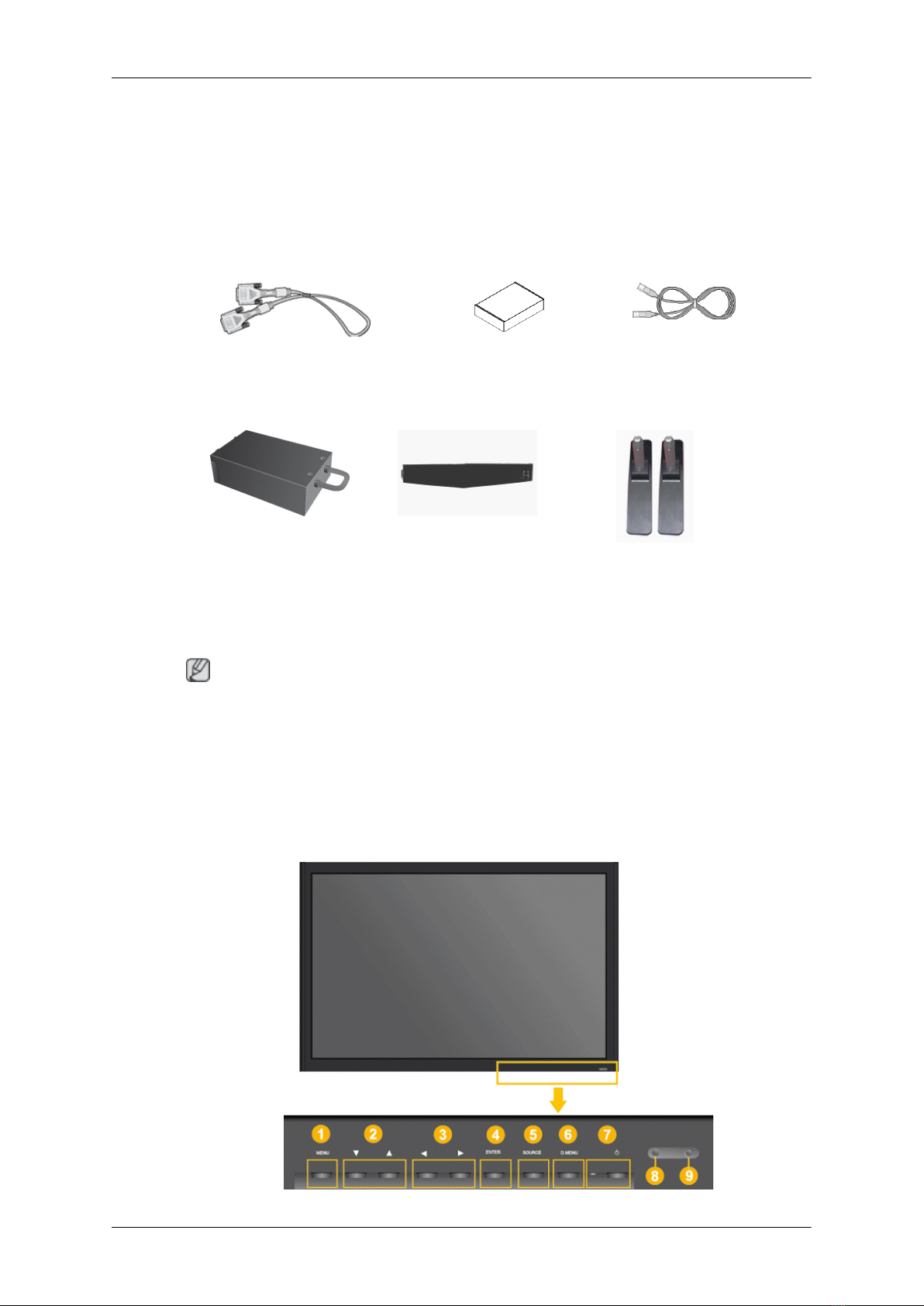

Sold separately

DVI Cable Wall Mount KIT LAN Cable

(Applicable to the MXn mod-

el only)

TV tuner box NetWork Box

(Applicable to the MX model

only)

Semi Stand KIT

Note

•You can purchase and connect a separate network box or TV tuner box. For information on how

to use these, refer to their respective user manuals.

• You can only connect one external box.

Your LCD Display

Front

Introduction

MENU button [MENU]

Openstheon-screenmenuandexitsfromthemenu.AlsousetoexittheOSDmenu

or return to the previous menu.

Navigate buttons (Up-Down buttons)

Moves from one menu item to another vertically or adjusts selected menu values.

Adjust buttons (Left-Right buttons) / Volume buttons

Moves from one menu item to another horizontally or adjusts selected menu val-

ues. When OSD is not on the screen, push the button to adjust volume.

ENTER button [ENTER]

Activates a highlighted menu item.

SOURCE button [SOURCE]

Switches from PC mode to Video mode. Changing the source is only allowed for

external devices that are connected to the LCD Display at the time.

[PC] → [DVI] → [AV] → [HDMI] → [MagicInfo] → [TV]

Note

• The TV menu is available when a TV tuner box is installed.

•The MagicInfo menu is available when a network box is installed in the MXn

or MX model.

D.MENU

Opens the on-screen D.MENU.

Note

• This is available when a TV tuner box is installed.

Power button [ ]

Use this button for turning the LCD Display on and off.

Power indicator

Shows PowerSaver mode by blinking green

Note

See PowerSaver described in the manual for further information regarding power

saving functions. For energy conservation, turn your LCD Display OFF when it

is not needed or when leaving it unattended for long periods.

Remote Control Sensor

Aim the remote control towards this spot on the LCD Display.

Rear

Note

For detailed information concerning cable connections, refer to Connecting Cables under Setup. The

LCD Display 's configuration at the back may vary slightly depending on the LCD Display model.

Introduction

POWER S/W ON [

│

] / OFF [O]

Switches the LCD Display On/Off.

POWER IN

The power cord plugs into the LCD Display and

the wall plug.

RS232C OUT/IN (RS232C Serial PORT)

MDC(Multiple Display Control) Program Port

DVI/PC/HDMIIN[DVI/PC/HDMIAUDIO

IN] (PC/DVI/HDMI Audio Connection Terminal

(Input))

DVI / PC / HDMI IN [HDMI]

Connect the HDMI terminal at the back of your

LCD Display to the HDMI terminal of your dig-

ital output device using a HDMI cable.

DVI / PC / HDMI IN [RGB](PC Video Con-

nection Terminal)

Using a D-Sub Cable (15 pin D-Sub) - PC mode

(Analog PC)

DVI / PC / HDMI IN [DVI] (PC Video Con-

nection Terminal)

Using a DVI Cable (DVI-D to DVI-D) - DVI

mode (Digital PC)

Introduction

DC OUT [5V/1.5A]

Connect this to the POWER connector of a TV

tuner box or network box.

AV IN [VIDEO] (VIDEO Connection Termi-

nal)

Connect the [ VIDEO ] terminal of your monitor

tothe video output terminal of the external device

using a VIDEO cable.

AV AUDIO IN [L-AUDIO-R](LCD Display

Audio Connection Terminal (Input))

AV AUDIO OUT [L-AUDIO-R] (LCD Dis-

play Audio Connection Terminal (Output))

RGB OUT

(Applicable to the MXn model only)

LAN (LAN Connection Terminal)

(Applicable to the MXn model only)

USB(USB Connection Terminal)

Keyboard / Mouse, Mass Storage Device Com-

patible.

(Applicable to the MXn model only)

Note

The number of LCD Displays that can be con-

nected to loopout may differ depending on the

cables, signal source etc. With cables where there

is no degradation or signal source, up to ten LCD

Displays can be connected.

Introduction

Kensington Lock

The Kensington Lock is a device used to physi-

cally fix the system when using it in a public

place. The locking device has to be purchased

separately. The appearance and locking method

may differ from the illustration depending on the

manufacturer. Refer to the manual provided with

the Kensington Lock for proper use. The locking

device has to be purchased separately.

Note

The location of the Kensington Lock may be dif-

ferent depending on its model.

Using the Anti-Theft Kensington Lock

1. InsertthelockingdeviceintotheKensington

slot on the Monitor and turn it in the

locking direction .

2. Connect the Kensington Lock cable.

3. FixtheKensingtonLockto a desk or aheavy

stationary object.

Note

See Connecting Cables for further information regarding cable connections.

Remote Control

Note

The performance of the remote control may be affected by a TV or other electronic device operating

near the LCD Display , causing a malfunction due to interference with the frequency.

Introduction

POWER

OFF

Number Buttons

DEL button

+ VOL -

MUTE

TV/DTV

INFO

COLOR BUTTONS

TTX/MIX

STILL

AUTO

S.MODE

MDC

LOCK

SOURCE

ENTER/PRE-CH

CH/P

D.MENU

GUIDE

RETURN

Up-Down Left-Right buttons

EXIT

SRS

MagicInfo

P.MODE

DUAL/MTS

PIP

SWAP

1. POWER Turns the product On.

2. Off Turns the product Off.

3. Number Buttons Press to change the channel.

Introduction

4. DEL button The "-" button operates only for DTV. It is used to select MMS

(multi-channel) for a DTV.

5. + VOL - Adjusts the audio volume.

6. MUTE Pauses (mutes) the audio output temporarily. This is displayed on

the lower left corner of the screen. The audio resumes if MUTE

or - VOL + is pressed in the Mute mode.

7. TV/DTV Selects the TV and DTV mode directly.

8. MENU Opens the on-screen menu and exits from the menu or closes the

adjustment menu.

9. Activates a highlighted menu item.

10. INFO Current picture information is displayed on the upper left corner

of the screen.

11.COLOR BUTTONS Presstoadd or delete channelsand to store channelsto the favorite

channel list in the “Channel List” menu.

12. TTX/MIX TV channels provide written information services via teletext.

- Teletext Buttons

For more information > TTX / MIX

13.STILL Press the button once to freeze the screen. Press it again to un-

freeze.

14.AUTO AdjuststhescreendisplayautomaticallyinPCmode.Bychanging

the resolution in the control panel, auto function is performed.

15. S.MODE When pressing this button, the current mode is displayed at the

bottom centre of the screen. The LCD Display has a built-in high

fidelity stereo amplifier. Then press the button again to circle

through available preconfigured modes. ( Standard → Music →

Movie → Speech → Custom )

16.MDC MDC Quick Launch Button.

17.LOCK Activates or deactivates all function keys on both the remote con-

trolandtheLCDDisplayexceptforthe Power and LOCK buttons.

18. SOURCE Press the button to change the input signal SOURCE.

Changing the SOURCE is only allowed for external devices that

are connected to the monitor at the time.

19. ENTER/PRE-CH This button is used to return to the immediately previous channel.

20. CH/P In TV mode, selects TV channels.

21.D.MENU DTV menu display

22.GUIDE Electronic Program Guide (EPG) display.

23. RETURN Returns to the previous menu.

Introduction

24. Up-Down Left-Right but-

tons Moves from one menu item to another horizontally, vertically or

adjusts selected menu values.

25. EXIT Exits from the menu screen.

26. SRS SRS TS XT

27.MagicInfo MagicInfo Quick Launch Button.

28. P.MODE When you press this button, current picture mode is displayed on

the lower center of the screen.

AV / HDMI / TV : P.MODE

The LCD Display has four automatic picture settings that are pre-

set at the factory. Then push button again to circle through avail-

able preconfigured modes. ( Dynamic → Standard → Movie

→ Custom )

PC / DVI / MagicInfo: M/B (MagicBright)

MagicBright is a feature providing the optimum viewing envi-

ronmentdependingon the contents of theimage you are watching.

Then push button again to circle through available preconfigured

modes. (Entertain → Internet → Text → Custom )

29. DUAL/MTS DUAL-

STEREO/MONO, DUAL l / DUAL ll and MONO/NICAM

MONO/NICAM STEREO can be operated depending on the

broadcastingtypebyusingtheDUALbuttonontheremotecontrol

while watching TV.

MTS-

You can select MTS (Multichannel Television Stereo) mode.

Audio Type MTS/S_Mode Default

FM Stereo Mono Mono Manual Change

Stereo Mono ↔Stereo

SAP Mono ↔SAP Mono

30. PIP Every time you press the button, a PIP screen appears.

- This fuction does not work for this LCD Display.

31.SWAP Swaps the contents of the PIP and main image. The image in the

PIP window will appear on the main screen, and the main screen

image will appear in the PIP window.

- This fuction does not work for this LCD Display.

Mechanical Layout (400MX, 400MXn)

Mechanical Layout

Introduction
