Samsung QB24R-B Manual de usuario

Samsung owns the copyright for this manual. Use or reproduction of this manual in parts or entirety without the authorization of Samsung is prohibited. Trademarks other than Samsung are property of their respective owners.

QBR (QB13R QB13R-T QB24R QB24R-B QB24R-T QB24R-TB)

The colour and the appearance may differ depending on the product, and the content in the

manual is subject to change without prior notice to improve the performance.

Recommended hours of use per day of this product is under16 hours.

If the product is used for longer than 16 hours a day, the warranty may be void.

An administration fee may be charged in the following situations:

(a) An engineer is called out at your request, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

(b) You bring the unit to a repair centre, but it is found that the product has no defect (i.e.,

where the user manual has not been read).

You will be informed of the administration fee amount before a technician visits.

Smart Signage User Manual (By Model)

This manual provides information about your Smart Signage including supported types and product specications per model.

Table of contents

Preparations

Checking the Components 3

Using the STAND-BAR (Supported models:

QB13R, QB13R-T) 4

Parts 5

QB13R/QB13R-T 5

QB24R/QB24R-B/QB24R-T/QB24R-TB 6

Anti-theft Lock 7

Ports 8

QB13R 8

QB13R-T 9

QB24R/QB24R-B 10

QB24R-T/QB24R-TB 11

Control menu 12

Administrator menu (Supported models:

QB13R-T, QB24R-T, QB24R-TB) 13

Safety Precautions 14

Electricity and Safety (Supported models:

QB13R, QB13R-T) 14

Before Installing the Product (Installation

Guide) 15

Tilting Angle and Rotation 15

Ventilation 15

Enclosure guide (Supported models: QB13R,

QB13R-T) 16

Installing the Wall Mount 17

Wall Mount Kit Specifications (VESA) 17

Using a touchscreen monitor

(Supported models: QB13R-T,

QB24R-T, QB24R-TB)

Touchscreen monitor 18

Read below before using the product 18

Requirements 19

Connecting the touchscreen monitor 20

Connecting to a PC 20

Connecting to a laptop or tablet PC 20

Configuring the touchscreen monitor

settings 21

Calibration 21

Controlling the screen 23

Touchscreen gestures 23

Notes 24

Specifications

General 25

Preset Timing Modes 27

Appendix

Licence 28

Preparations

Chapter 01

"Contact the vendor where you

purchased the product if any

components are missing.

"The appearance of the components

may differfrom the images shown.

"The RS232C adapter can be used for

MDC using the D-SUB (9-pin) type

RS232C cable.

Checking the Components

Quick Setup Guide Warranty card

(Not available in some locations) Regulatory guide Power cord

AC/DC adapter

(Supported models: QB13R,

QB13R-T)

Batteries (AAA x 2)

(Not available in some locations) Remote Control RS232C adapter

STAND-BAR x 2

(Supported models: QB13R,

QB13R-T)

TOUCH OUT cable

(Supported models: QB13R-T,

QB24R-T, QB24R-TB)

Using the STAND-BAR (Supported models: QB13R, QB13R-T)

Place the product with the face down on top of the protective cloth or cushion.

Insert the bar into a slot on the product and then turn to fasten.

Parts

QB13R/QB13R-T

Remote sensor

Power button

Speaker

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Parts Description

Remote sensor

Press a button on the remote control pointing at the sensor on the front of the product

to perform the corresponding function.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

Power button

Turns the product on or off.

Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and

right.

"Store used batteries out of reach of children and recycle.

"Do not use a new and used battery together. Replace both batteries at the same time.

"Remove batteries when the remote control is not to be used for an extended period of time.

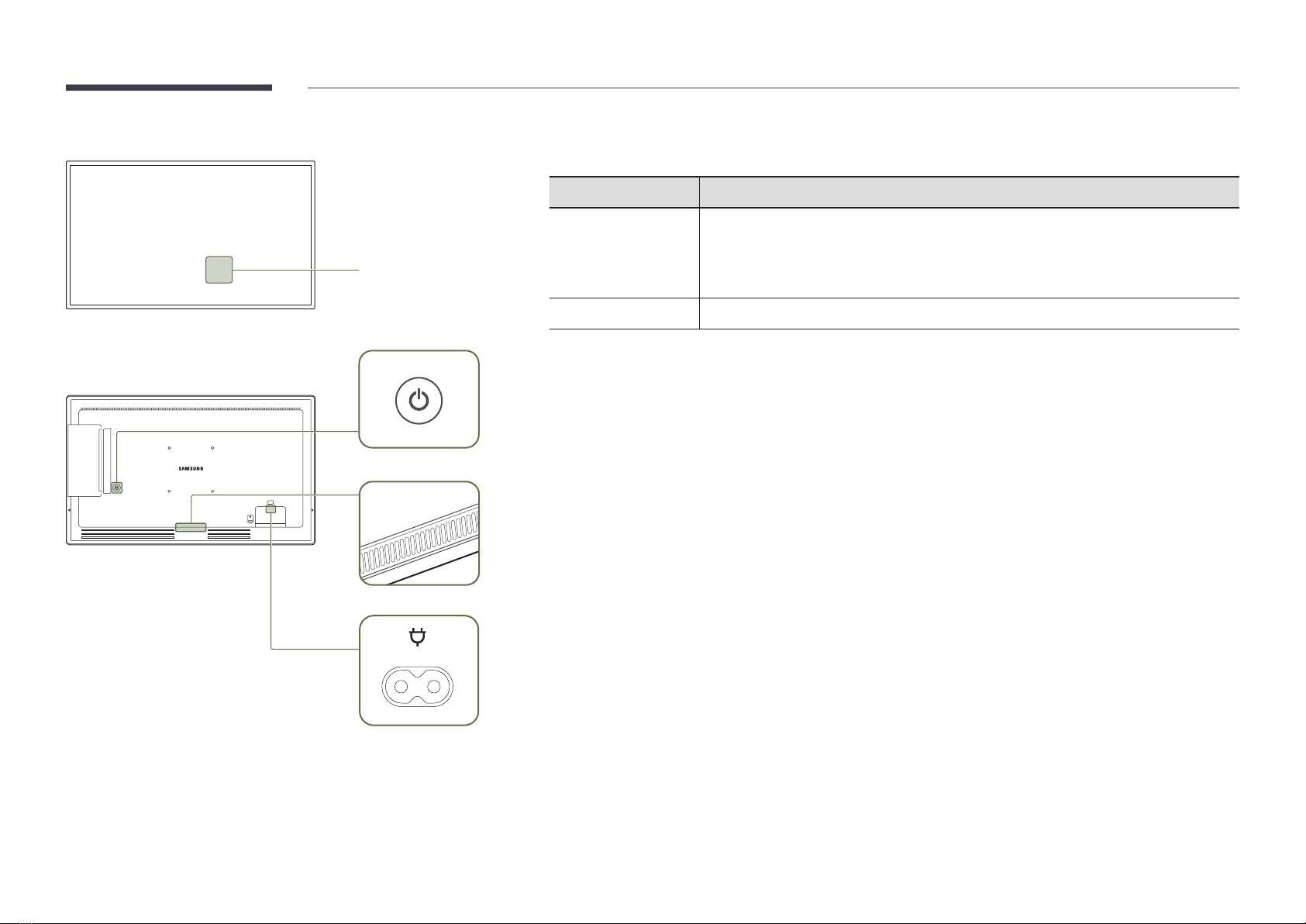

QB24R/QB24R-B/QB24R-T/QB24R-TB

Remote sensor

Power button

Speaker

"The colour and shape of parts may differ from what is shown. Specifications are subject to change without

notice to improve quality.

Parts Description

Remote sensor

Press a button on the remote control pointing at the sensor on the front of the product

to perform the corresponding function.

"Using other display devices in the same space as the remote control of this product

can cause the other display devices to be inadvertently controlled.

Power button

Turns the product on or off.

Use the remote control within 2.5 m to 4 m from the sensor on the product at an angle of 30° from the left and

right.

"Store used batteries out of reach of children and recycle.

"Do not use a new and used battery together. Replace both batteries at the same time.

"Remove batteries when the remote control is not to be used for an extended period of time.

Anti-theft Lock

"An anti-theft lock allows you to use the product securely even in public places.

"The locking device shape and locking method depend on the manufacturer. Refer to the user guide provided with your anti-theft locking device for details.

"The following images are for reference only. Real-life situations may differ from what is shown in the images.

To lock an anti-theft locking device:

Fix the cable of your anti-theft locking device to a heavy object such as a desk.

Put one end of the cable through the loop on the other end.

Insert the locking device into the anti-theft lock slot at the back of the product.

Lock the locking device.

– An anti-theft locking device can be purchased separately.

– Refer to the user guide provided with your anti-theft locking device for details.

– Anti-theft locking devices can be purchased at electronics retailers or online.

Ports

QB13R

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

AUDIO OUT

Outputs sound to an audio device via an audio cable.

RS232C IN

Connects to MDC using an RS232C adapter.

USB ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

HDMI IN

Connects to a source device using a HDMI cable or HDMI-DVI cable.

DC 14V

Connects to the AC/DC adapter.

QB13R-T

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

AUDIO OUT

Outputs sound to an audio device via an audio cable.

RS232C IN

Connects to MDC using an RS232C adapter.

USB ¨(1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

HDMI IN

Connects to a source device using a HDMI cable or HDMI-DVI cable.

TOUCH OUT

Connects to a PC using a TOUCH OUT cable to enable touch functions.

DC 14V

Connects to the AC/DC adapter.

QB24R/QB24R-B

"The colour and shape of parts may differ from what is shown.

Specifications are subject to change without notice to improve quality.

Port Description

RS232C

Connects to MDC using an RS232C adapter.

HDMI

Connects to a source device using a HDMI cable or HDMI-DVI cable.

RJ45

Connects to MDC and the Internet using a LAN cable. (10/100 Mbps)

"Use Cat7(*STP Type) cable for the connection.

*Shielded Twist Pair.

USB ¨(5V1.0A)

Connect to a USB memory device.

"The USB ports on the product accept a maximum constant current of 1.0A.

If the maximum value is exceeded, USB ports may not work.

Connects to an external IR cable that receives signals from the remote control.

Outputs sound to an audio device via an audio cable.

"Bluetooth is only available with QB24R, QB24R-B, QB24R-T, QB24R-TB models that contain the Bluetooth

function.
