User Manual

Power Zoom Camera

SCC-C4253P

SCC-C4353P

SCC-C4255P

SCC-C4355P

imagine the possibilities

Thanks you for purchasing this Samsung product.

To receive a more complete service, please visit

our website

www.samsungsecurity.com

SCC-C4255P-TRK-ENG.indd 1 2009-10-15 11:25:56

2_ overview

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of

electric shock is present within this unit.

This symbol indicates that there are important operating and

maintenance instructions in the literature accompanying this unit.

WARNING

To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or

moisture.

To prevent injury, this apparatus must be securely attached to the ﬂoor/wall in

accordance with the installation instructions.

WARNING

Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet.

Using any other adapter could cause ﬁre, electrical shock, or damage to the

product.

Incorrectly connecting the power supply or replacing battery may cause explosion,

ﬁre, electric shock, or damage to the product.

Do not connect multiple cameras to a single adapter. Exceeding the capacity may

cause abnormal heat generation or ﬁre.

Securely plug the power cord into the power receptacle. Insecure connection may

cause ﬁre.

When installing the camera, fasten it securely and ﬁrmly. The fall of camera may

cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or

containers ﬁlled with water on top of the camera. Doing so may cause personal

injury due to ﬁre, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre

or electric shock.



SCC-C4255P-TRK-ENG.indd 2 2009-10-15 11:25:58

English _3

English

If any unusual smells or smoke come from the unit, stop using the product. In such

case, immediately disconnect the power source and contact the service center.

Continued use in such a condition may cause ﬁre or electric shock.

If this product fails to operate normally, contact the nearest service center. Never

disassemble or modify this product in any way. (SAMSUNG is not liable for

problems caused by unauthorized modiﬁcations or attempted repair.)

When cleaning, do not spray water directly onto parts of the product. Doing so may

cause ﬁre or electric shock.

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep away from a

location subject to excessive vibration or magnetic interference.

Do not install in a location subject to high temperature (over 50°C), low temperature

(below -10°C), or high humidity. Doing so may cause ﬁre or electric shock.

If you want to relocate the already installed product, be sure to turn off the power

and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm. Neglecting

to do so may cause ﬁre or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

Install it in a place with good ventilation.

Avoid aiming the camera directly towards extremely bright objects such as sun, as

this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with

liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily operable at

any time.

When using the camera outdoors, moisture may occur inside the camera due

to temperature difference between indoors and outdoors. For this reason, it is

recommended to install the camera indoors. For outdoor use, use the camera with

built-in fan and heater.

10.

SCC-C4255P-TRK-ENG.indd 3 2009-10-15 11:25:58

overview

4_ overview

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, or other

apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug.

A polarized plug has two blades with one wider than the other. A grounding type

plug has two blades and a third grounding prong. The wide blade or the third prong

is provided for your safety. If the provided plug does not ﬁt into your outlet, consult

an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories speciﬁed by the manufacturer.

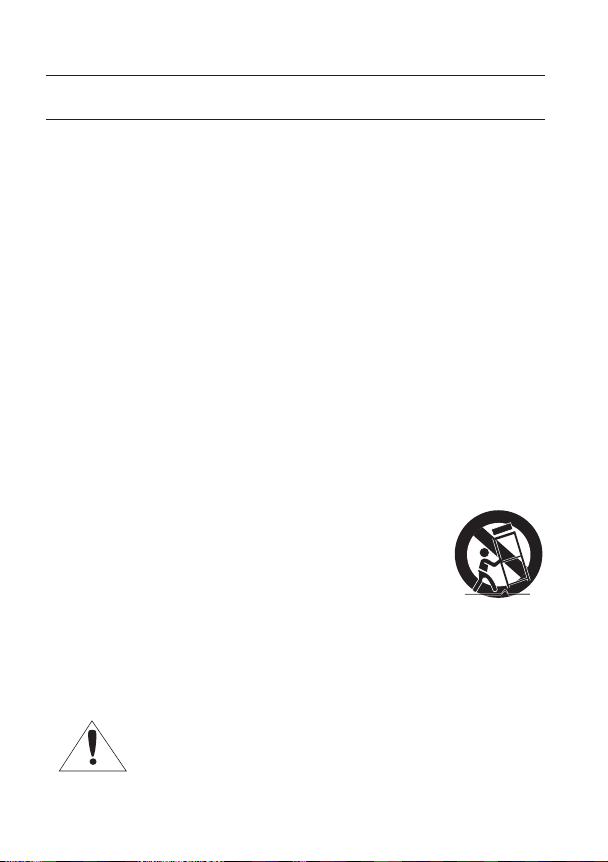

Use only with the cart, stand, tripod, bracket, or table speciﬁed

by the manufacturer, or sold with the apparatus. When a

cart is used, use caution when moving the cart/apparatus

combination to avoid injury from tip-over.

Unplug this apparatus during lightning storms or when unused

for long periods of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the

apparatus has been damaged in any way, such as powersupply cord or plug is

damaged, liquid has been spilled or objects have fallen into the apparatus, the

apparatus has been exposed to rain or moisture, does not operate normally, or has

been dropped.

Apparatus shall not be exposed to dripping or splashing and no objects

filled with liquids, such as vases, shall be placed on the apparatus

10.

11.

12.

13.

14.

SCC-C4255P-TRK-ENG.indd 4 2009-10-15 11:26:00

English _5

English

CONTENTS

OVERVIEW

4Important Safety Instructions

5Contents

6Features

7What’s Included

7Part Names and Functions

INSTALLATION &

CONNECTION

11 Preparing Installation

11 Connecting the Cables

SETUP

14 Main Menu

15 Proﬁle

17 Camera Set

26 Intelligent Video

28 Privacy Zone

29 Preset

30 Other Set

31 Communication

31 System Info

32 Language

APPENDIX

33 Shortcut Keys

34 Speciﬁcations

SCC-C4255P-TRK-ENG.indd 5 2009-10-15 11:26:00

overview

6_ overview

FEATURES

With the state-of-the-art digital signal processing technology, full digital image

processing and special algorithm of 600-line high resolution implemented.

High Sensitivity: It implements images of high sensitivity using the up-to-date Super-

HAD IT CCD(SCC-C4253P/C4353P)/ExView-HAD PS CCD(SCC-C4255P/C4355P).

VPS(Virtual Progressive Scan): This is an advanced technology that reproduces a

sharp progressive image. This is appropriate to high quality recording and ﬁle transfer

via the Internet. (SCC-C4255P/C4355P only)

High performance surveillance camera, equipped with x43 zoom lens and digital

zoom IC, enabling monitoring up to 688 times

WDR extends the contrast range as it takes a picture of each of dark and bright areas

before compositing the two, which is useful if you take a picture of windows inside

a building. Namely, it improves the picture quality of the outdoor scenery as well as

indoor.(SCC-C4255P/C4355P only)

Low Illumination: It uses the digital signal technologies such as low illumination

and Day/Night functions that make your camera identify objects even in the worst

environment.

XDR (eXtended Dynamic Range): Actively controls the gamma compensation in the

way it operates the ambient luminance contrast in a certain pixel unit to determine

the optimal visibility.

Digital Power Synchronization: The full digital Line Lock function directly adjusts the

vertical camera synchronization to enhance the operationability and reliability of this

camera.(SCC-C4353P/C4355P only)

DAY/NIGHT:

This function can make the IR Cut ﬁltering function inactive under the

illumination below the normal value.

White Balance to control the brightness to the illumination

Superior Backlight Adjustment:When an object has a bright illumination or sunlight

behind it, this camera automatically improves the shaded object picture quality.

Auto Focus to automatically adjust the focus to the subject movement

Privacy zone to hide a speciﬁc area for personal privacy.



SCC-C4255P-TRK-ENG.indd 6 2009-10-15 11:26:00

English _7

English

PART NAMES AND FUNCTIONS

SIDE VIEW

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have

applied ethanol.

M

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Camera

Camera Holder

(Mount Adaptor)

2 Screws

User's Manual

Mount Adapter

Fixing Grooves

Camera Lens

SCC-C4255P-TRK-ENG.indd 7 2009-10-15 11:26:01

overview

8_ overview

Rear Panel

 









 









[Z\\

[Z\Z

SCC-C4353P

 









 









[Y\\

[Y\Z

SCC-C4253P

Input/Output Connector

This connector has input and output ports for RS-485 control signals,

DAY/NIGHT switching, and alarm output signals.

[Y\\V[Z\\

[Y\ZV[Z\Z

SCC-C4355P

 









 









[Z\\

[Z\Z

 









 









[Y\\

[Y\Z

SCC-C4255P

[Y\\V[Z\\

[Y\ZV[Z\Z

SCC-C4255P/C4355P SCC-C4253P/C4353P

SCC-C4255P-TRK-ENG.indd 8 2009-10-15 11:26:03

English _9

English

 









 









[Y\\

[Y\Z

SCC-C4255P

1. ALARM OUT

Alarm out jack for motion detection. (Open Collector, On Gnd)

2. GND

Grounding jack.

3. TRIGGER IN (SCC-C4255P/C4355P)

Displays the current still image when it receives the Trigger signal. (Normal

Open Type)

4.5.6 FOCUS, COM, ZOOM

This port is used for ZOOM/FOCUS, MENU CONTROL, HOME

RETURN, and ONEAF by using an external controller.

Depending on the input condition, 4 modes, A, B, C, and D are

available. (SPECIAL - CTRL TYPE)

(Operation Voltage Range : +3V~+13V, -3V~-13V)

1) When the voltage is supplied to either ZOOM or FOCUS port

Function

Code

Tele(Up)

Wide(Down)

Near(Left) Far(Right)

ZOOM Port FOCUS Port

A -6V +6V -6V +6V

B -6V +6V +6V -6V

C +6V -6V -6V +6V

D+6V -6V +6V -6V

*1: During MENU OFF, controls ZOOM/FOCUS and during MENU ON,

changes the direction, Up/Down/Left/Right SETUP switch.

2) When the voltage is supplied to both ports

Function

Code

ENTER/AF *2 HOME RETURN *3

ZOOM Port

FOCUS Port

ZOOM Port

FOCUS Port

A -6V -6V +6V +6V

B -6V +6V +6V -6V

C +6V -6V -6V +6V

D+6V +6V -6V -6V

SCC-C4255P-TRK-ENG.indd 9 2009-10-15 11:26:03

10_ installation & connection

* 2 : For short voltage supply during MENU OFF, executes ONEAF and for

more than 2 second

* 3 : For more than 2 second long voltage supply, moves to the PRESET

0(HOME) position.

7. 5V OUT

Power supply jack for RS-485 JIG. Use within typical DC +5V 100mA.

8. DAY/NIGHT IN

This is a function to receive the external DAY/NIGHT signal from the

sensor(option) and convert the signal into BW.

9. RS-485 DATA-

Jack for connection to RS-485 DATA- signal line.

10. RS-485 DATA+

Jack for connection to RS-485 DATA+ signal line.

SETUP Switch

This switch is used to set the function or property. When this switch is pressed

for at least 2 seconds, the MAIN MENU appears.



(Left/Right)

: By pressing this switch left or right, you can move left or right

on the menu or change the displayed value.



(Up/Down) :

By pressing this switch up or down, you can move up or down on

the menu.

: When you press this switch in the menu, the selected function is conﬁrmed.

To enter a submenu, press this button.

Video OUT Port

This is connected to the Video Input Port of the monitor and it outputs the

Video signals.

GND

This is a grounding port.

Power Connection Port

This is connected to the Power cable.

Power Display LED

When the power is normally connected, the red LED lights.

SCC-C4255P-TRK-ENG.indd 10 2009-10-15 11:26:04

Otros manuales para SCC-C4253P

Este manual sirve para los siguientes modelos

Tabla de contenidos

Idiomas:

Otros manuales de Cámara digital de Samsung

Samsung

Samsung Vluu ST600 Manual de instrucciones

Samsung

Samsung VLUU NV10 Manual de usuario

Samsung

Samsung WB600 Manual de instrucciones

Samsung

Samsung SL605 Manual de usuario

Samsung

Samsung SL30 - Digital Camera - Compact Manual de usuario

Samsung

Samsung SL102 - Digital Camera - Compact Manual de usuario

Samsung

Samsung EC-TL225ZBPOUS - 12MP Dig Camera 4.6X Wide Angl Opt Zm... Manual de usuario

Samsung

Samsung WB50F Manual de usuario

Samsung

Samsung SCC-B2313(P) Manual de usuario

Samsung

Samsung VLUU PL100 Manual de instrucciones

Samsung

Samsung ES15 Manual de instrucciones

Samsung

Samsung WB1000 Manual de instrucciones

Samsung

Samsung ES28 Manual de usuario

Samsung

Samsung WB250F Guía del usuario

Samsung

Samsung PL60 Manual de instrucciones

Samsung

Samsung NV100HD Manual de instrucciones

Samsung

Samsung S1050 - Digital Camera - Compact Manual de usuario

Samsung

Samsung S1050 - Digital Camera - Compact Manual de instrucciones

Samsung

Samsung Digimax S800 - Digital Camera - 8.1... Manual de usuario

Samsung

Samsung WB850 Manual de usuario

Samsung

Samsung PL50 Manual de instrucciones

Samsung

Samsung Vluu PL90 Guía del usuario

Samsung

Samsung Vluu ST600 Manual de usuario

Samsung

Samsung L100 - Digital Camera - Compact Manual de usuario

Manuales populares de Cámara digital de otras marcas

Mercury

Mercury 350K Manual de usuario

Pentax

Pentax Optio LS 465 Manual de usuario

Sanyo

Sanyo VPC-S1085 Manual de usuario

GE SMART A1255 Manual de usuario

Point Grey

Point Grey Gazelle Manual de usuario

Nikon

Nikon COOLPIX A Manual de usuario

Pentax

Pentax P-5 Manual de usuario

BlazeVideo

BlazeVideo A280 Manual de usuario

Sony

Sony MCA-20 Manual de usuario

Sony

Sony Alpha DSLR-A290 Manual de usuario

ATIK Cameras

ATIK Cameras One Manual de usuario

CohuHD Costar

CohuHD Costar 3930 Series Manual de usuario

Leica

Leica M10-R Manual de usuario

FujiFilm

FujiFilm FinePix A700 Manual de usuario

Lorex

Lorex LNZ81P25 Series Manual de usuario

GE J1470S Manual de usuario

Sony

Sony A6700 Guía del usuario

Canon

Canon EOS ELAN7 Manual de usuario
