Samsung SCC-B1391 Manual de usuario

User’s Manual

DIGITAL COLOR CAMERA

SCC-B1391(P)

SCC-B1091P

Important Safety Instructions

CAUTION: TO REDUCE THE

RISK OF ELECTRIC SHOCK,

DO NOT REMOVE REAR

COVER. NO USER

SERVICEABLE PARTS INSIDE.

REFER TO QUALIFIED

SERVICE PERSONNEL.

To prevent damage which may result in fire or electric shock hazard,

do not expose this appliance to rain or moisture.

This device complies with part 15 of the FCC Rules. Operation is

subject to the following two conditions.

1) This device may not cause harmful interference, and

2) This device must accept any interference that may cause undesired

operation.

CAUTION:

Danger of explosion if battery is incorrectly replaced.

Replace only with the same or equivalent type recommended by the

manufacturer.

Dispose of used batteries according to the manufacturer’s instructions.

This symbol indicates

high voltage is present

inside. It is dangerous to

make any kind of contact

with any inside part of this

product.

This symbol alerts you

that important literature

concerning operation and

maintenance has been

included with this product.

CAUTION

RISK OF ELECTRIC

SHOCK DO NOT OPEN

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance

with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat

registers, or other apparatus (including amplifiers) that produce

heat.

9. Do not defeat the safety purpose of the polarized or grounding-

type plug. A polarized plug has two blades with one wider than

the other. A grounding type plug has two blades and a third

grounding prong. The wide blade or the third prong are provided

for your safety. If the provided plug does not fit into your outlet,

consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being from being walked on or

pinched particularly at plugs, convenience receptacles, and the

point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with cart, stand, tripod, bracket, or table specified by

the manufacturer, or sold with the apparatus. When a used,

caution when moving the cart/apparatus combination to avoid

injury from tip-over.

13. Unplug this apparatus. When a cart is used, use caution when

moving the cart/apparatus combination to avoid injury from tip-

over.

14. Refer all servicing to qualified service personnel. Servicing is

required when the apparatus has been damaged in any way,

such as power-supply cord or plug is damaged, liquid has been

spilled or objects have fallen into the apparatus, the apparatus

has been exposed to rain or moisture, does not operate

normally, or been dropped.

Chapter 1 Introduction ........................................................ 5

Chapter 2 Special Features ............................................. 6

Chapter 3 Installation ......................................................... 7

Checking the contents of the package .............. 7

Precautions in Installation and Use ................... 8

Connecting Auto Iris Lens Connector ................ 9

Lens Fixing

........................................................... 10

Setting Lens Selection Switch

.................... 11

Back Focus Adjustment

................................ 11

Connecting Cables and Checking Operation ..... 13

Chapter 4 Part Names and Functions ............................... 15

Product Specification ........................................ 20

Contents

This camera is the high-resolution monitoring camera of 540 TV Lines and can

provide the best monitoring function by connecting with the CCTV System.

❉

In the mechanical fluorescent light environment, if you attach MANUAL IRIS

LENS and turn the ELC switch among FUNCTION switches on, color may be

rolled.

In this case, supply AC power before you turn L/L switch among FUNCTION

switches on. (NTSC:60HZ , PAL:50HZ)

Chapter 1 Introduction

COLOR ROLLING is the problem that color on the

monitor screen changes non-periodically.

This happens when White Balance is not fixed,

because a mechanical fluorescent light flickers

when it’s cycle is the same to the cycle of the power

frequency.

High Sensitivity

It has an up-to-date 1/3" Super-HAD IT CCD for an image of high sensitivity.

Resolution

It realizes high resolution resulting from full digital image processing

supported by a state-of-art digital signal technology.

Superior Back Light Adjustment Function

In case the object has a bright illumination or sunlight behind it, this camera

adjusts the image shaded by the back light for clear photographs.

Digital Power Supply Synchronization Method

The Full Digital Method Line Lock is realized in this camera, which adjusts

the vertical camera synchronization directly to improve controllability and

reliability of the camera.

Chapter 2 Special Features

This chapter describes what should be checked before installation, how to

set the installation environment, and what should be done during installation.

Then, it describes how to install the camera and connect the cable in actual

circumstances.

Chapter 3 Installation

Be sure to check if the following items are included in the package.

Checking the contents of the package

Camera

Holder(Mount)

C Mount Adapter Auto Iris

Lens Connector

User's Manual

Camera

① Do not attempt to disassemble the camera yourself.

➁Be cautious in handling the camera. Avoid striking or shaking the

camera. Be cautious to avoid damage on the camera caused by improper

storage or operation.

➂Do not expose this camera to rain or moisture. Do not operate this

camera on a wet place.

➃ Do not use strong or abrasive detergents when cleaning the camera

body. Use a dry cloth to clean the camera.

⑤ Keep the camera at a cool place away from the direct sunlight. Leaving it

under the direct sunlight may result in the malfunction of the unit.

Precautions in Installation and Use

Connecting Auto Iris Lens Connector

Prepare the following Auto Iris Lens Connector supplied with the camera.

Connect the cable of the control cable, whose covering is stripped, to the

Auto Iris Lens Connector as shown below.

Pin3

Pin2

Pin4

Pin1

Pin No. DC Control Type VIDEO Control Type

1 Damp(-) Power (+12V)

2 Damp(+) N/A

3 Drive(+) VIDEO Signal

4 Drive(-) GROUND

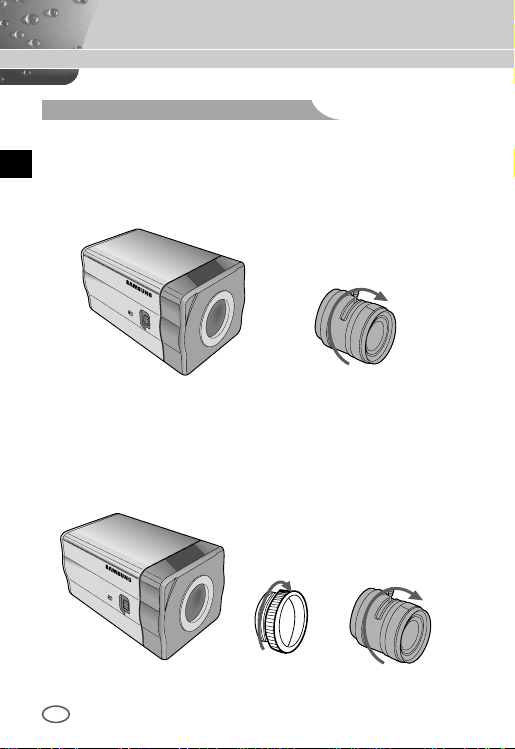

In case of CS lenses

Turn the CS lens clockwise until it is fixed as shown as follows.

In case of C lenses

Turn the C-mount adapter clockwise to fix it. Then turn the C lens

clockwise until it is fixed as follows.

Lens Fixing

CS lens

C lens
