1

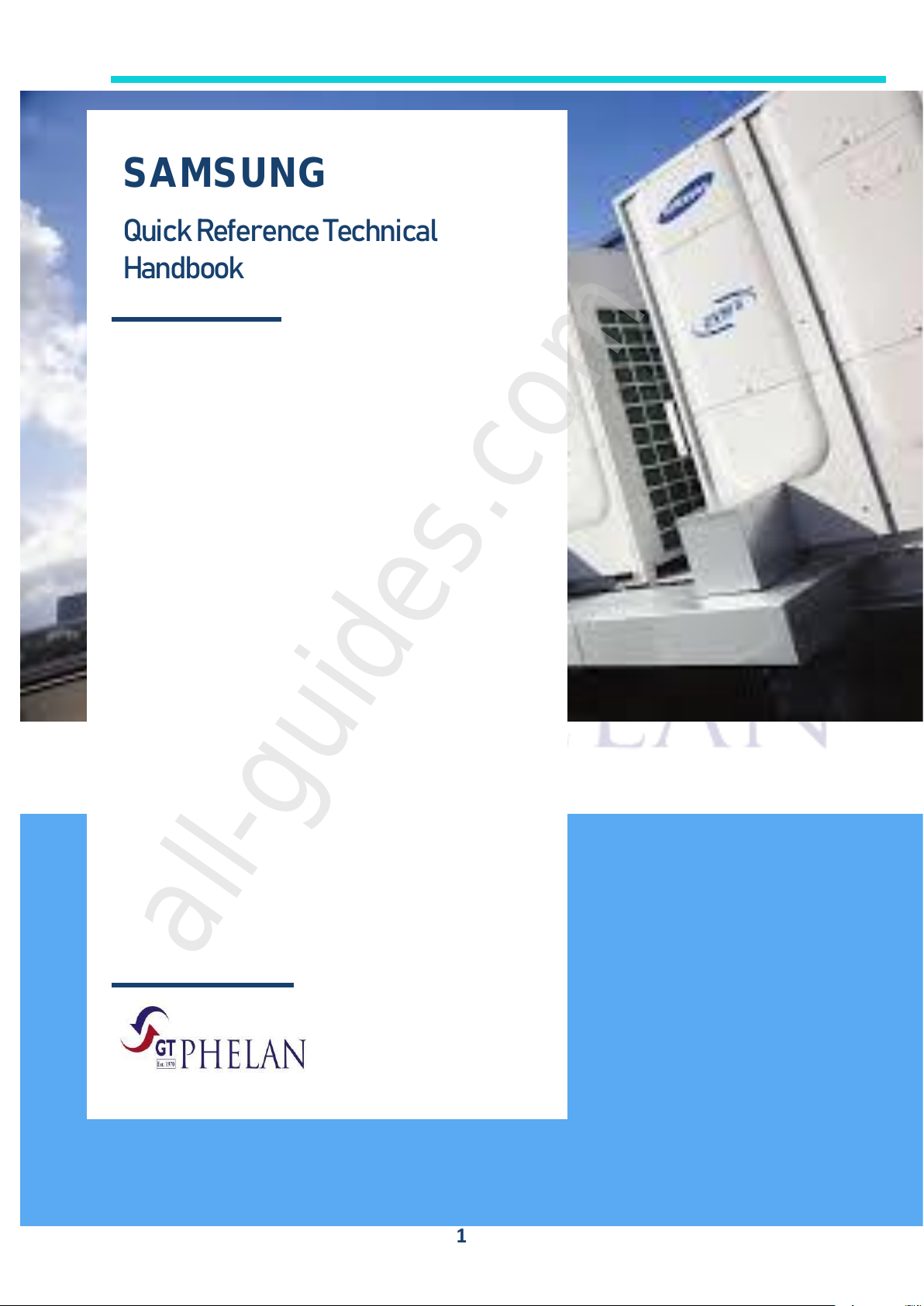

SAMSUNG

Quick Reference Technical

Handbook

All manuals and user guides at all-guides.com

all-guides.com

2

INDEX

1. Controllers Pages 4-21

2.CAC Split Range Pages 22-39

3.RAC Split Range Pages 40-42

4. VRF Range Pages 43-77

5. Miscellaneous Pages 78-82

For any enquiries or technical support please contact us on:

Ph. 01 2864377

E. info@gtphelan.ie

All manuals and user guides at all-guides.com

3

CONTROLLERS

•MWR-WE13N ………………………………………………………………………………………………………………… Pages 4-11

•MWR-WGOOJN ……………………………………………………………………………………………………………….Pages 5-21

These are the most common type of controller in use. For details on other

controllers, please contact GT Phelan.

All manuals and user guides at all-guides.com

4

MWR-WE13N

Initializing Your Wired Remote Controller Communication

Wired remote controller must be initialized if installation status changes.

• Changing number of ventilator (ERV)/indoor unit or their address

Press the Delete and ESC buttons at the same time for more than five seconds.

• Your Wired Remote Controller will be initialized, and the device will search for the indoor

units/ventilator(ERV) connected to your Wired Remote Controller again.

All manuals and user guides at all-guides.com

5

Wired Remote Controller Installation/Service Mode

Additional Functions of Your Wired Remote Controller

If you want to use the various additional functions for your Wired Remote Controller, press the Delete

and Set buttons at the same time for more than three seconds.

•You will enter the additional function settings, and the [main menu] will be displayed.

Refer to the list of additional functions for your Wired Remote Controller on the next page, and select

the desired menu.

•U sing the buttons, select a main menu number and press the [>] button to enter the sub-menu

setting screen.

•Using the buttons, select a sub-menu number and press the [>] button to enter data setting

screen.

•When you enter the setting stage, the current setting will be displayed.

•Refer to the chart for data settings.

•Using the buttons, select the settings. Press the [ ] button to move to the next setting.

•Press the Set button to save the settings and exit to the sub-menu setting screen.

•Press the ESC button to exit to normal mode.

•While setting the data, you can use the [ ]/[ ] buttons to set the range of Data bit.

•While configuring the setting, press the ESC button to exit to the setting sub-menu without saving

your changes.

All manuals and user guides at all-guides.com

6

Wired Remote Controller Installation/Service Mode

Installation/Service Mode

All manuals and user guides at all-guides.com

all-guides.com

7

Installation/Service Mode (Cont.)

All manuals and user guides at all-guides.com

8

User Setting Options

How to Set the Additional User Functions

1If you want to set the detailed settings, press the User Set button.

You will enter the User Set mode, and the [Main Menu] is displayed.

2Refer to the wired remote controller's User Set list on the next page to select the desired menu.

Using the [ UP ]/[ DOWN ] buttons, select a main menu number and press the [>] button to enter the submenu setting

screen.

Using the [ UP ]/[DOWN ] buttons, select a sub-menu number and press the [> ] button to enter the data setting screen.

Once you have entered the setting screen, the current setting is displayed.

Refer to the chart for data setting.

Using the [ UP]/[ DOWN] buttons, change the settings and press the [ >] button to move to the next setting.

Press the Set button to save the setting and exit to the sub-menu setting screen.

Press the ESC button to exit to normal mode.

All manuals and user guides at all-guides.com

9

Setting Additional User Functions (Cont.)

All manuals and user guides at all-guides.com

10

Setting Additional User Functions (Cont.)

All manuals and user guides at all-guides.com
