Gear VR Controller

ET-YO324

Table of Contents

English (UK)

Français

Deutsch

Italiano

Español

Magyar

Polski

Română

Български

Hrvatski

Srpski

Português

Latviešu

Lietuvių kalba

Eesti

Nederlands

Svenska

Norsk

Suomi

Dansk

Ελληνικά

Slovenščina

Slovenčina

Čeština

Türkçe





Русский

Українська

Қазақ тілі

English (USA)

Español (Castellano)

简体中文

繁體中文(台灣)

Français (Canada)

Português (Brasil)

한국어

Getting started

Read me first

Please read this manual before using the device to ensure safe and proper use.

•

Images may differ in appearance from the actual product. Content is subject to change

without prior notice.

•

Before using the controller, make sure it is compatible with your device.

•

To view the open source licence for the controller, refer to opensource.samsung.com.

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

English (UK)

Getting started

About the Gear VR controller

You can connect the controller to a mobile device connected with a Gear VR via Bluetooth.

Control various Gear VR features with the controller keys and touchpad.

Package contents

Check the product box for the following items:

•

Controller

•

Quick start guide

•

Wrist strap

•

Controller holder

•

Two AAA batteries

•

The items supplied with the device and any available accessories may vary

depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible

with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make

sure they are compatible with the device before purchase.

•

Use only Samsung-approved accessories. Using unapproved accessories may cause

the performance problems and malfunctions that are not covered by the warranty.

•

Availability of all accessories is subject to change depending entirely on

manufacturing companies. For more information about available accessories, refer

to the Samsung website.

English (UK)

Getting started

Device layout

Touchpad

Trigger

Back key

Home key

Volume key

Indicator light

Wrist strap

connection hole

Battery

compartment

Battery cover

Wrist strap

Controller

holder

English (UK)

Getting started

Buttons

Name Function

Touchpad

•

Press to select an item. You can move to the next or previous

item by swiping to the left or right.

Home key

When the controller is not connected with a Gear VR:

•

Press and hold to enter Bluetooth pairing mode.

When the controller is connected with a Gear VR:

•

Press to return to the Gear VR’s Oculus Home screen.

•

Press and hold to reorient the pointer direction when it is off-

centre.

Back key

•

Press to return to the Gear VR’s previous screen.

•

Press and hold to open the Gear VR’s Universal menu. You

can view the status of the Gear VR and configure Gear VR’s

settings.

Volume key

•

Press to adjust the Gear VR volume.

Trigger

•

Press to select an item or use it as a trigger when playing

certain games. Its function may vary depending on the

launched apps.

Indicator light

The indicator light alerts you to the controller’s status.

Colour Status

Flashes red, green, and

blue

•

The controller is in Bluetooth pairing mode.

Flashes blue three

times

•

Bluetooth is connected.

Flashes blue one time

•

Sleep mode is deactivated.

English (UK)

Getting started

Connecting the wrist strap

When you connect the wrist strap to your controller, you can use the controller safely without

dropping it.

1 While pressing on the backside of the controller, slide the battery cover towards the

top of the triangle to open it.

Do not bend or twist the battery cover excessively. Doing so may damage the battery

cover.

2 Insert the wrist strap loop into the wrist strap connection hole and attach it to the hook

to secure it.

English (UK)

Getting started

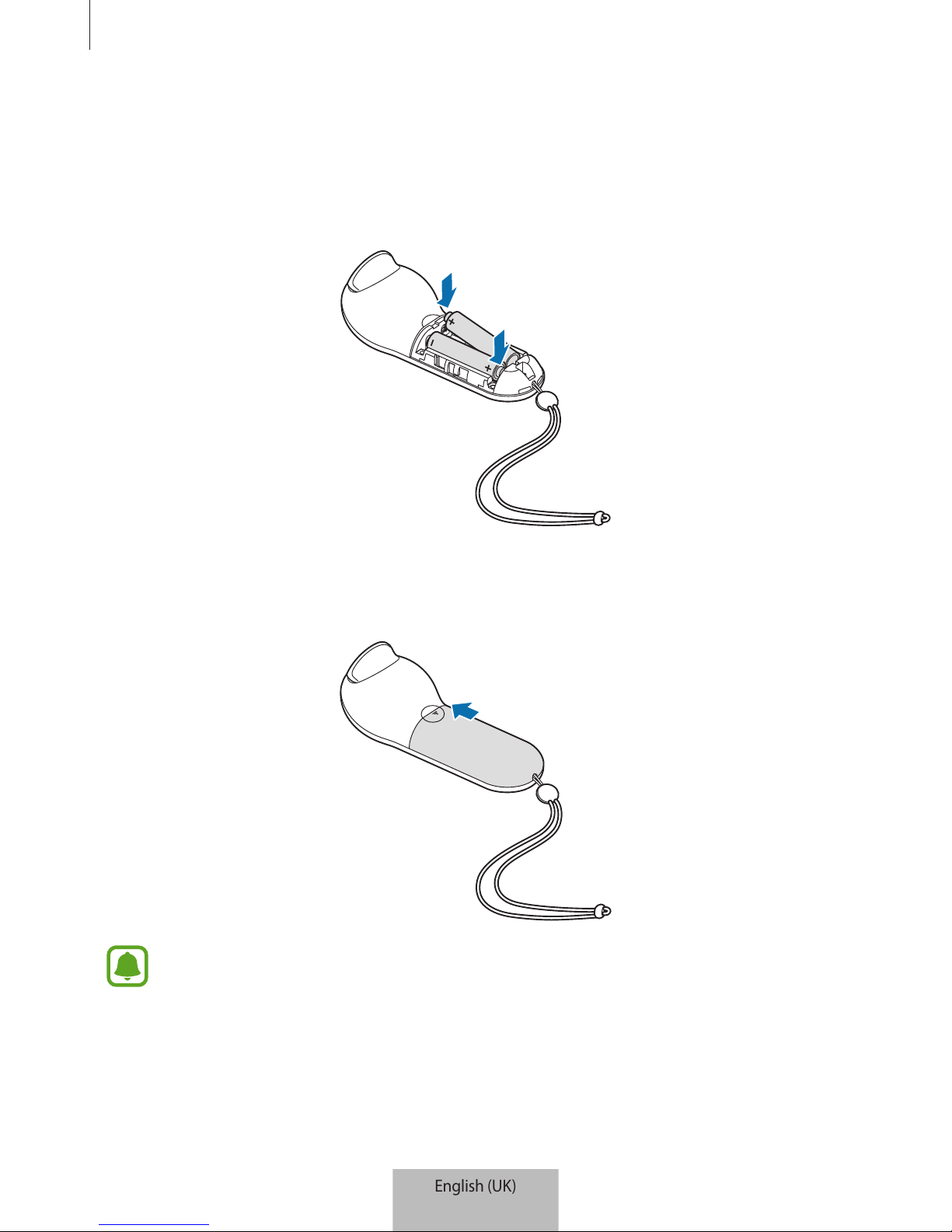

Installing the batteries

1 Insert batteries with the positive and negative terminals properly aligned with the + and

- symbols on the controller.

2 Place the battery cover on the controller and slide the battery cover back until it clicks

back into place.

•

If the indicator light flashes red while using the controller, replace the batteries.

•

Do not recharge the provided batteries (AAA batteries).

English (UK)

Using the controller

Connecting to mobile device

Notices for using Bluetooth

Bluetooth is a wireless technology standard that uses a 2.4 GHz frequency to connect to

various devices over short distances. It can connect and exchange data with other Bluetooth

enabled devices, such as mobile devices, computers, printers, and other digital home

appliances, without connecting via cables.

•

To avoid problems when connecting your controller to another device, place the devices

close to each other.

•

Ensure that your controller and the other Bluetooth device are within the maximum

Bluetooth range. The distance may vary depending on the environment the devices are

used in.

•

Ensure that there are no obstacles between the controller and a connected device,

including human bodies, walls, corners, or fences.

•

Do not touch the Bluetooth antenna of a connected device.

•

Bluetooth uses the same frequency as some industrial, scientific, medical, and low power

products and interference may occur when making connections near these types of

products.

•

Some devices, especially those that are not tested or approved by the Bluetooth SIG, may

be incompatible with your controller.

•

Do not use the Bluetooth feature for illegal purposes (for example, pirating copies of files

or illegally tapping communications for commercial purposes).

English (UK)

Using the controller

Connecting the controller with the Gear VR app (Oculus)

Connect the controller to the mobile device that is connected to the Gear VR to control the

Gear VR with the controller.

Install the Gear VR app (Oculus) on your mobile device to connect it with the

controller. Connect the mobile device to the Gear VR and remove the mobile device

when you hear a voice prompt that requests you to separate the mobile device. The

Gear VR app (Oculus) installation screen will appear on the mobile device.

1 Controller Press and hold the Home key to enter Bluetooth pairing mode.

The indicator light will flash red, green, and blue.

2 Mobile device On the Gear VR app (Oculus), tap

→

Controllers

to connect the

controller.

The indicator light will flash blue three times.

3 Choose the hand you will use the controller with.

4 Connect your mobile device to the Gear VR and control the Gear VR with the controller’s

keys and touchpad.

The way for connecting the controller can be changed depending on the Oculus

service.

Connecting the controller via Bluetooth

You can connect the controller via Bluetooth only on mobile devices running Android

6.0 or higher. If you cannot connect the controller via Bluetooth, connect it with the

Gear VR app (Oculus).

1 Controller Press and hold the controller’s Home key to enter Bluetooth pairing mode.

The indicator light will flash red, green, and blue.

2 Mobile device Activate the Bluetooth feature and search for Bluetooth devices.

For more information, refer to the mobile device’s user manual.

English (UK)
