Samsung SGH-E210 Manual de usuario

GSM TELEPHONE

SGH-E210

GSM TELEPHONE CONTENTS

1. Safety Precautions

2. Specification

3. Product Function

4. Array course control

5. Exploded View and Parts List

6. MAIN Electrical Parts List

7. Block Diagrams

8. PCB Diagrams

9. Flow Chart of Troubleshooting

10. Reference data

Samsung Electronics Co.,Ltd.

2007. 08. Rev.1.0

ⓒ

This Service Manual is aproperty of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable

International and/or domestic law.

Country Web Site

North America service.samsungportal.com

Latin America latin.samsungportal.com

CIS cis.samsungportal.com

Europe europe.samsungportal.com

China china.samsungportal.com

Asia asia.samsungportal.com

Mideast &Africa mea.samsungportal.com

GSPN (Global Service Partner Network)

SAMSUNG Proprietary-Contents may change without notice

1. Safety Precautions

1-1

This Document can not be used without Samsung's authorization

1-1. Repair Precaution

●Repair in Shield Box, during detailed tuning.

Take specially care of tuning or test,

because specipicty of cellular phone is sensitive for surrounding interference(RF noise).

●Be careful to use akind of magnetic object or tool,

because performance of parts is damaged by the influence of manetic force.

●Surely use astandard screwdriver when you disassemble this product,

otherwise screw will be worn away.

●Use athicken twisted wire when you measure level.

Athicken twisted wire has low resistance, therefore error of measurement is few.

●Repair after separate Test Pack and Set because for short danger (for example an

overcurrent and furious flames of parts etc) when you repair board in condition of

connecting Test Pack and tuning on.

●Take specially care of soldering, because Land of PCB is small and weak in heat.

●Surely tune on/off while using AC power plug, because arepair of battery charger is

dangerous when tuning ON/OFF PBA and Connector after disassembing charger.

●Don't use as you pleases after change other material than replacement registered on SEC

System. Otherwise engineer in charge isn't charged with problem that you don't keep this

rules.

SAMSUNG Proprietary-Contents may change without notice

Safety Precautions

1-2

This Document can not be used without Samsung's authorization

1-2. ESD(Electrostatically Sensitive Devices) Precaution

Several semiconductor may be damaged easilly by static electricity. Such parts are called by

ESD(Electrostatically Sensitive Devices), for example IC,BGA chip etc. Read Precaution below.

You can prevent from ESD damage by static electricity.

●Remove static electricity remained your body before you touch semiconductor or parts with

semiconductor. There are ways that you touch an earthed place or wear static electricity

prevention string on wrist.

●Use earthed soldering steel when you connect or disconnect ESD.

●Use soldering removing tool to break static electricity. ,otherwise ESD will be damaged by

static electricity.

●Don't unpack until you set up ESD on product. Because most of ESD are packed by box

and aluminum plate to have conductive power,they are prevented from static electricity.

●You must maintain electric contact between ESD and place due to be set up until ESD is

connected completely to the proper place or acircuit board.

2. Specification

2-1

2-1. GSM General Specification

GSM 900 DCS1800 PCS1900

Freq. Band[MHz]

Uplink/Downlink

880~915

925~960

1710~1785

1805~1880

1850~1910

1930~1990

ARFCN range 0~124

& 975~1023 512~885 512~810

Tx/Rx spacing 45MHz 95MHz 80MHz

Mod. Bit rate/

Bit Period

270.833Kbps

3.692us

270.833Kbps

3.692us

270.833Kbps

3.692us

Time Slot Period

/Frame Period

576.9us

4.615ms

576.9us

4.615ms

576.9us

4.615ms

Modulation 0.3GMSK 0.3GMSK 0.3GMSK

MS Power 33dBm~5dBm 30dBm~0dBm 30dBm~0dBm

Power Level 5pcl~19pcl 0pcl~15pcl 0pcl~15pcl

Sensitivity -102dBm -100dBm -102dBm

TDMA Mux 8 8 8

Cell Radius 35Km 2Km 2Km

Speclflcation

2-2

2-2. GSM Tx Power Class

TX Power

control level GSM900

533±2

dBm

631±3

dBm

729±3

dBm

827±3

dBm

925±3

dBm

10 23±3dBm

11 21±3dBm

12 19±3dBm

13 17±3dBm

14 15±3dBm

15 13±3dBm

16 11±5dBm

17 9±5dBm

18 7±5dBm

19 5±5dBm

TX Power

control

level

DCS1800

030±2

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4dBm

11 8±4dBm

12 6±4dBm

13 4±4dBm

14 2±5dBm

15 0±5dBm

TX Power

control

level

PCS1900

030±2

dBm

128±3

dBm

226±3

dBm

324±3

dBm

422±3

dBm

520±3

dBm

618±3

dBm

716±3

dBm

814±3

dBm

912±4

dBm

10 10±4dBm

11 8±4dBm

12 6±4dBm

13 4±4dBm

14 2±5dBm

15 0±5dBm

SAMSUNG Proprietary-Contents may change without notice

3. Product Function

3-1

This Document can not be used without Samsung's authorization

Main Function

-Camera and camcorder

-Music player

-FM radio

-Offlime mode

-Bluetooth

-Web browser

-Multimedia Message Service(MMS)

-SOS message

-Organiser

SAMSUNG Proprietary-Contents may change without notice

4. Array course control

4-1

This Document can not be used without Samsung's authorization

Test Jig (GH80-03312A)

Test Cable (GH39-00830A)

RF Test Cable (GH39-00397A)

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-2

This Document can not be used without Samsung's authorization

Software Downloading

4-1. Downloading Binary Files

•Three binary files for downloading SGH-E210.

–E210XXYY.s3 :Main source code binary.

4-2. Pre-requsite for Downloading

•Downloader Program(OptiFlash.exe)

•E210 Mobile Phone

•Data Cable

•Binary files

SAMSUNG Proprietary-Contents may change without notice

Array course control

4-3

This Document can not be used without Samsung's authorization

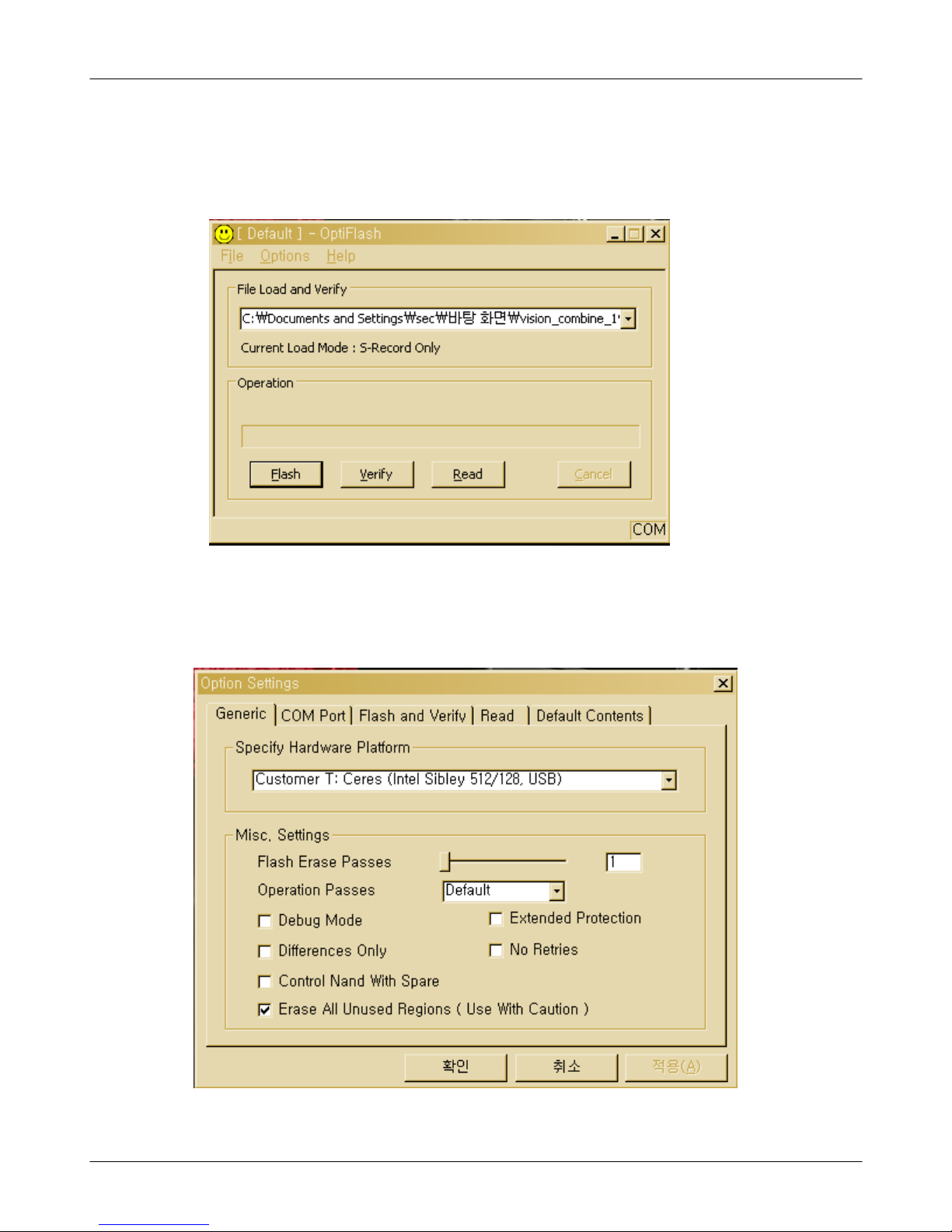

4-3. S/W Downloader Program

1. Load the binary download program by executing the “OptiFlash.exe”

2. Select the “Options”->“

Settings”->“

Generic”->“

Specify hardware

platform”.

Choose hardware platform for the downloader file setting.

Set the everything else as the default values which are shown below
