Salus SunCube Manual de usuario
OWNER’S MANUAL
Salus SunCube Sauna
SUN_IS_ electrical_installation_v5.1_06092021 2
1
Set 1
self-extinguishing protective pipe phi 25, 330 cm
wires:
2x 0.75 mm2, 400 cm – for SOS switch
2x 0.75 mm2, 470 cm – for HUUM door lock sensor
2x 0.75 mm2, 470 cm – for HUUM Wi-Fi controller
2x 1.50 mm2, 470 cm – for LED lighting
1A
Self-extinguishing protective pipe 1A phi 25, 70
cm
2
Self-extinguishing protective pipe phi 40, 100 cm
3
Set 3
Self-extinguishing protective pipe phi 20, 280 cm
Wire 2x 0.75 mm2, 350 cm – for HUUM furnace
temperature sensor
4
Set 4
self-extinguishing protective pipe phi 20, 330 cm
wire 2x 0.75,2, 400 cm – for LED lighting left side 5
Wire 5x 4.0 mm2, 200 cm – for furnace supply
6
Set 6
self-extinguishing protective pipe phi 20, 40 cm
wire 2x 0.75 mm2, 90 cm – for alarm siren
7
Wire 2x 0.75, 40 cm – for LED right-side lighting
8 Wire 70 cm – for HUUM door opening detector 9 LED strip 316 cm – 2 pcs.
10 Wire for LED bar 15 cm – 2 pcs. 11 LED strip rubber plug – 4 pcs.
12
Wire end 0.75 mm2 – 24 pcs.
Wire end 4.00 mm2 – 10 pcs.
Wire end 1.50 mm2 – 4 pcs.
13
WAGO connector "2" – 2 pcs.
WAGO connector "3" – 1 pc.
SUN_IS_ electrical_installation_v5.1_06092021 3
14
Heat shrinkable clamp phi 5, length 40 mm – 8 pcs.
15
Screws for LED switch base and siren
SOS phi 4, length 15 mm – 7 pcs.
Screws for the base of the SOS switch phi 3.8, length
25 mm – 4 pcs.
Screws for temperature sensor HUUM fi 2.8, length 15
mm – 2 pcs.
Screws for HUUM controller phi 3, length 30 mm – 2
pcs.
16 Clamping band 20 cm 17 Box – 2 pcs.
18 SOS button base 19 SOS button
20 SOS siren 21 The base for the LED light switch
22 LED light switch 23 Junction box
Tools needed:
SUN_IS_ electrical_installation_v5.1_06092021 4
1 Stripping tool for thick wires (up to 5x 4.0
mm2)2 Wire pliers
3 Folding carpenter's meter 4 Wire stripper
5 Cable lug crimping tool 6 Measuring square
7 Wood hole saw 65 mm 8 Cordless drill
9 Chisel 10 Drill bits 2.5 mm, 5 mm, 10 mm
11 Phillips screwdriver 12 Flathead screwdriver
13 Paper tape 14 Soldering compound
15 Transformer soldering iron 16 Soldering iron
17 Glow lighter 18 PVB varnish
19 Wallpaper cutter 20 Universal silicone gun
21 Electrical tester 22 Multimeter
23 Electrical connection cube for testing the 5-
track installation
SUN_IS_ electrical_installation_v5.1_06092021 5
List of activities:
I. PREPARATION OF PROTECTIVE PIPES AND HARNESSES
1. To prepare harness "1" – cut the wires according to the specifications below:
2x 0.75 mm2, 400 cm – for the SOS switch
2x 0.75 mm2, 470 cm – to door lock sensor HUUM
4x 0.75 mm2, 470 cm – for HUUM Wi-Fi controller
2x 1.50 mm2, 470 cm – for the LED lighting supply
2. Arrange and tape the wires as shown in the picture, then wrap them all around – this will make it
easier to lead them through the protective pipe without any problems.
3. PRun the harness through the wire and attach the protective pipe "1A". Leave the wire for the SOS button
out of the "1A" wire.
4. Insert wire 3 into the protective pipe "3".
5. Insert wire 4 into the protective pipe "4".
6. Prepare the furnace power cable "5". Measure 18 cm and, using a stripper, remove the
insulation.
SUN_IS_ electrical_installation_v5.1_06092021 6
7. Cut the rubber core from the wire using pliers.
8. Use a wire stripper to remove the insulation from the wires, then use a crimping tool to fix the 4 mm2
wire ends on both sides.
9. Insert wire 6 into the protective pipe 6.
10. Cut the 4 cm insulation of the LED strip on one side.
SUN_IS_ electrical_installation_v5.1_06092021 7
11. Cut the LED strip to the nearest soldering point.
12. Solder the ends of the wire at the soldering points using a precision soldering iron. Add the wire
with the black line to the "-".
13. Repeat the operation for the second LED strip.
II. ARMING AND INSTALLATION OF THE BOX AND MAIN HARNESS "1" IN THE SAUNA
1. Insert protective pipe "2" in the place marked in the photo.
SUN_IS_ electrical_installation_v5.1_06092021 8
2. Install the wires in the protective pipes to the fuse box using the twist glands, starting from the left:
Protective pipe with wire "6"
Protective pipe with harness "1"
Protective pipe with wire "3"
Furnace power wire 5

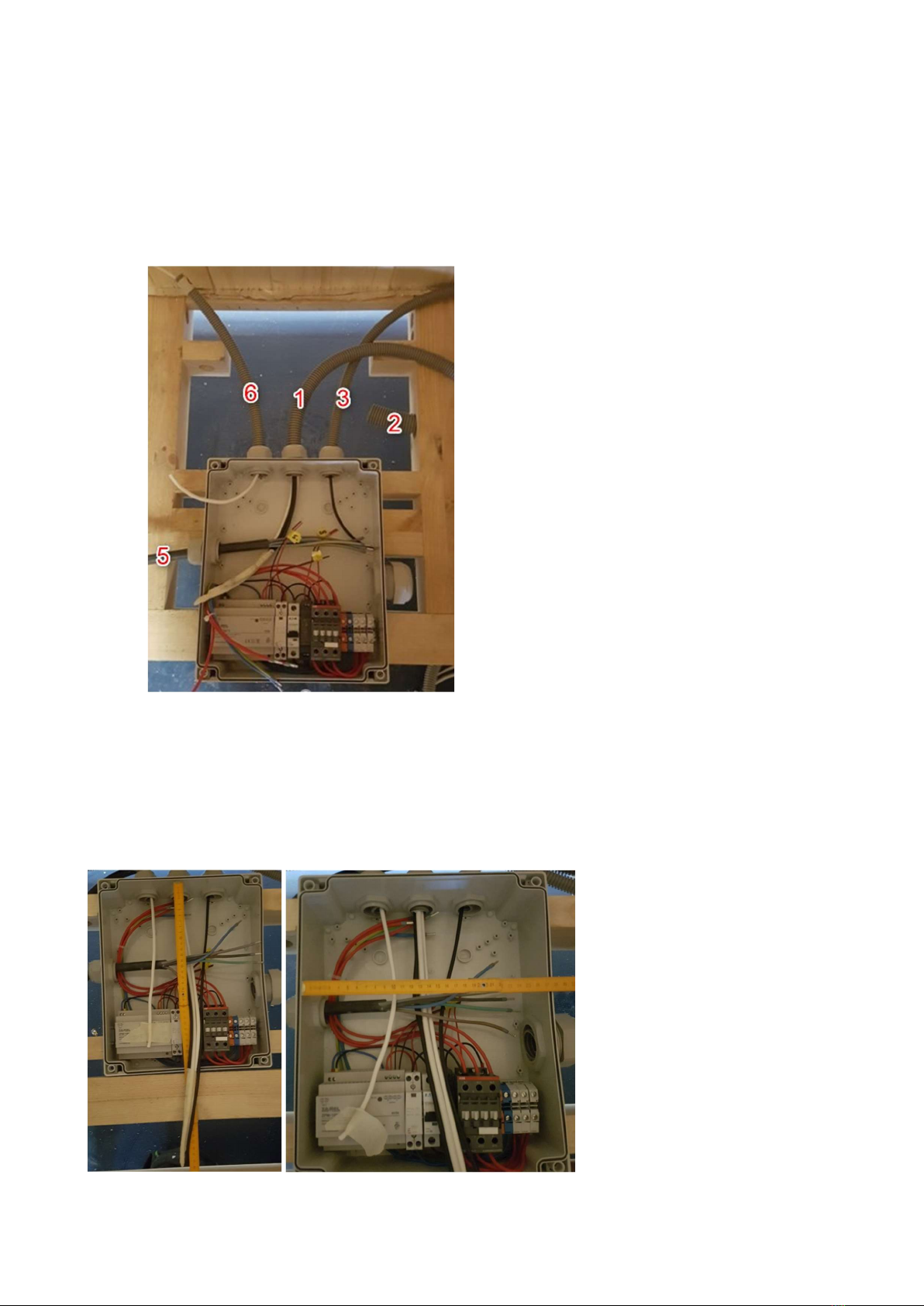

NOTE: The wires should be routed out of the protective pipes in the box with an allowance as
shown in the picture below:
Harness "1" - 50 cm counting the inner top wall of the box
Wire "3" – 50 cm counting from the inner top wall of the box
Wire "6" – 30 cm counting from the inner top wall of the box
Wire "5" – 25 cm counting from the inside left box wall 3
SUN_IS_ electrical_installation_v5.1_06092021 9
3. Insert the box from the mounting hole, connecting the protective pipe "2" using a torsion gland.
4. Feed wire "5" through the hole in the structure, leaving an allowance as shown in the picture below.
5. Remove the protective pipe "1A" and lead the protective pipe with bundle "1" in the marked holes in
the sauna structure.
