Safe Fleet PRIME DESIGN VCC-FT31B Manual de usuario

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪

Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

2

3

5

6

7

8

1

4

9

" Lock Washer (4X)

23” Channels (2X)

74” Channels, Pre-assembled (2X)

Channel Bracket (4X) M8 x 20MM (4X) M8 X 25MM (8X)

" Flat Washer (14X)

Mounting Bracket (8X)

Foam Pad (8X)

M8 Lock Nut (10X)Anti-Seize (1X)

11

VCC-FT31B ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

1—FBM-0095 ........................................................ (Qty 1)

Channels w/ Hardware

CONTENTS OVERVIEW

2—Rear Crossbar Assembly.................................. (Qty 1)

3—Front Crossbar Assembly................................. (Qty 1)

PRIME DESIGN, A SAFE FLEET BRAND

▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

3

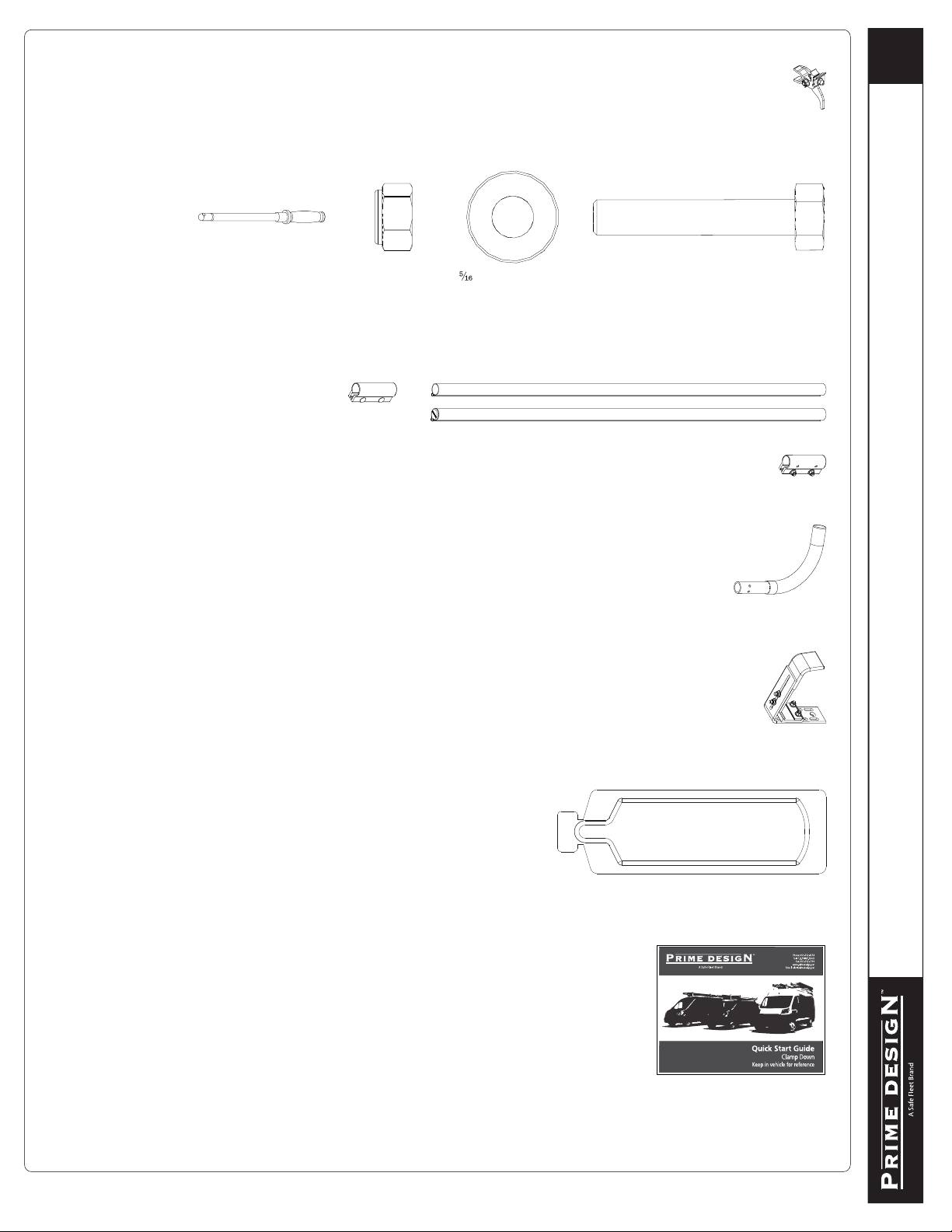

VCC-FT31B ASSEMBLY INSTRUCTIONS–PACKAGING CONTENTS

4—Handle Latch Assembly ................................... (Qty 2)

7—Quick Clamp Tube Splice Assembly ................ (Qty 2)

5.00“

9—HD Front Hook Assembly ................................. (Qty 2)

6—Clamp Down Tube Assembly ........................... (Qty 2)

104.00”

8—Removeable Horn with Cap............................. (Qty 2)

15.00”

10—Anti-Seize........................................................ (Qty 1)

5—Clamp Down Handle Assembly ....................... (Qty 2)

M8 x 45MM (1X)

M8 Lock Nut (1X)Clamp Down Handle (1X) " Flat Washer (2X)

Anti-Seize (1X)

11—USQSG-Ergorack ............................................ (Qty 1)

Quick Start Guide, Clamp Down

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪

Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

4

1

2

3

4

5

6

7

Foam Pad

Mounting Bracket

M8 x 25MM Screw

Rear

Front

M8 Lock Nut

Flat Washer

T Bolt Stud

Rear

Front

Rear Channel

VCC-FT31B ASSEMBLY INSTRUCTIONS–RIGHT SIDE CLAMP DOWN

RIGHT SIDE ASSEMBLY SEQUENCE

MOUNTING BRACKETS

1

CHANNELS

2.1

Apply Anti-Seize to all M8 x 25MM Flat Head Screws and

install the Channel Mounting Brackets with Foam Pads

onto the vehicle’s roof mounting holes. Do not tighten

screws until Step 2.3

Apply Anti-Seize to all M8 T Bolt studs, then attach to

Mounts using the indicated hardware. Do not tighten

until Step 2.2

Prior to assembling the Channels and

hardware, the OEM roof holes must be

chased using an M8 x 1.25 Chasing or

Thread Cleaning tap and uid. Doing so

will ensure accurate torque is achieved.

PRIME DESIGN, A SAFE FLEET BRAND

▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

5

Channel Rear Channel Front

(B) 96.00”

Flush

Left

Right

Rear

Front

Rear

Front

Left

Right

M8 X 20MM

Lock Washer

Flat Washer

Rear

Front

Fig. B

Contact

Fig. B

Fig. A

Flush

Fig. A

Apply silicone sealant

(not provided) to screws

Spare Strip Nut

VCC-FT31B ASSEMBLY INSTRUCTIONS–RIGHT SIDE CLAMP DOWN

2.6 Position Mounting Brackets to designated dimension shown

below, then torque the M8 X 20MM bolt to 90 in-lbs. Proceed

to Step 3.1.

2.5

Loosen nuts

Position the rear and center

Mounting Brackets as shown.

Position the front Mounting

Brackets as shown.

Attach Mounting Brackets to the Aluminum

Strip Nuts located in the Channels

2.4

2.2

Move the Rear Channel

until the Mount contacts

the End Cap. Torque nut

to 90 in-lb.

Push the Front Channels

rmly against the Rear

Channels. The Channel

Cap Screws will make

full contact. Torque all

remaining nuts and

bolts to 90 in-lb.

2.3 Torque all M8 x 25MM Flat Head Screws to

150 in-lbs. Apply Silicone Sealant to screw

heads to seal against water intrusion.

The Front Channels include two aluminum Strip Nuts

per Channel for use in a three Crossbar conguration.

For two Crossbar congurations, disregard the spare

Strip Nut in each Front Channel.

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪

Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

6

Rear

Front

Even EvenFront

Even EvenRear

VCC-FT31B ASSEMBLY INSTRUCTIONS–RIGHT SIDE CLAMP DOWN

3.1

CROSSBARS

3.2

CROSSBAR ADJUSTMENT

Torque all of these

Crossbar Clamp

nuts to 90 in-lbs

CLAMP DOWN HANDLE CLAMP DOWN TUBE

4

5.2

5.1

5.3

Do not tighten

until Step 5.5

Torque to 90 in-lbs

NOTE: For instructional clarity, the FBM Mounting System will

not be shown for the remainder of this Assembly Manual.

PRIME DESIGN, A SAFE FLEET BRAND

▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

7

3

5

°

View from vehicle front

VCC-FT31B ASSEMBLY INSTRUCTIONS–RIGHT SIDE CLAMP DOWN

5.4 Set Clamp Down Horn

to angle shown.

5.5

Torque to 90 in-lbs

HANDLE LATCH

6.1

Do not tighten

until Step 6.3

6.3

Torque to 90 in-lbs

6.2 Position the Handle Latch until the

Handle Grip is rmly seated. FRONT LADDER HOOK

SEE QUICK START GUIDE FOR ADJUSTMENTS

7.2

Seat the Front Ladder Hook

into the lower Crossbar groove

as shown in this bottom view

7.1 Remove and retain the Front Ladder Hook

fastening hardware (not shown in this view)

for Steps 7.3 and 7.4

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪

Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

8

M8 Locknut

Flat Washer

M8 x 35MM

Carriage Bolt

View from vehicle front

VCC-FT31B ASSEMBLY INSTRUCTIONS–RIGHT SIDE CLAMP DOWN

NOTE: The orientation of

the bolt hole faces away

from the Crossbar

Place the Front Hook Clamp Bracket removed in Step 7.1

into the lower groove of the Crossbar, and slide it on top

of the Front Ladder Hook Clamp

7.3 7.4 Reassemble the Front Clamp Down Tube Holder

using the fastening hardware removed at Step

7.1. Do not tighten until Step 7.6

7.6

Torque to 90 in-lbs

7.5 Adjust the Front Hook until it aligns with the Rear Hook. Perfect

alignment may not be possible in all instances, and depends

upon the location of the Crossbar Mounting Brackets. If such

interference should occur, align the Hook as close as possible.

PRIME DESIGN, A SAFE FLEET BRAND

▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

9

8

9

10

11

12

VCC-FT31B ASSEMBLY INSTRUCTIONS–LEFT SIDE CLAMP DOWN

LEFT SIDE ASSEMBLY SEQUENCE

CLAMP DOWN HANDLE CLAMP DOWN TUBE

8

9.1

9.2

9.3

Torque to 90 in-lbs

Do not tighten

until Step 9.5

PRIME DESIGN, A SAFE FLEET BRAND ▪Address: 1689 Oakdale Avenue #102, West St Paul, Minnesota 55118 ▪Phone: 651-552-8554 ▪Toll Free: 1.8.PRIME.RACK ▪Fax: 651-552-1799 ▪Email: info@primedesign.net ▪

Website: www.primedesign.net

TM & © 2019 PRIME DESIGN. PROTECTED BY ONE OR MORE OF THE FOLLOWING PATENT NO.’s 6764268, 6971563, 2364879, 8857689, 8511525, 8991889, 2271515, 2364897, 9506292, 9481313, 9481314, 9796340, 6202807, 6427889, 9415726 AND OTHER PATENTS PENDING

10

3

5

°

View from vehicle front

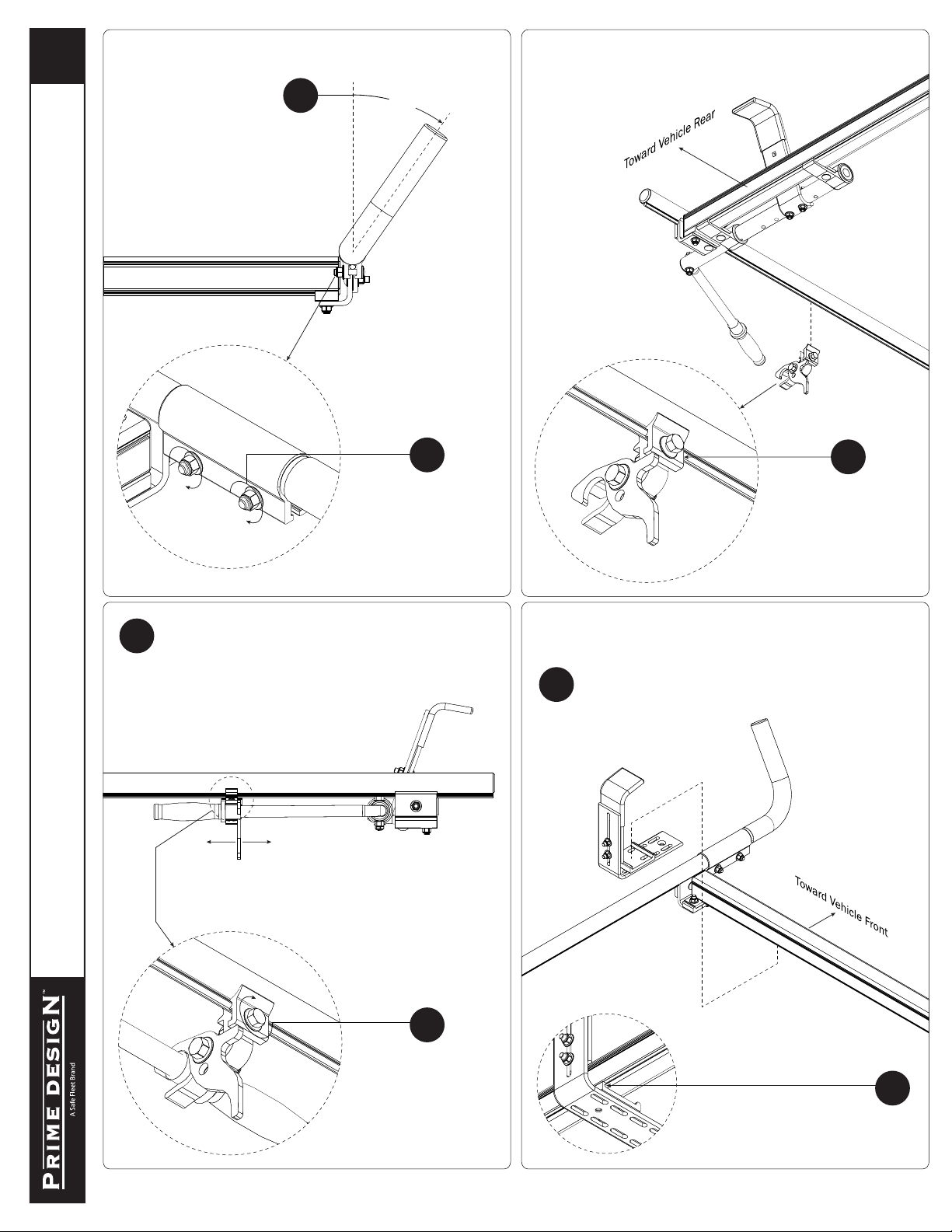

VCC-FT31B ASSEMBLY INSTRUCTIONS–LEFT SIDE CLAMP DOWN

9.4

Set Clamp Down Horn

to angle shown.

9.5

Torque to 90 in-lbs

HANDLE LATCH

10.1

Do not tighten

until Step 10.3

10.3

Torque to 90 in-lbs

10.2 Position the Handle Latch until the

Handle Grip is rmly seated. FRONT LADDER HOOK

SEE QUICK START GUIDE FOR ADJUSTMENTS

11.2

Seat the Front Ladder Hook

into the lower Crossbar groove

as shown in this bottom view

11.1 Remove and retain the Front Ladder Hook

fastening hardware (not shown in this view)

for Steps 11.3 and 11.4
