HCV5/LCV5

Quick Start Guide

Make sure that you have:

•A computer with Windows 7/8/10

•An internet connection (or a predownloaded Device Center)

•A USB A to USB micro (Type B) cable

•Tools for installation and wire connection: a panel removing tool, a wrench, a crimp terminal, zip-ties (or

double-sided tape)

Device overview

Indication LEDs

Opening handles

Grooves for zip-ties

GNSS antenna port

16 Pin port

Micro USB port

Audio port

14 Pin port

14 Pin cable pinout

No.

Wire color

Description

+BAT

Red

Power supply (9-

32 V)

DOUT1

Purple

Digital output 1

1W Data

Green/Yellow

1-Wire data

DIN3

Pink

Digital input 3

DIN4

Yellow

Digital input 4

CAN2-L

Blue

CAN Low

K-Line

Brown

K-Line

GND

Black

Ground

DOUT2

Orange

Digital output 2

1W+5V

Red/Yellow

1-Wire power

AIN2

Green

Analogue input 2

AIN1

Grey

Analogue input 1

CAN2-H

White

CAN High

SW CAN

Green/White

Single-Wire CAN

16 Pin cable pinout

No.

Wire color

Description

PortC-485 A

White/Brown

RS485 line A

PortA-RS232 TX

Green/Brown

PortA RS232 TX

PortB-RS232 TX

Pink/Green

PortB RS232 TX

DIN1

Yellow/Black

Digital input 1

DIN2

Pink/Black

Digital input 2

AIN4

White/Green

Analogue input 4

CAN1-L

Blue/Red

CAN Low

GND

Black

Ground

PortC-485 B

Yellow/Brown

RS485 line B

PortA-RS232 RX

Blue/Yellow

PortA RS232 RX

PortB-RS232 RX

Red/Cyan

PortB RS232 RX

DOUT3

White/Purple

Digital output 3

DOUT4

White/Orange

Digital output 4

AIN3

White/Grey

Analogue input 3

CAN1-H

White/Red

CAN High

1W+5V

Red/ Yellow

1-Wire power

www.ruptela.com [email protected] | +370 5 2045030 2

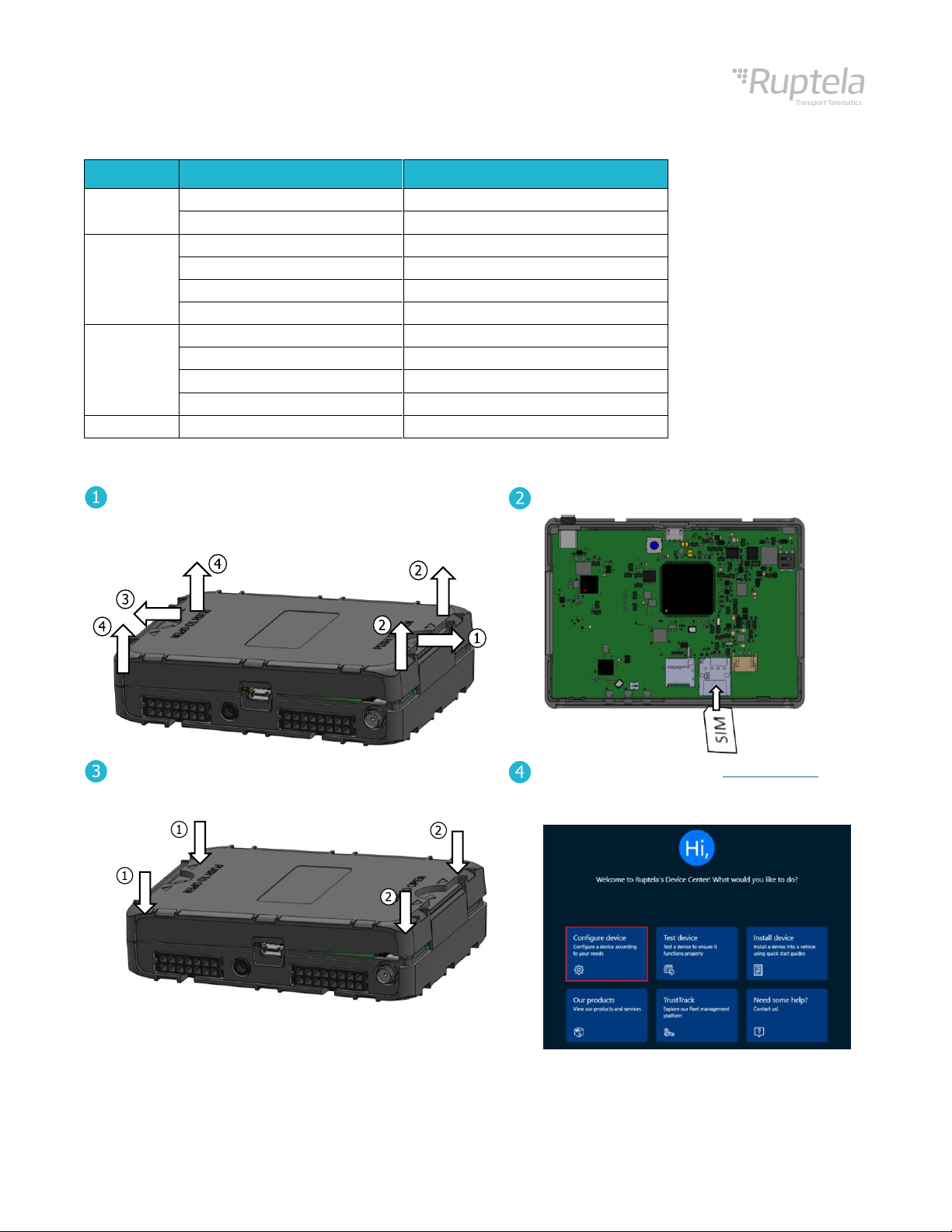

Indication LED patterns

LED

Pattern

Description

GNSS

Once every second

Accurate signal

Once every 0.4 seconds

No signal

Cellular

Once every 4 seconds

Connected to network and internet

Once every second

Connected to network, no internet

Once every 0.2 seconds

No signal

Always on

Link with the server is open

Peripherals

Always off

No devices connected

Once every 5 seconds

One device connected

Twice every 5 seconds

Two devices connected

Three times every 5 seconds

Three devices connected

All

Once every 5 seconds

Sleep mode

Configuration

Open the housing using your hands.

Push one handle away from the housing (1) and gently

lift up that side (2). Repeat the process for the other

side (3) (4).

Insert your SIM card.

Close the device by putting the top back on and push

one side down until you hear a click. Push down the

other side until you hear a click.

Download and launch the Device Center.

Install device drivers if prompted.

Click Configure device in the main menu.

www.ruptela.com [email protected] | +370 5 2045030 3

Connect the device to your computer using a USB

cable.

Click Connect device.

Select your device.

Open the Connection settings.

Configure Fleet Management System Main Server settings (TrustTrack server settings are entered by

default).

Configure GSM provider APN settings.

Click Save to device to upload the config to the device.

www.ruptela.com [email protected] | +370 5 2045030 4

Installation

For faster and easier installation, it is highly recommended to use installation harnesses.

Install the device positioned upwards, make sure it is not covered by metal.

The internal GNSS antenna is very sensitive to the device positioning. Wrong placement will

result in reduced tracking accuracy!

Follow the recommendations:

•It is allowed to tilt up to 45 degrees in any axis, but the top surface in all cases must be facing up

•Install behind the dashboard

•Install as close to the windshield as possible

•Avoid installing near metal surfaces

•Do not install the device near heat emitting or moving parts

Fasten the device in the vehicle using zip-ties or double-sided tape.

Make sure it is secured tightly.

If available, install the GNSS antenna facing towards the sky.

Connect the device according to the wiring diagram (on Page 5).

Turn on the ignition.

Test your device using the Device Center installation assistant tool. If the Overall status is green, then the

device is properly installed.

Check that the required data is received before finishing the installation.

Correct

Incorrect

Correct

Incorrect

Internal GNSS antenna

reference

www.ruptela.com [email protected] | +370 5 2045030 5

Wiring diagram

•Power input: 9-32 V DC

•Recommended protection fuse: 1 A

Further reading

•Documentation website: http://doc.ruptela.com

•Datasheet: HCV5 LCV5

•User manual: HCV5 LCV5

•Device Center: https://doc.ruptela.lt/display/AB/Device+Center

•Datasheets and Quick Start guides for harnesses: https://doc.ruptela.lt/display/AB/Harnesses

We highly recommend you read the user manual before using the device.

Legal information

contents in this document in any form without the prior written permission of Ruptela is prohibited. Other products

and company names mentioned in this document are trademarks or trade names of their respective owners.
