Firmware Version 8.7.22
460PSBC-NNA1
Protocol Gateway
Product User Guide
Real Time Automation, Inc.
2
1-800-249-1612
Trademarks
CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA.
MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered
trademarks of Microsoft Corporation. BACnet®is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning
Engineers (ASHRAE). All other trademarks and registered trademarks are the property of their holders.
Limited Warranty
Real Time Automation, Inc. warrants that this product is free from defects and functions properly.
EXCEPT AS SPECIFICALLY SET FORTH ABOVE, REAL TIME AUTOMATION, INC. DISCLAIMS ALL OTHER WARRANTIES, BOTH
EXPRESSED AND IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A
PARTICULAR APPLICATION. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER
RIGHTS, WHICH VARY FROM STATE TO STATE.
The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements
associated with any particular application, Real Time Automation, Inc. cannot assume responsibility or liability for actual use based on the
examples and diagrams. Except as specifically set forth above, Real Time Automation and its distributors and dealers will in no event be liable
for any damages whatsoever, either direct or indirect, including but not limited to loss of business profits, income, or use of data. Some states
do not allow exclusion or limitation of incidental or consequential damages; therefore, the limitations set forth in this agreement may not apply
to you.
No patent liability is assumed by Real Time Automation with respect to use of information, circuits, equipment, or software described in this
manual.
Government End-Users
If this software is acquired by or on behalf of a unit or agency of the United States Government, this provision applies: The software (a) was
developed at private expense, is existing computer software, and was not developed with government funds; (b) is a trade secret of Real Time
Automation, Inc. for all purposes of the Freedom of Information Act; (c) is “restricted computer software” submitted with restricted rights in
accordance with subparagraphs (a) through (d) of the Commercial “Computer Software-Restricted Rights” clause at 52.227-19 and its
successors; (d) in all respects is proprietary data belonging solely to Real Time Automation, Inc.; (e) is unpublished and all rights are reserved
under copyright laws of the United States. For units of the Department of Defense (DoD), this software is licensed only with “Restricted Rights”:
as that term is defined in the DoD Supplement of the Federal Acquisition Regulation 52.227-7013 (c) (1) (ii), rights in Technical Data and
Computer Software and its successors, and: Use, duplication, or disclosures is subject to restrictions as set forth in subdivision (c) (1) (ii) of the
Rights in Technical Data and Computer Software clause at 52.227-7013. If this software was acquired under GSA schedule, the U.S.
Government has agreed to refrain from changing or removing any insignia or lettering from the Software or documentation that is provided or
from producing copies of the manual or media. Real Time Automation, Inc.
© 2021 Real Time Automation, Inc. All rights reserved.
Real Time Automation, Inc.
3
1-800-249-1612
Revision History ............................................................................................................................................5
Overview .......................................................................................................................................................6
Hardware Platforms......................................................................................................................................7
Hardware –NNA1 .....................................................................................................................................8
Powering the Gateway..............................................................................................................................8
Mounting with a DIN Rail..............................................................................................................................9
Installing....................................................................................................................................................9
Removing ..................................................................................................................................................9
Accessing the Main Page.............................................................................................................................10
Error: Main Page Does Not Launch.........................................................................................................11
Committing Changes to the Settings ..........................................................................................................12
Main Page ...................................................................................................................................................13
Device Configuration...................................................................................................................................14
Network Configuration ...............................................................................................................................15
PROFINET IO Server Configuration .............................................................................................................16
PROFINET IO Server Slot Configuration ......................................................................................................17
PROFINET IO Server Slot Configuration: Auto-Configure........................................................................18
Auto-Configure Group by Device vs. Auto-Configure Group by Data Type............................................19
Group by Device (Default Method).........................................................................................................19
Group by Data Type ................................................................................................................................19
PROFINET IO Server Slot Configuration: Manual Mode..........................................................................20
Setting up the PLC- Example Using Simatic Classic Step 7..........................................................................21
Setting up the PLC- Example Using TIA Portal ............................................................................................27
BACNet/IP Client Configuration..................................................................................................................34
BACnet/IP Client Device Configuration.......................................................................................................35
Configuring Read Scan Lines ...................................................................................................................36
Configuring Writes Scan Lines.................................................................................................................36
Mapping - Transferring Data Between Devices ..........................................................................................37
Display Mapping and Values.......................................................................................................................38
Display Data ............................................................................................................................................38
Display String...........................................................................................................................................41
Display String use case................................................................................................................................43
Data and String Mapping –Auto-Configure................................................................................................44
Data Mapping –Explanation.......................................................................................................................45
Real Time Automation, Inc.
4
1-800-249-1612
Data Mapping –Adding Diagnostic Information ........................................................................................46
String Mapping –Explanation.....................................................................................................................50
Mapping –Auto-Configure Mode to Manual Configure Mode ..................................................................51
Mapping –Manual Configure Mode to Auto-Configure Mode ..................................................................52
View as Text ................................................................................................................................................53
Data Mapping..........................................................................................................................................53
String Mapping........................................................................................................................................53
Base Triggering –Data Validiation Triggering.........................................................................................54
Security Configuration ................................................................................................................................56
Security Configuration-Security Levels ...................................................................................................57
Security - Log In.......................................................................................................................................58
Security - Log Out....................................................................................................................................58
Email Configuration ....................................................................................................................................59
Alarm Configuration....................................................................................................................................60
Diagnostics –Alarm Status......................................................................................................................62
Alarms –Active .......................................................................................................................................62
Alarms –Clear .........................................................................................................................................63
Change of State (COS) Configuration..........................................................................................................64
Diagnostics Info...........................................................................................................................................65
Diagnostics Mapping...............................................................................................................................65
Diagnostics –PROFINET IO Server ..............................................................................................................66
Diagnostics –BACnet/IP Client ...................................................................................................................68
LED Configuration .......................................................................................................................................73
Configuration Files ......................................................................................................................................74
Export Configuration...............................................................................................................................74
Import Configuration ..............................................................................................................................74
Save and Replace Configuration Using SD Card..........................................................................................76
Saving Configuration Using SD Card........................................................................................................76
Replacing Configuration Using SD Card ..................................................................................................76
Intelligent Reset Button..............................................................................................................................77
Utilities........................................................................................................................................................78
Real Time Automation, Inc.
5
1-800-249-1612
Revision History
Version
Date
Notes
8.4.5
11/18/2019
Features Added
1. Released OPC UA Server (US) Protocol
2. Ability to now Import/Export Template Files with out an FTP session.
Bug Fixes
1. Updated Profinet Server (PS) on N34 hardware Platform
2. Updated Wi-Fi software
8.6.0
2/28/20
Bug Fixes
1. Omron Plc Communication fixes for EtherNet/IP
2. Profinet GSDML Substitute values fix
8.7.4
9/1/20
Features Added:
1. BMS, BM, DFM, DS, DM, TCP, USB, PBS have been ported to the latest base software.
2. TCP,BMS,BM now Available on N2E and N2EW hardware Platform
3. New ASCII Mode Available on TCP/A/USB/WI protocols
4. User Guides updated with more examples
Bug Fixes:
1. Improved Data Mapping and String Mapping performance
2. Improved functionality/performance on EC,ETC,ES,MC,MS,BS,BC, A,,WI,PS protocols.
8.7.22
4/6/21
Features Added:
1. Support for RSLogix Versions 32 + with unsigned data type support
2. ETC now support Long integer files (L files) for MicroLogix PLCS that support them
3. SC now supports data block (DB) access
Real Time Automation, Inc.
6
1-800-249-1612
Overview
The 460PSBC-NNA1 gateway connects a PROFINET IO Controller with up to 32 BACnet/IP Servers. By
following this guide, you will be able to configure the 460PSBC-NNA1 gateway.
For further customization and advanced use, please reference the appendices located on the CD or
online at: http://www.rtautomation.com/product/460-gateway-support/.
If at any time you need further assistance, do not hesitate to call Real Time Automation support.
Support Hours are Monday-Friday 8am-5pm CST
Toll free: 1-800-249-1612
Email: support@rtautomation.com
Real Time Automation, Inc.
7
1-800-249-1612
Hardware Platforms
The 460 Product Line supports a number of different hardware platforms. There are differences in how
they are powered, what serial settings are supported, and some diagnostic features supported (such as
LEDs). For these sections, be sure to identify the hardware platform you are using.
To find which hardware platform you are using:
1) Look on the front or back label of the unit for the part number.
2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select
Utilities. Click the Listing of Revisions button. The full part number is displayed here.

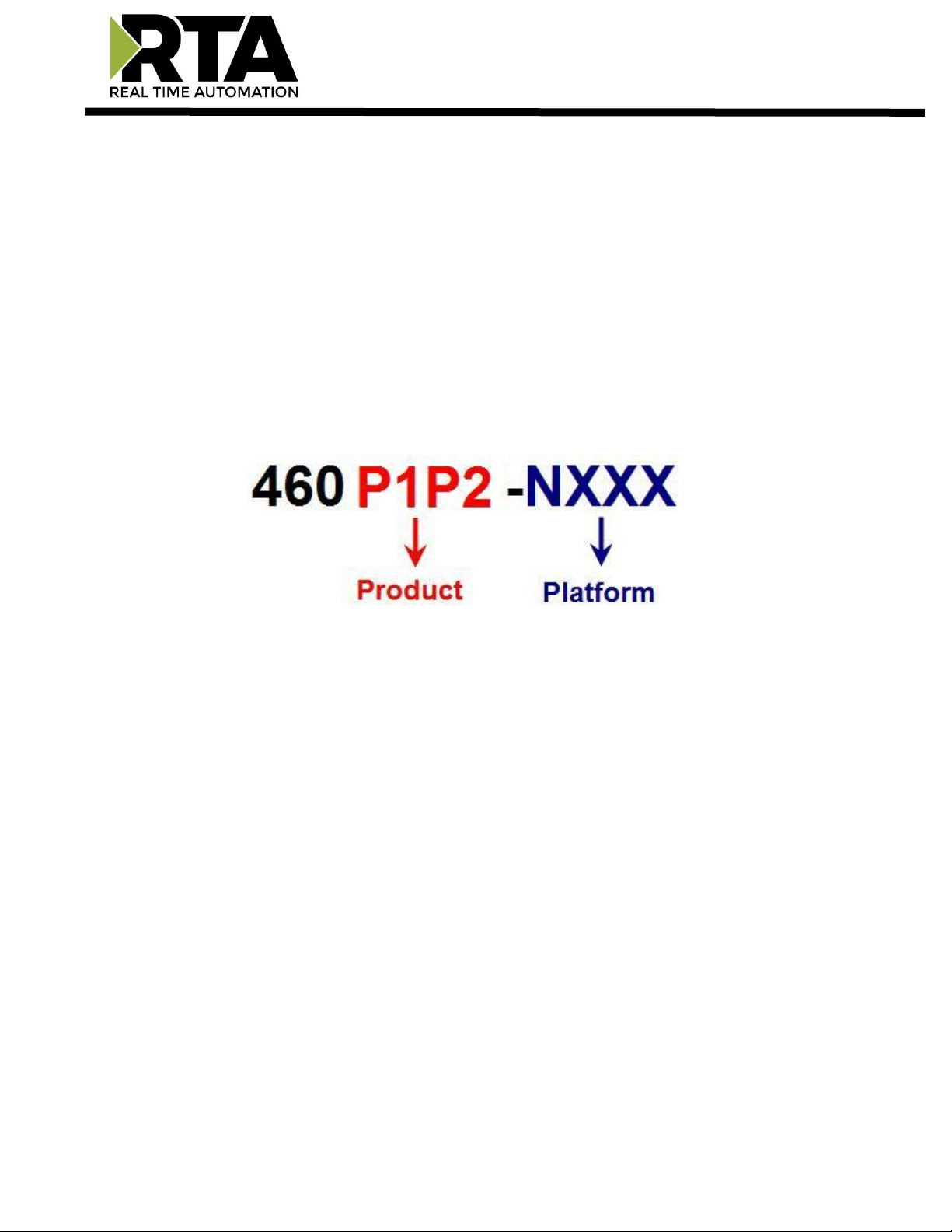

Once you have the full part number, the platform will be the number following the “-N”:
Real Time Automation, Inc.
8
1-800-249-1612
Hardware –NNA1
Powering the Gateway
1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-).
a) The unit draws 175mA @ 12 V.
Real Time Automation, Inc.
9
1-800-249-1612
Mounting with a DIN Rail
Installing
Follow these steps to install your interface converter.
1) Mount your DIN Rail.
2) Hook the bottom mounting flange under the DIN Rail.
3) While pressing the 460PSBC-NNA1 against the rail, press up to engage the spring loaded lower clip and
rotate the unit parallel to the DIN Rail.
4) Release upward pressure.
Removing
Follow these steps to remove your interface converter.
1) Press up on unit to engage the spring loaded lower clip.
2) Swing top of the unit away from DIN Rail.
DIN Rail
Spring Loaded Lower Clip
Real Time Automation, Inc.
10
1-800-249-1612
Accessing the Main Page
The following steps will help you access the browser based configuration of the gateway. By default,
DHCP is enabled. If the gateway fails to obtain an IP address over DHCP it will Auto IP with 169.254.X.Y.
For more information on your Operating system network setting refer to the Access Browser
Configuration Doc on the CD or download from our support web site.
1) Insert the provided CD-ROM into a computer also on the network.
2) Run the IPSetup.exe program from the CD-ROM.
3) Find unit under “Select a Unit”.
a. Change Gateway’s IP address to match that of your PC if DHCP has failed.
i. You will know DHCP has failed if the gateway’s IP address is AutoIP at 169.254.X.Y.
ii. If successful, it will say DHCP’d at ex: 192.168.0.100 or however your DCHP Client is set up.
b. If you do not see the gateway in this tool, then your PC is most likely set up as a static IP.
i. Change your PC’s network settings to be DHCP. If DHCP fails, then it will change to be on the 169.254.x.y
network.
ii. Relaunch the IP Setup tool to see if gateway can be discovered now.
4) Click Launch Webpage. The Main page should appear.
Default setting is set to DHCP. If DHCP fails, default IP Address is 169.254.x.y
Este manual sirve para los siguientes modelos
1
Tabla de contenidos
Otros manuales de Puerta de RTA
RTA
RTA 460ETCMRS Manual de usuario
RTA
RTA 460MRSA-NNA4 Hoja de especificaciones
RTA
RTA 460PSMC-N2EW Hoja de especificaciones
RTA
RTA 460BMSQT-NNA4 Hoja de especificaciones
RTA
RTA 460TCPQT-NNA4 Hoja de especificaciones
RTA
RTA 460MCBS-NNA4 Hoja de especificaciones
RTA
RTA 460MCQT-NNA1 Hoja de especificaciones
RTA
RTA 460BS-NNA1 Hoja de especificaciones
RTA
RTA 460ETCPBS Hoja de especificaciones
RTA
RTA 460ECSC-NNA1 Hoja de especificaciones
RTA
RTA 460MRSBC-N700 Hoja de especificaciones
RTA
RTA 460ESBS-N34 Hoja de especificaciones
RTA
RTA 490NBX Hoja de especificaciones
RTA
RTA 460PSBMS-N700 Hoja de especificaciones
RTA
RTA 460BSUS-NNA4 Hoja de especificaciones
RTA
RTA 460BMTCP-NNA4 Hoja de especificaciones
RTA
RTA 460SCUS-NNA1 Hoja de especificaciones
RTA
RTA 460SC-N2EW Hoja de especificaciones
RTA
RTA 460MSBM-NNA1 Hoja de especificaciones
RTA
RTA 460MS-NNA4 Hoja de especificaciones
Manuales populares de Puerta de otras marcas
LST
LST M500RFE-AS Manual de usuario
Kinnex
Kinnex Media Gateway Manual de usuario
2N Telekomunikace
2N Telekomunikace 2N StarGate Manual de usuario
Mitsubishi Heavy Industries
Mitsubishi Heavy Industries Superlink SC-WBGW256 Manual de usuario
ZyXEL Communications
ZyXEL Communications ZYWALL2 ET 2WE Manual de usuario
Telsey
Telsey CPVA 500 - SIP Manual de usuario
HMS
HMS Netbiter EasyConnect EC150 Manual de usuario
Huawei
Huawei EchoLife HG620 Manual de usuario
AT&T
AT&T U-verse 3801 Manual de uso y cuidado
Logic IO
Logic IO RTCU MX2 turbo Manual de usuario
Suttle
Suttle MediaMAX MXM-521 Manual de usuario
Rosonix Technology
Rosonix Technology RSG-3000 Manual de usuario
