RTA 460ESBMS-NNA4 Hoja de especificaciones

Real Time Automation, Inc.

1-800-249-1612

Firmware Version 8.7.22

460ESBMS-NNA4

Protocol Gateway

Product User Guide

Real Time Automation, Inc.

1-800-249-1612

Trademarks

CompactLogix, ControlLogix, & PLC-5 are registered trademarks of Rockwell Automation, Inc. EtherNet/IP is a trademark of the ODVA.

MicroLogix, RSLogix 500, and SLC are trademarks of Rockwell Automation, Inc. Microsoft, Windows, and Internet Explorer are registered

trademarks of Microsoft Corporation. BACnet®is a registered trademark of American Society of Heating, Refrigerating and Air-Conditioning

Engineers (ASHRAE). All other trademarks and registered trademarks are the property of their holders.

Limited Warranty

Real Time Automation, Inc. warrants that this product is free from defects and functions properly.

EXCEPT AS SPECIFICALLY SET FORTH ABOVE, REAL TIME AUTOMATION, INC. DISCLAIMS ALL OTHER WARRANTIES, BOTH

EXPRESSED AND IMPLIED, INCLUDING BUT NOT LIMITED TO IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A

PARTICULAR APPLICATION. THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY ALSO HAVE OTHER

RIGHTS, WHICH VARY FROM STATE TO STATE.

The examples and diagrams in this manual are included solely for illustrative purposes. Because of the many variables and requirements

associated with any particular application, Real Time Automation, Inc. cannot assume responsibility or liability for actual use based on the

examples and diagrams. Except as specifically set forth above, Real Time Automation and its distributors and dealers will in no event be liable

for any damages whatsoever, either direct or indirect, including but not limited to loss of business profits, income, or use of data. Some states

do not allow exclusion or limitation of incidental or consequential damages; therefore, the limitations set forth in this agreement may not apply

to you.

No patent liability is assumed by Real Time Automation with respect to use of information, circuits, equipment, or software described in this

manual.

Government End-Users

If this software is acquired by or on behalf of a unit or agency of the United States Government, this provision applies: The software (a) was

developed at private expense, is existing computer software, and was not developed with government funds; (b) is a trade secret of Real Time

Automation, Inc. for all purposes of the Freedom of Information Act; (c) is “restricted computer software” submitted with restricted rights in

accordance with subparagraphs (a) through (d) of the Commercial “Computer Software-Restricted Rights” clause at 52.227-19 and its

successors; (d) in all respects is proprietary data belonging solely to Real Time Automation, Inc.; (e) is unpublished and all rights are reserved

under copyright laws of the United States. For units of the Department of Defense (DoD), this software is licensed only with “Restricted Rights”:

as that term is defined in the DoD Supplement of the Federal Acquisition Regulation 52.227-7013 (c) (1) (ii), rights in Technical Data and

Computer Software and its successors, and: Use, duplication, or disclosures is subject to restrictions as set forth in subdivision (c) (1) (ii) of the

Rights in Technical Data and Computer Software clause at 52.227-7013. If this software was acquired under GSA schedule, the U.S.

Government has agreed to refrain from changing or removing any insignia or lettering from the Software or documentation that is provided or

from producing copies of the manual or media. Real Time Automation, Inc.

Real Time Automation, Inc.

1-800-249-1612

Revision History ............................................................................................................................................6

Overview .......................................................................................................................................................7

Hardware Platforms......................................................................................................................................8

Hardware –NNA4 .....................................................................................................................................9

Powering the Gateway..............................................................................................................................9

Port Configuration...................................................................................................................................10

Mounting with a DIN Rail............................................................................................................................11

Installing..................................................................................................................................................11

Removing ................................................................................................................................................11

Accessing the Main Page.............................................................................................................................12

Error: Main Page Does Not Launch.........................................................................................................13

Committing Changes to the Settings ..........................................................................................................14

Main Page ...................................................................................................................................................15

Device Configuration...................................................................................................................................16

Network Configuration ...............................................................................................................................17

EtherNet/IP Adapter Configuration ............................................................................................................18

EtherNet/IP Adapter Data Group Configuration.........................................................................................19

EtherNet/IP Adapter Data Group Configuration: Auto-Configure..........................................................20

Group by Device (Default Method).........................................................................................................21

Group by Data Type ................................................................................................................................21

EtherNet/IP Adapter Data Group Configuration: Manual Mode............................................................22

EtherNet/IP Adapter Data Group Configuration: Using Strings..............................................................24

EtherNet/IP Adapter Mapping Configuration.........................................................................................27

BACnet MS/TP Slave Configuration ............................................................................................................30

BACnet MS/TP Slave Configuration-Data Groups.......................................................................................31

BACnet MS/TP Slave Configuration: Auto-Configure Mode (Default)....................................................32

BACnet MS/TP Slave Configuration: Manual Configure Mode...............................................................33

BACnet MS/TP Slave Object Configuration –Analog Objects.................................................................34

BACnet MS/TP Slave Object Configuration –Binary Objects......................................................................35

BACnet MS/TP Slave Object Configuration –CharacterString Value Objects ............................................36

BACnet MS/TP Slave Object Configuration –Group Names...................................................................37

Mapping - Transferring Data Between Devices ..........................................................................................38

Display Mapping and Values.......................................................................................................................39

Display Data ............................................................................................................................................39

Real Time Automation, Inc.

1-800-249-1612

Display String...........................................................................................................................................42

Display String use case................................................................................................................................44

Data and String Mapping –Auto-Configure................................................................................................45

Data Mapping –Explanation.......................................................................................................................46

Data Mapping –Adding Diagnostic Information ........................................................................................47

String Mapping –Explanation.....................................................................................................................51

Mapping –Auto-Configure Mode to Manual Configure Mode ..................................................................52

Mapping –Manual Configure Mode to Auto-Configure Mode ..................................................................53

View as Text ................................................................................................................................................54

Data Mapping..........................................................................................................................................54

String Mapping........................................................................................................................................54

Base Triggering –Data Validiation Triggering.........................................................................................55

Security Configuration ................................................................................................................................57

Security Configuration-Security Levels ...................................................................................................58

Security - Log In.......................................................................................................................................59

Security - Log Out....................................................................................................................................59

Email Configuration ....................................................................................................................................60

Alarm Configuration....................................................................................................................................61

Diagnostics –Alarm Status......................................................................................................................63

Alarms –Active .......................................................................................................................................63

Alarms –Clear .........................................................................................................................................64

Change of State (COS) Configuration..........................................................................................................65

Diagnostics Info...........................................................................................................................................66

Diagnostics Mapping...............................................................................................................................66

Diagnostics –EtherNet/IP Adapter.............................................................................................................67

Diagnostics –BACnet MS/TP Slave .............................................................................................................70

LED Configuration .......................................................................................................................................74

Configuration Files ......................................................................................................................................75

Export Configuration...............................................................................................................................75

Import Configuration ..............................................................................................................................75

Save and Replace Configuration Using SD Card..........................................................................................77

Saving Configuration Using SD Card........................................................................................................77

Replacing Configuration Using SD Card ..................................................................................................77

Intelligent Reset Button..............................................................................................................................78

Real Time Automation, Inc.

1-800-249-1612

Utilities........................................................................................................................................................79

Real Time Automation, Inc.

1-800-249-1612

Revision History

Version

Date

Notes

8.4.5

11/18/2019

Features Added

1. Released OPC UA Server (US) Protocol

2. Ability to now Import/Export Template Files with out an FTP session.

Bug Fixes

1. Updated Profinet Server (PS) on N34 hardware Platform

2. Updated Wi-Fi software

8.6.0

2/28/20

Bug Fixes

1. Omron Plc Communication fixes for EtherNet/IP

2. Profinet GSDML Substitute values fix

8.7.4

9/1/20

Features Added:

1. BMS, BM, DFM, DS, DM, TCP, USB, PBS have been ported to the latest base software.

2. TCP,BMS,BM now Available on N2E and N2EW hardware Platform

3. New ASCII Mode Available on TCP/A/USB/WI protocols

4. User Guides updated with more examples

Bug Fixes:

1. Improved Data Mapping and String Mapping performance

2. Improved functionality/performance on EC,ETC,ES,MC,MS,BS,BC, A,,WI,PS protocols.

8.7.22

4/6/21

Features Added:

1. Support for RSLogix Versions 32 + with unsigned data type support

2. ETC now support Long integer files (L files) for MicroLogix PLCS that support them

3. SC now supports data block (DB) access

Real Time Automation, Inc.

1-800-249-1612

Overview

The 460ESBMS-NNA4 gateway connects an EtherNet/IP Scanner with a BACnet MS/TP Master. By

following this guide, you will be able to configure the 460ESBMS-NNA4 gateway.

For further customization and advanced use, please reference the appendices located on the CD or

online at: http://www.rtautomation.com/product/460-gateway-support/.

If at any time you need further assistance, do not hesitate to call Real Time Automation support.

Support Hours are Monday-Friday 8am-5pm CST

Toll free: 1-800-249-1612

Email: support@rtautomation.com

Real Time Automation, Inc.

1-800-249-1612

Hardware Platforms

The 460 Product Line supports a number of different hardware platforms. There are differences in how

they are powered, what serial settings are supported, and some diagnostic features supported (such as

LEDs). For these sections, be sure to identify the hardware platform you are using.

To find which hardware platform you are using:

1) Look on the front or back label of the unit for the part number.

2) On the webpage inside the gateway, navigate to the dropdown menu under Other and select

Utilities. Click the Listing of Revisions button. The full part number is displayed here.

Once you have the full part number, the platform will be the number following the “-N”:

Real Time Automation, Inc.

1-800-249-1612

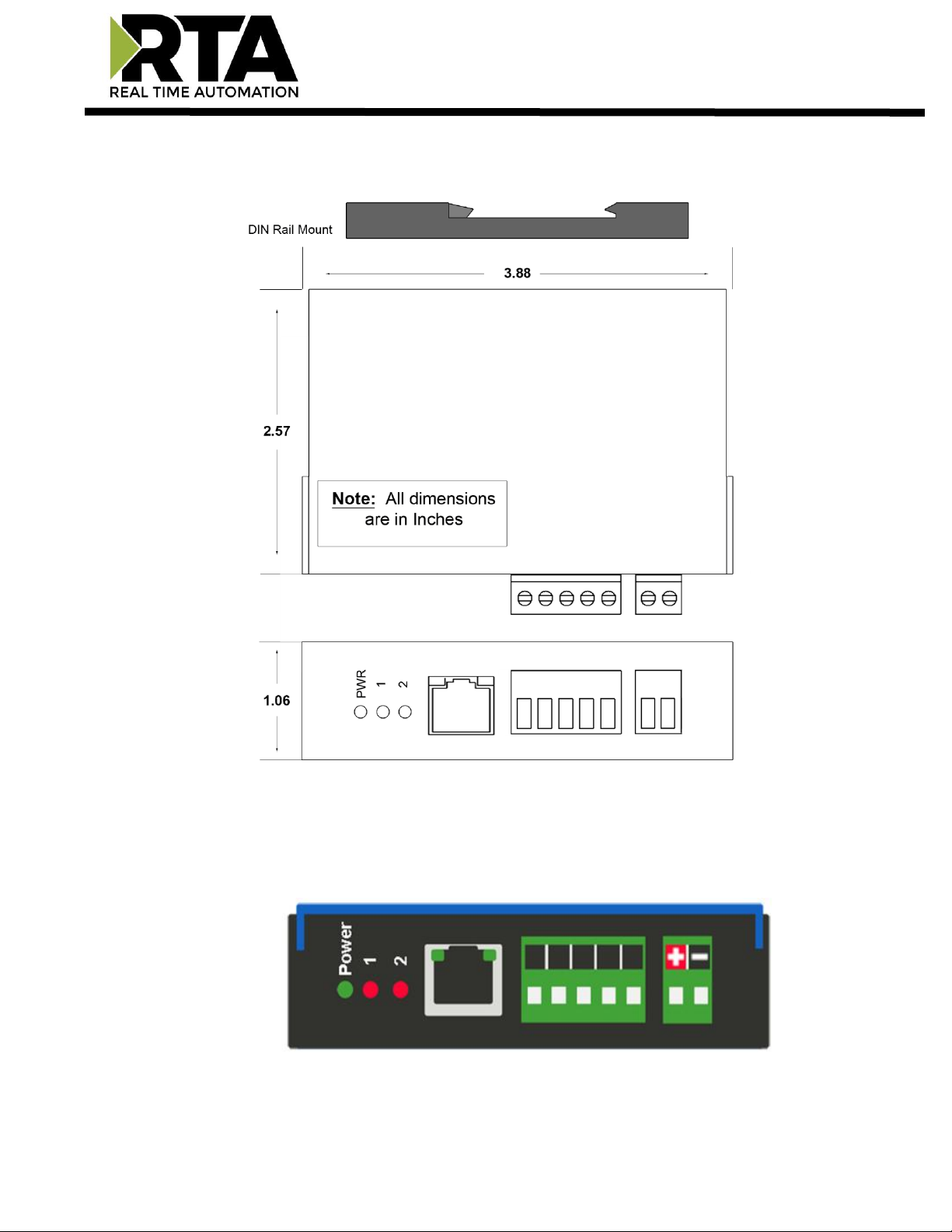

Hardware –NNA4

Powering the Gateway

1) Connect a 12-24 VDC power source to the gateway, Red Wire = (+) Black Wire = (-).

a) The unit draws 175mA @ 12 V.

Real Time Automation, Inc.

1-800-249-1612

Port Configuration

The Port Configuration page is where you set port specific parameters. These settings must match the

settings of the device(s) that you are connecting to.

When you have completed your port configuration, click the Save Parameters button.
