Wireless N Adapter RNX-N150UBE

Quick Installation Guide

Wireless N Adapter RNX-N150UBE Quick Installation Guide

About This Guide

This Quick Installation Guide only provides you some basic configuration instructions.

For more detailed information, please refer to the Wireless Network Adapter User Manual.

Before you begin, you must check the following minimum system requirements

A notebook /desktop pc with an available USB port

At least a 300MHz processor and 32MB of memory

An 802.11n、802.11g or 802.11b Access Point (for infrastructure Mode) or another

802.11n、802.11g or 802.11b wireless adapter (for Ad-Hoc; Peer-to-Peer networking

mode.)

1

Wireless N Adapter RNX-N150UBE Quick Installation Guide

Install Driver and Utility

Insert the Driver and Utility CD-ROM into the CD-ROM driver.

The Wizard should run automatically, and Error! Reference source not found.

should appear. If not, click the Start button and choose Run. In the field that

appears, enter D:\autorun.exe (if ‘’D’’is the letter of your CD-ROM drive).

Click Install Driver & Utility for USB Wireless Adapter on the Wireless Client

Configuration Utility dialogue box, and then select the installing language from

the next screen and click Next button.

2

Wireless N Adapter RNX-N150UBE Quick Installation Guide

Click Next

Click Install to start installing

3

Wireless N Adapter RNX-N150UBE Quick Installation Guide

If you encounter below pop-up windows, please click “continue Anyway”.

Follow the InstallShield Wizard steps, and click Finish when done.

4

Wireless N Adapter RNX-N150UBE Quick Installation Guide

Click Finish, then your PC or notebook will restart automatically.

Configure your wireless adapter

Double-click the icon on your desktop to run

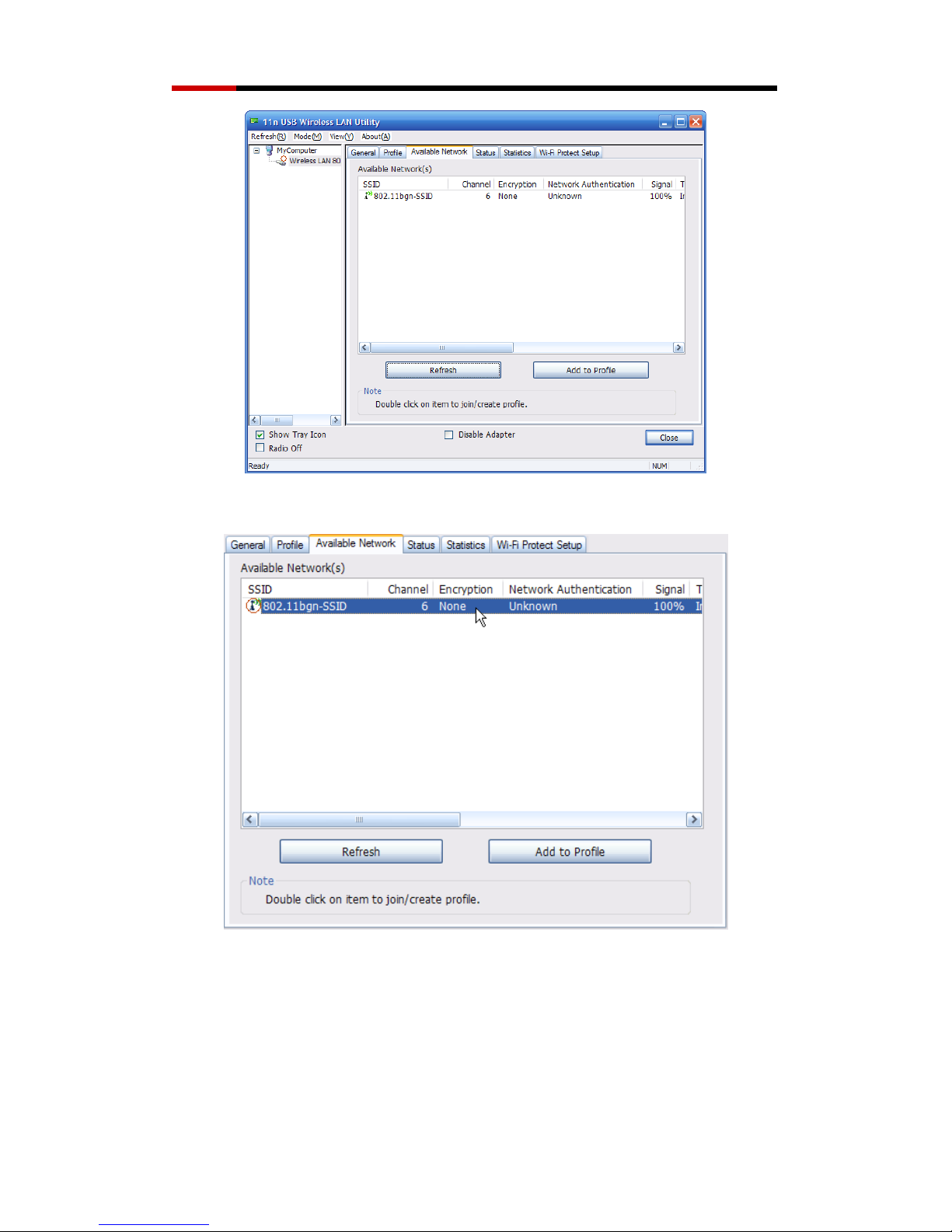

Select Available Network tab and click Refresh button to refresh current

available wireless network

5

Wireless N Adapter RNX-N150UBE Quick Installation Guide

Select the wireless network which you want to connect, and then click “Add

to Profile”.

Choose the Network Authentication Mode and Data encryption from the

drop-down menu and import the network key in popup window. Then click

OK button.

6

Wireless N Adapter RNX-N150UBE Quick Installation Guide

7

Congratulations! You’ve successfully configured your wireless adapter and

connected to a wireless network!

Thank you for purchasing a quality Rosewill Product.

Please register your product at: www.rosewill.com for complete warranty information and

future support for your product.
